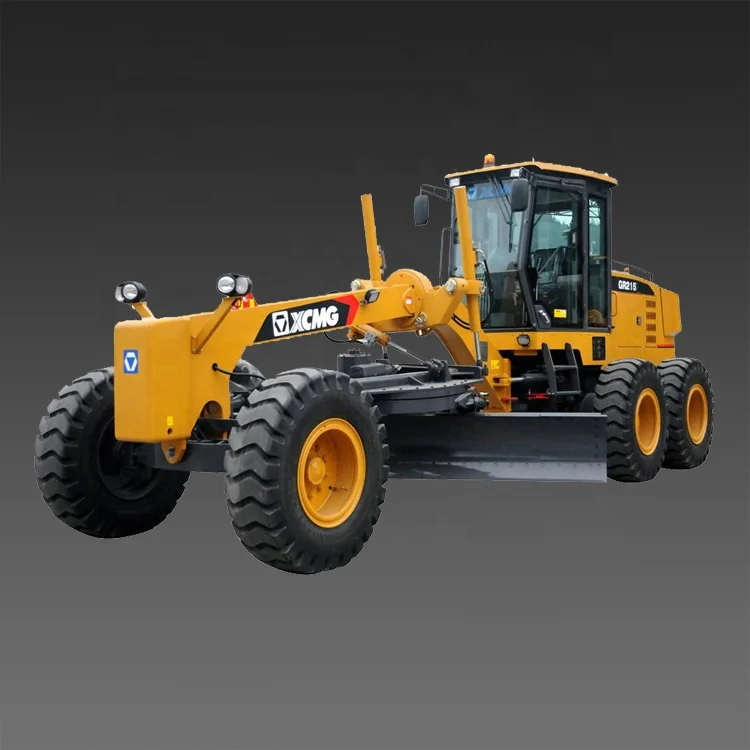

XCM GR215 6CTA8.3 Engine Tractor Grader Machine for Sale
- Category: >>>
- Supplier: Xuzhou Focus Industry Group Co. Ltd.
Share on (60852128017):
Product Overview
Description

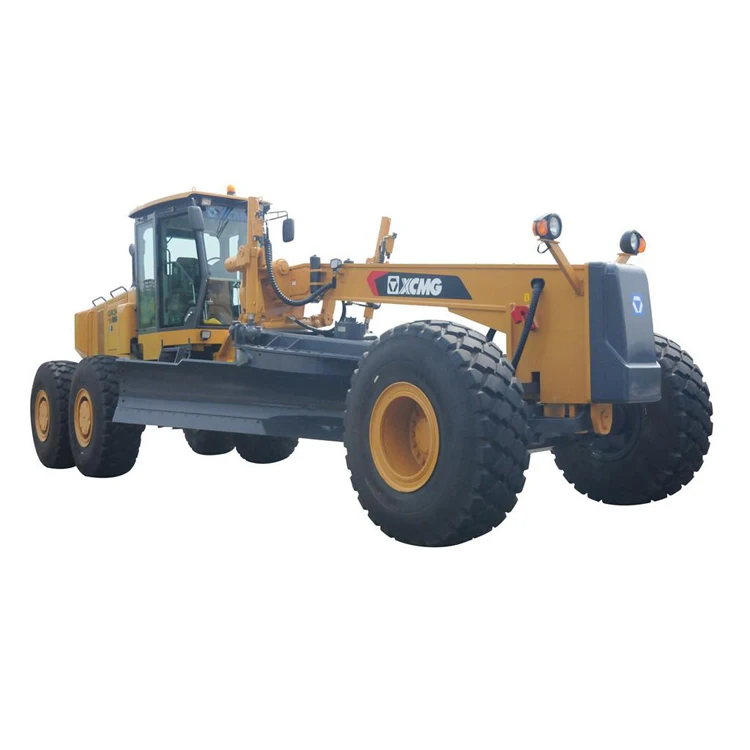

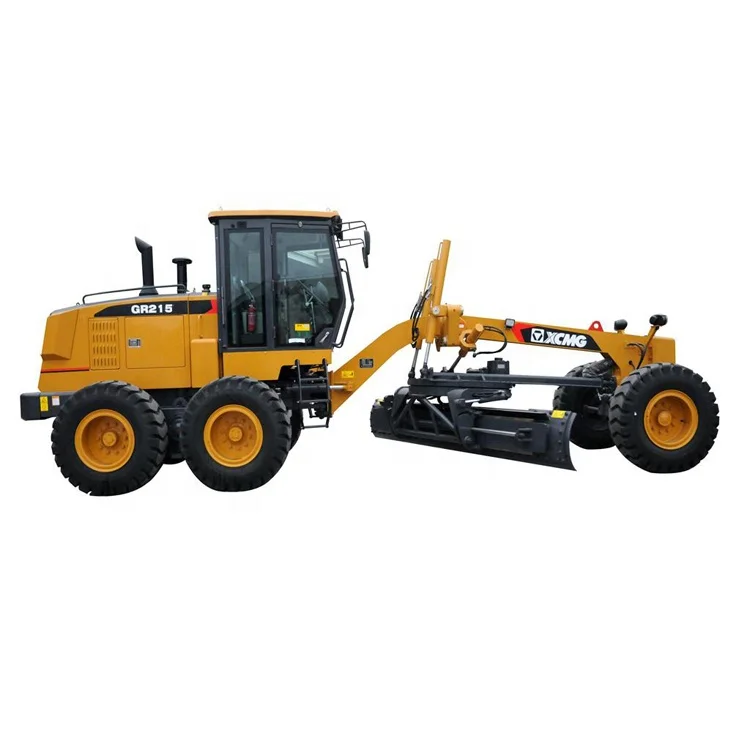

XCM Motor grader GR215/GR215A
Main parameters:
Operating weight :16 tons ,
Moldboard : 4270×610mm,
Detailed configuration
* 6CTA8.3 engine,
* Meritor Driving axle ,
* Advanced transmission or transmission
* Air conditioner driving cabin ,
* Imported differential mechanism .
Advantages
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .
Optional parts

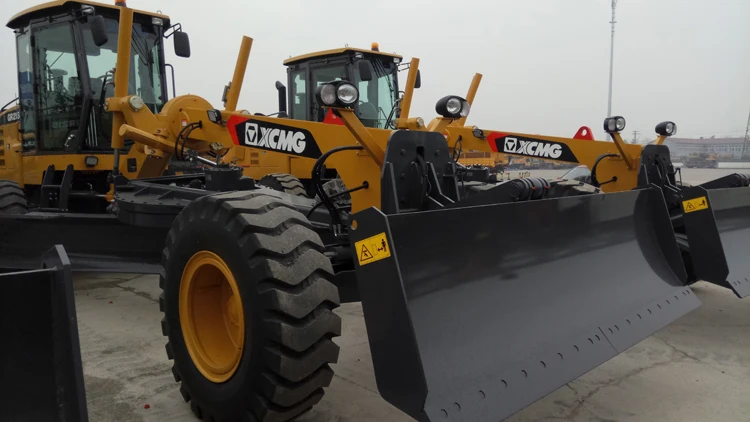

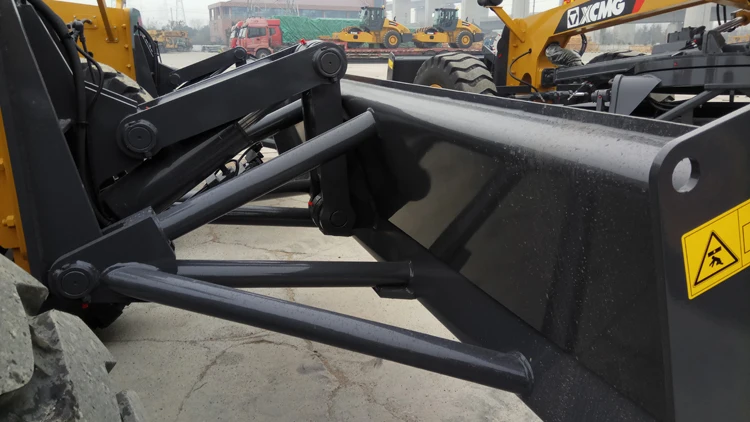

* Front mouldboard ,

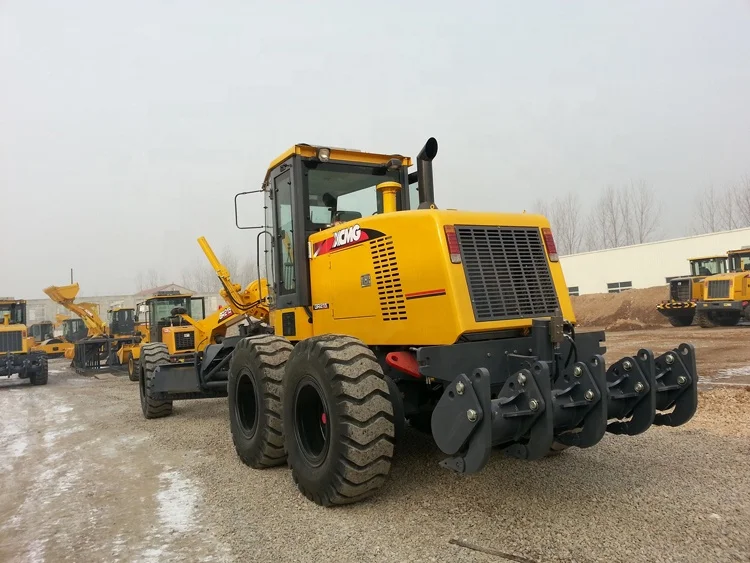

* Rear scarifier ,
* Shovel blade
*Configuration for low temperature area .
GR215 | GR215A | |
Engine model | 6CTA8.3 | 6CTA8.3 |
Rated power/speed | 160kW/2200rpm | 160kW/2200rpm |
Dimension(LxWxH) | 8970×2625×3470mm | 9180×2625×3300mm |
Operating weight(Standard) | 16500kg | 16100kg |
Performance specification |
|
|
Travelling speed ,forward | 5,8,11,19,23,38 km/h | 5,8,11,19,23,38 km/h |
Travelling speed ,reverse | 5,11,23 km/h | 5,11,23 km/h |
Tractive force(f=0.75) | 82KN | 82KN |
Max. gradeability | 20% | 20% |
Tire inflation pressure | 260 kPa | 260 kPa |
Working hydraulic pressure | 16 MPa | 16 MPa |
Transmission pressure | 1.3~1.8MPa | 1.3~1.8MPa |
Operating specification |
|
|
Max. steering angle of front wheels | ±50° | ±17° |
Max. lean angle of front wheels | ±17° | ±15° |
Max. oscillation angle of front axle | ±15° | 15 |
Max. oscillation angle of balance box | 15 | ±27° |
Frame articulation angle | ±27° | 7.3m |
Min. turning radius using articulation | 7.3m |
|
Biade |
|
|
Maximum lift above ground | 450mm | 500mm |
Maximum blade position angle | 90° | 28°—70° |
Circle reversing rotation | 360° | 360° |
Moldboard width X height | 4270×610mm | 4270×610mm |
We devotes to Chinese top brands construction machinery and all side after service supplying. We are in Xuzhou city, the same with the world-famous XCMG, here we have the best superiority of Chinese construction machines. Based on the big support from XCMG and competitive resource of construction machines, Focus Industry Group comes to be a professional supplier of Chinese construction machinery. Our business covers the countries in Africa, Middle East, South America, Asia and Euro, etc.
