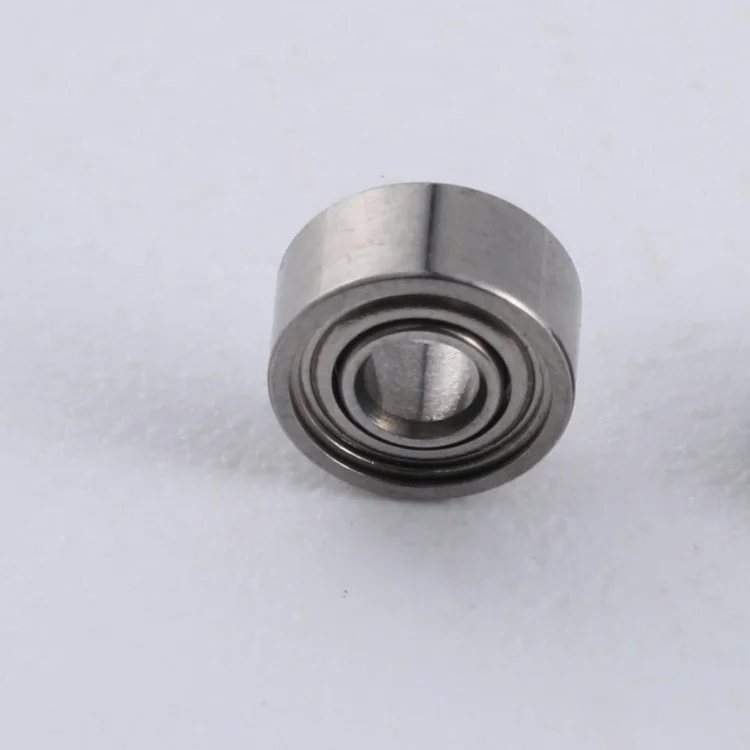

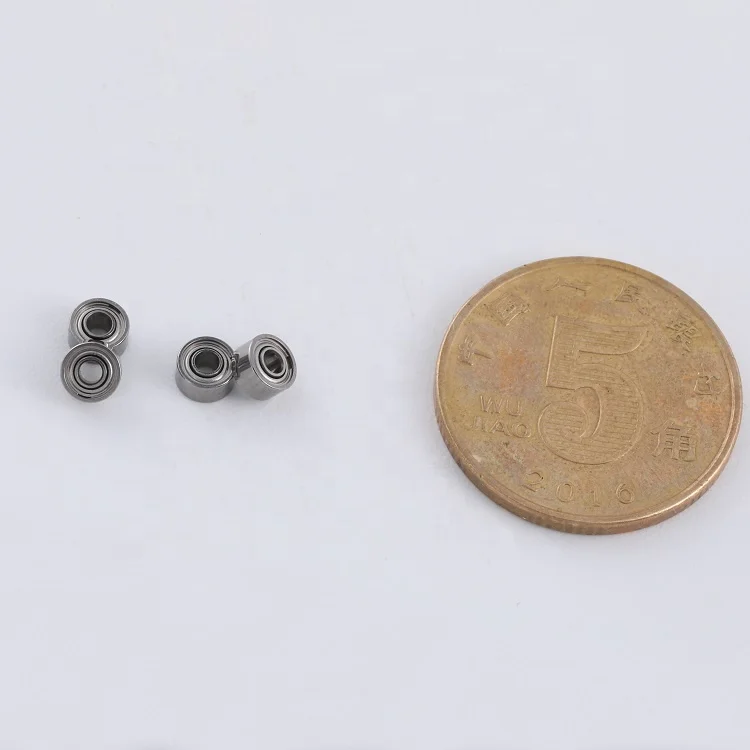

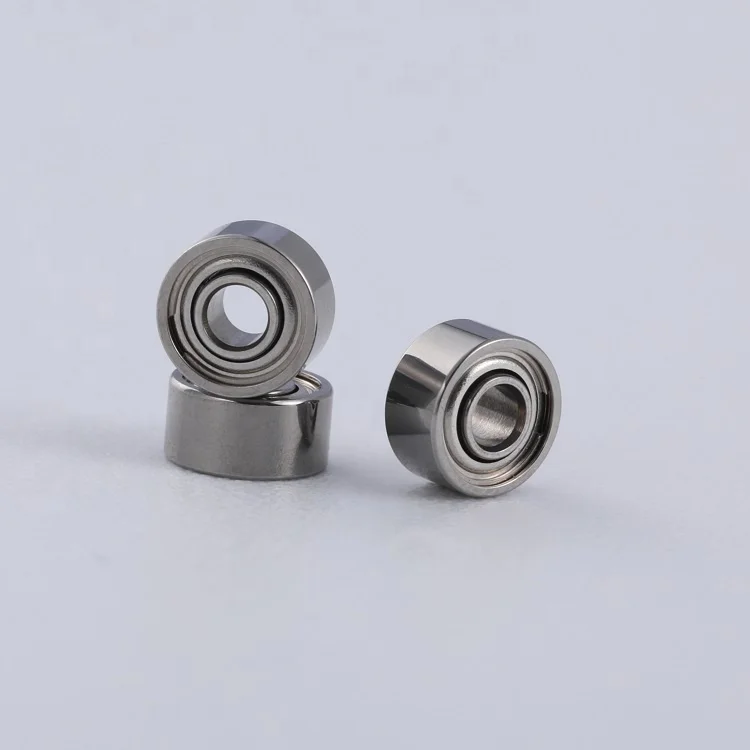

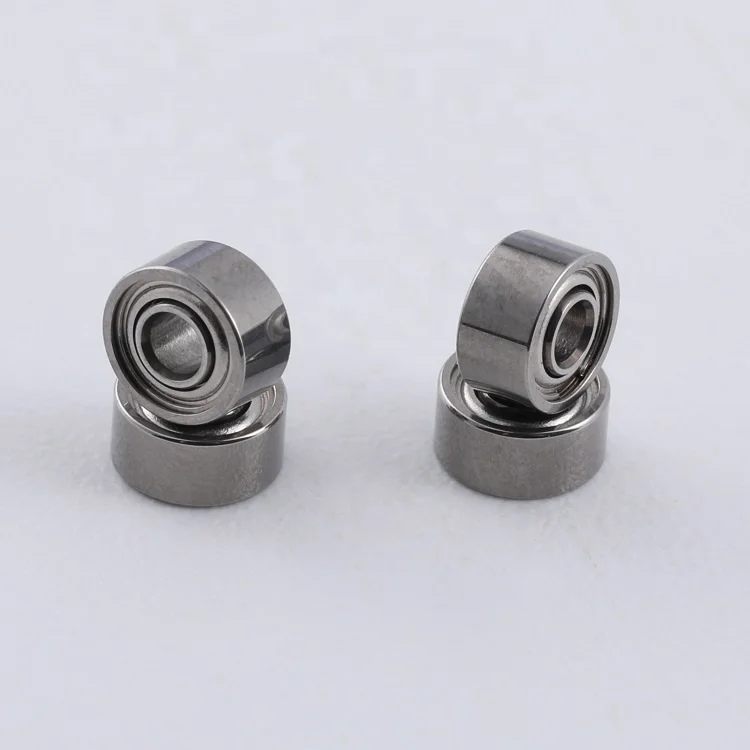

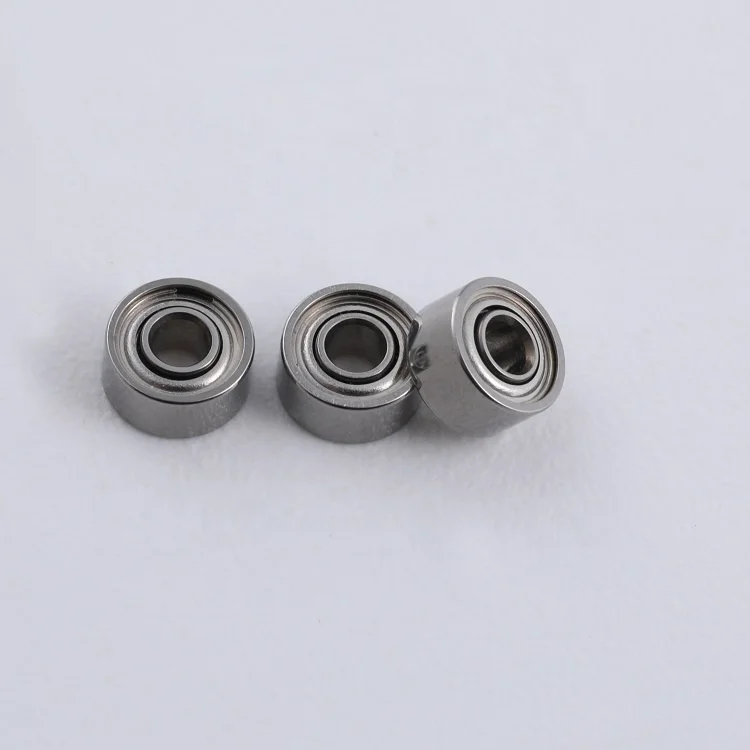

ISO9001:2015 manufacturer 1.5x4x2mm 681xzz 1cm ball bearing

Product Overview

Description











we manufacture inch series of  flanged miniature ball bearing for industries,as well as metric sieries, extended inner ring bearing is hot bearing in our factory.





	Bore Diameter (d)	Outer Diameter (D)	Flange	Width		Flange Width(c)
Type			Outer Diameter	(b)
			(D1)	open	zz	open	zz
FR1-4zzs	1.984	6.35	7.518	2.38	3.571	0.584	0.787
FR133zz	2.38	4.762	5.944	1.588	2.38	0.457	0.787
FR1-5zzs		7.938	9.119	2.779	3.571	0.584	0.787
FR144zzs		6.35	7.518	2.38	2.779	0.584	0.787
FR2-5zz	3.175	7.938	9.119	2.779	3.571	0.584	0.787
FR2-6zzs		9.525	10.719	2.779	3.571	0.584	0.787
FR2zz		9.525	11.176	3.967	3.967	0.762	0.762
FE155zzs	3.967	7.938	9.119	2.779	3.175	0.584	0.914
FR156zzs	4.762	7.938	9.119	2.779	3.175	0.584	0.914
FR166zz		9.525	10.719	3.175	3.175	0.584	0.787
FR3zz		12.7	14.351	4.978	4.978	1.067	1.067
FR168zzs	6.35	9.525	10.719	3.175	3.175	0.584	0.914







ITEMS	DIMENSION
	d	D	Width for open	width for shieds	radius
681Xzz	1.5	4	1.2	2	0.05
691Xzz		5	2	2.6	0.15
601Xzz		6	2.5	3	0.15
682zz	2	5	1.5	2.3	0.08
MR52zz		5	2	2.5	0.10
692zz		6	2.3	3	0.15
MR62zz		6	2.5	2.5	0.15
MR72zz		7	2.5	3	0.15
602zz		7	2.8	3.5	0.15
682Xzz	2.5	6	1.8	2.6	0.08
692Xzz		7	2.5	3.5	0.15
		8	2.5	-	0.20
602Xzz		8	2.8	4	0.15
MR63zz	3	6	2	2.5	0.10
683zz		7	2	3	0.10
MR83zz		8	2.5	3	0.15
693zz		8	3	4	0.15
MR93zz		9	2.5	4	0.20
603zz		9	3	5	0.15
623zz		10	4	4	0.15
633zz		13	5	5	0.20
MR74zz	4	7	2	2.5	0.10
MR84zz		8	2	3	0.15
684zz		9	2.5	4	0.10
MR104zz		10	3	4	0.20
694zz		11	4	4	0.15
604zz		12	4	4	0.20
624zz		13	5	5	0.20
634zz		16	5	5	0.30
MR85zz	5	8	2	2.5	0.10
MR95zz		9	2.5	3	0.15
MR105zz		10	3	4	0.15
MR115zz		11	-	4	0.15
685zz		11	3	5	0.15
695zz		13	4	4	0.20
605zz		14	5	5	0.20
625zz		16	5	5	0.30
635zz		19	6	6	0.30
MR106zz	6	10	2.5	3	0.15
MR126zz		12	3	4	0.20
686zz		13	3.5	5	0.15
696zz		15	5	5	0.20
606zz		17	6	6	0.30
626zz		19	6	6	0.30
636zz		22	7	7	0.30
MR117zz	7	11	2.5	3	0.15
MR137zz		13	3	4	0.20
687zz		14	3.5	5	0.15
697zz		17	5	5	0.30
607zz		19	6	6	0.30
627zz		22	7	7	0.30
637zz		26	9	6	0.30
MR128zz	8	12	2.5	3.5	0.15
MR148zz		14	3.5	4	0.20
688zz		16	4	5	0.20
698zz		19	6	6	0.30
608z		22	7	7	0.30
628zz		24	8	8	0.30
638zz		28	9	9	0.30
679zz		14	3	4.5	0.30
689zz	9	17	4	5	0.20
699zz		20	6	6	0.30
609zz		24	7	7	0.30
629zz		26	8	8	0.30
639zz		30	10	10	0.60
6700zz		15	4	4	0.15
6800zz		19	5	5	0.30
63800zz		19	-	7	0.30
6900zz		22	6	6	0.30
