EPS Underfloor Heating Panel with Aluminum Reflective Sheet and Foil

EPS Underfloor Heating Panel with Aluminum Reflective Sheet and Foil

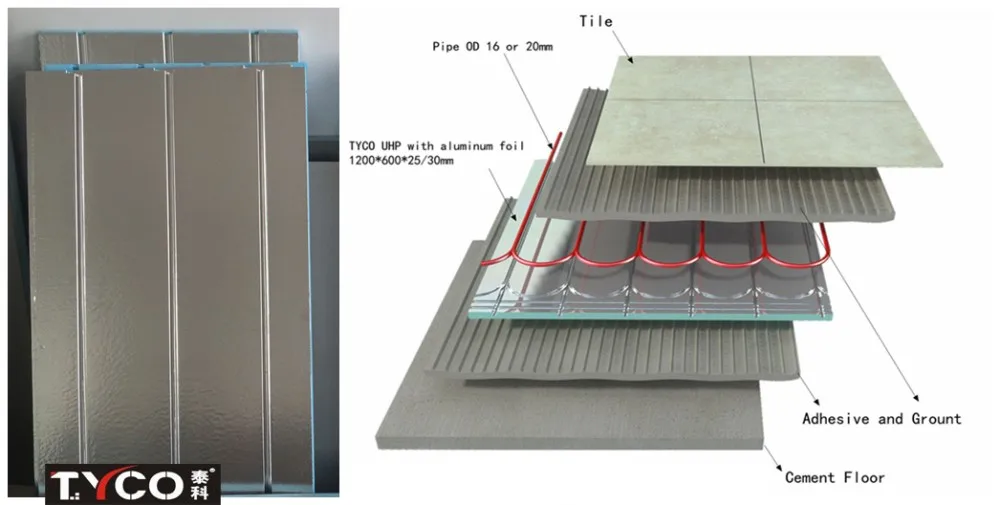

EPS UHP with aluminum foil with compressive strength above 400kpa is ready for tile directly by using Mapei flexible tile adhesives. It also suits to the laminated, engineered wooden, carpet and vinyl finishing floors( intermediate backer board are required when you use carpet and vinyl as floor finishing.)

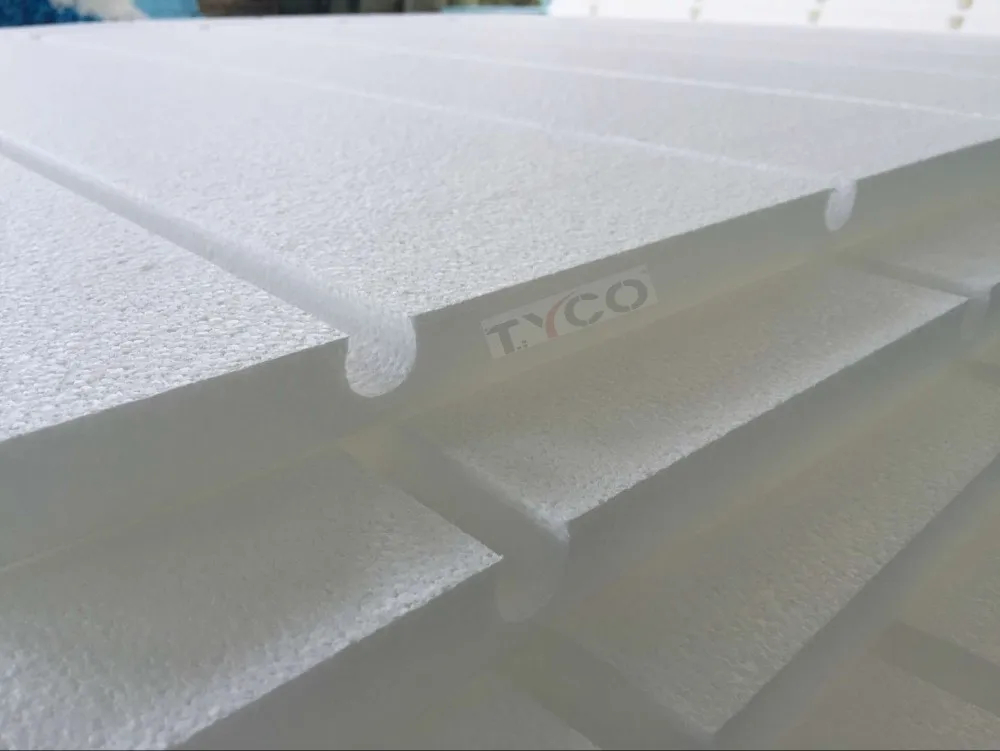

1)In underfloor heating system, grooved EPS panels are used to achieve the effect of thermal insulation, fireproof, soundproof, waterproof.

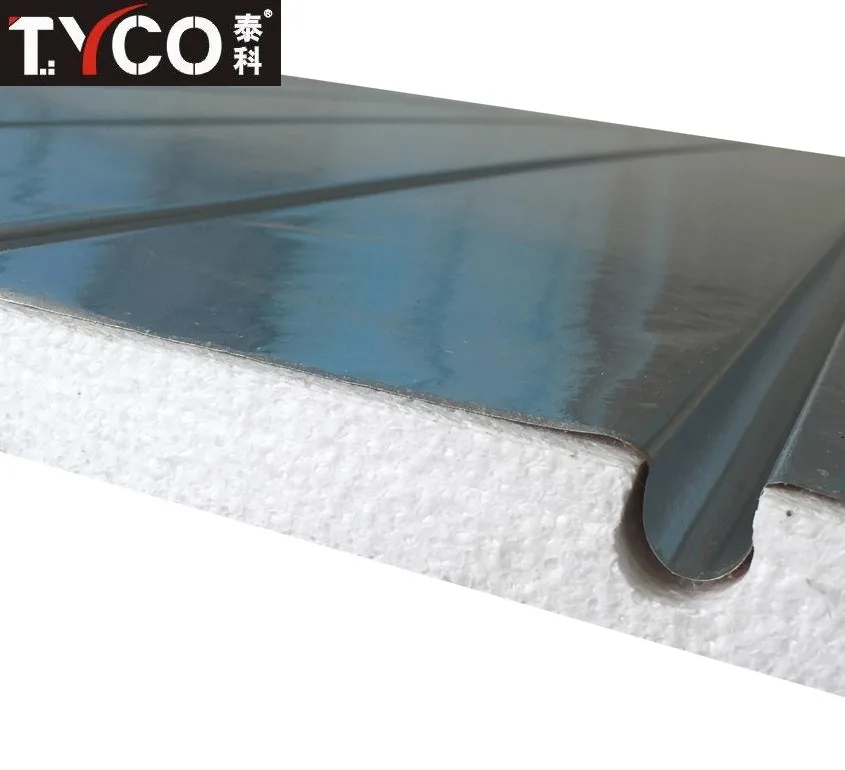

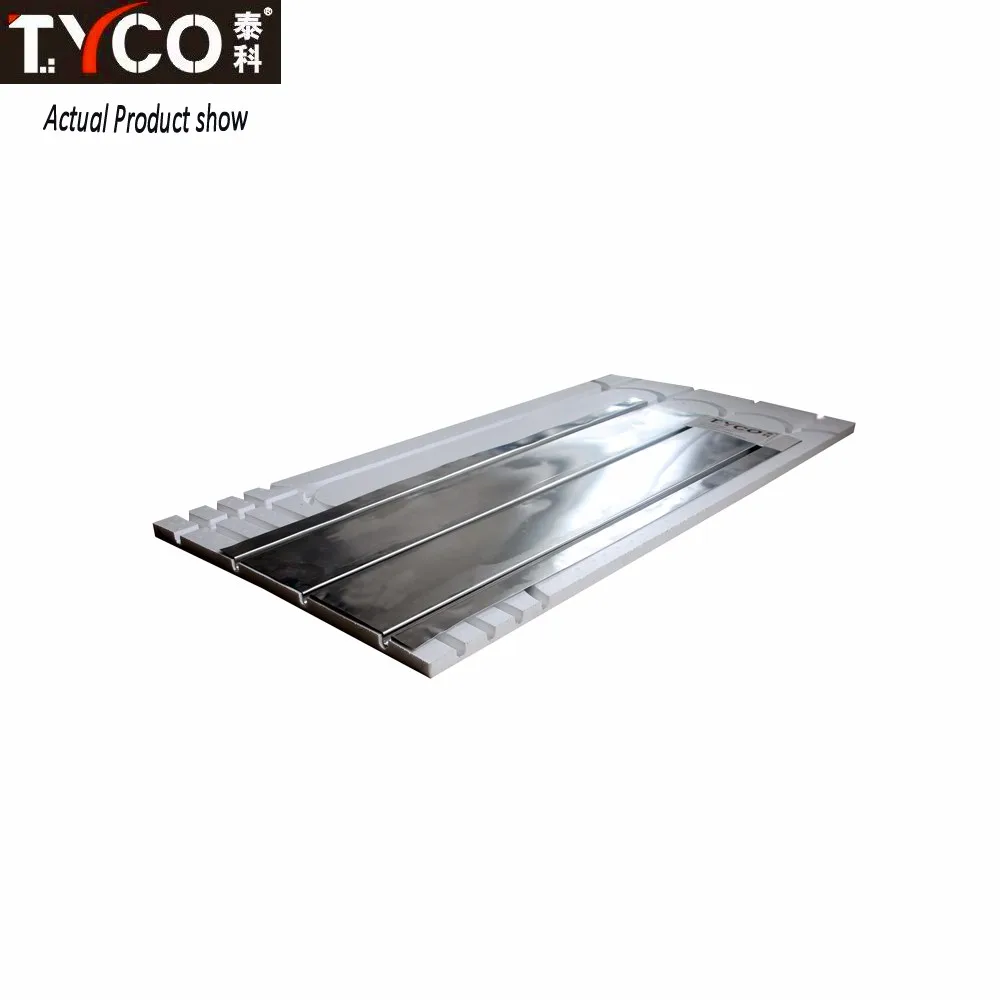

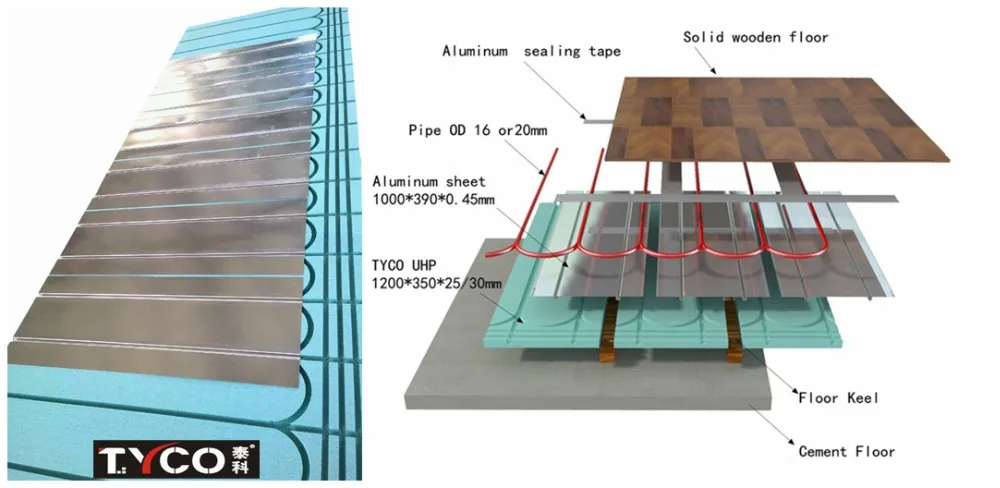

2)There are two types of underfloor heating system, one is laminated with foil and one is with Aluminum plate.
3)The hot water pipes can be installed into the grooves, when hot water flows, the heat could be spreaded efficiently and evenly, at last the heat can be conducted to the floor surface.

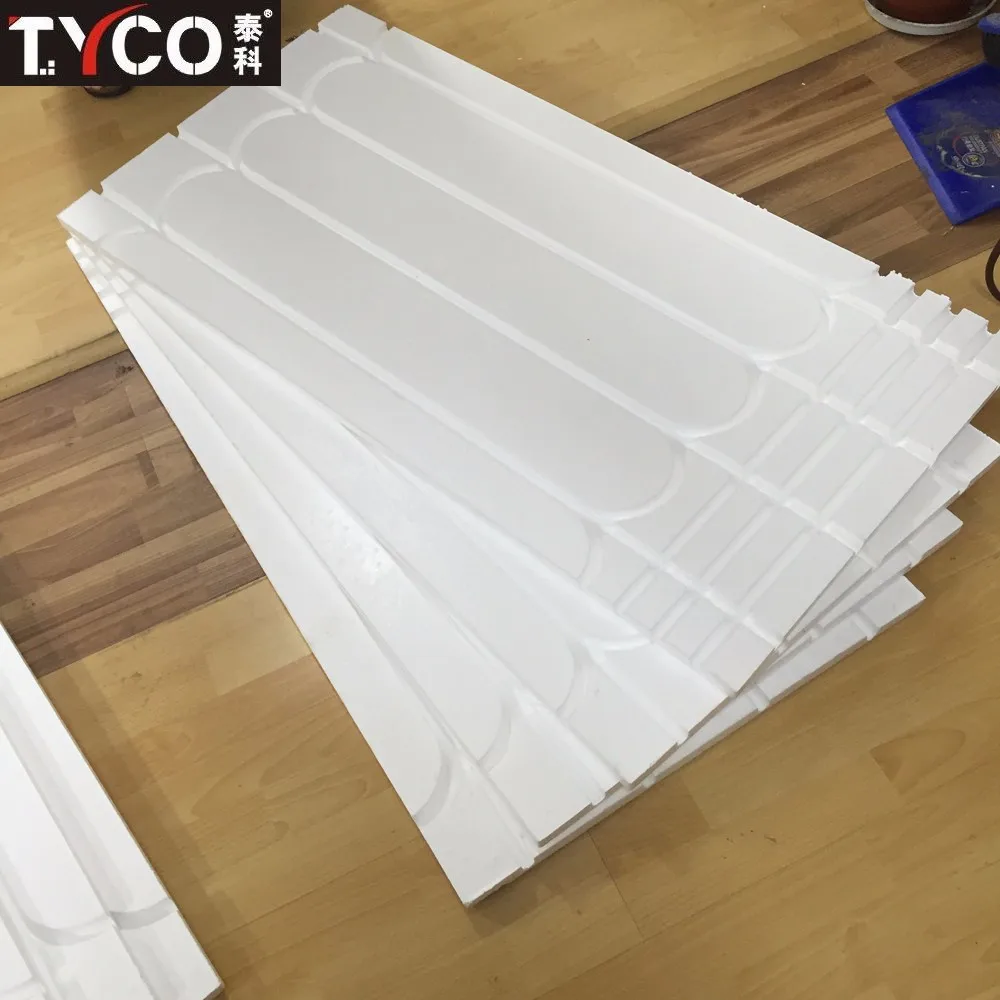

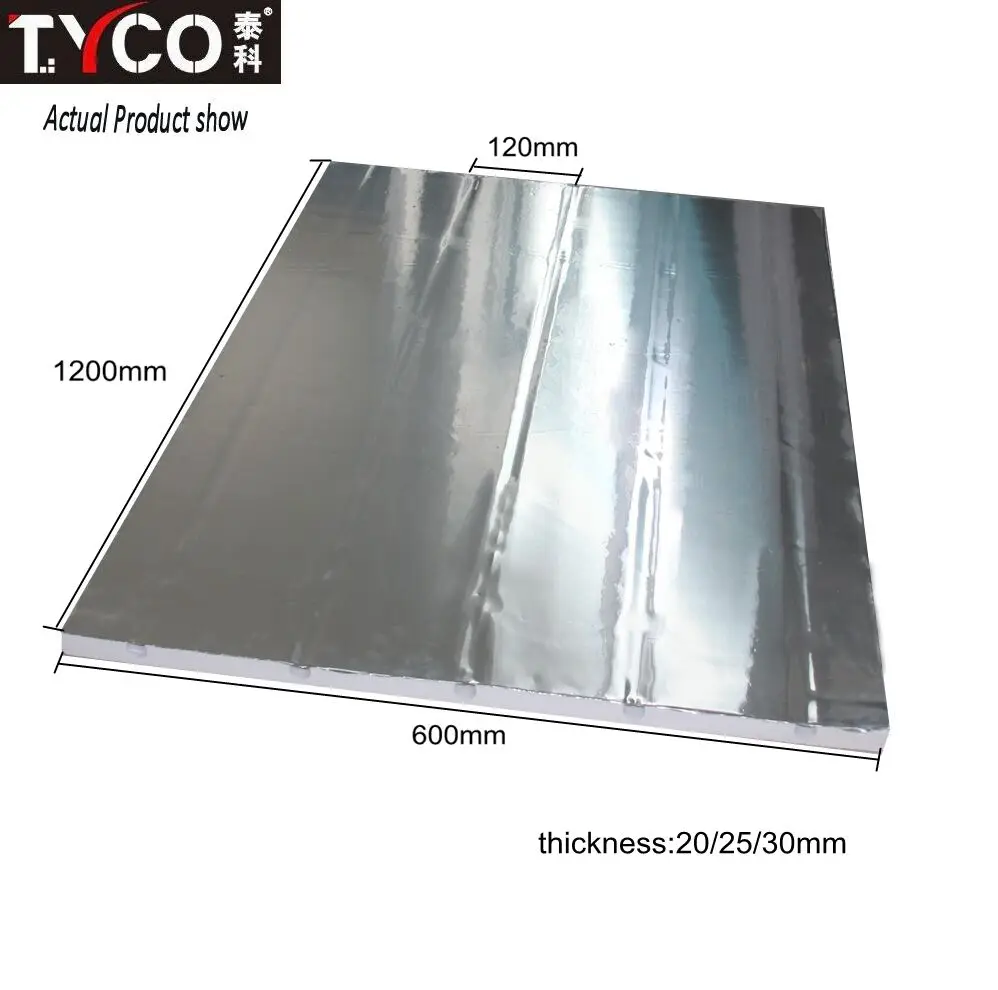

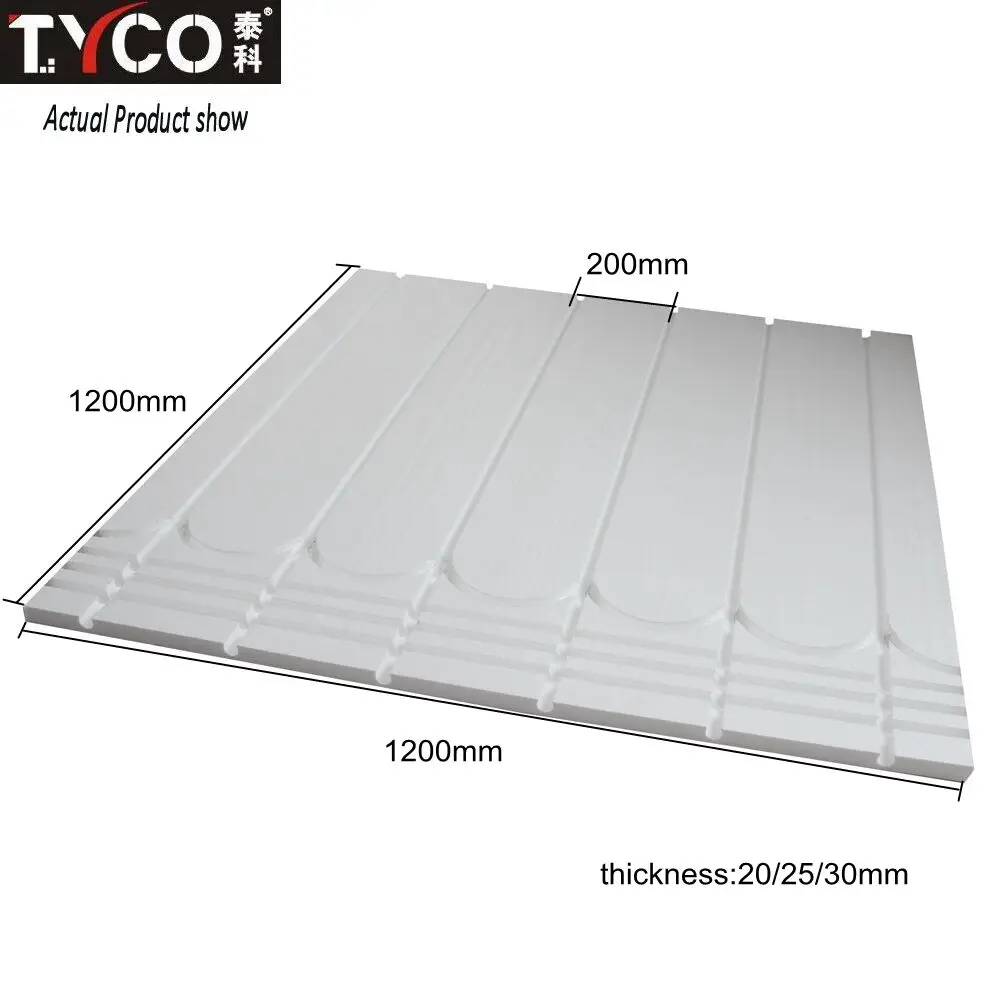

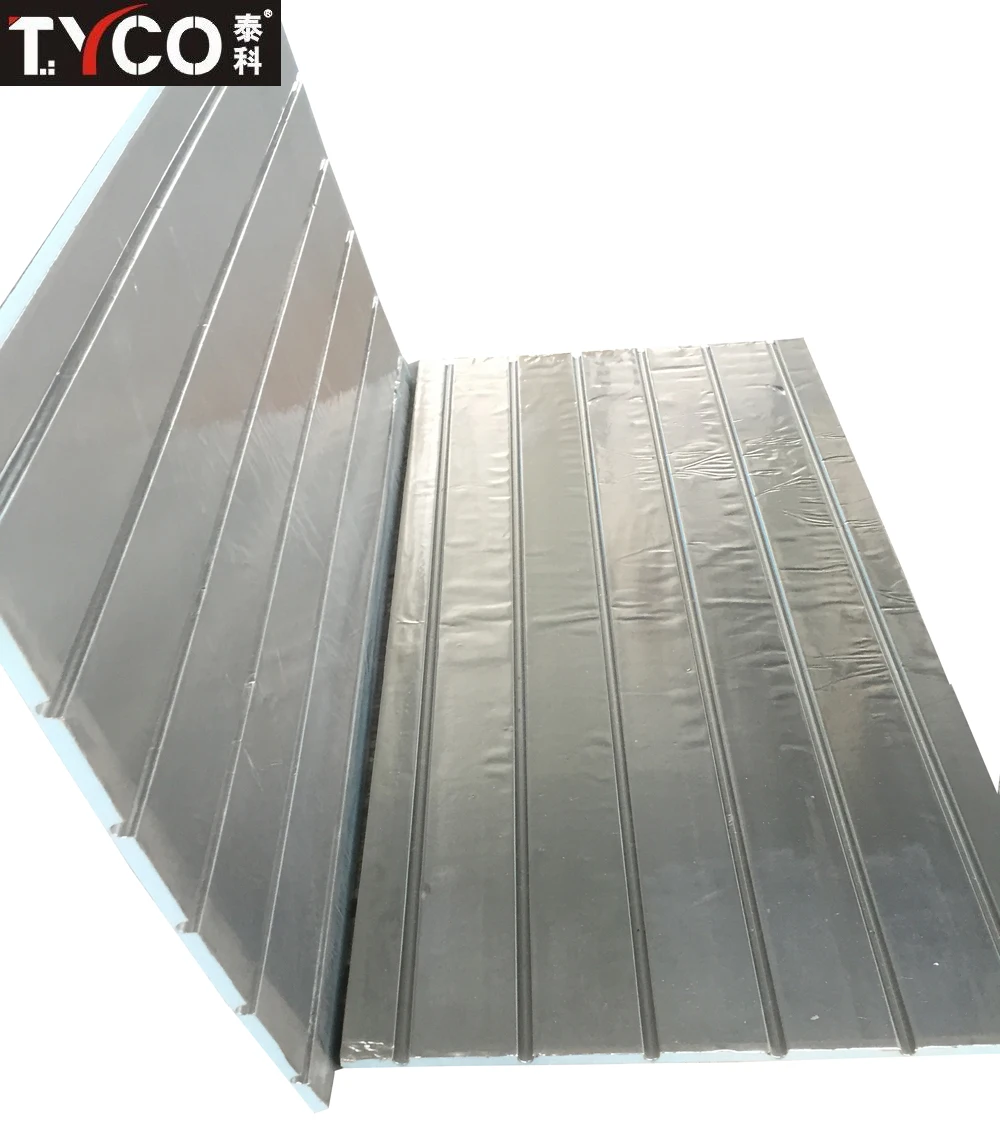

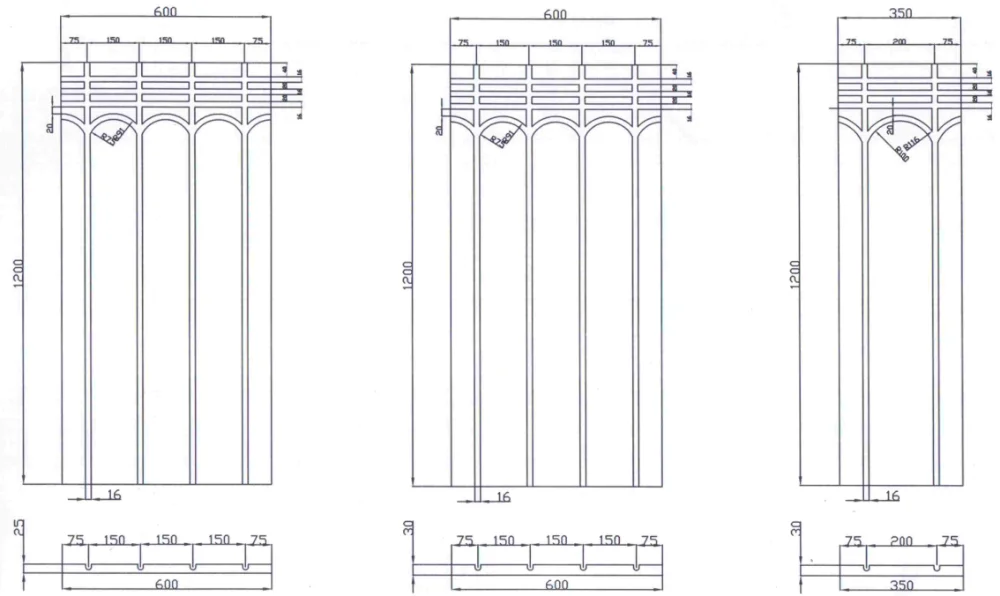

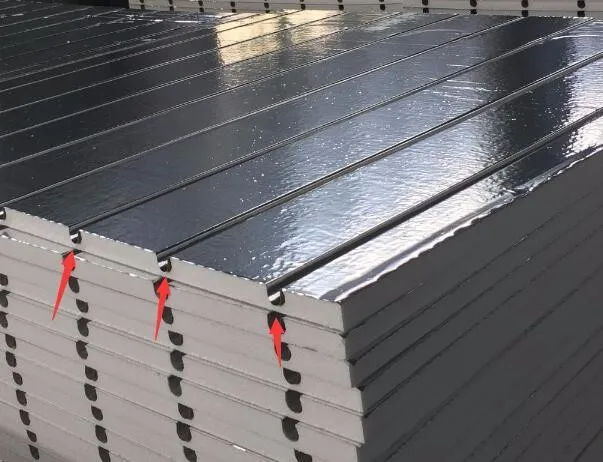

TYCO UHP consists of grooved EPS and brown paper and aluminum foil. The aluminum foil and brown paper is laminated in the grooved side of EPS. It is used as an alternative to a screed type system when using water under floor heating systems. It is only 20mm thick and come with the pipework grooves cut out ready to fit the pipe inside, an 16mm floating chipboard sub floor can then be laid directly on top of the panels ready for floor covering such as carpets, tiles etc, or an 16 mm engineered click wood flooring can be installed straight on top of the panels.

Characteristics

1)Good thermal insulation (K value: 0.028~0.03W/M*K)
2)High compressive strength(400Kpa, one sqm can load     30tons)
3)Sound insulation (12mm XPS can decrease about 20db)
4)Can be broadly used in tiles, wooden and concrete floor
5)Easy to cut with knife and saw
6)Environment friendly(free of CFC, HCFC)

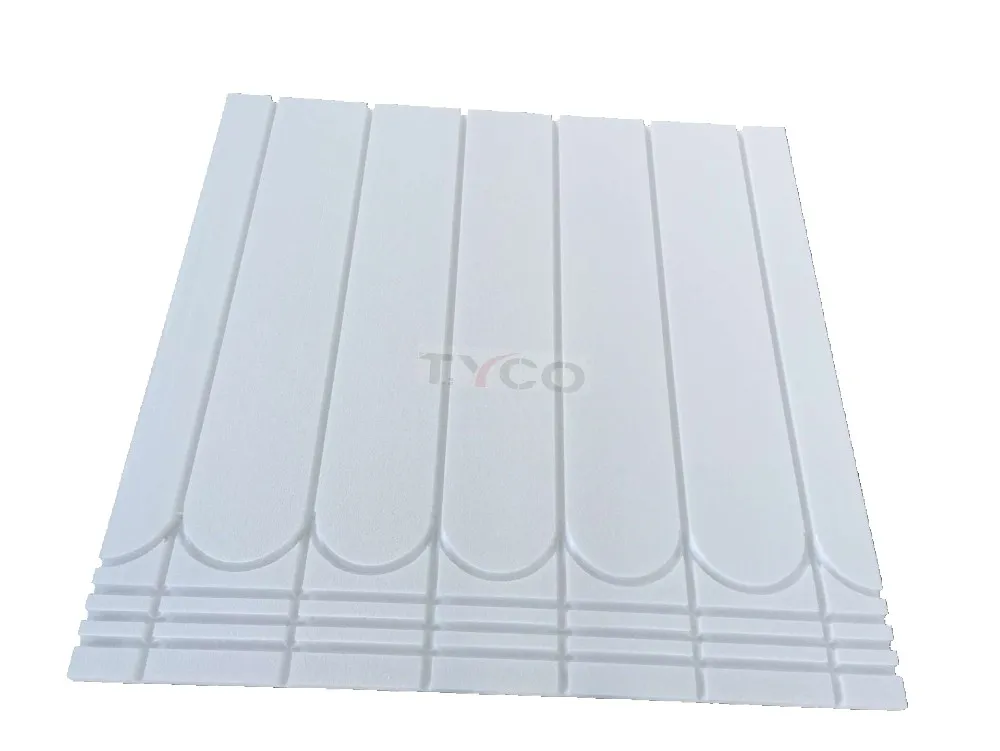

7)Grooved with Ω shape, keep pipes installed firmly into groove
8)OEM is acceptable

Aluminum Sheet
