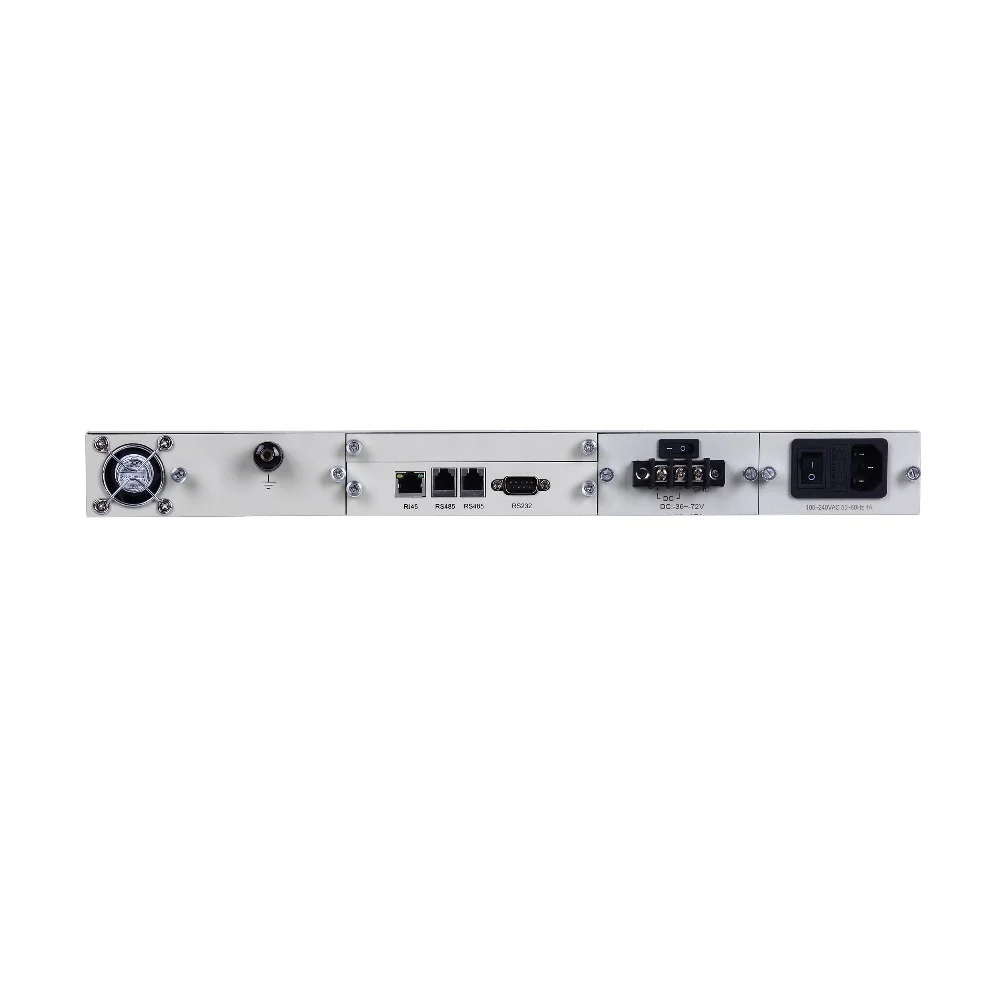

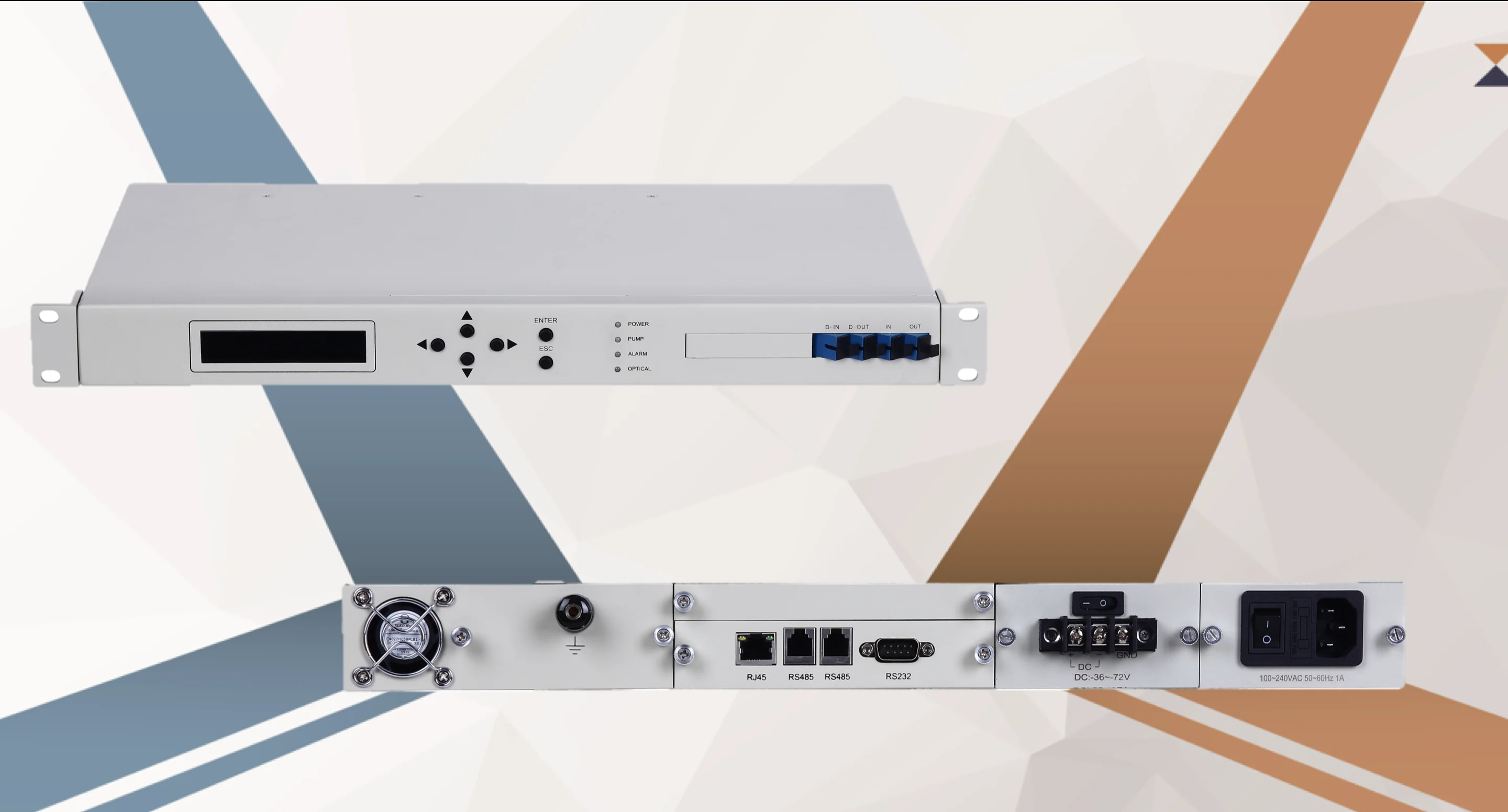

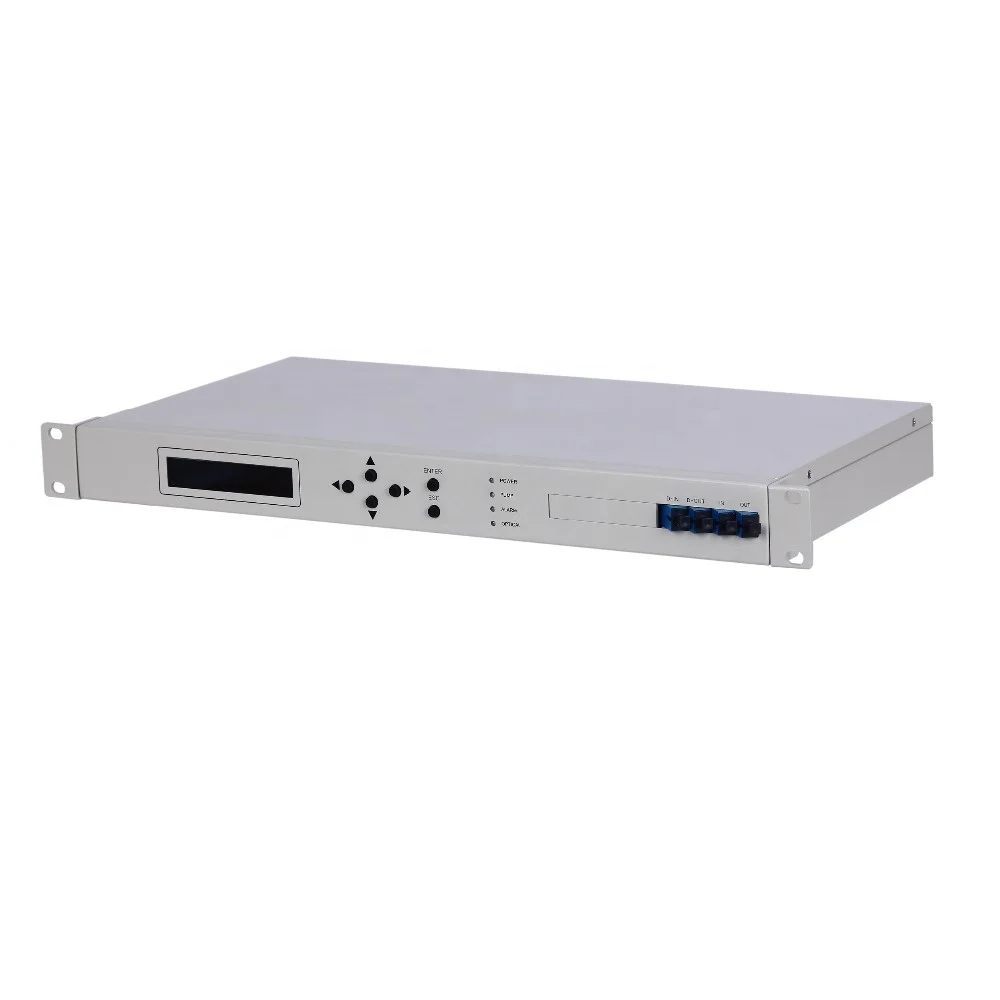

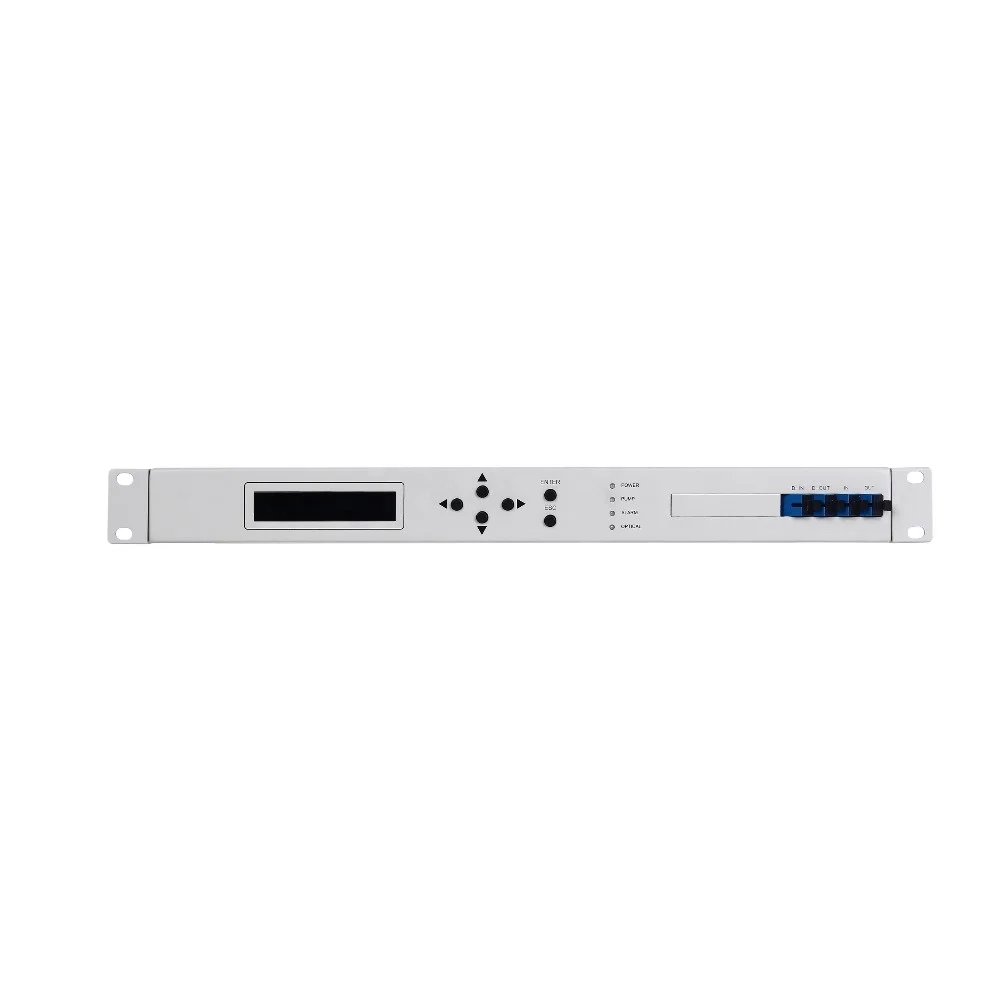

1550nm Fiber Optic Amplifier EDFA

Product Overview

Description



1550nm Fiber Optic Amplifier EDFA



Features

Low noise figure:less than 4.5dB at 0dBm input

Extremely low CSO:<-70dBc

Double power supply high performance hotswap: Mix 220V and -48V

High stability and reliability: MTBF>100000 hours

Network management Agent hotswap

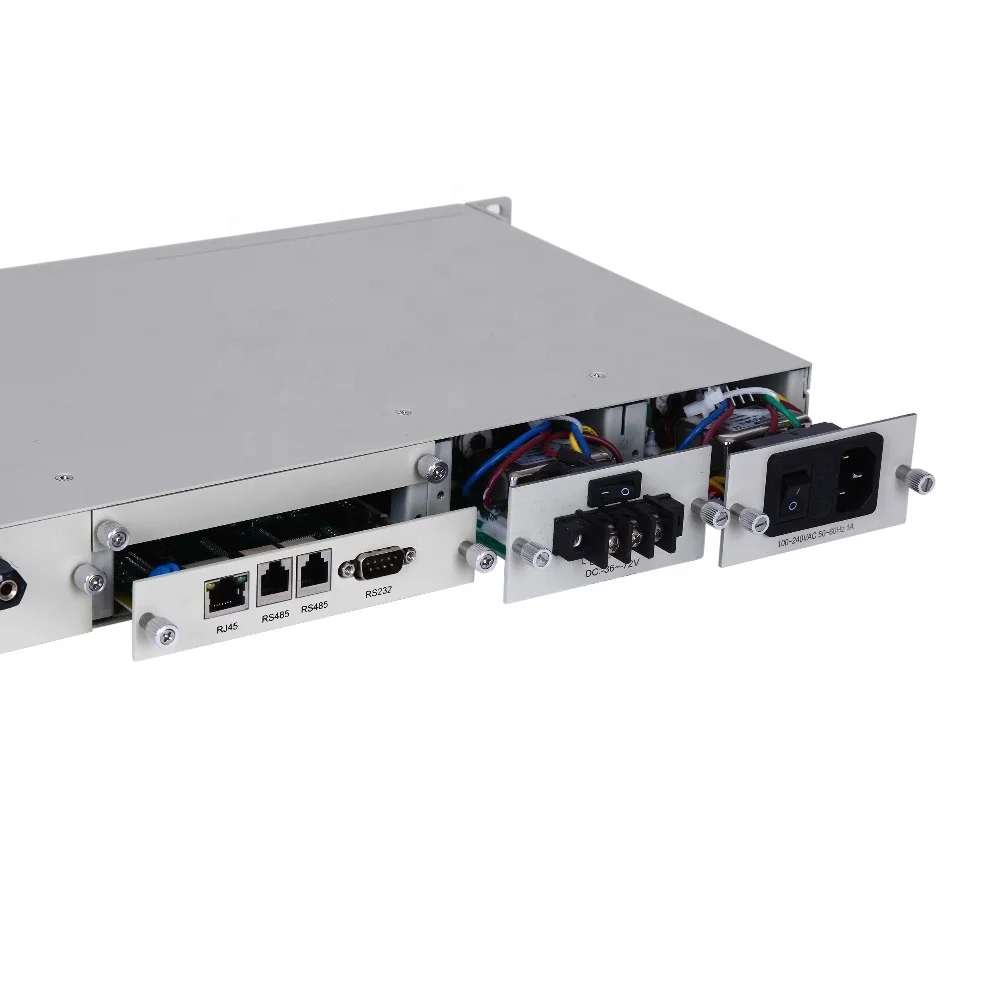

Perfect network interface: Ethernet,RS-485 and RS-232

Support Telnet and SNMP

High precision AGC/APC circuit: power control accuracy type ±0.05dB

Intelligent temperature control system: power consumption and hot radiation reduce 30% than common products

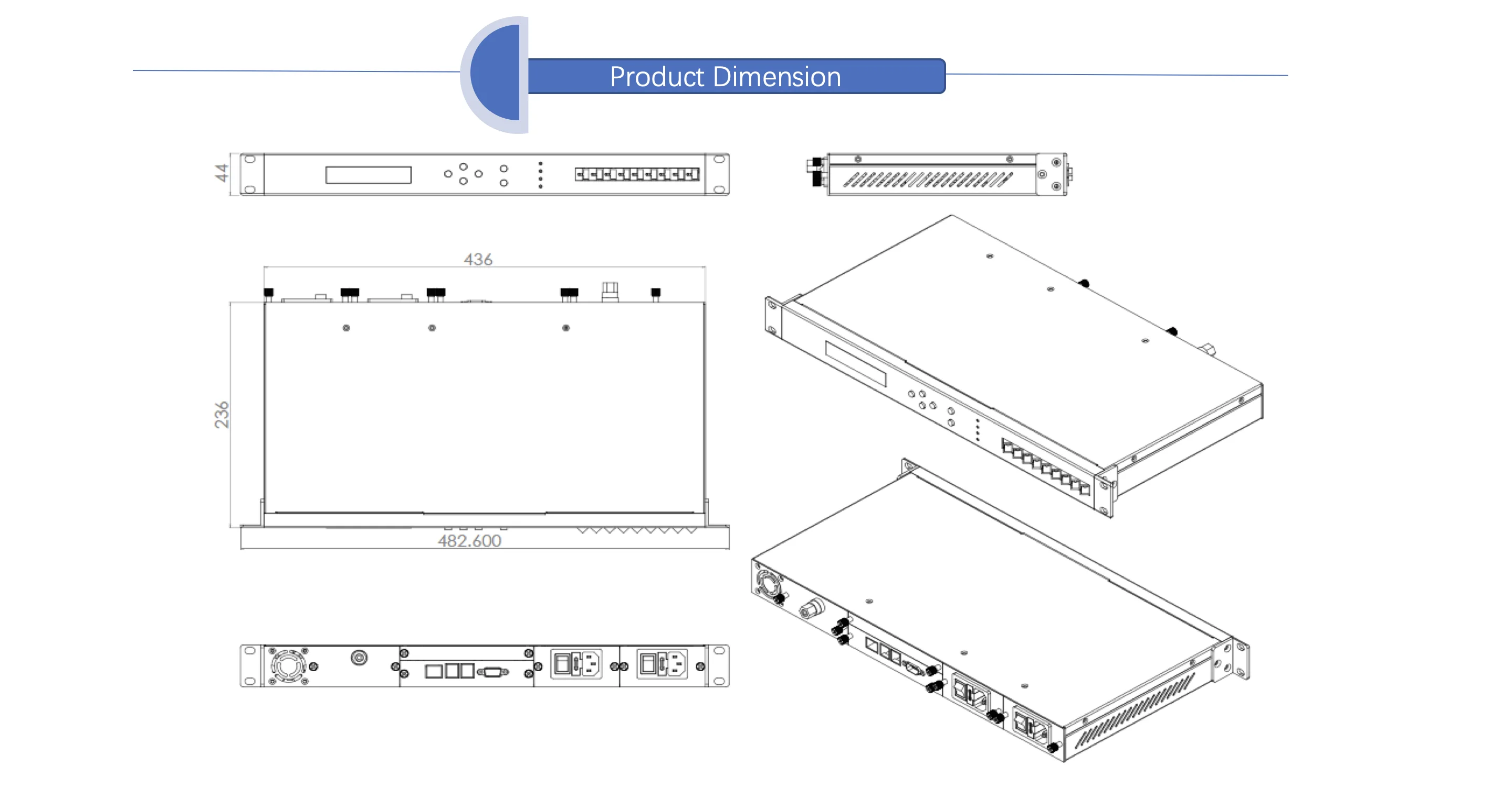

Variety mechanical and circuit structure(including pure optical module, module with electric, benchtop and 1U rack)

Application



1.Analog CATV long distance transmission



2.Video optical transmission system



3. Optical distribution system



4.FTTH



Optical Characteristics





Parameter	Symbol	Min	Typ	Max	Unit
Wavelength	λc	1530	1550	1562	nm
Output Power(1)	Po	13	------	24	dBm
Input power	Pi	-3	------	+10	dBm
Gain	G	------	20	------	dB
Noise Figure(2)	NF	------	4.5	-----	dB
Output power stability	ΔPo	-----	±0.05	±0.1	dB
Return Loss	RL	-------	-------	-45	dB
PDG	PDG	------	-------	0.3	dB
PMD	PMD	------	-------	0.5	ps





Electric Characteristics

Parameter	Symbol	Min	Typ	Max	Unit
Power supply	Vps	85/170	110/220	132/264	VAC
Consumption	P	-----	-----	18	W

Environmental Characteristics



Parameter	Symbol	Min	Typ	Max	Unit
Operating Temperature	Tw	-5	-----	60	℃
Storage Temperature	Ts	-40	-----	80	℃
Humidity	------	10	------	85	%
