Product Overview
Description

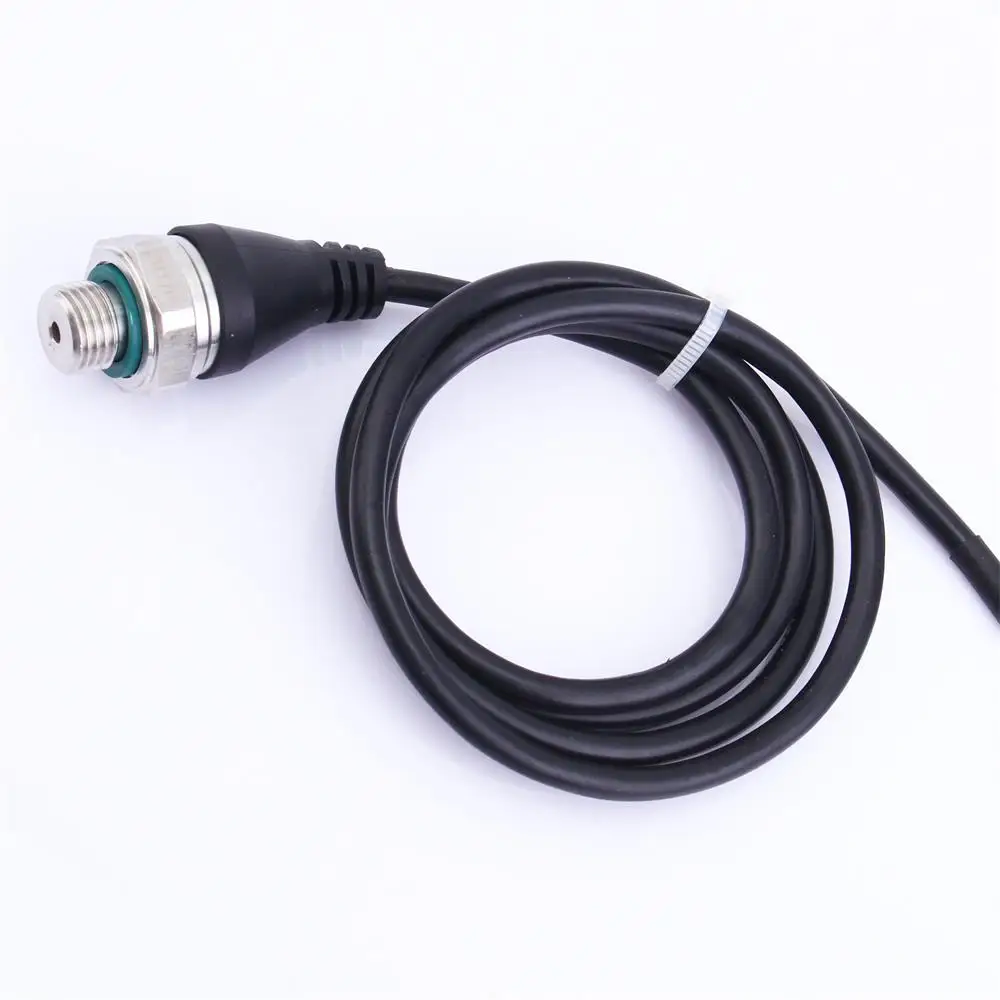

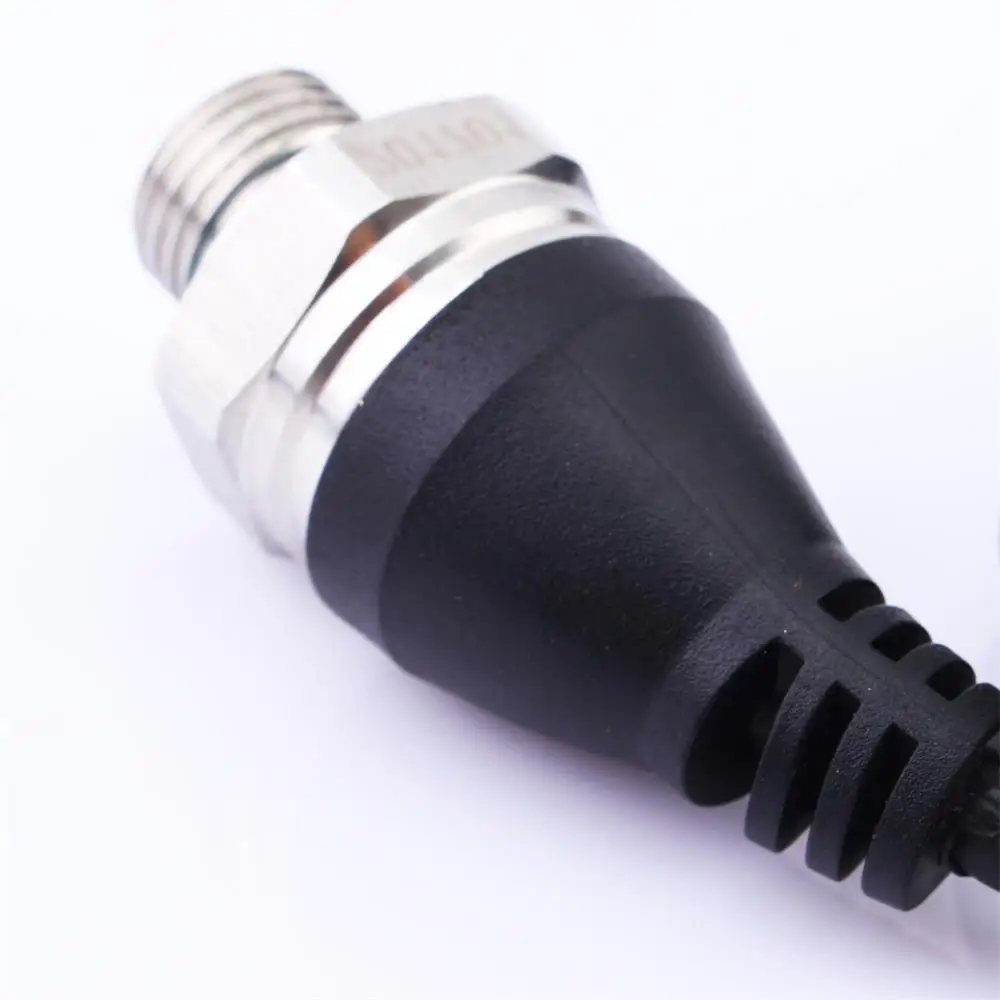

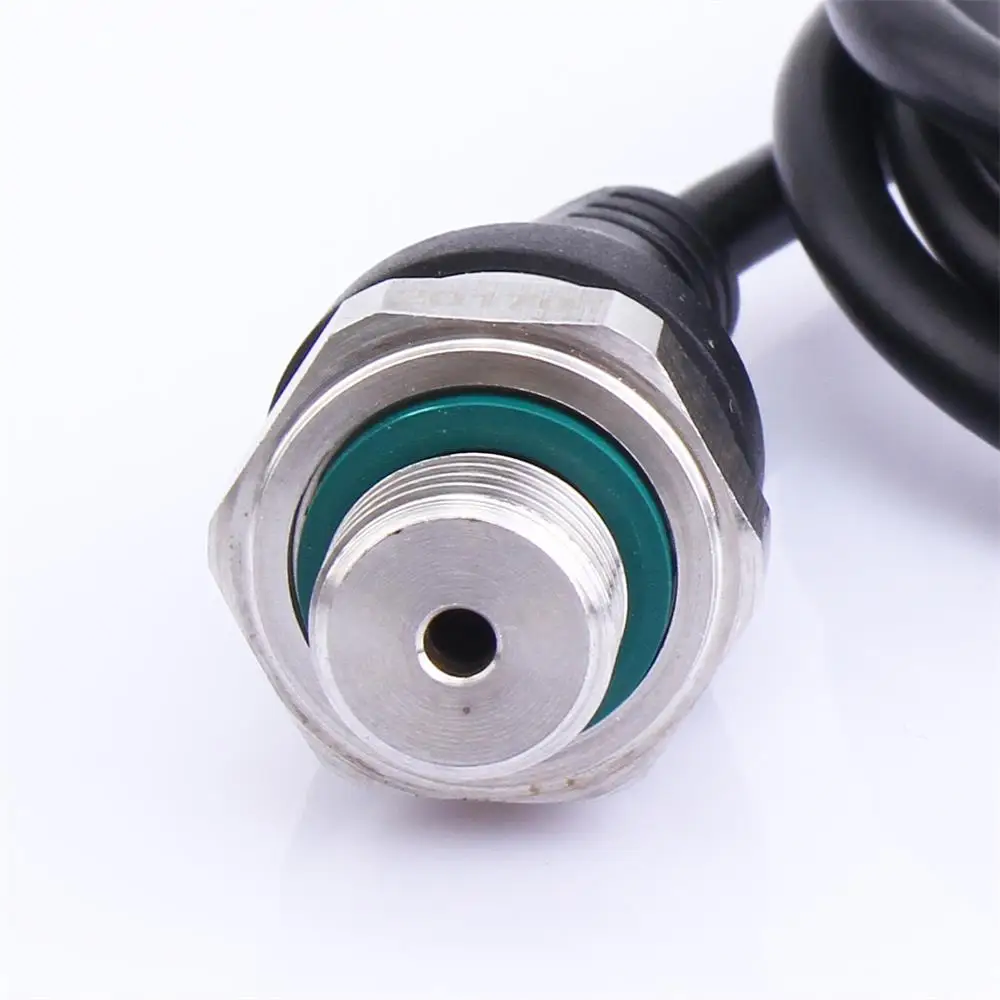

Product Description
Feature
- Firm construction,Easy installation
- 90%Vdd equal proportion analog signal output
- AdvancedAnti-interference,wave protection
- Prefect Anti-shock,anti-overload,corrosion-resistant
- Isolation Diaphragm,Ceramic Sensor element
- Low cost for high volume application
Application
- Water pump,frequency-alterable constant voltage water supply,building automatic control, Water Treatment system,Hydraulic pressure monitoring etc,.
- HVAC controlling(Heating, Ventilation and Air Conditioning),Air conditioner,Refrigeration, process controlling,hydraulic pressure monitoring ,etc,.
- Other pressure measure and control of petroleum,chemi-industry,metallurgy,power station, hydrology.etc,.
Introduction
XGZP6161 Pressure Transducer is high performance and low cost products.It is structured by Piezo-resistive ceramic pressure sensor as signal sensing element,adopt the special ASCI amplifier circuit and stainless steel housing,the XGZP6161 Transducer is integrally temperature compensated and linearity corrected,which effectively resist water hammer effect and transient over-voltage,etc. It can meet the requirement of measure and control under complex environment.
Through strict component making, semi-finished product and all-finished product testing and aging, the Transducer is stable and reliable,having excellent consistency and sensitivity.
The XGZP6161 Transducer provide various output mode and pressure interface, the OEM service can meet extremely clients application requirement.
Performance Parameter
Unless otherwise specified, measurements were taken with a supply voltage of 3.3-5.5
Vdc at a temperature of 25±1℃ and humidity ranging from 25%~85%.
| Item | Data | Unit |
Accuracy(non-lin., rep. and hys.) | ±1.0(or ±0.5) | %FS |
Zero Thermal Drift | ±0.03 | %FS/℃ |
Span Thermal Drift | ±0.03 | %FS/℃ |
Long Term Stability(1 Year) | ±1.0 | %FS |
Insulation Impedance(250Vdc) | 50 | MΩ |
Over pressure | 2X | Rated |
Burst Pressure | 3X | Rated |
Pressure Circulation(Zero- Span) | 1 | Million |
| Compensation Temp. | 0 ~ 85/32~176 | ℃/℉ |
| Ambient Temp. | 0 ~ 85/32~176 | ℃/℉ |
| Storage Temp. | -40 ~ 125/-40~257 | ℃/℉ |
Housing Material | 304 Stainless Steel | |
Socket Connector | Plastic | |
| Protection Grade | IP65(6161A)/IP67(6161B) |
Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI≈750mmHg)
| Range(mPa) | Range(PSI) | Range(Bar) |
| 0 ~ 0.5 | 0 ~ 75 | 0 ~ 5 |
| 0 ~ 1 | 0 ~150 | 0 ~ 10 |
| 0 ~ 1.6 | 0 ~ 240 | 0 ~ 16 |
| 0 ~ 2.0 | 0 ~ 300 | 0 ~ 20 |
| 0 ~ 2.5 | 0 ~ 375 | 0 ~ 25 |
| 0 ~ 3 | 0 ~ 450 | 0 ~ 30 |

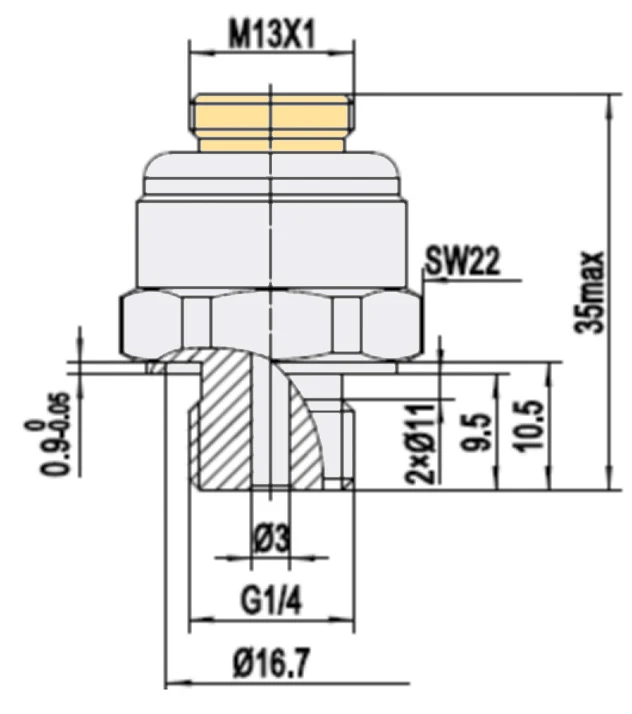

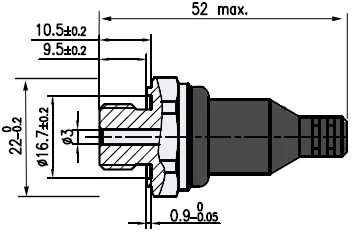

Dimension (Unit:mm/Inch)
Electric Connection
PIN Code | Cable Color | Definition(3wire) |
1 | Red | Power:+V |
| 2 | Green | Signal:OUT |
3 | Black | GND |

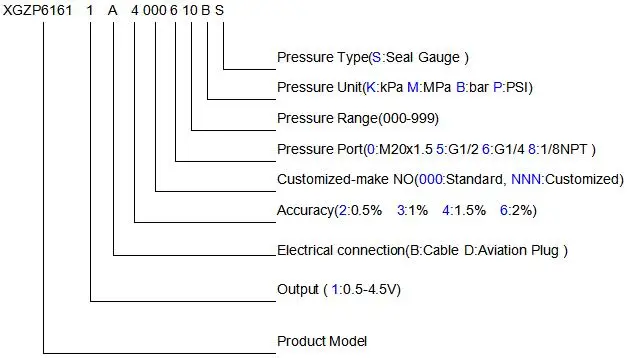

Order Guide
Notes
1.ESD protection required(6.5Vdc and 5mA as Max. Power supply value )
2.Attention that the medium should be compatible with the pressure parts.
3.Please contact us if special request on parameter and application.
