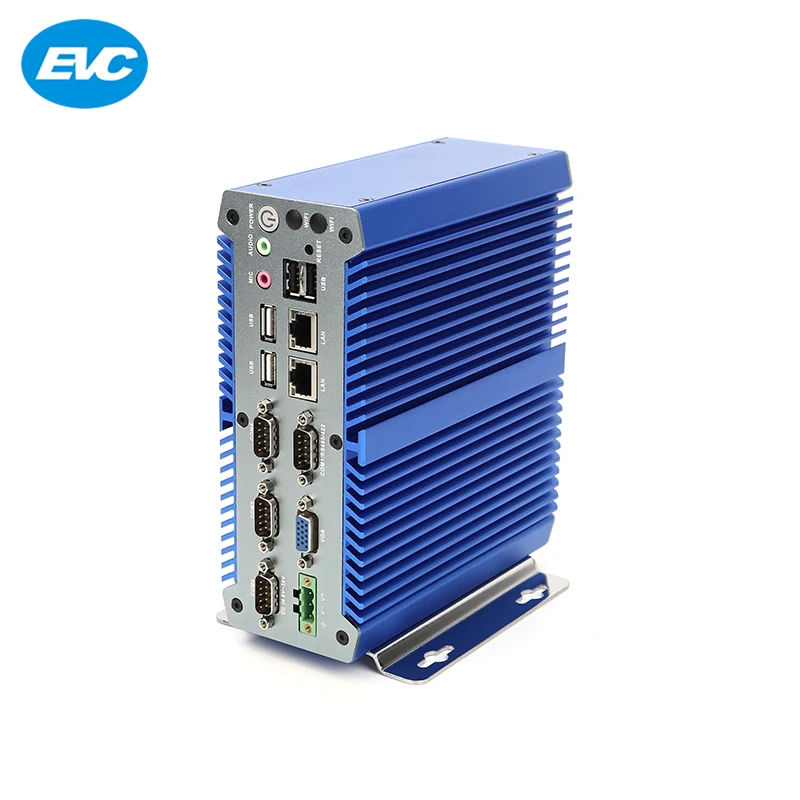

Rugged Mini Desktop Computer Intel Core i5-3317U Processor
- Category: Barebone System >>>
- Supplier: Shenzhen,Evolution,Computer,Co.,Ltd.
Share on:
Product Overview
Description
Product Feature:
1. Intel® Celeron® Processor 1037U /Core™ i5-3317U Processor, dual core 22 nm Lithography CPU; Onboard DDR3 2GB/4GB RAM; Integrated Intel HD Graphics.
2. Dual Gigabit Ethernet network interface, 1xVGA, 4xUSB ports+2xUSB built-in, 4xCOM, 1xMINI-PCIe, rich interfaces to meet various requirements.
3. Low power consumption, excellent heat dispersion housing fanless design, no noise
4. Compact aluminium alloy body, dust & shock proof, running steady in harsh environments
5. Widely applications, used in workingshop, factory, Internet Bar, bank, supermarket, library, reading room, hotel, training, call center, office etc.
Product Description
Category | Descriptions | |
Model | No. | EVC-3001 |
Nucleus Module | CPU | Intel® Celeron® 1037U (Dual Core 2M Cache, 1.8 Ghz) |
Intel® Core™ i5-3317U (Dual Core 3M Cache, up to 2.6Ghz) | ||
Chipset | Intel® NM70 Mobile Chipset/Intel® QM77/QM67 express integrated chipset | |
BIOS | AMI 64Mbit Flash ROM | |
RAM | Onboard DDR3 1600MHZ 2GB(4GB Optional) | |
Storage | 1*SATA bay(7+15P 500G-1T 2.5" HDD or 32G/64G/128G SSD),optional | |
Graphic | Integrated Intel® HD Graphics for 3rd Generation Intel® Processors Integrated Intel® HD Graphics 4000 | |
Network | 2*Intel® Ethernet Controller 82583V Gigabit lan | |
Audio | Realtek ALC662 (6 sound channel) | |
I/O | Lan | 2*RJ45 (Gigabit Ethernet) |
USB | 4*USB2.0, 2*USB2.0 in-built | |
Display | 1*VGA | |
COM | 1*RS-232/422/485(COM1), 3*RS-232 (COM2-4) | |
SPK | 1* Audio-out | |
MIC | 1*Mic-in | |
Button | 1*Power Button | |
Expansion | 1*mini-PCIe(support WiFi and Bluetooth) | |
OS | Operating System | Windows Xp/7/8/10, Linux |
Structure | Dissipation | high-quality profile case for quick heat dissipation |
Housing | aluminum alloy | |
Bracket | 2*brackets for wall or rack mounting | |
Dimensions | 184.8 x 160.0 x 72.7 mm / 7.28 x 6.30 x 2.86 Inch (WxDxH) | |
Weight | 2.21KG(N.W.) | |
Power | DC In | DC 9-36V power supply and AC power adapter |
Temperature & Humidity | Working Temp. | -40°C~ 65°C (-40°F~149°F) |
Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
Working Humidity | 10% - 95% relative humidity(Non-condensing) | |
Environment | Satety | CE,FCC,RoHS |
Package | Items | pc,power adapter,Power cord,CD Driver & 2 Brackets |
SUITABLE FOR ULTRA HIGH/LOW TEMPERATURE
-40℃~65℃(-40°F~149°F)
ONBOARD RAM & FANLESS DESIGN
Maintenance-free embedded technology without regular RAM
slot or rotating parts ensures its durability & minimum downtime.
EMC-COMPLIANT INTERFACES
Rich EMC-compliant interfaces for various peripheral devices
APPLICATION
PACKAGING
Related Products
Our Advantages
Company Information
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
5.Q: Can I have my logo printed on the computers?
A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: 1). Put your brand on the device housing by laser printing
2). Put your own label below the device housing;
3). Supply Warranty Card in the package for free;
4). Make the booting interface with your company logo or brand for free.
7.Q: What Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, 1-3 days for samples, 7 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
