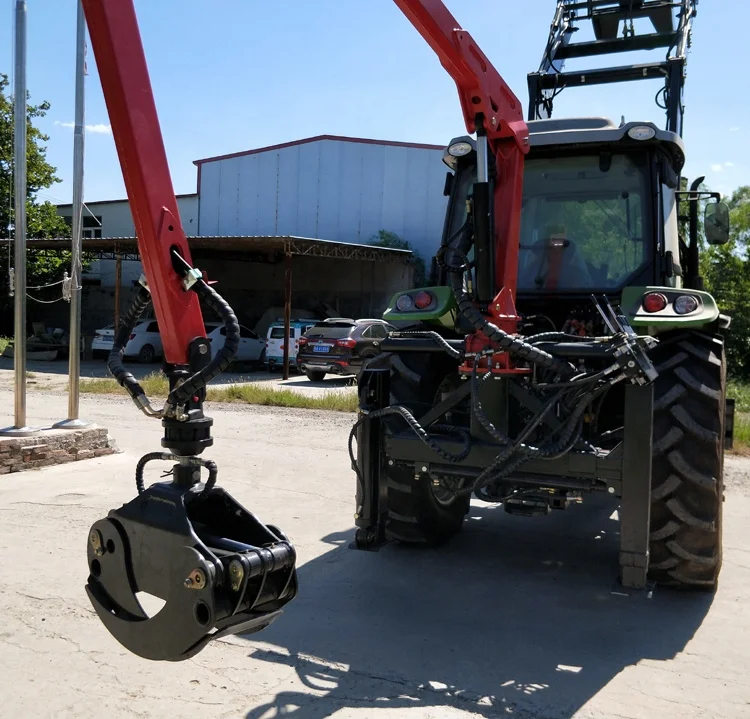

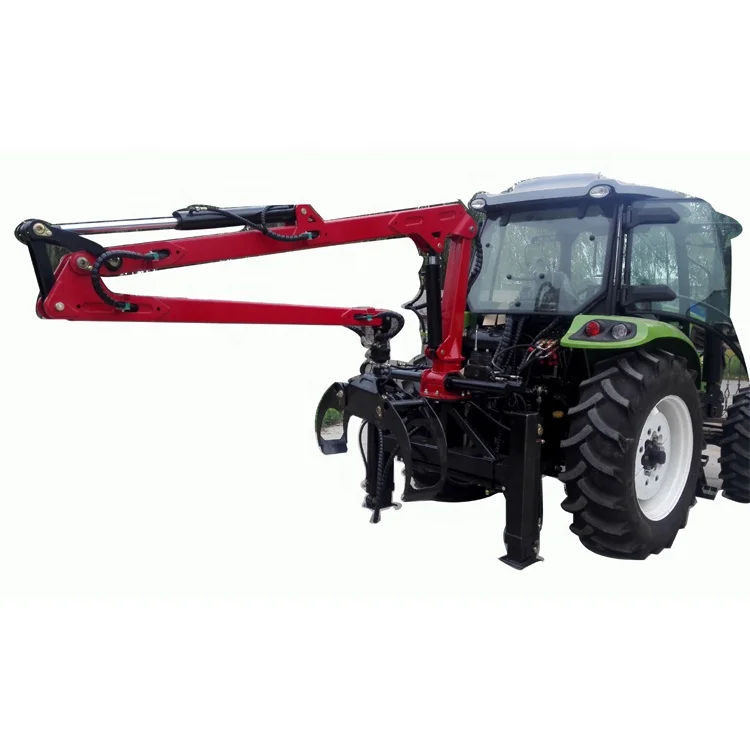

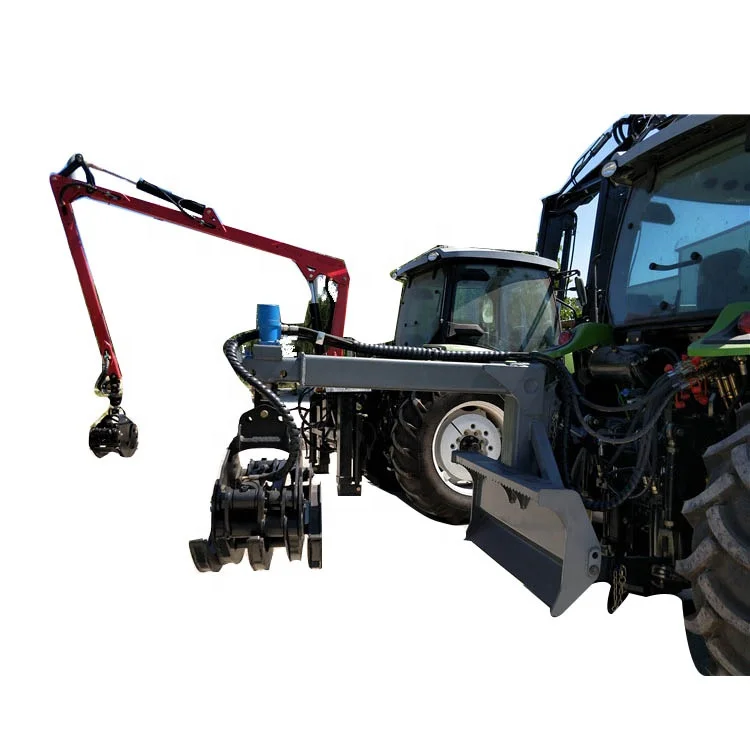

Forest implement tractor truck link timber grab hydraulic grapples

Product Description

1.Widely use: our timber grab machine can used for timber, bamboo, sugarcane,grass, stone, it can work for farmland, forestry, factory.

2.Can apply to many kind of power car, such like tractor, truck, Forklift,Tricycle,etc.

3.The arm use GHG700Mn steel, have the feature of high strength,high hardness.

4.4.The telescopic arm is slid by the chain and the pulley. There are Safe sliding distance between arms and arms

Main Features

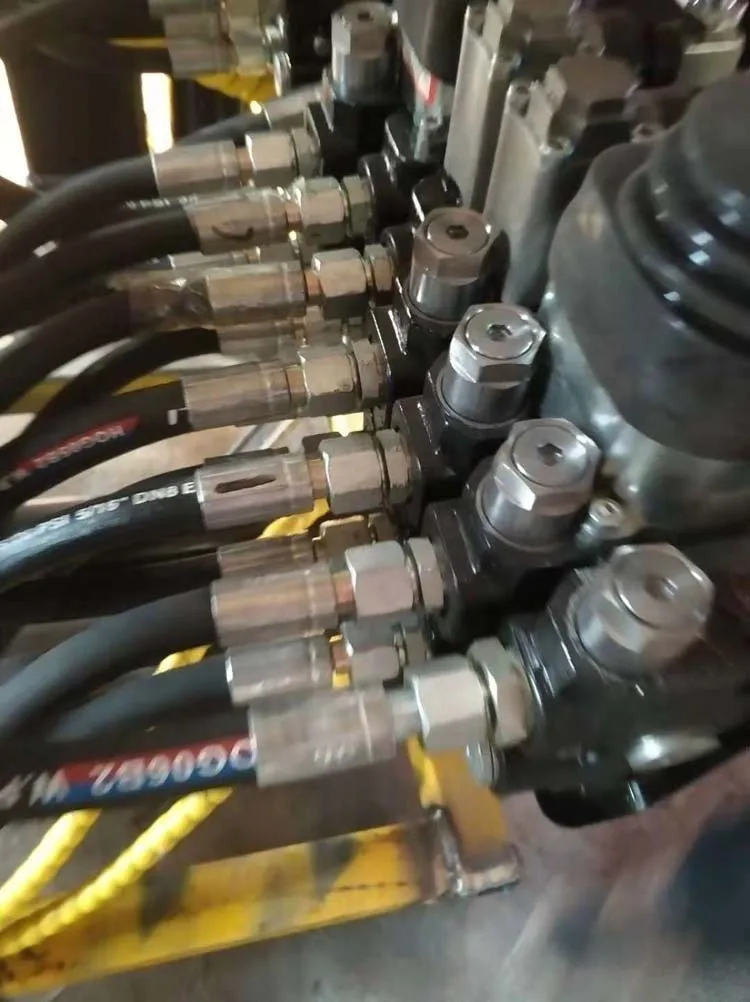

1) We adopt the most advanced Linkage distribution operation valve in China, can do five action at one time.

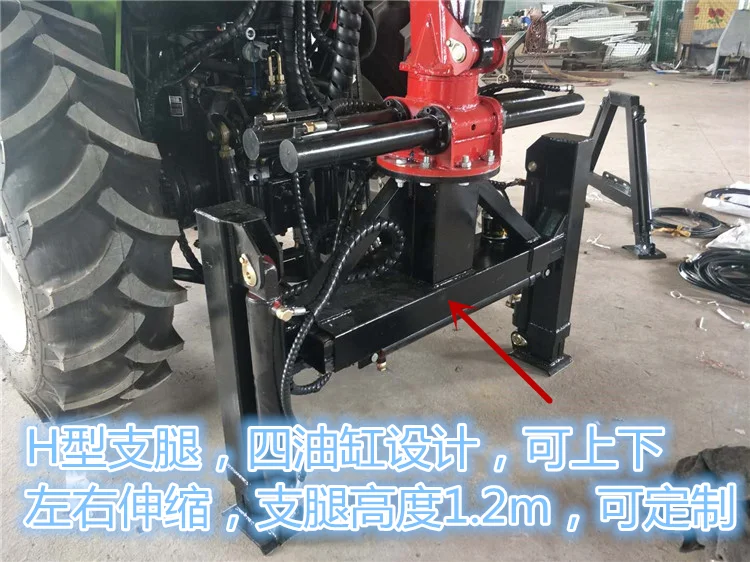

2) There are hydraulic leg at the bottom of our machine, you can choose different leg shape.

Machine Parts

Name: Hydraulic Cylinder

Brand: AGRI

Original: China

Our hydraulic use Chromium plating process,with very low friction factor, made the cylinder have a long Service life.

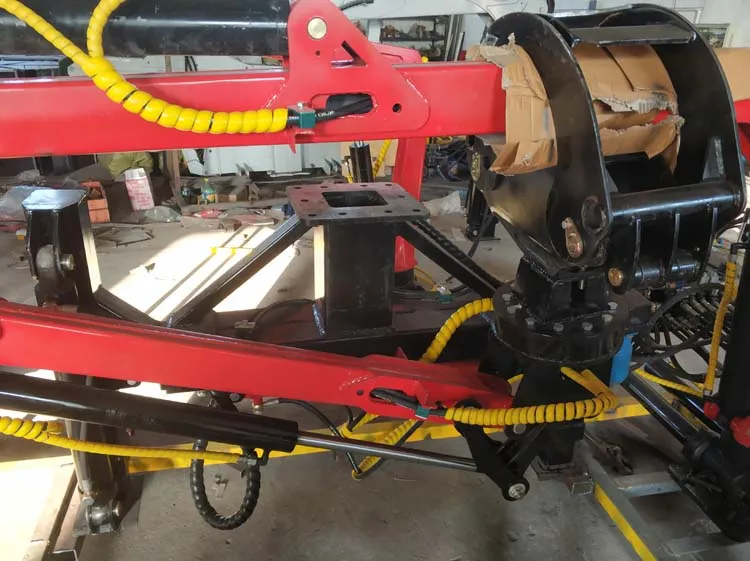

Grapple head

Name: Grapple head
Brand: AGRI
Original: China
The Max Dia of the opening mouth is 1.1m. Can also design as your requirements

Machine Parts

Name: Material
Brand: AGRI
Original: China
All the material use laser cutting

Main Features

Name: Linkage with tractor
Brand: AGRI
Original: China

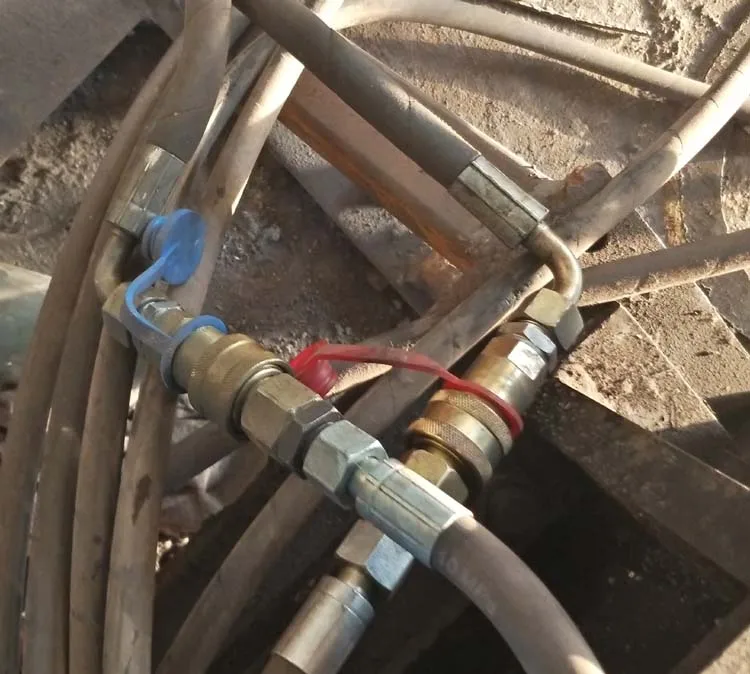

there are two oil tube link with tractor, Generally Red one link with tractor oil inlet side.The blue one link with Tractor oil outlet side.
