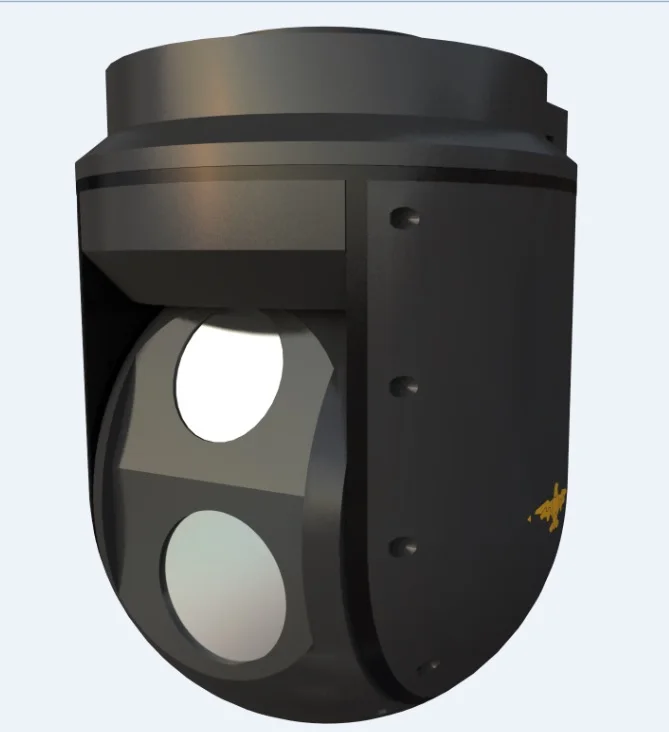

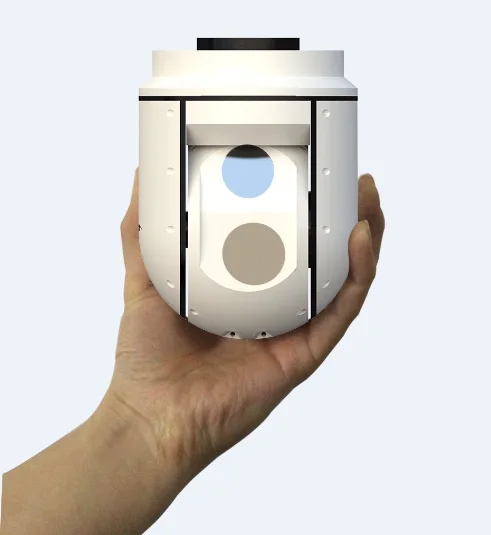

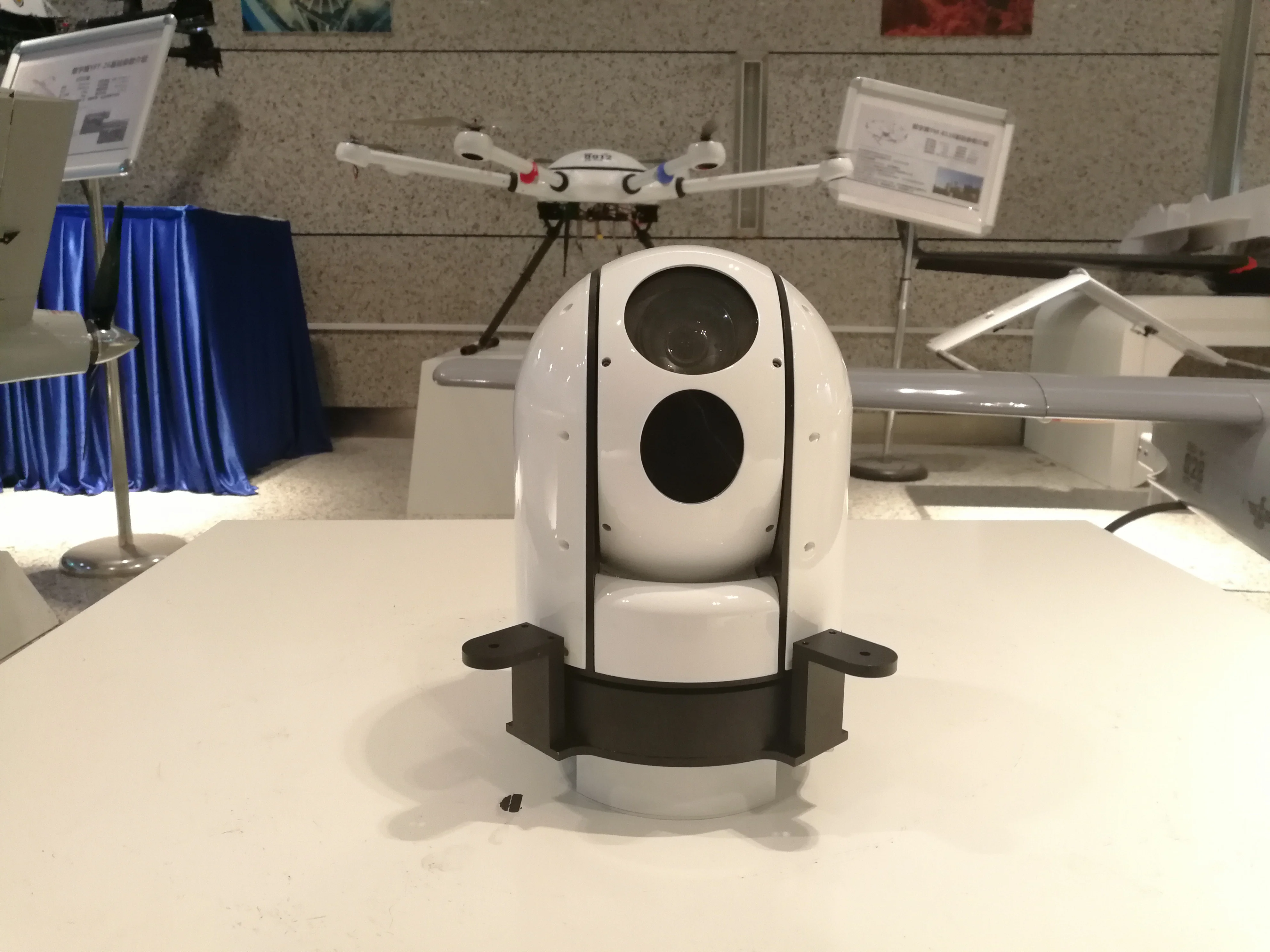

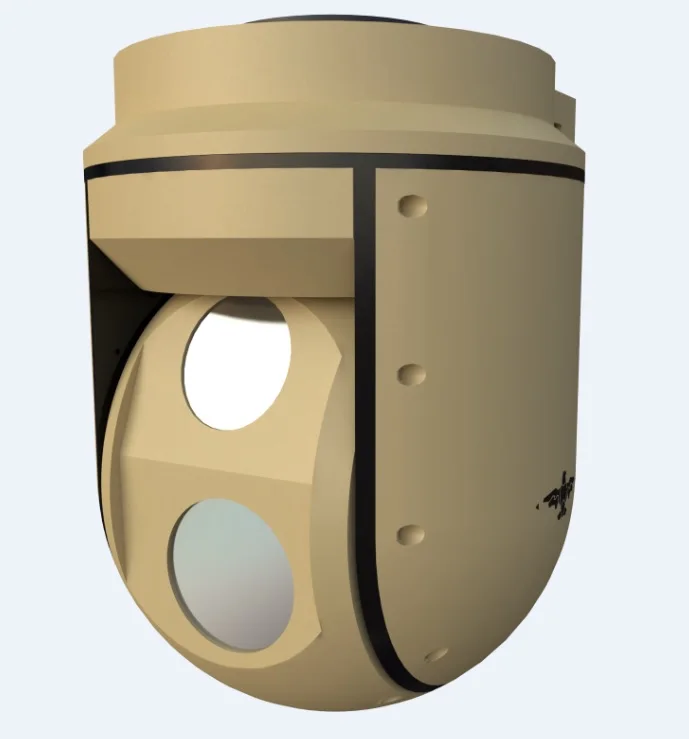

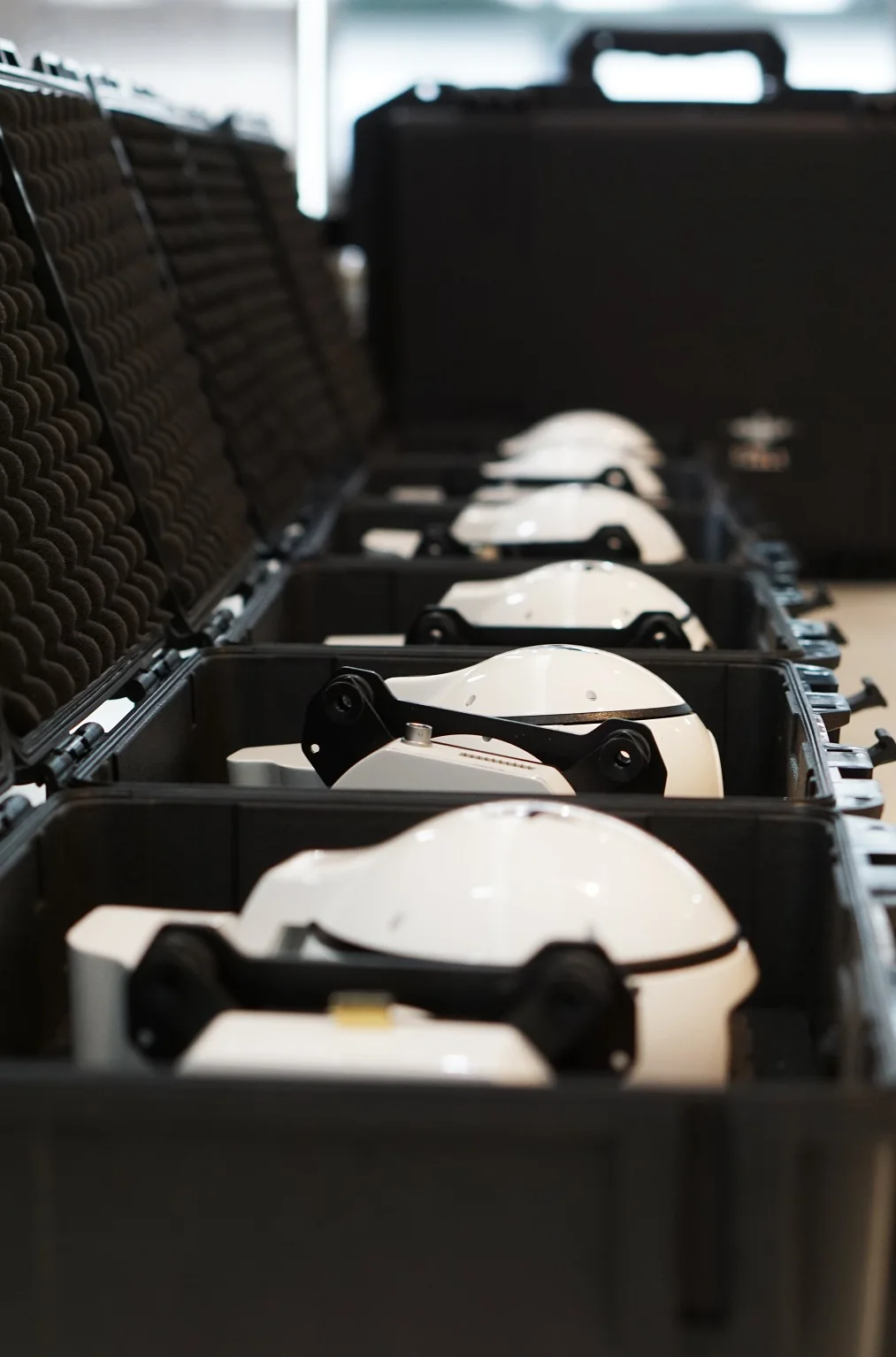

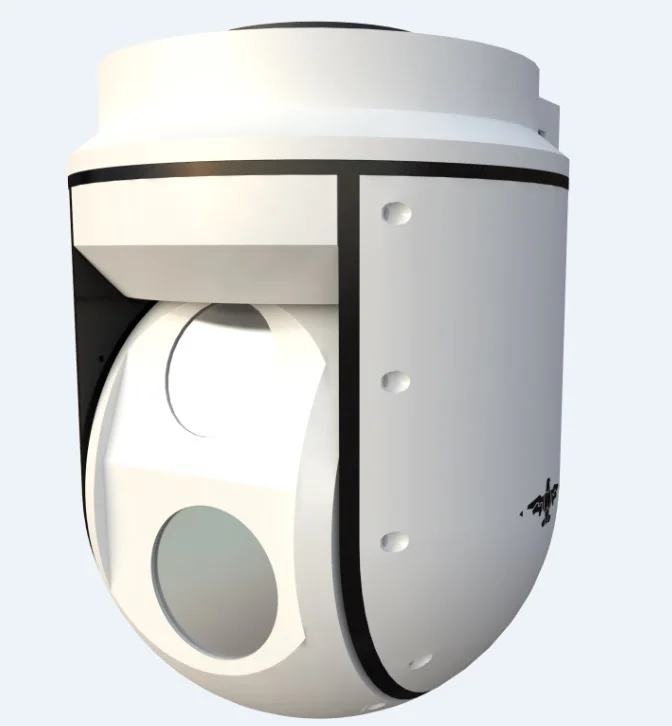

YPO 08 Digital Eagle Small Pod Camera Thermal Imaging Camera For Surveillance Drone UAV

Product Overview

Description

YPO-08 Digital Eagle Small Pod Camera Thermal Imaging Camera For Surveillance Drone UAV

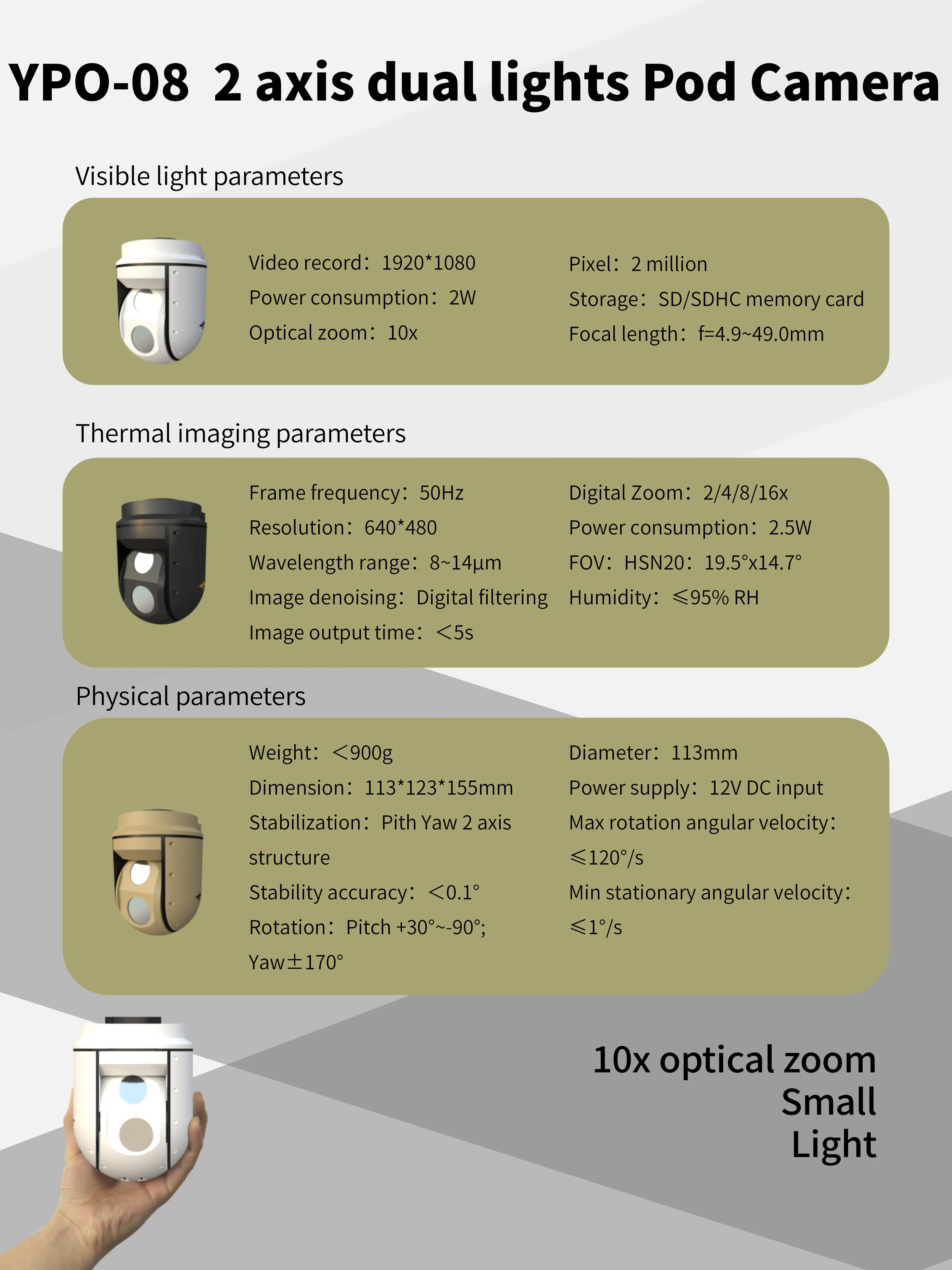

Visible light parameter
Video Recording	1920*1080
Optical Zoom	10x
Pixel	2 million
Storage	SD/SDHC storage card
Lens	focal distance F=4.9~49.0mm
Power Consumption	2W
Thermal imaging parameter
Frame Frequency	50Hz
Pixel	640*480
Wavelength Coverage	8~14μm
Image Denoising	digital filtering
Image Output	<5s
Focal Length	F=19mm
Magnification Times	2/4/8/16x
FOV	19.5°x14.7°
Infrared  Power Consumption	3.5W
Humidity	≤95%RH
Physical electrical performance parameters
Stabilization System	Horizontal Pitch 2-Axis structure
Wight	<900g
Size	113*123*155mm
Diameter	113mm
Power Consumption	<15W
Power Source	12V DC Input
Stabilization Precision	0.1°
Rotation Angular Velcocity	≤120°/s
Steady Angular Velocity	≥1°/s
Rotation Angular	Pitch +30°~-90° Yaw : ±170°
Video Interface	HDMI
Temperature Range	-10℃~+45℃

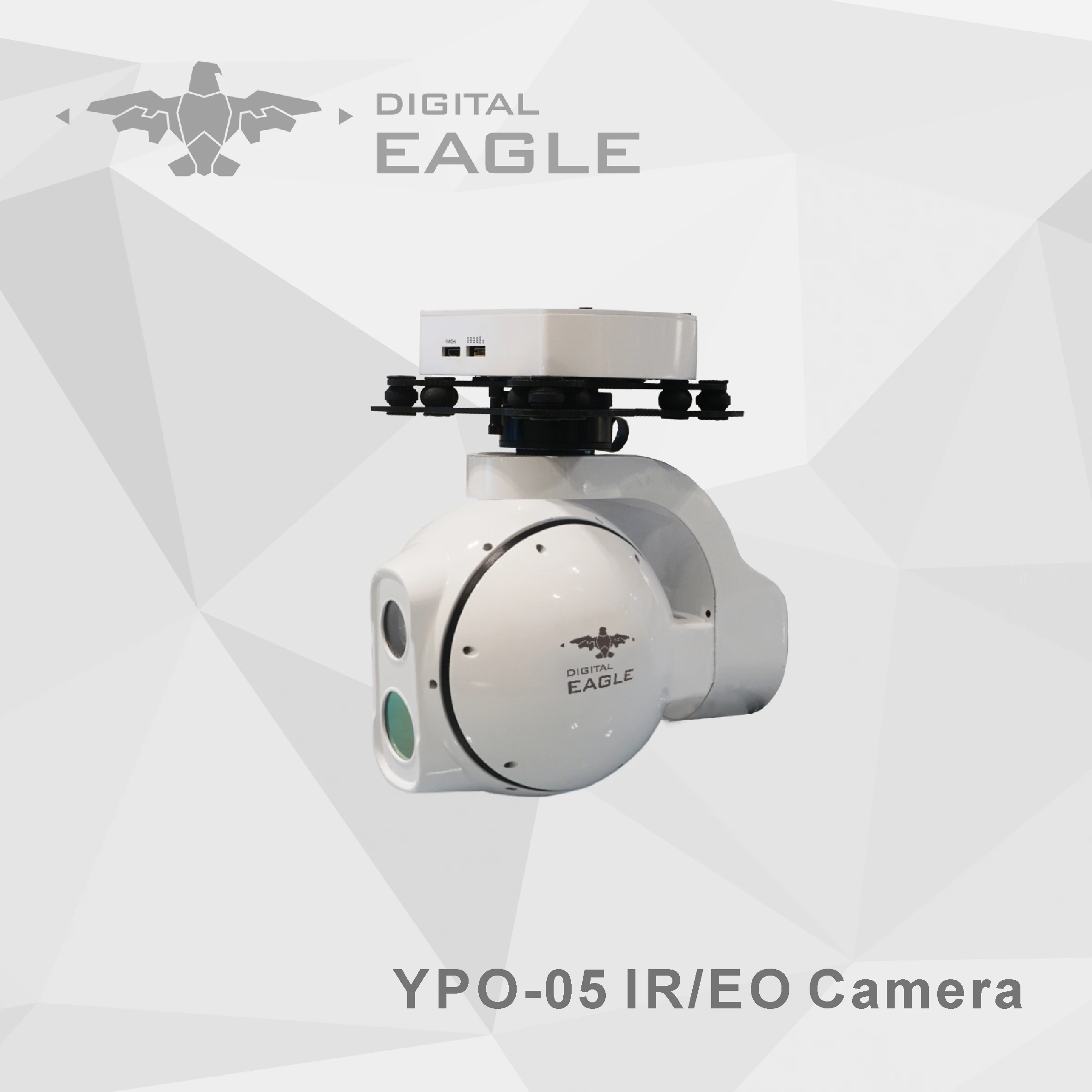

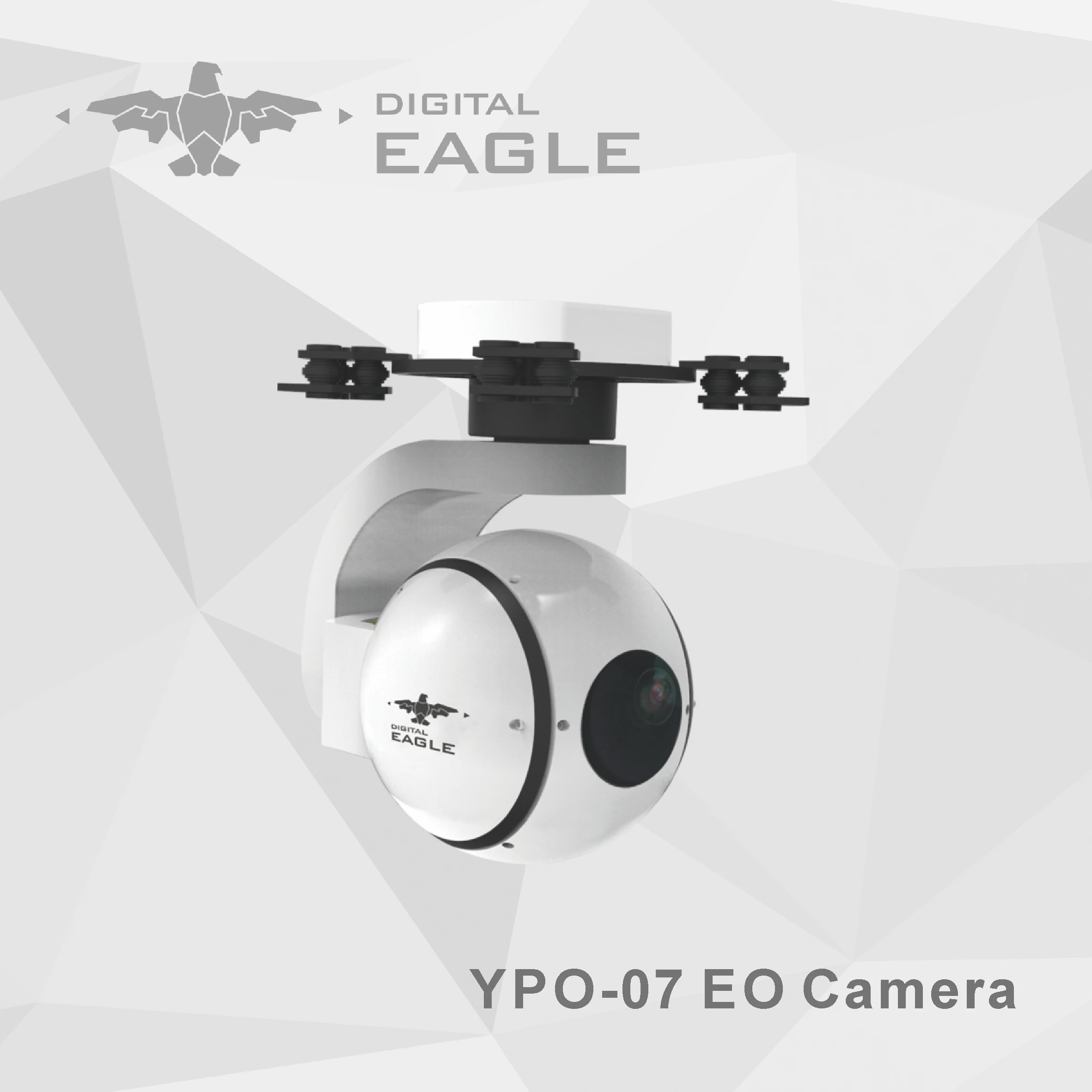

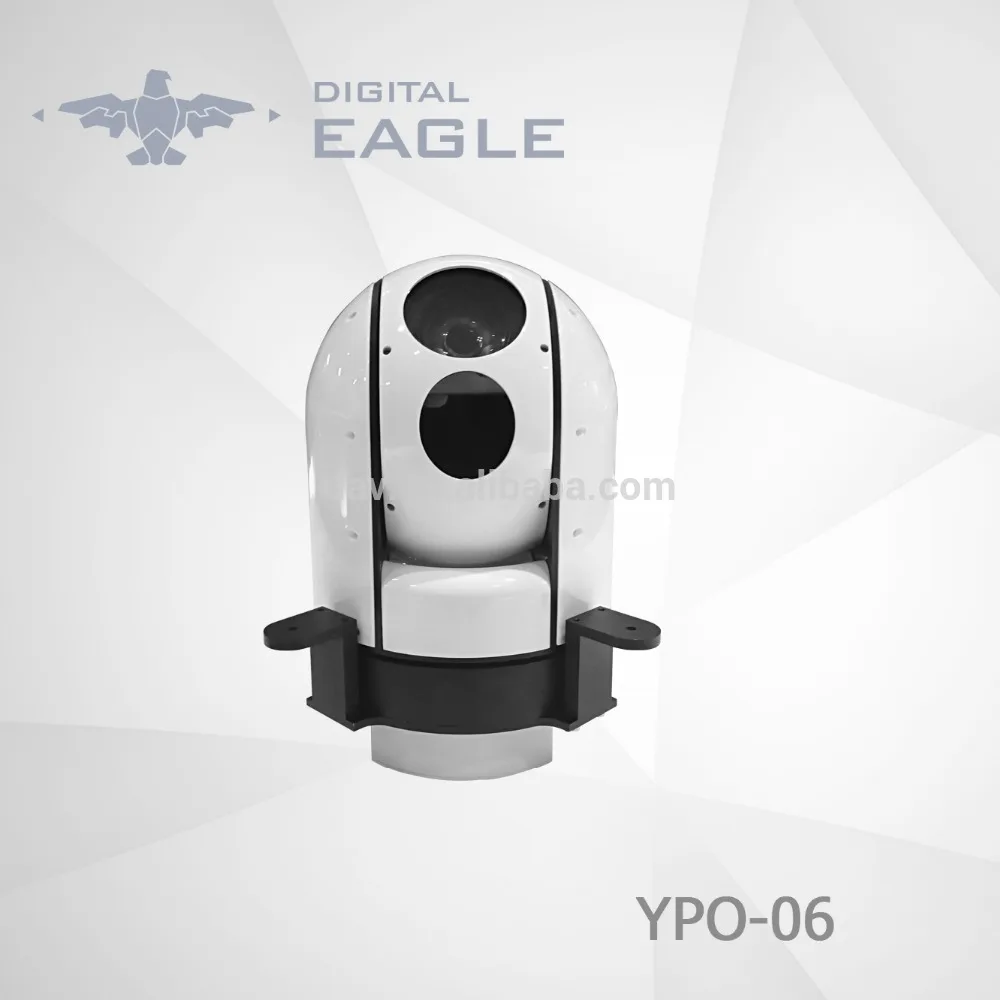

YPO-05 3-Axis Dual Light Camera      YPO-06 2-Axis Dual Light Camera   YPO-07 2-Axis Daylight Camera
