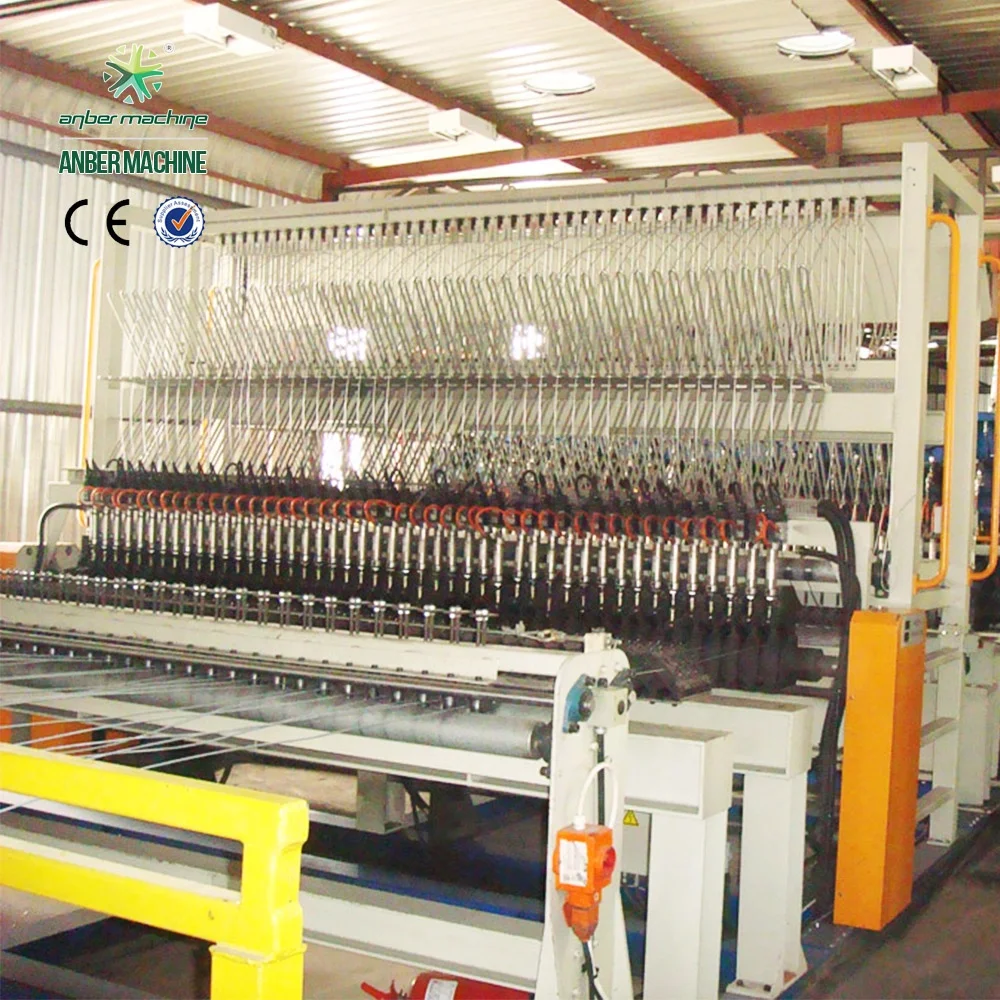

Security fencing mesh welding machine
- Category: >>>
- Supplier: Wuxi Anber Machine Co. Ltd.
Share on (60853775288):
Product Overview
Description
Product Description

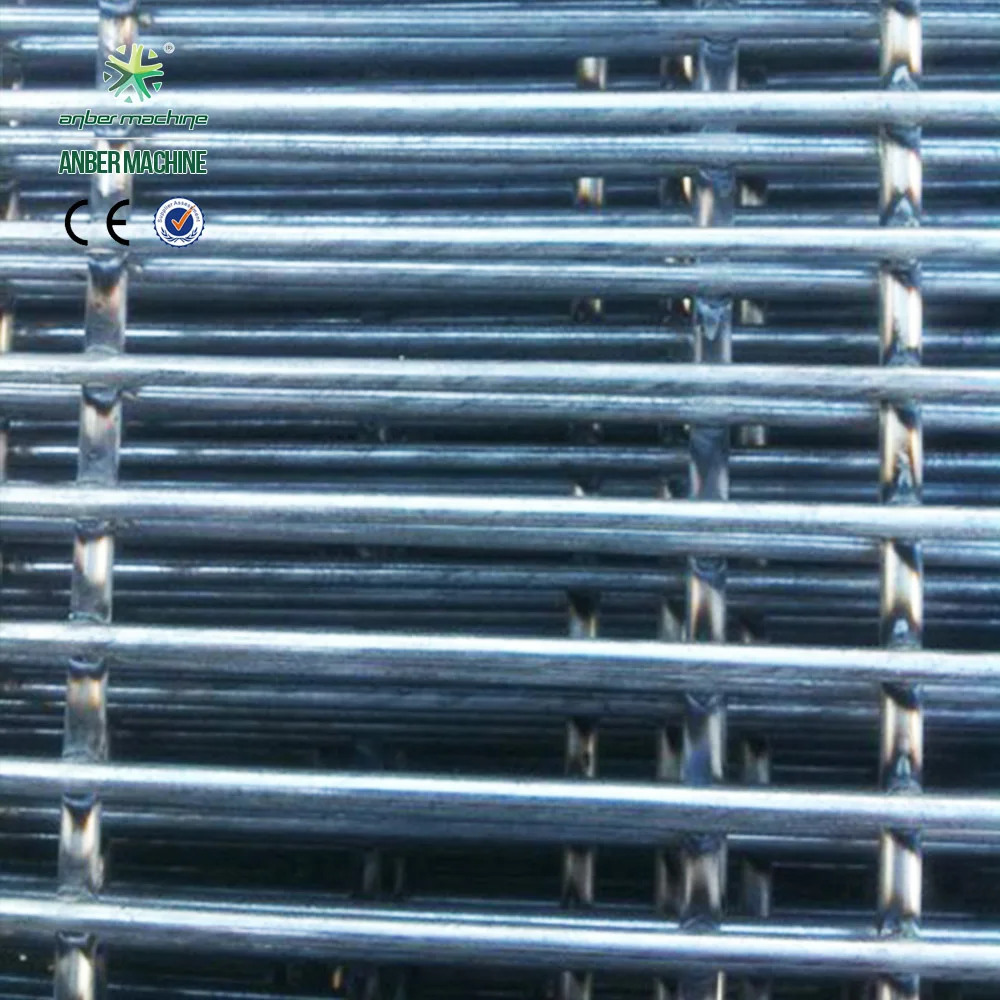

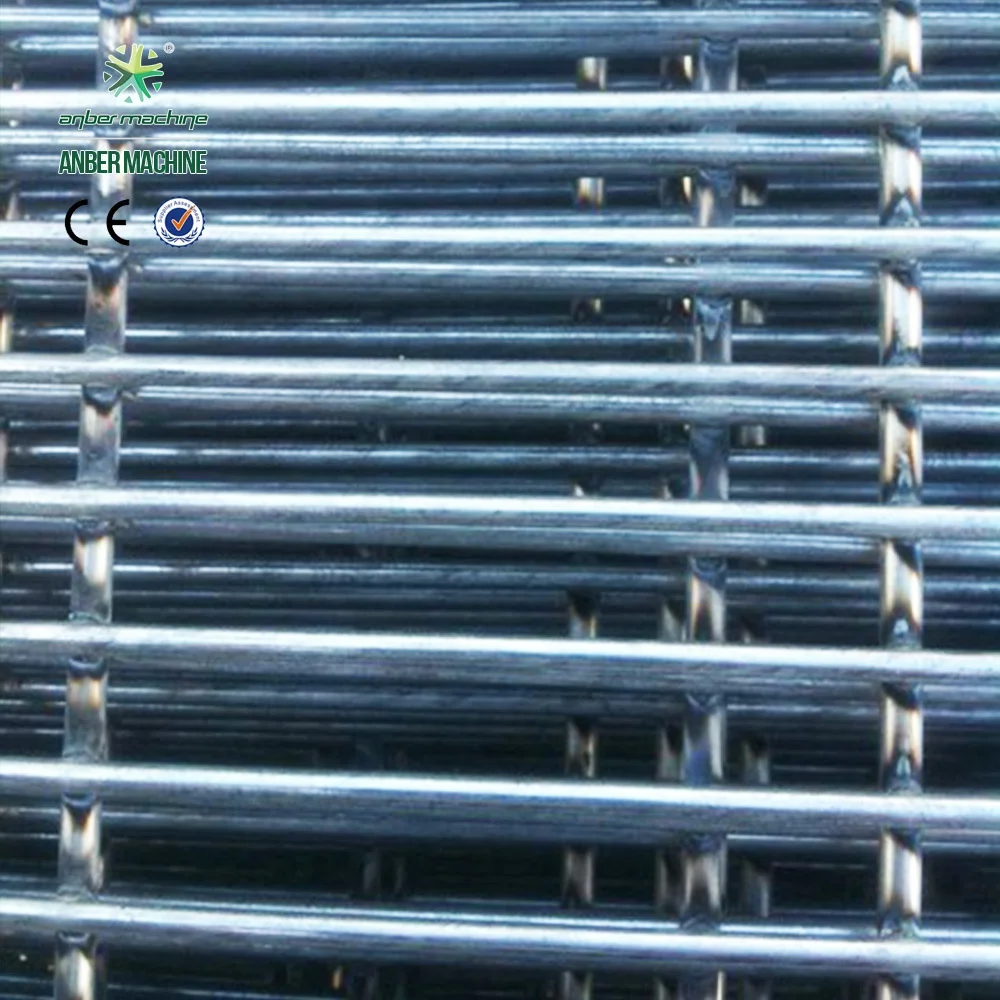

Anti-climbing mesh welding machine can weld the mesh of small mesh opening like 76.2mmx12.7mm which is mainly applied as prison mesh, it is of high speed, easy operation and high quality.
Machine parameter | ||||||
Mesh eyes: | 76.2mmx12.7mm | |||||
wire diameter | 3-6mm | |||||
Width range | 2500-3500mm | |||||
Speed | 65-80 strokes/minute | |||||
Features | ||||||
(1) Line wire off coil, pre-cut cross wires auto feeding with the high production rate. | ||||||
(2) Quick change-over, easy and quick to re-set different sizes of wire mesh. | ||||||
Machine structure | ||||||

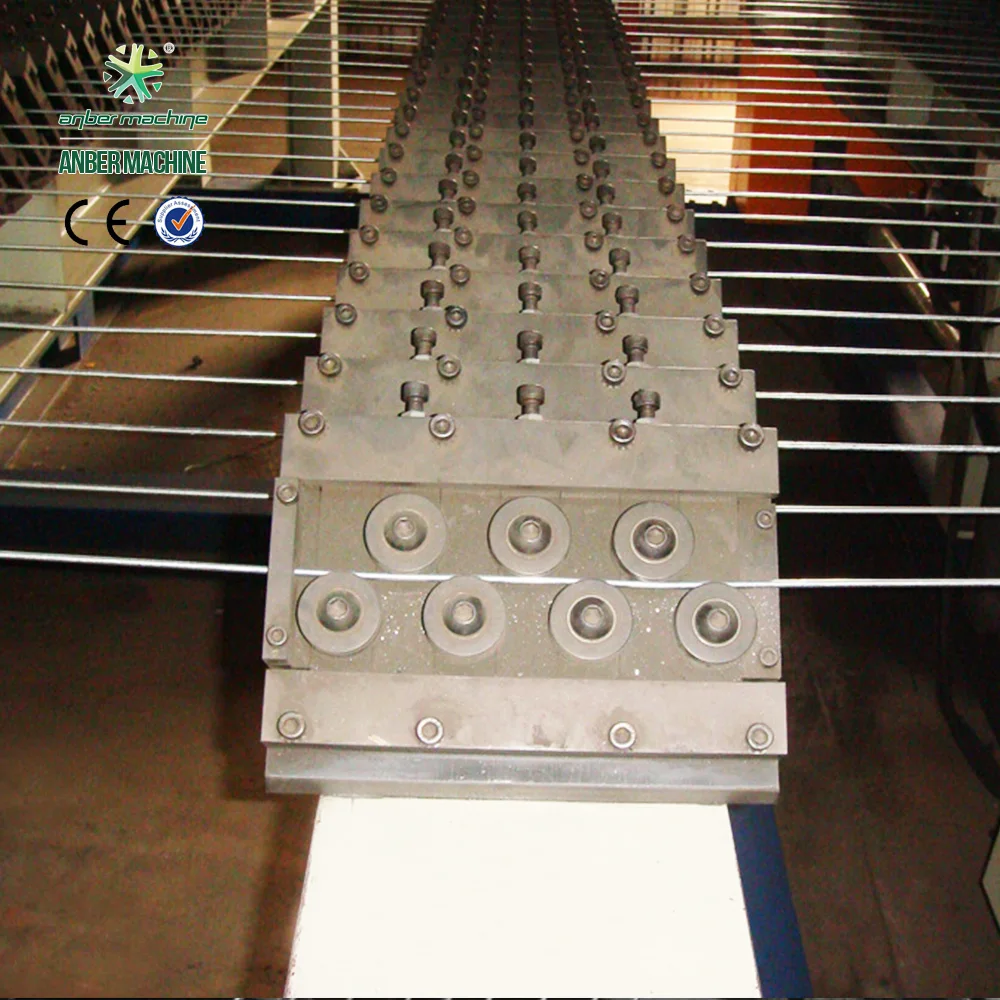

Line Wire feeding device | two sets of wire feeding device; one is driven by the converter motor for sending the wires to the wire accumulator, another is driven by the servo motor for sending the wires to the welding part. Both of them can help welding pitch precisely. | |||||

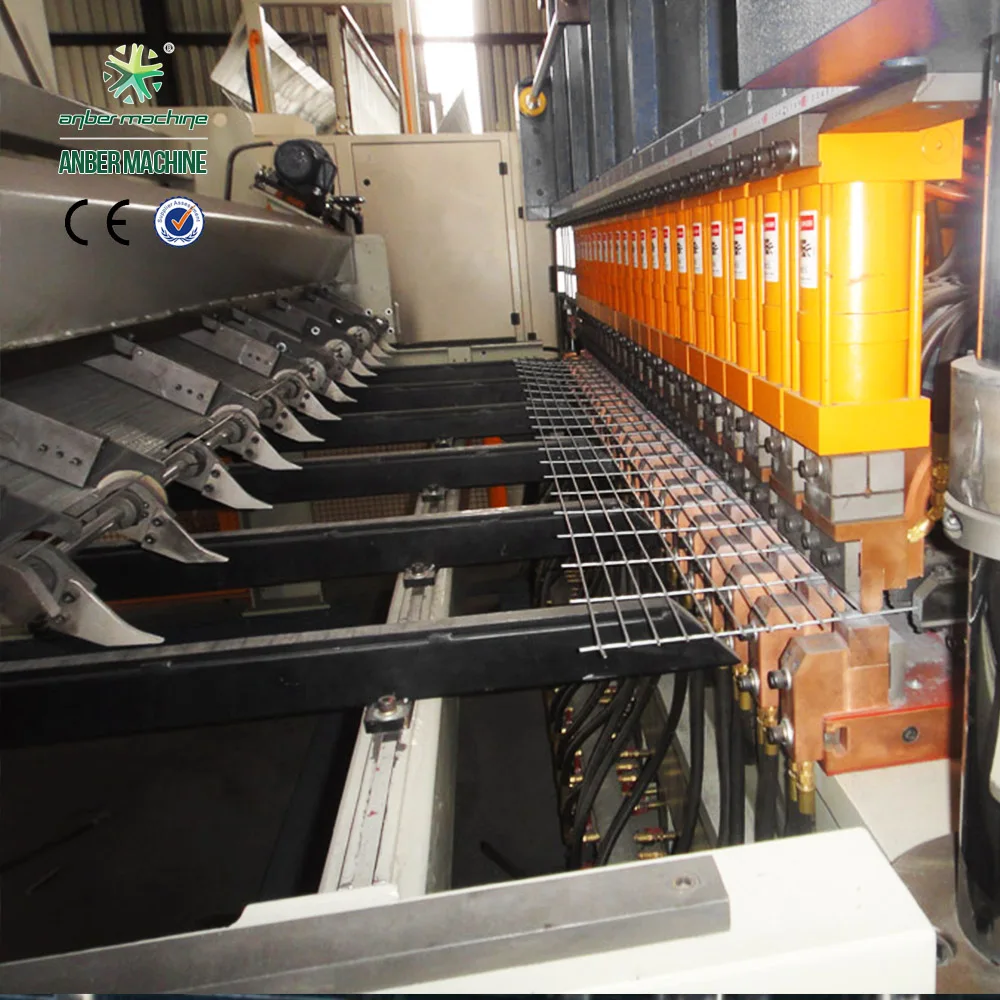

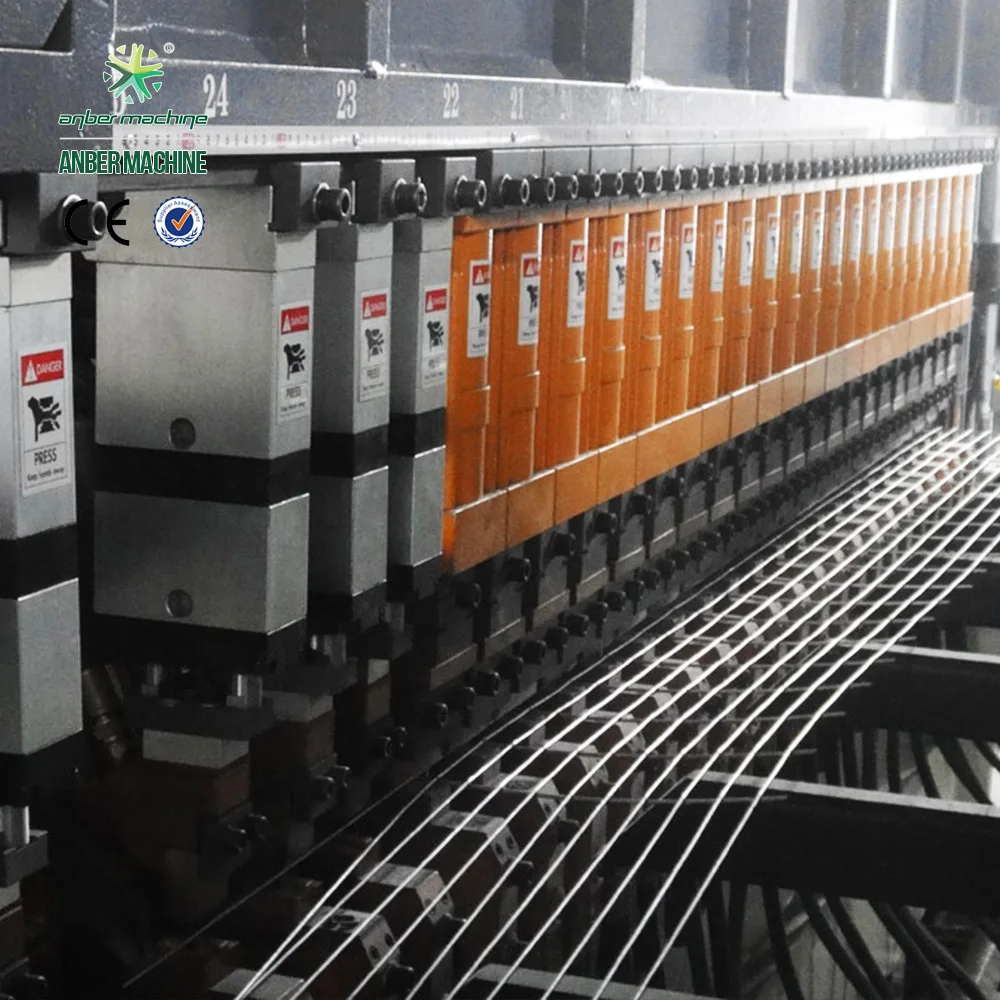

Mesh welding machine | according to the wire welding pitch, the machine can adjust upper cylinders and electrodes. Adjustable of each welding point and current, which are controlled by thyristor and micro-computer timer for the most proper electrode stroke and perfect use of electrode dies. | |||||
Cross wire feeding | automatic cross wire loading carriage with single wire hopper for sorting, positioning and ejecting straightened and cut to length cross wires. Operator sends the pre-cut wires into the carriage by crane. Controlling system: adopt P.L.C with colored interface windows. All parameters of the system are set on the screen. Fault diagnostic system with picture indication for fast removing of machine's stops. Linking with P.L.C, the working process and fault messages will be graphical presented. | |||||
Applications | ||||||
anti-climbing fence machine is applied to weld 3510 anti-climbing mesh and 358 anti-climbing fence, compare with normal fence, it saves half cost; compare with the chain link fence, it saves one-third cost. | ||||||
Packing & Delivery
Certifications
Our Company
Wuxi Anber Machine Co., Ltd. profile:
Business type: manufacturer and seller of kinds of wire mesh and fence making machine
Service: OEM service
Primary competitive: low in price and maintainance, high in quality and performance.
Products list:
Expanded metal mesh machine: heavy duty expanded metal mesh machine, expanded metal fence machine, diamond expanded mesh machine, angle bead machine, plaster stop machine, rib lath machine, hi-rib lath machine, brickwork reinforcing machine, brickwork reinforcement machine
Welded wire mesh machine: welded mesh fence/panel machine, welded mesh machine for construction, reinforcement mesh welding production line, space welded mesh machine for buildings
Wire drawing machine: iron wire drawing machine, stainless steel wire drawing machine, tin wire drawing machine, copper wire drawing machine, rod break down
PVC coated production line: for the fence, galvanized coating production line for the fence, wire PVC coated line
Other wire mesh machine: razor barded wire machine, barded wire machine, gabion mesh machine, gabion mesh fence machine and full automatic gabion mesh production line, hexagonal wire netting machine, chain link fence weaving machine, automatic chain link fence weaving machine, semi-automatic chain link fence weaving machine, hinge joint knot field fence machine and perforated metal mesh machine.
We also have rich experience in producing the wire mesh and fence products, such as expanded metal mesh, angle bead, plaster stop, welded mesh panel, welded mesh fence, chain link fence, gabion mesh, gabion mattress, double twist rockfall netting, welded mesh box, fasteners, Our factory is located in Wuxi, China. It is famous for its good wire mesh machine and wire mesh products. And was named "AAA" factory by our National Industrial Authority.
We hope to have chance to establish good business relationship with all the friends who are interested in our products. We will expect your visit to our factory.
FAQ
Q: Are you a trading company or manufacturer?
A :We a manufacturing and trading combo. Anber manufacture the machine, like angle beads machine, rib lath, etc, we ABO sell finished products, like metal lath and beads.
Q: What is your factory strength?
A :All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.
Q:Where is ABO Building factory?
A :We are in Kunshan, 1hour driving from Shanghai airport.
Q:What about the payment Terms?
A :Normally deposit 50% in advance.
Q:What is your available port for shipment?
A :Shanghai seaport.
