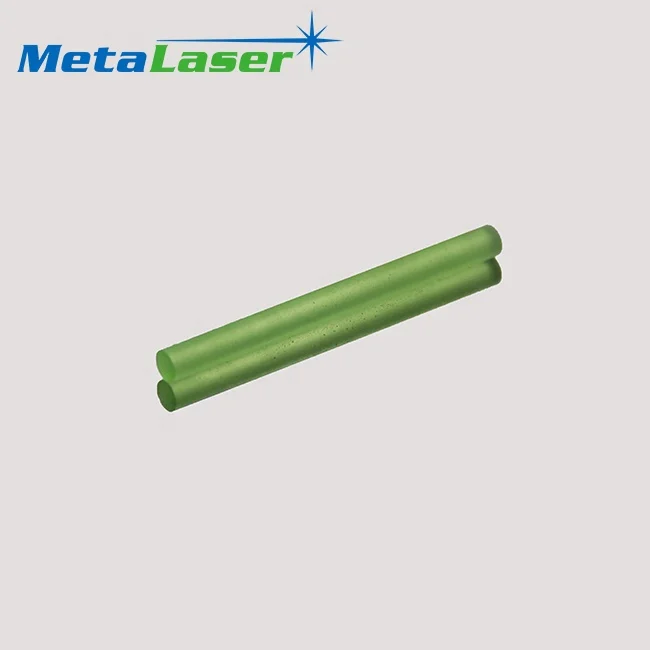

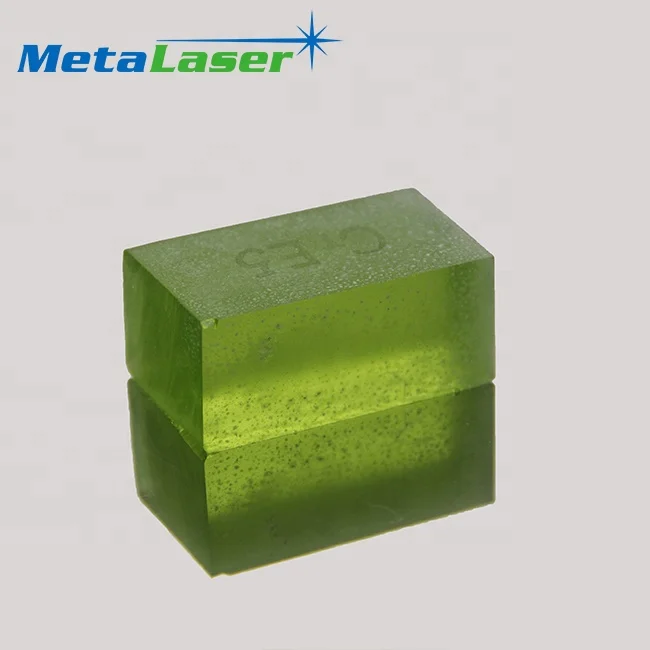

Erbium ytterbium doped glass 1535nm laser rod

Product Overview

Description

Product Description

Phosphate glass doped with Er3+ and Yb3+ has wider wavelength tuning, lower RIN and narrower laser

line width, higher conversion efficiency and a very wide pumping band, it is an ideal material for making optical waveguide amplifiers and lasers.

Laser output at 1535nm can be realized in it.



Features

• Stimulated emission cross section


• Narrow fluorescence line


• High pump efficiency


• Short fluorescence lifetime


• Low oscillation threshold

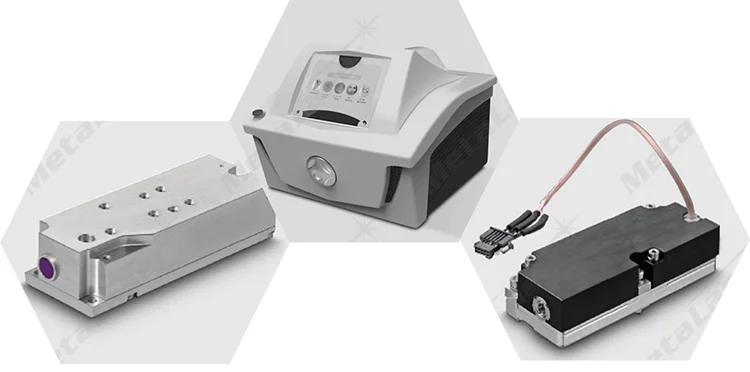

Applications

•   LD pumped solid-state laser


•   Eye-safe Laser Rangefinder


•   Waveguide amplifier


•   Lamp pump





Optical properties

Property	Value
Optical Density	0.1 to 0.8
Fluorescence lifetime	7.7-8.2 ms
Concentrations	0.5 mol % ~ 3 mol %
Emission wavelength	1535 nm
Absorption Coefficient	1.0 cm-1 ~ 7 cm-1
Emission state absorption cross section:	0.75x10-20 cm2@1535nm
Transmission	10% to 90%
Coatings	AR≤ 0.2% @1535nm
Damage Threshold:	> 500 MW / cm2

Polishing Specification

Property	Value
Orientation Tolerence	< 0.5°
Thickness/Diameter Tolerance	±0.05 mm
Surface Flatness	<λ/8@632 nm
Wavefront Distortion	<λ/4@632 nm
Surface Quality	10/5
Parallel	10 ″
Perpendicular	15 ′
Clear Aperture	>90%
Chamfer	<0.1×45°
Maximum dimensions	dia (3-12.7)×(3-150)mm2
