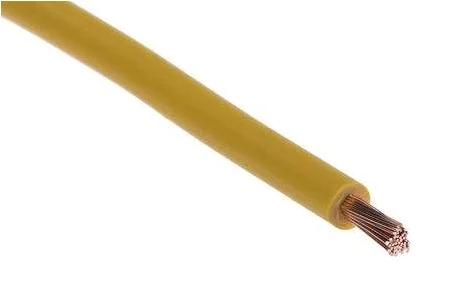

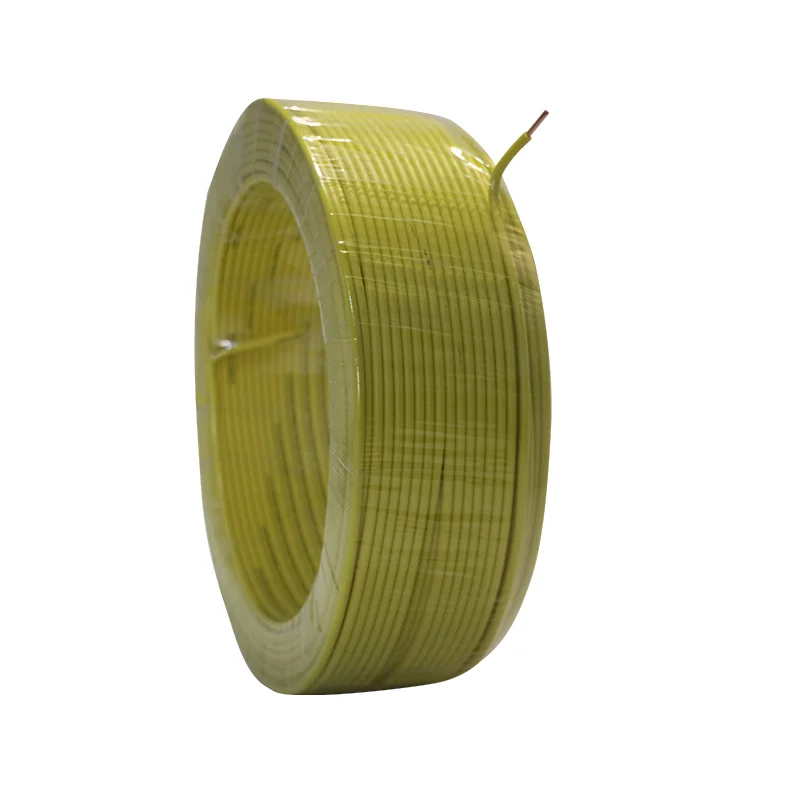

7 Conductor Stranded Copper 8 10 12 14 awg THW THHN Wire Electric Cable
- Category: >>>
- Supplier: Henan Guowang Cable Co. Ltd.
Share on (60853856011):
Product Overview
Description
Product Description
7 Conductor Stranded Copper 8 10 12 14 awg THW TW Wire Electric Cable
DY LY LGY PN-87/E 90054 cable
Brand:RMJT
applied in 1st Youth Olympic Games in Singapore.
DY LY LGY PN-87/E 90054 cable
H05V-U H05V-R H05V-K BS6004 DIN VDE0281-3 NF-C32-201-3 cable 1)Copper Conductor
2) PVC Insulation
3)application:In dry rooms, in apparatus, switch and distribution boards, for laying in conduit on and under plaster and on insulating supports above plaster.
DY LY LGY PN-87/E 90054 cable
1)Fine stranded copper wire
2)PVC Insulation
3)application:Flexible wire, for protected installation in equipment and lighting fitting conduit or under plaster.
Customized types are accepted
DY LY LGY PN-87/E 90054 cable
Type
| Dimensions – conductor cross-section | Construction of individual conductor | External diameter | Insulation thickness | Conductor resistance at 20 °C | Specific. el. resistance of insulation at 70°C | Cable weight |
| nominal | min-max. | nominal | max | min. | approx. | |
| mm² | n x mm | mm | mm | Ω/km | MΩkm | kg/km |
| 1,5 | 30 x 0,25 | 2,8 - 03,4 | 0,7 | 13,3 | 0,0100 | 20 |
| 2,5 | 50 x 0,25 | 3,4 - 04,1 | 0,8 | 7,98 | 0,0095 | 32 |
| 4 | 56 x 0,30 | 3,9 - 04,8 | 0,8 | 4,95 | 0,0078 | 46 |
| 6 | 84 x 0,30 | 4,4 - 05,3 | 0,8 | 3,30 | 0,0068 | 65 |
| 10 | 80 x 0,40 | 5,7 - 06,8 | 1,0 | 1,91 | 0,0065 | 115 |
| 16 | 128 x 0,40 | 6,7 - 08,1 | 1,0 | 1,21 | 0,0053 | 170 |
| 25 | 200 x 0,40 | 8,4 - 10,2 | 1,2 | 0,780 | 0,0050 | 260 |
| 35 | 280 x 0,40 | 9,7 - 11,7 | 1,2 | 0,554 | 0,0043 | 360 |
| 50 | 400 x 0,40 | 11,5 - 13,9 | 1,4 | 0,386 | 0,0042 | 515 |
| 70 | 356 x 0,50 | 13,2 - 16,0 | 1,4 | 0,272 | 0,0036 | 710 |
| 95 | 485 x 0,50 | 15,1 - 18,2 | 1,6 | 0,206 | 0,0036 | 940 |

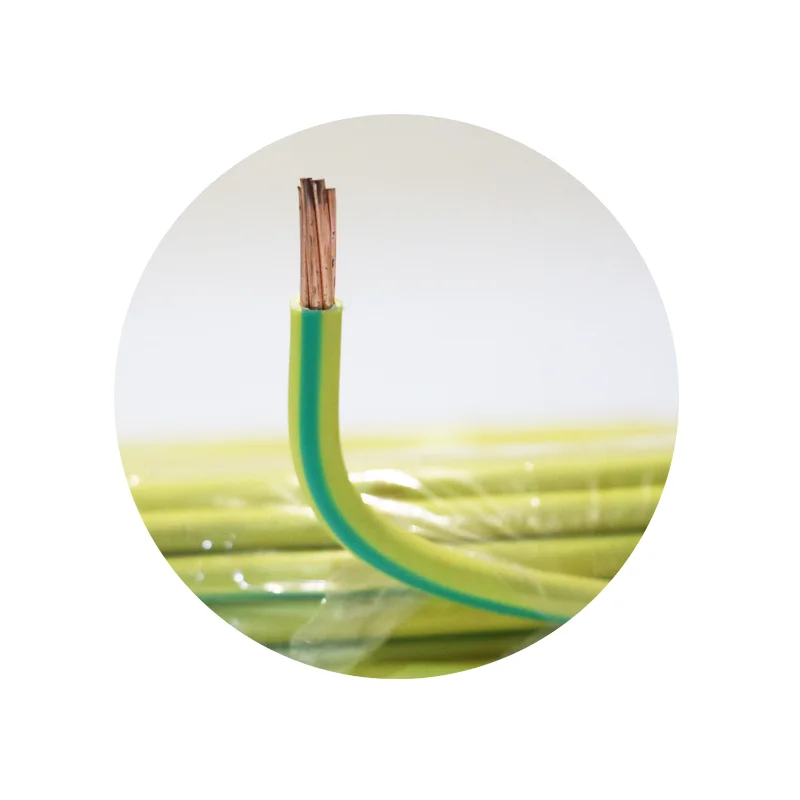

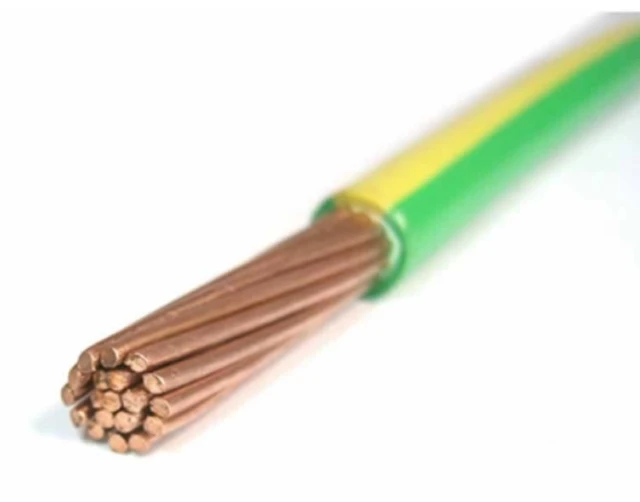

Detailed Pictures
