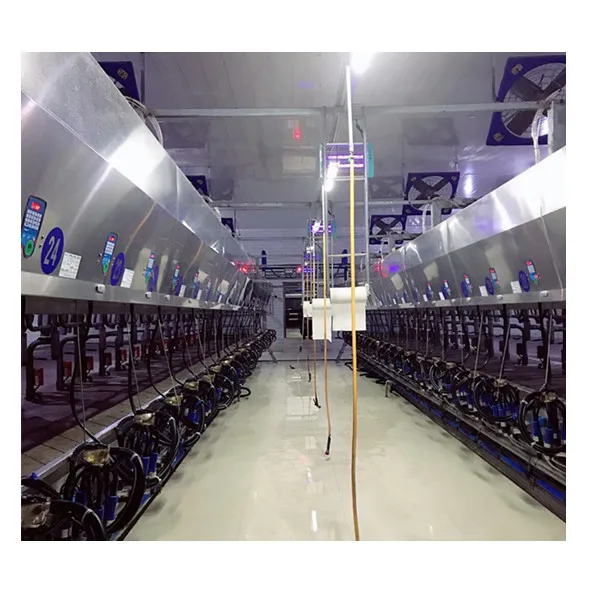

herringbone rotary milking parlor pipeline milking system

Product Overview

Description

              herringbone rotary milking parlor pipeline milking system







1. Pipeline milking system:

Pipeline milking system is used for large farm and milk a large number of cattle/goat, according to customer requirements, the layout can be designed to 2*4 - 2 *40, it means milk 8-80 cows at the same time.

This cow milking parlor can also be equipped with pasture management software, it can help you to control the pasture daily production timely according a variety of practical data reports.





2. Pipeline milking system parameters:



Model	9JB-2*4	9JB-2*8	9JB-2*10	9JB-2*16	9JB-2*40
Working vacuum	50Kpa	50Kpa	50Kpa	50Kpa	50Kpa
Pulsation Ratio	60/40	60/40	60/40	60/40	60/40
Pulsation Frequency	60±3rpm	60±3rpm	60±3rpm	60±3rpm	60±3rpm
Vacuum pump power	4kw	5.5kw	7.5kw	11kw	15kw
Vacuum pump speed	1200L	2100L	2800L	2*2100L	2-2800L
Milk pump speed	5T/h	5T/h	10T/h	10T/h	10T/h
Milk pump power	2.2kw	2.2kw	4kw	4kw	4kw
Productivity	32cows/h	64cows/h	80cows/h	128cows/h	320cows/h
Voltage	380V/50Hz, or customize according to your demands







3. Pipeline milking system quality:



1). Electronic Milk Measurement system

2). Automatic Cluster Remover system (Automatic Detacher)

3). Stimulation Massage Nipple

4). Full Automatic Surfing Cleaning system

5). Quick- release Canopy Frame system









4. Pipeline milking system installation:



1). After the buyer received the milking parlour, the seller will send two engineers to the buyer’s site to guide installation and train labors within 7~10 days.
2). The buyer should bear the cost include actual expenses for the visa, roundtrip tickets, insurance, accommodation and labor of engineers.
3). Tools for installation should be provided by the buyer, the seller will provide detailed tool list.





5. Pipeline milking system delivery:

1) Before package and delivery, we will test the machine seriously and guarantee the machine runs stably with high accuracy.

2) After inspection, our machines are wrapped by plastic and then carefully packed in wooden cases.

3) Then the whole set milking parlor will be put in one 20feet or 40 feet container, because it have too many parts.



6. Milking parlor after service:

1) The warranty time is one year from the date you get the machine, easy-wear parts for 3 months.

2) If any parts are found defective in quality in the first year, we will replace it for you freely.

3). We are responsible for the smooth operation of the machines. If you have any problem, just feel free to contact us, we assure you our soonest response.



7. Related machines:

1) Milk cooling tank from 500L-10000L, it is the necessary machine to equip with milking parlor.





 2) Feed mixing machine from 4 to 8cbm.

3) Pasteurization machine from 5L to 500L.

8. Company profile:

Zibo Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service.

We main produce: small vacuum pump/ piston type movable milking machine; medium fish-bone/ mid-set type milking parlor; large rotary type/ parallel type/ herringbone type milking parlor; feed mixer; livestock solid-liquid manure separator; cow head lock; cow free stall; fresh milk cooling tank and related parts.



 Milking machine certificate:



 Click here to send inquiry:
