  HM-1100YT Semi-Automatic Thermal Film Laminating Machine

Product Description








Usage:

    HM-YT semi-automatic pre-coating film laminating machine is a multi-functional laminator which is newly developed upon customers feedback and market need for pre-coating film and glueless film.It can laminate paper without gluing by pre-coating film and glueless film in certain temperature and pressure.This machine advoids environmental pollution and toxic residuum from traditional laminating technology , reduces energy-loss and saves production costs.

    It's widely applicable to laminate teaching materials,books, periodicals, product samples, manuals, charts, maps,the outer package of audio and video products and other publications.The laminated products will be water-proof,durable, 3D for clear picture and good effect.

    The machine is equipped with frequency convener to adjust working speed and heating roller with hydraulic system for lamination.It has features of high speed ,low noise and stable running ,which a good choice for large and middle model film laminating enterprise.



Main Specification :

Model

HM-520YT

HM-920YT

HM-1100YT

Biggest effect of the width

520mm

920mm

1100mm

Pressure of work

10-16Mpa

10-16Mpa

10-16Mpa

Largest machine output speed

40m/min

40m/min

40m/min

Largest diameter volume the original film

500mm

500mm

500mm

Power supply

380V/50HZ

380V/50HZ

380V/50HZ

Total power

16kw

16kw

16kw

Machine is suitable for paper specifications

105-500g/m

105-500g/m

105-500g/m

Dimensions In

4000×1340×1650mm

4000×1740×1650mm

4000×1940×1650mm

Machine weight

2T

2.2T

2.6T

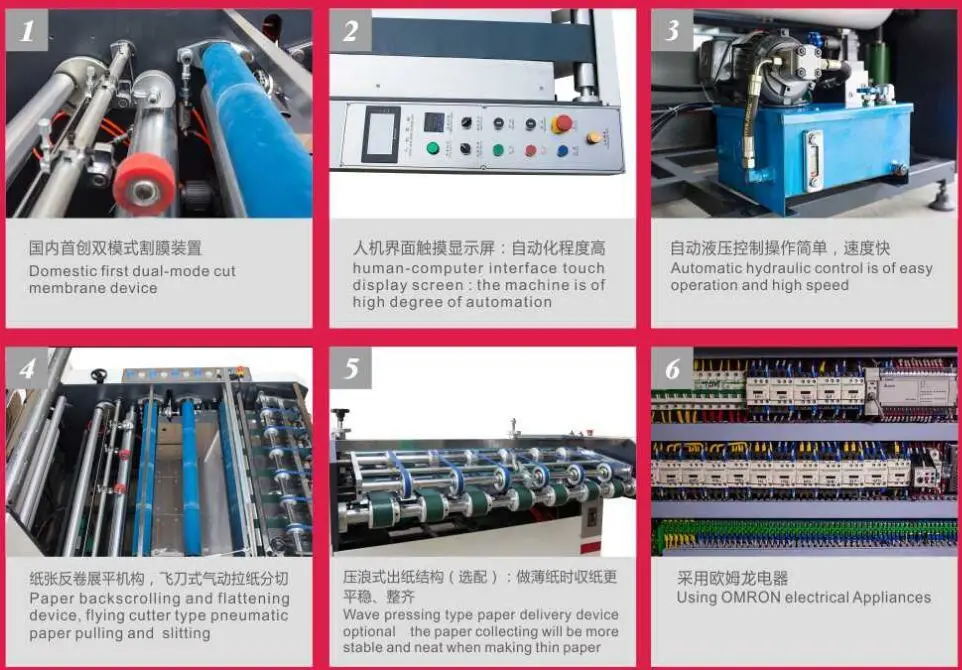

*Our film laminate machine is better than other:

1.fly cutting we can do 120gsm ,other can't
2.we can produce the paper on flat at the end,other will be little roll.320MM roll diameter.

3.our width is 920MM,other only 880mm EVEN 720mm

4.equiped with anti-curve device to keep paper smooth and jogger to save work cost and effiency.



Packaging & Shipping

 *Shipping time

Delivery within30 days upon your payment.

*Packaging

Plastic film wrap and export standard wooden case

thermal lamianting

Our Services

 *Terms of payment

30% T/T in advance ,70% T/T before shipment

 *Other Related Information

Our guarantee is one year(during the period of quality guarantee,we supply the spare part in free for replacement)

 We promise engineers available to service machinery overseas.
