Multifunctional tofu production equipment soya milk machine / tofu making machine
- Category: >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (60854120038):
Product Overview
Description

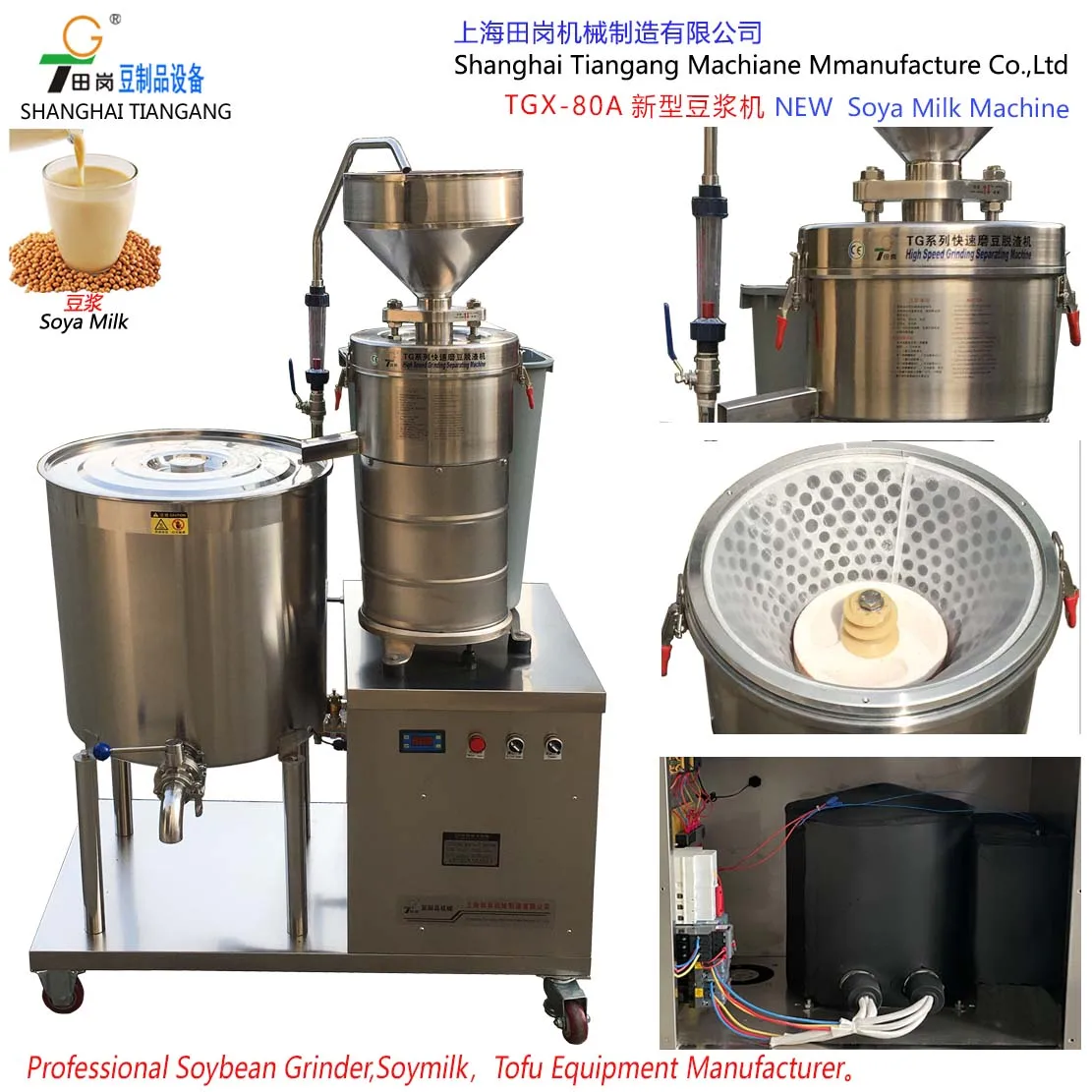

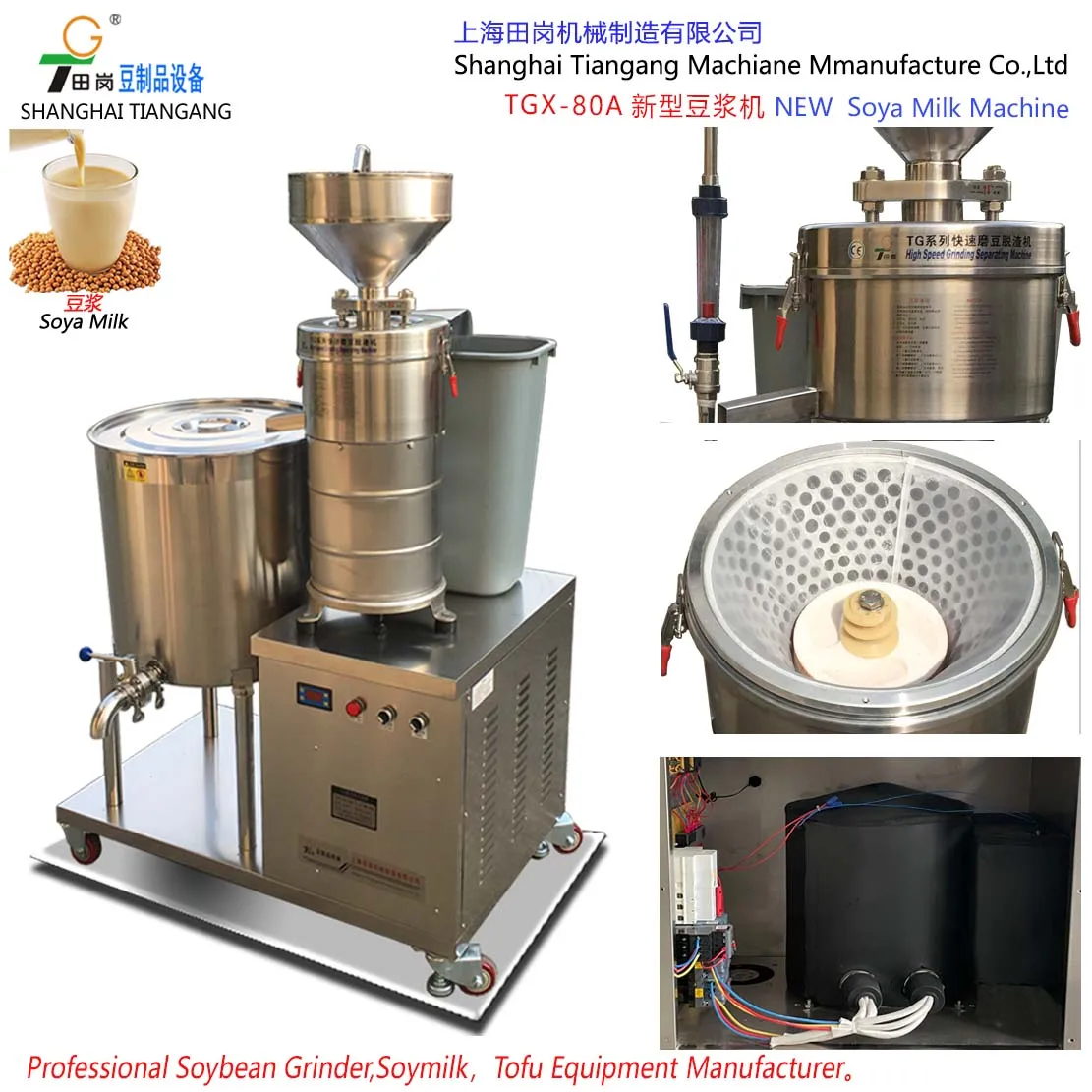

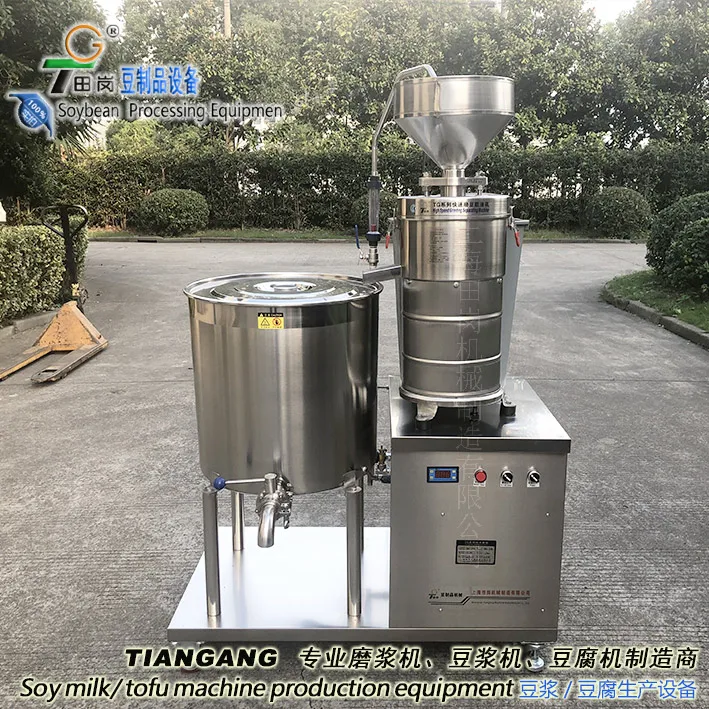

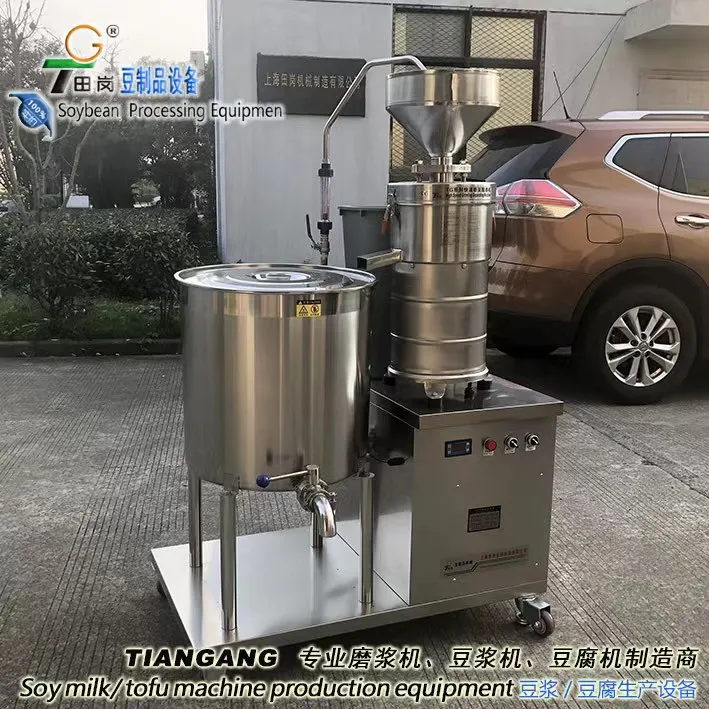

TGX-80A Soymilk Making Machine
It can grind soybeans and separate Soy Okara at one time. heating the cooking automatically, the operation is simple, safe and reliable and so on. It is convenient and fast to boil the soybean milk From 80L soymilk to boiling point, it takes only about 40minutes to make ,convenient and quick. It is only one person to operate from the cooking to the finished product of tofu once. One machine is multi-purpose, it can produce soya bean milk, soy pudding and bean curd at the same time.
Features:
Features:
1. adopt full Stainless steel valve fittings, easy to clean and fast.
2. Bean grinding, With thickly flavored bean paste emerging all at once, Okara separation removal accomplished in a single operation, and flaky Okara discharged at the same time.
3. built in steam generator, automatic water addition, automatic heating and boiling.
4. Tofu pressing molding:Y-3 Aerodynamic force tofu press machine，Press two boxes of tofu at a time.
1. adopt full Stainless steel valve fittings, easy to clean and fast.
2. Bean grinding, With thickly flavored bean paste emerging all at once, Okara separation removal accomplished in a single operation, and flaky Okara discharged at the same time.
3. built in steam generator, automatic water addition, automatic heating and boiling.
4. Tofu pressing molding:Y-3 Aerodynamic force tofu press machine，Press two boxes of tofu at a time.
Applications:
The Enterprises and institutions cafeteria, dining room, breakfast shop, traditional market, supermarket、 and so on, business districts do on the spot presently buy the fresh soybean milk, the peanut thick liquid tofu and so on.
TGX-80A Technical data:
Main technical data:
1、Voltage：380V/50Hz；(Other use voltages can be customized.)
2、Heating Power:12kw；
3、Grinding Power:1.5kw,
4、Cooking pan capacity:95L；
5、Weight:100kg；
6、Packing Size :1050×680×1360mm
1、Voltage：380V/50Hz；(Other use voltages can be customized.)
2、Heating Power:12kw；
3、Grinding Power:1.5kw,
4、Cooking pan capacity:95L；
5、Weight:100kg；
6、Packing Size :1050×680×1360mm

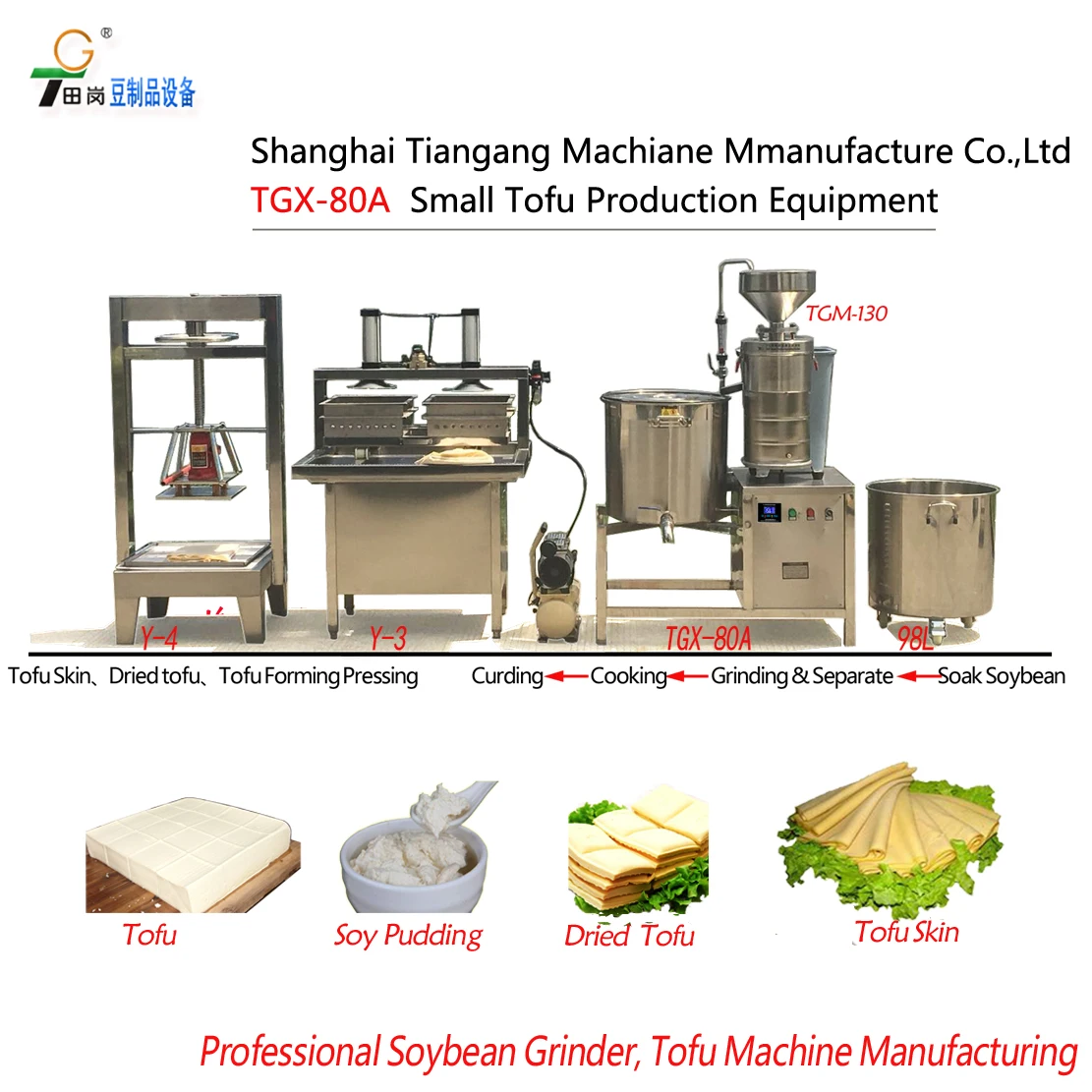

Production process of tofu:
The whole stainless steel structure is made up of TGM-100 grinding bean dregs, slag bucket and steam generator, and the electrical control part controls the temperature of the Cooking barrel by the digital temperature control device, The steam generator automatically adds water to prevent dry burning.
First, the soaked soybean is processed by high speed separation mill, and the soybean residue is discharged. The soybean milk produced by steam is heated to get rid of the fishy, homogenized cooking, and the nutritive soy products can be produced by adding auxiliary raw materials to defoaming, emulsifying, solidifying and forming.
First, the soaked soybean is processed by high speed separation mill, and the soybean residue is discharged. The soybean milk produced by steam is heated to get rid of the fishy, homogenized cooking, and the nutritive soy products can be produced by adding auxiliary raw materials to defoaming, emulsifying, solidifying and forming.
We can custom design it to suit customers,needs.

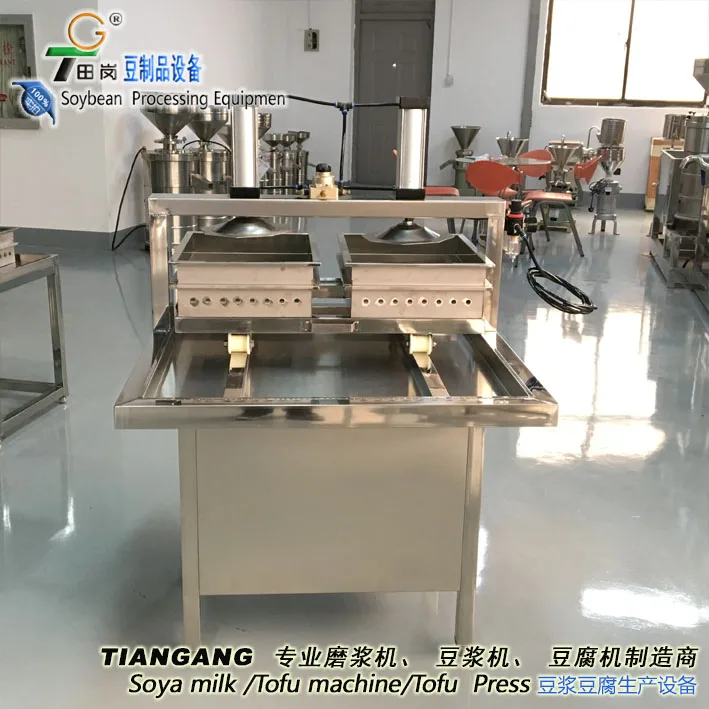

Y-3 Aerodynamic force tofu press machine Description:
The machine is made of stainless steel and consists of a frame, a tofu mold, an air pressure control system and an air compressor. Simple structure, simple operation, convenient and hygienic cleaning, controllable tofu height, adjustable pressure, controllable tofu forming quality, quick access with a trolley, saving time and labor in .
Technique data:
diameter of air cylinder :63mm, Route of air cylinder:150mm；Maximun pressure:0.8MPa
tofu mould:420*320*80+70mm
size:900*950*1300mm
Packing Size:950*680*1020mm；Weight:85kg;Include the air pump
diameter of air cylinder :63mm, Route of air cylinder:150mm；Maximun pressure:0.8MPa
tofu mould:420*320*80+70mm
size:900*950*1300mm
Packing Size:950*680*1020mm；Weight:85kg;Include the air pump

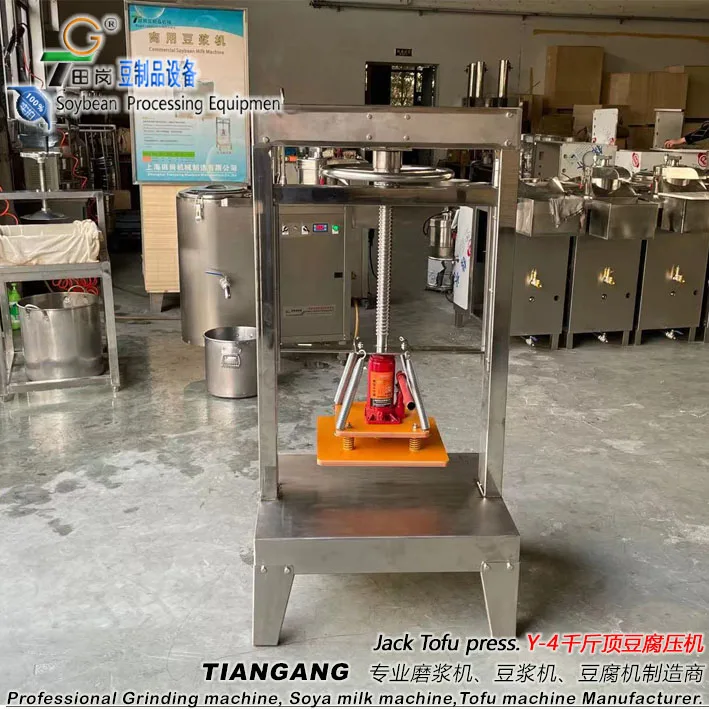

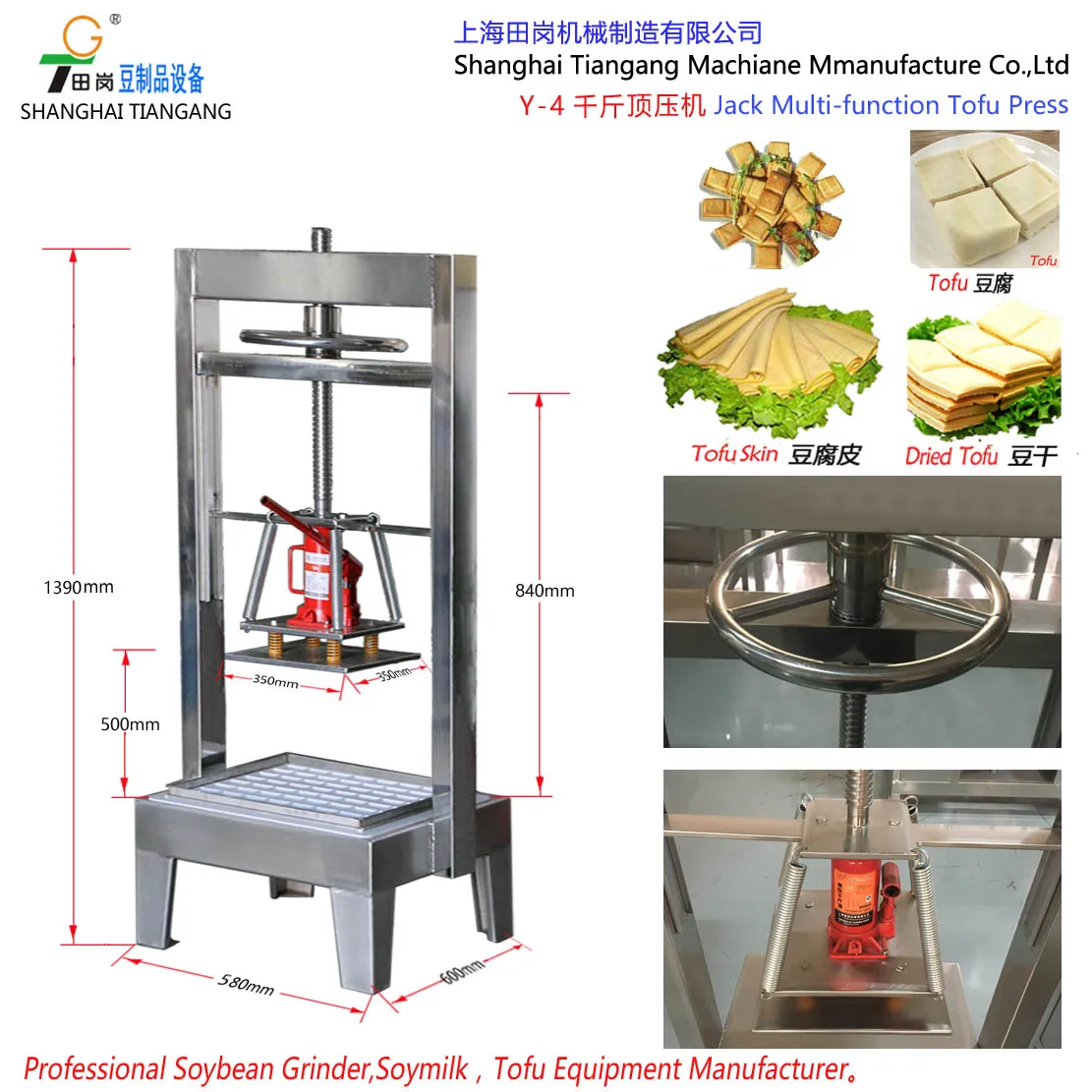

Y-4 Multifunctional tofu press
The machine is made of all stainless steel and meets food hygiene standards. The pressure is provided by the screw and jack. It is equipped with 8 springs to stabilize the pressure. The pressed soybean products have beautiful appearance, good quality and simple and convenient operation.
Its characteristics: manual operation is convenient and random, no power supply is required, and power failure and other failures do not affect production.
Multi-function: To configure tofu, dried bean curd, tofu skin, etc., it is widely used in the production of small soy products workshops.
With jack pressure: 10T; limited working height: 500mm
Upper platen size: 300 * 300mm; lower table size: 580 * 600mm
Production capacity: 30-60kg / h (dried tofu)
Dimensions: 680 * 610 * 1300mm; weight: 95Kg.
tofu skin: a set of mold (stainless steel bottom plate + sleeve frame + plastic pressure plate) set price: $ 100. 450mm tofu cloth: $ 1 / m.
Dried tofu: mold (plastic grid pad: $ 8 / piece, set frame: $ 10 / piece, tofu cloth: $ 2 / piece). Generally, more than 10 tofu cloths and grid mats are purchased, and one set of frames is enough.
Tofu box: can be customized according to demand.
Its characteristics: manual operation is convenient and random, no power supply is required, and power failure and other failures do not affect production.
Multi-function: To configure tofu, dried bean curd, tofu skin, etc., it is widely used in the production of small soy products workshops.
With jack pressure: 10T; limited working height: 500mm
Upper platen size: 300 * 300mm; lower table size: 580 * 600mm
Production capacity: 30-60kg / h (dried tofu)
Dimensions: 680 * 610 * 1300mm; weight: 95Kg.
tofu skin: a set of mold (stainless steel bottom plate + sleeve frame + plastic pressure plate) set price: $ 100. 450mm tofu cloth: $ 1 / m.
Dried tofu: mold (plastic grid pad: $ 8 / piece, set frame: $ 10 / piece, tofu cloth: $ 2 / piece). Generally, more than 10 tofu cloths and grid mats are purchased, and one set of frames is enough.
Tofu box: can be customized according to demand.
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
