Fully Automatic Washer Disinfector, Laboratory Glassware Washer, 320L Standard model with 3pcs IR36,
- Category: >>>
- Supplier: Qingdao Micron Lab Trading Co. Ltd. [Shandong China]Qingdao
Share on (60854148074):
Product Overview
Description
Fully Automatic Washer Disinfector, MKW series
MKW series fully automatic washer disinfector makes instrument cleaning rapid and safe, more thorough than
hand scrubbing and ultrasonic cleaning combined without the mess or chemical hazards in a compact tabletop
or under counter mountable size with outstanding protein removal power.
1.Fully 304 stainless steel for corrosion resistance
2.High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles,
and self-cleaning program.
3. Rapid and efficient drying system, designed with independent air heater, HEPA filter and thorough drying
process. Water heating temperature can be reached at 99C,while drying temperature can be reached at max
120℃.
4. Professional configuration design—two inlets for both tap water and pure water and one outlet in
anti-backflow design; reinforced glass window mounted to achieve a clear view on washing process

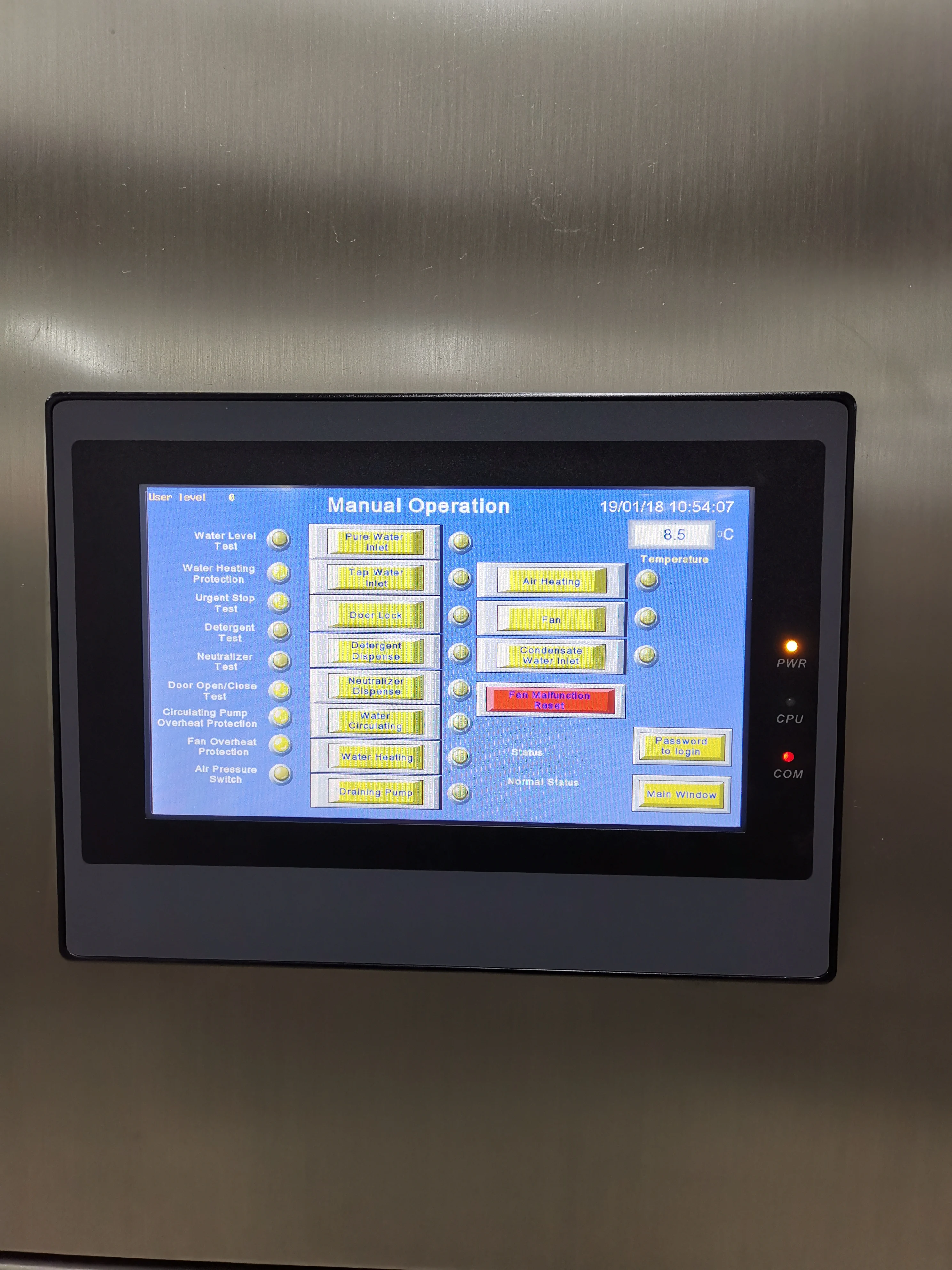

5. PLC touch screen control with preset 6 programs(including one customized program) to monitor all the
operation processes; Web based documentation software included.
6. USB port for data storage.
7. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air
temperature dual control and equipped with emergency switch.
Cycle Diagram

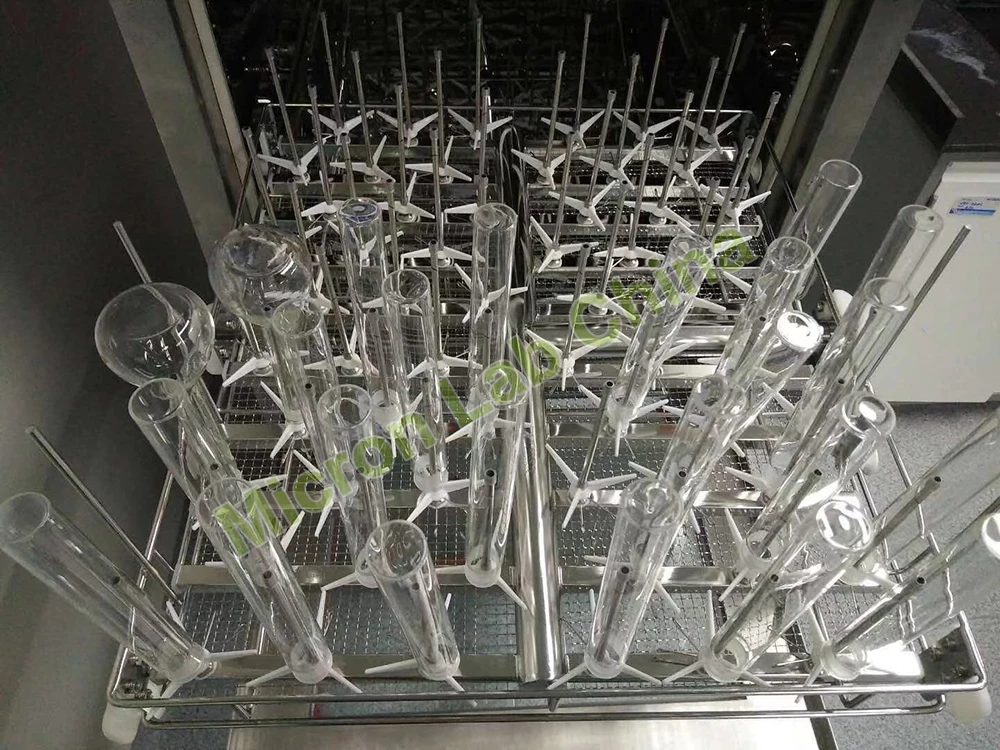

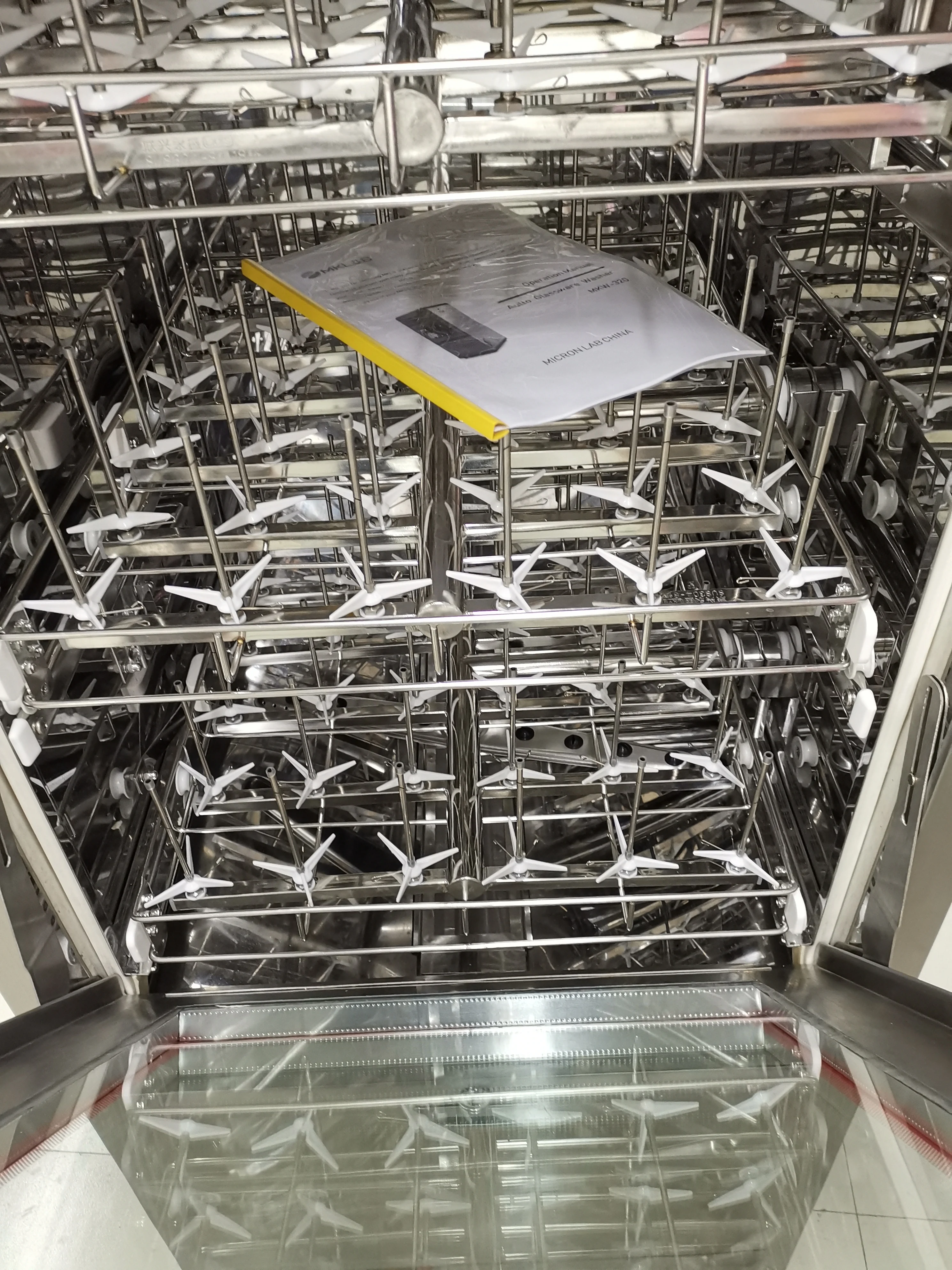

Standard cleaning rack Conical bottle rack Dish cleaning rack
Jar cleaning rack Pipette cleaning rack

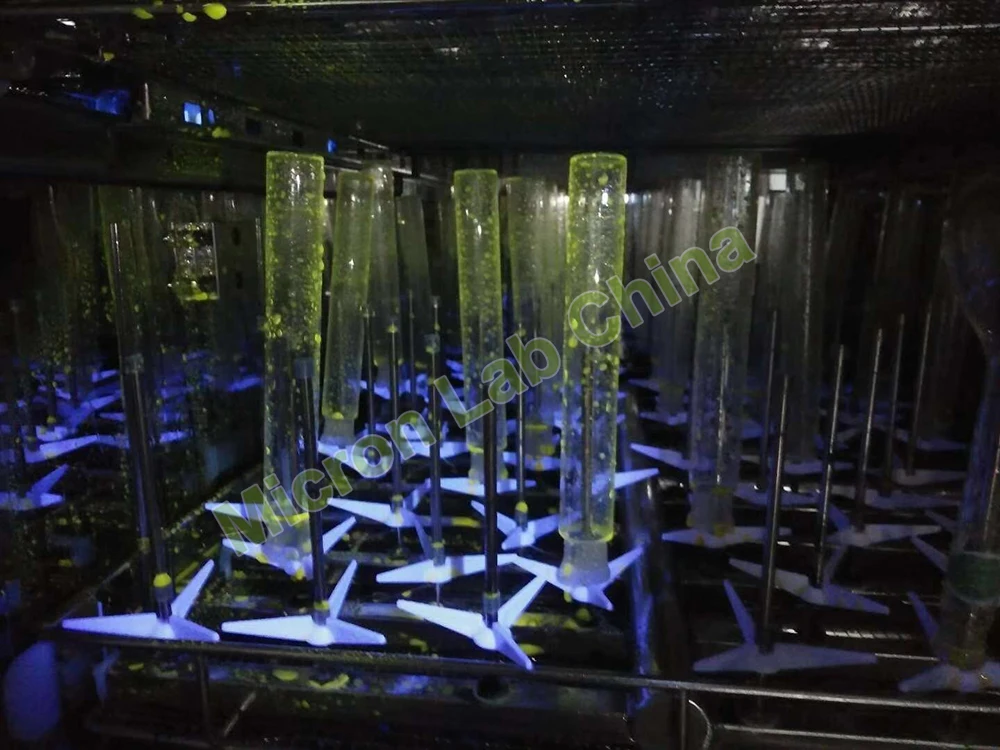

Before Cleaning After Cleaning
Before Cleaning After Cleaning
Model | MKW-120 | MKW-200 | MKW-200A | MKW-220 | MKW-320 | MKW-420 |
External Dimension (WxDxH mm) | 980*740*855 | 980*740*1050 | 607*730*990 | 790*690*1770 | 790*690*1850 | 1100*900*1950 |
Washer Chamber Dimension(WxDxH mm) | 600*629*465 | 600*629*635 | 529*520*680 | 600*629*658 | 600*629*820 | 688*700*703 |
Power Supply (V/Hz) | 220/50~60 | 220/50~60 | 220/50~60 | 220/50~60, 380/50~60 | 380/50~60 | 380/50~60 |
External & Internal Material | stainless steel | stainless steel | stainless steel | stainless steel | stainless steel | stainless steel |
Overall Power Consumption (KW) | 6 | 6 | 4.5 | 6.5/17 | 18 | 20 |
Power Consumption-Water Washing (KW) | 1.1 | 1.1 | 1.1 | 1.5 | 2.8 | 2.8 |
Power Consumption-Water Heating (KW) | 5 | 5 | 3 | 5/15 | 15 | 17 |
Power Consumption-Drying (KW) | 2.1 | 2.1 | 2.1 | 3.6 | 3.6 | 3.6 |
Capacity (L) | 120 | 200 | 200 | 220 | 320 | 420 |
Water Consumption / Cycle (L) | 15 | 15 | 15 | 15 | 18 | 25 |
Noise Level (dba) | ≤50 | ≤50 | ≤52 | ≤55 | ≤55 | ≤60 |
Inlet Water Pressure (Mpa) | 0.3~0.8 | 0.3~0.8 | 0.3-1.0 | 0.3~0.8 | 0.3~0.8 | 0.3~0.8 |
Washing Racks Load(standard) | 1 | 2 | 2 | 2 | 3 | 2 |
Note | * USB interface and printer are optional; * Standard package include standard volume of 2.5L detergent and 2.5L neutralizer; | |||||
Q: Are you trading company or manufacture?
A: Trading company with R&D capacity, holding share in the manufactories
Q: How about your goods quality?
A: 1. All running products comply with CE standard.
2. Independent quality inspection team, 100% testing before delivery.
3. Well-known third-party testing service available, such as SGS, BV and TUV etc.
Q: How about your service?
A: 1. Reply to any questions within 1 hours during working time.
2. Real-time feedback of production process and shipping information.
3. Contracted third-part maintenance company in more than 60 countries.
4. Life-long responsibility for all our products, big compensation for not well repaired products within the warranty period.
Q: Could you do OEM service?
A: Yes, all types of OEM service available.
Q: How long is your delivery time?
A: We have safety stock for around 60% of running products. 7 working days delivery time for stock goods, one for no stock products.
Q: How about your quality warranty?
A:2~5 years upon products features, please confirm the exactly warranty time of your interested products before order.
Q: What is your terms of payment?
A: T/T, Western Union, L/C, Credit Card etc. We prefer on-line order and payment.
