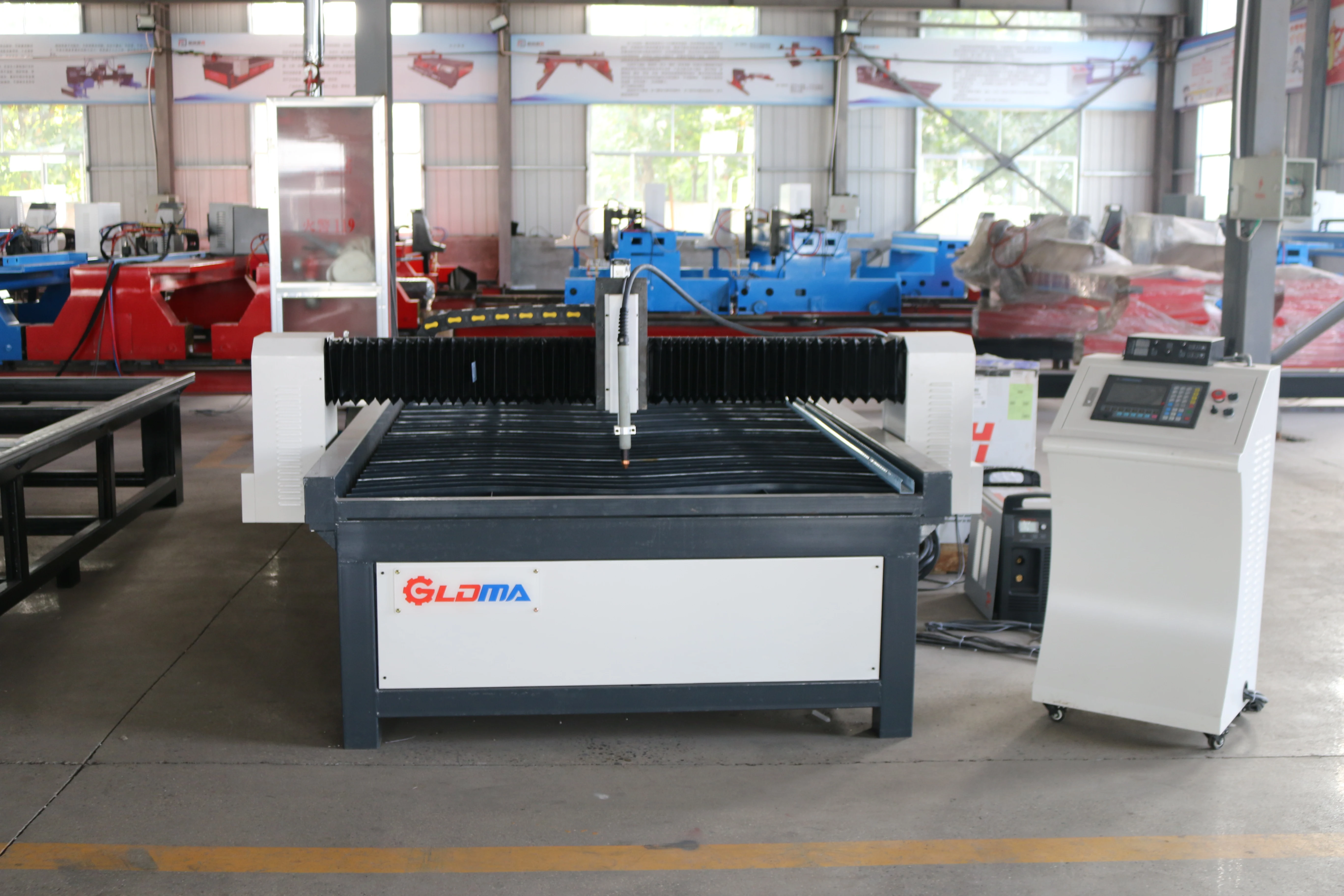

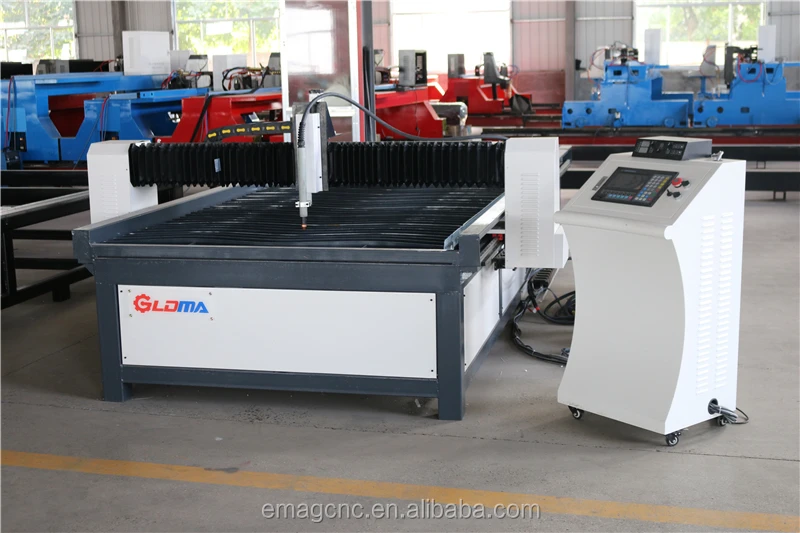

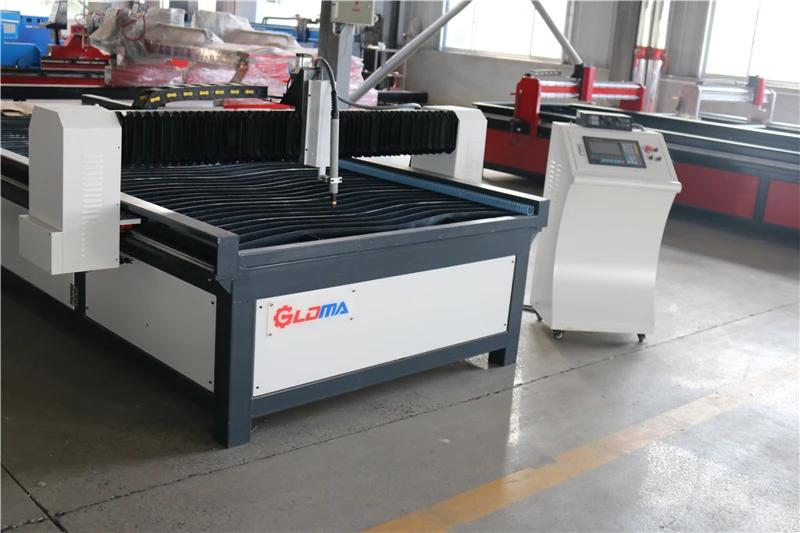

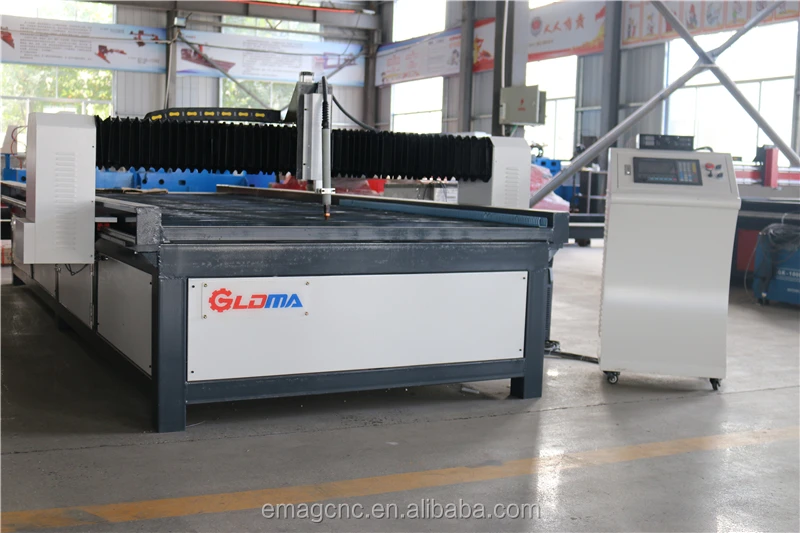

Brand new CNC 45A plasma cutting machine with 1500*3000 table

Product Overview

Description

Brand new CNC 45A plasma cutting machine with 1500*3000 table

Main feature:

* Strong mechanical frame structure

* High precision and accuracy

* Automatic CNC controller and system

* Multi plasma power source to choose, can offer American Hypertherm series

* Plasma torch height automatic controller

* Support flame torch and the height controller

* Servo motor and drive, keep quick processing speed and precise cutting effect

* Nesting software can support CAD editing, save processing date and control process

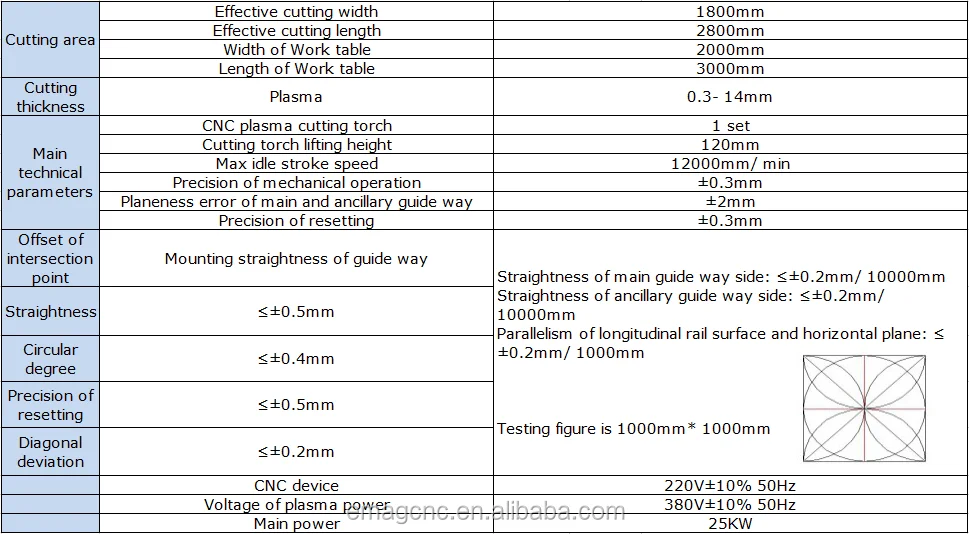

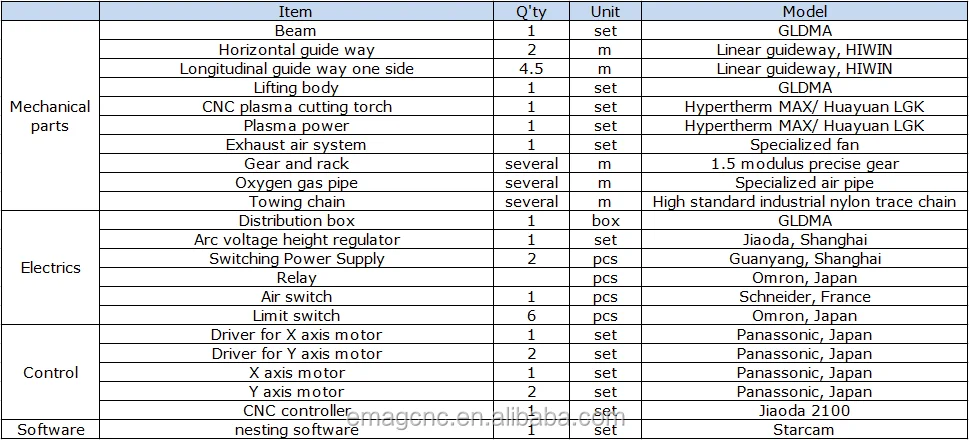

Parameters:



* Higher configuration can be customized as detailed demamds



Technical specification solution



* Cutting area and thickness will depend clients' real needs, to choose suitable source power and work table

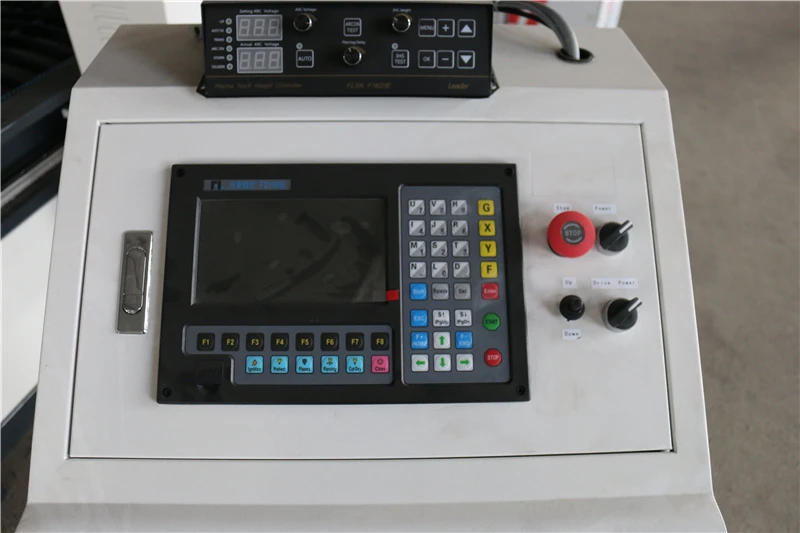

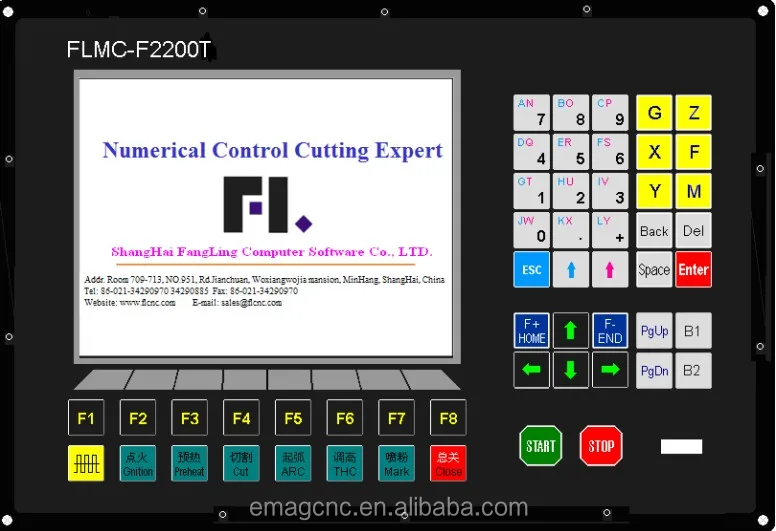

CNC Control:



The numerical control system F2100 is a new production,

which is integrated many merits of the same productions at home and aboard.

The controller can control the motion of two axes, which is apt to the application of flame, plasma or laser cutting. This controller is very light and handy and it is very easy to operate.

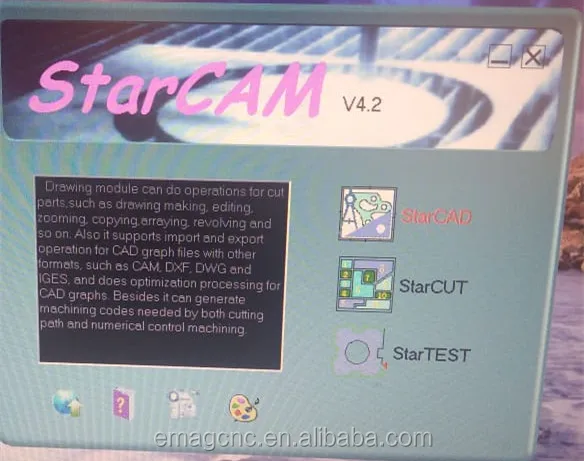

Software: Australia FASTCAM (Standard Edition)
Australian FASTCAM ( Standard Edition ) software is the standard software,

as for automatic nesting and common side, you need select SMARTNEST ( Expert

Edition ) or FASTCAM ( Expert Edition ), which can convert CAD graphics or computer

graphics into G code for cutting parts, G code files will be restored into USB and input

into the cutting machine, then the controller automatically converts the G code into

cutting program. This kind product is equipped with USB interface convenient for the

program transmission.

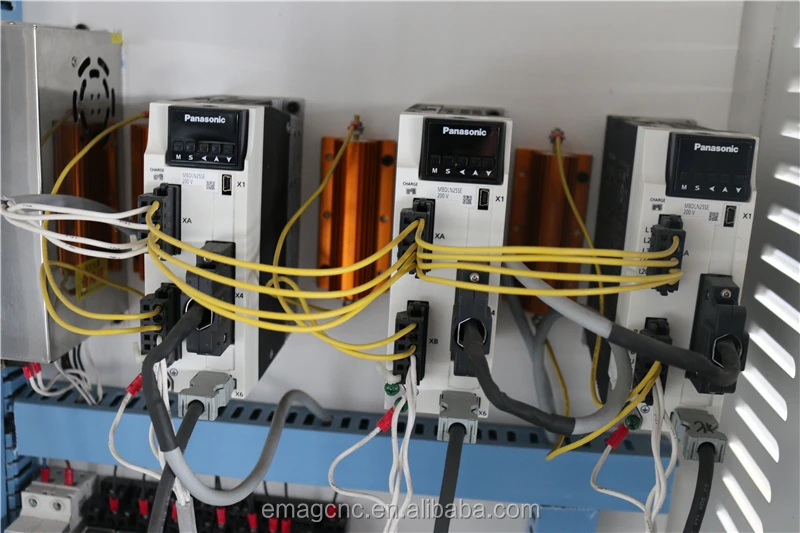

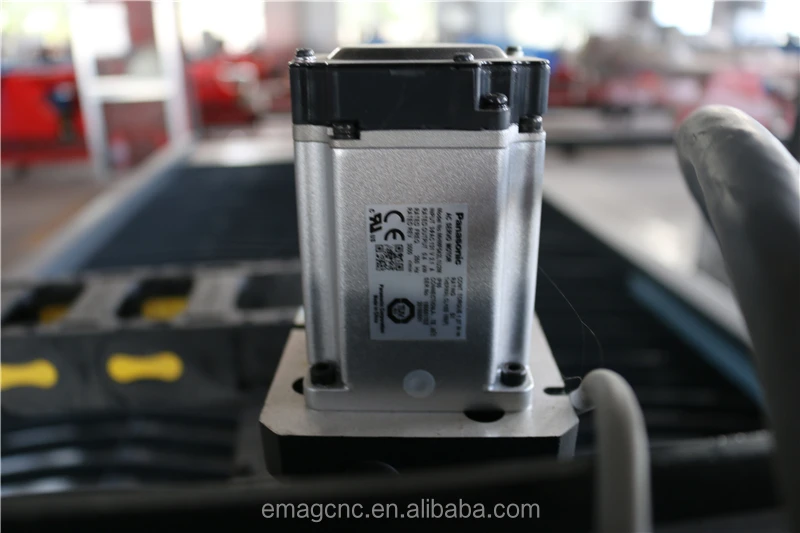

Servo Motor (Choose Panassonic AC servo motor):

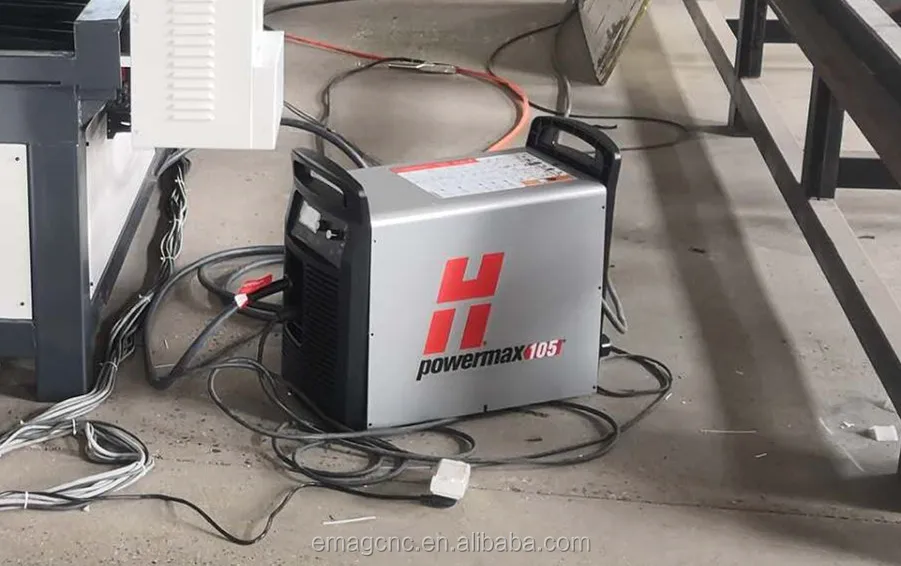

Plasma power:

Hypertherm

* Powerful cutting ability, excellent cutting quality and stability

* Highest productivity

* Minimize production costs

* Unparalleled processing flexibility

* CNC controlled gas supply

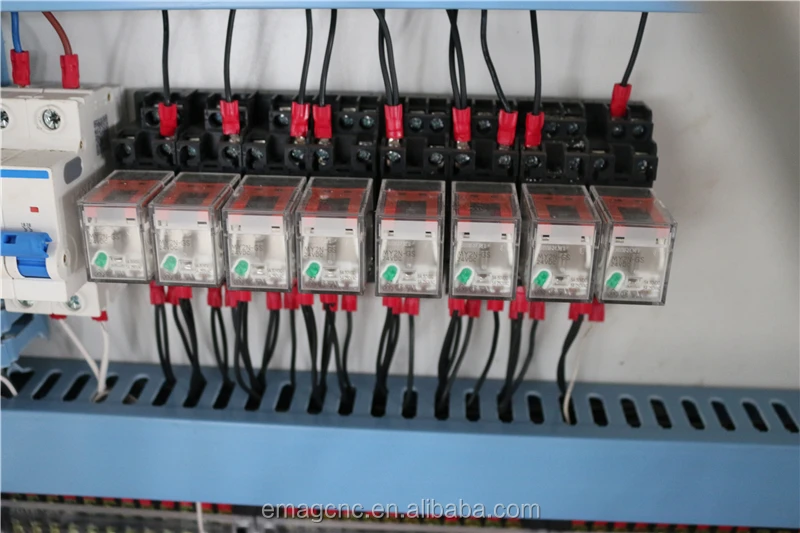

Electric control cabinet:

Logic control using optocoupler isolation control board

Split type electrical cabinet

Integrated circuit mode on wiring

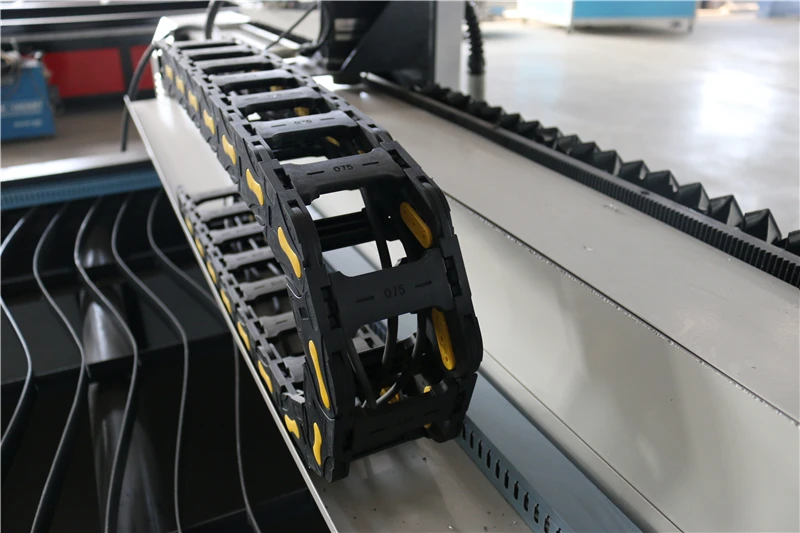

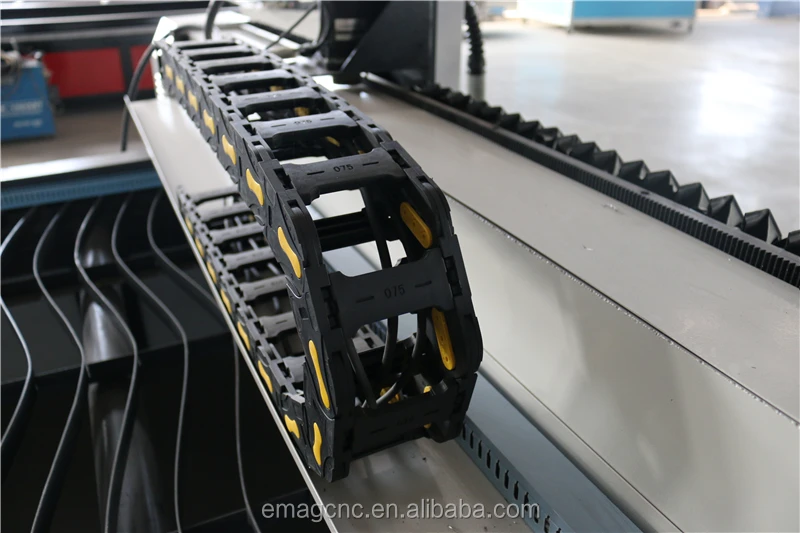

More details:
