Product Overview

Description

Product Description

QE-TR220T-4

Italian Style PVC/TR/TPU/TPR Leather Shoe Sole Making Machines

SPECIFICATIONS FOR TPU.TR.TPR.PVC SOLES MACHINE


       Injection system
Station
/
4
No. of screw
/
2
Clamping force

220

       Basic iterms
Upper mold rotation degree
degree
0-90
Screw Diameter
mm
65
Capacity of Injection
g
860,860,860,860

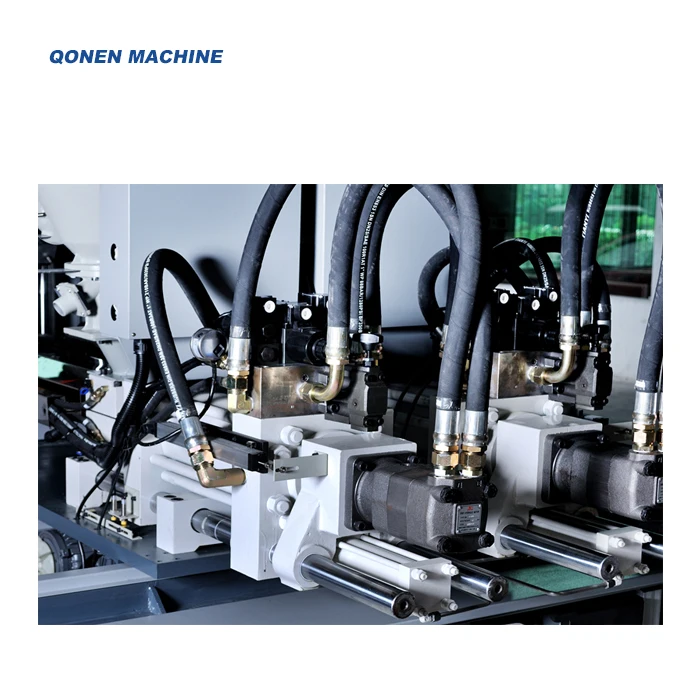

      Hydraulic system
MAX. Pressure of system
Kgf/cm2
180
MAX. Power Consume
KW
65
Rate flow
KN
125
Machine Dimension(L*W*H)
mm
4300*3500*2700
Machine weight
Ton
14.5

Machine cento:

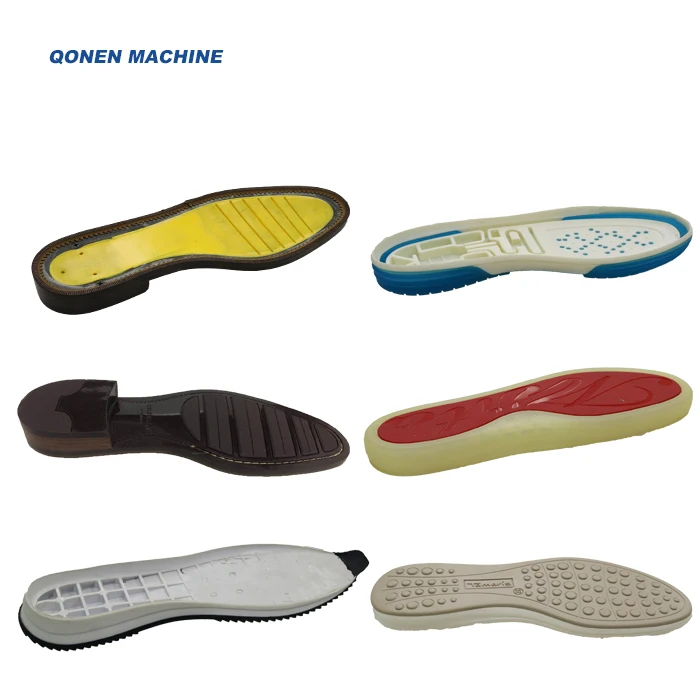

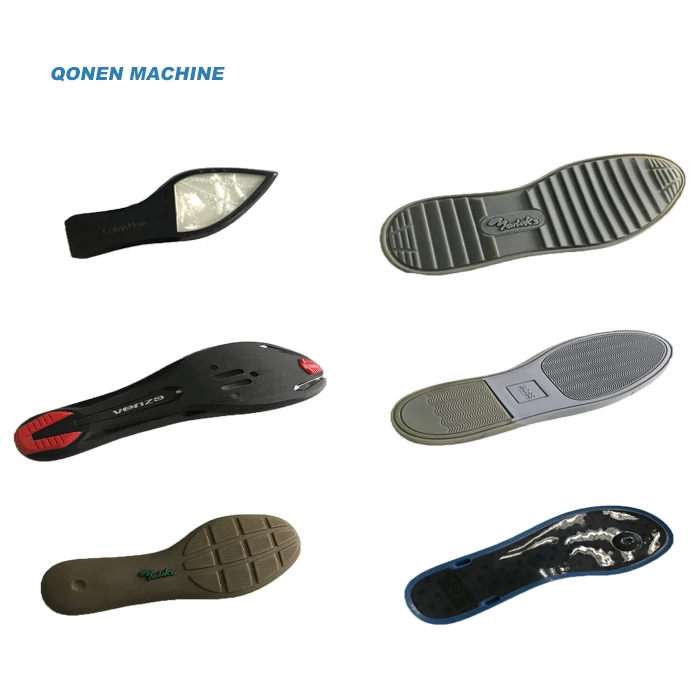

This machine for making both one and two color soles in thermoplastic material like TPU.TR.TPR.PVC.


The machine are strong,efficient,two hand safety protected(CE certificate),extremely simple to operate and


maintain,engineer overseas install and training available.


Advantages:

1.Strong compact structure and clamping force 220-320T make soles no edges.

2.Flexibility in PLC control to change colors and materials.

3.With servo motor for excellent energy saving(roughly 40% energy saving than normal motor)

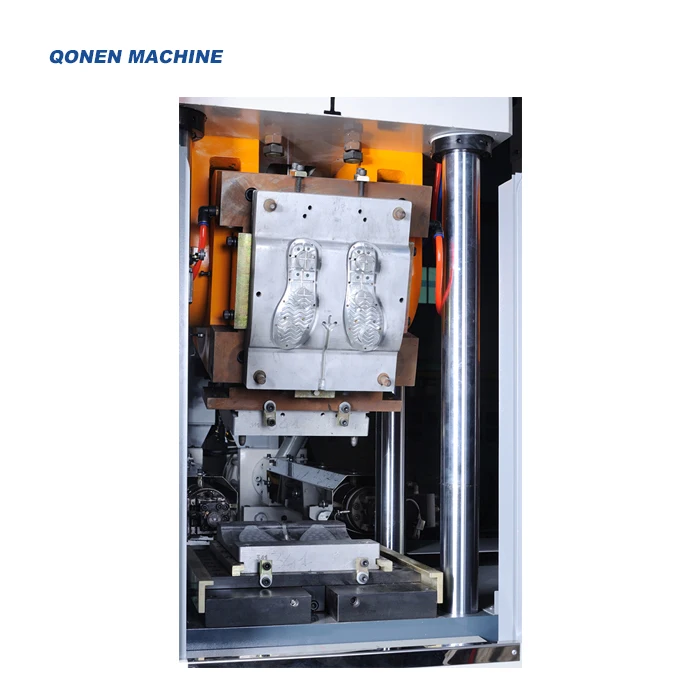

4. Automatic mold rotation 90° and ejector with nozzle push out soles for labor saving and easy operation.

5.User friendly and low maintenance.

Series Optional:

*QE-TR220T-2 machine with 2 screw (screw move) and 4 screw (screw fixed) two types (optional) ;

*QE-TR220T-4 with four station 2 screw (screw move) type only.

*Injection end with microswitch in the mold and pressure transducer (optional)

Detailed Images




NSK BEARING

Name: Bearing
Brand:Japan
Original:Japan

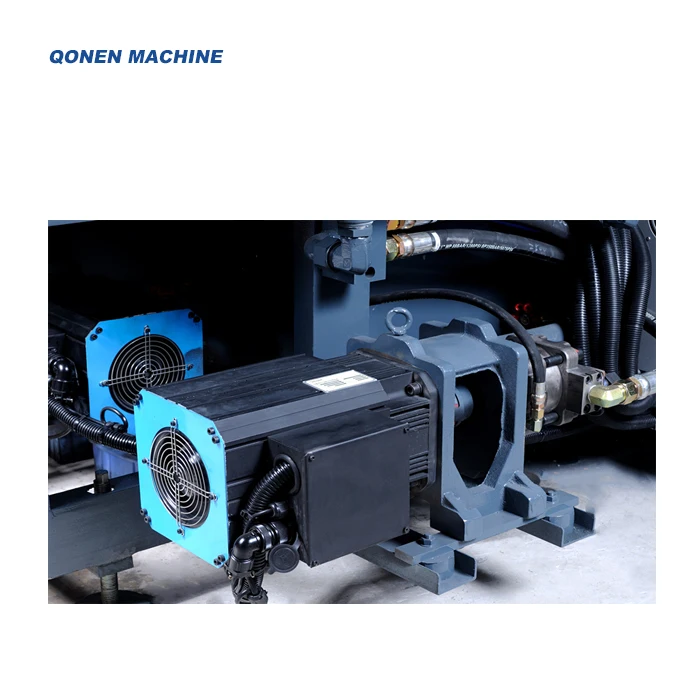

Servo motor

Name: servo motor
Brand: Dongguan
Original: dongguan
Servo motor could save about 30%-40% electricity than normal motor.



Siemens PLC

Name: Siemens PLC
Brand: Siemens
Original: Germany



Schneider electric

Name:electric swtich
Brand: Schnelder
Original: Germany

Certifications

ISO:9001 & ISO14001 Approved

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Inspection before shipment.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3500(L) * 4500 (W) * 2700 (D)
Weight
14.5 T



Packaging Details



Machine with plastic film packing and stabled by steel rope in container.
