Egg washing grading machine egg processing equipment

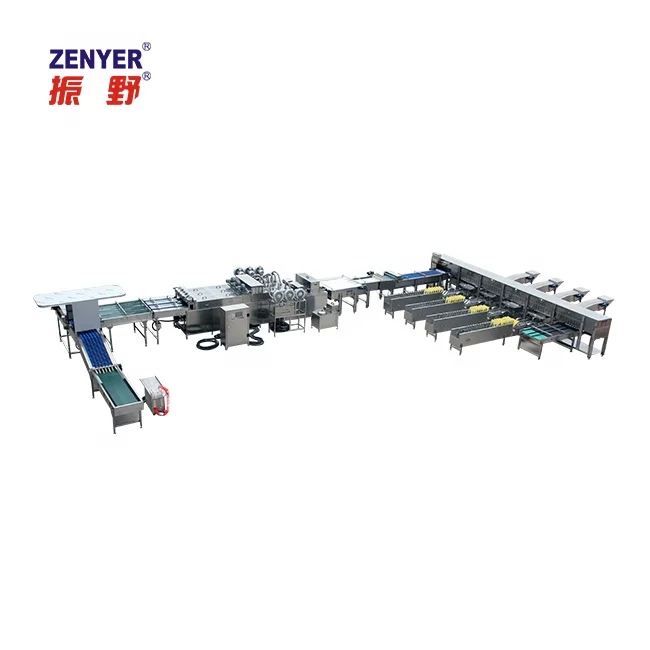

ZYL-JS3-DAS6-4Z Egg processing line


1.Stainless steel                                                                                     2.Durable and special designed brush


3.Special designed for cleaning dirty eggs                                            4.Self-cleaning system

5.Individual egg handling                                                                      6.Easy to use, easy to maintain

7.Reasonable price                                                                                 8.Remarkable quality
Capacity
25000-30000eggs/h
Material
Stainless steel
Power
20KW
Voltage
380V, 50HZ, three-phase
Net weight
2400kg
Gross weight
2800kg
Certifications
Detailed Images

Accumulator(Vacuum egg lifter)

First, Eggs are sucked onto the roller of egg loading unit by a vacuum egg lifter (5*6=6 eggs each suck). The vacuum egg lifter is sucked by a motor but lift up and down by hand, that helps workers to load eggs onto the egg machine more easily.

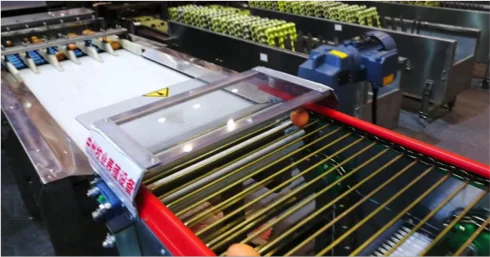

Candling

Candler with LED light source has been installed on the roller of cleaner to help operators to check whether there is any damage on the eggs. For example eggs with cracks, eggs with black core, eggs having gone bad can be selected out by hand.

Washing

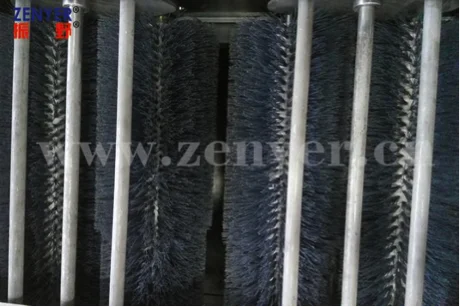

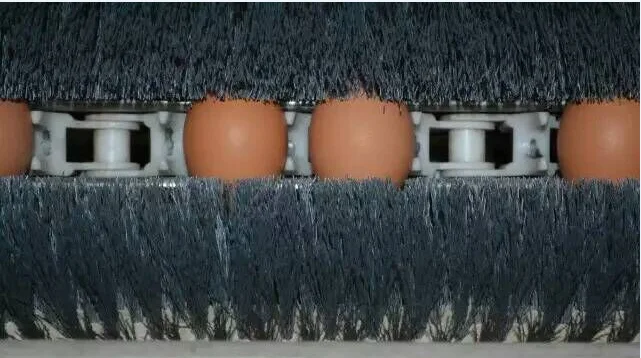

Eggs are put by vacuum egg lifter on the roller of cleaner, will be aligned automatically, so as to guarantee all the eggs enter the egg cleaning machine in good order. There are 2 parts of bush in this type of egg cleaning machine, egg will be cleaned with warm water by the first brush.

Drying

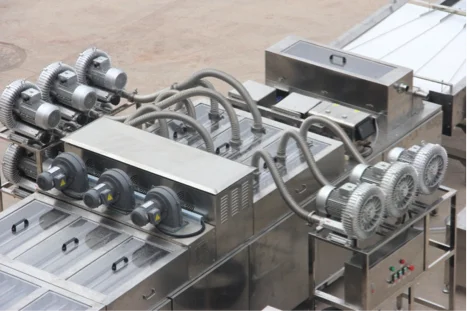

Water on the eggs will be swiped off by the second brush, and at same time eggs will be dried by strong heated wind generated by drying fan.

Printing

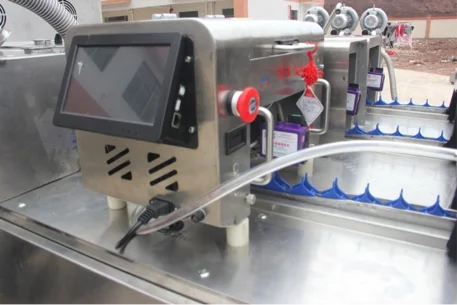

After being dried, eggs will be printed by the cartridge printer, the position where code is printed is in the middle of the eggs (between the bigger head and the smaller head).

Electronic grading

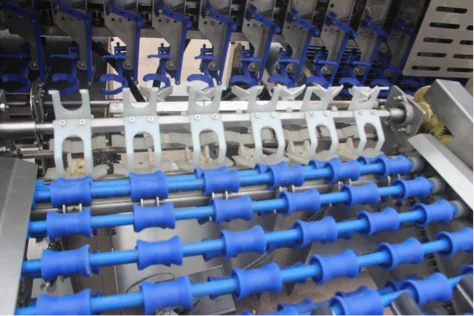

Eggs will enter the weighing part of the electronic egg grader, separate eggs into 6 sizes. Eggs of different size fall down onto to different lanes of electronic egg grader.

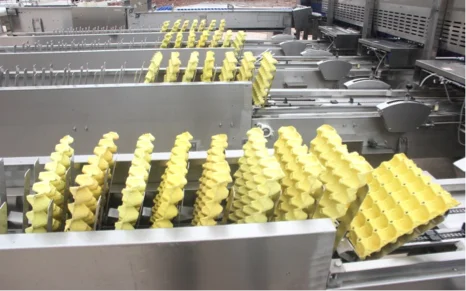

Automatic packing

At last, respectively workers pack eggs located on egg collecting belt and egg collecting table into the trays by hand, some eggs will be packed into egg tray automatically by egg packing machine.
