Industrial digital inkjet a2 flatbed printer tshirt machine for direct print on garment textile bags shoes socks

Product Overview

Description

General Explanation



Do you know what is the business that makes you different?



Focus Inc Athena-Jet Plus DTG flatbed printer with the newest digital inkjet printing technology offers users direct-printing capabilities onto a virtually limitless choice of three-dimensional media. In addition to supplying technology for product customization, we offer a range of small and large DTG printer devices. These are machines for customizing and creating unique graphics products.





 Product Specification

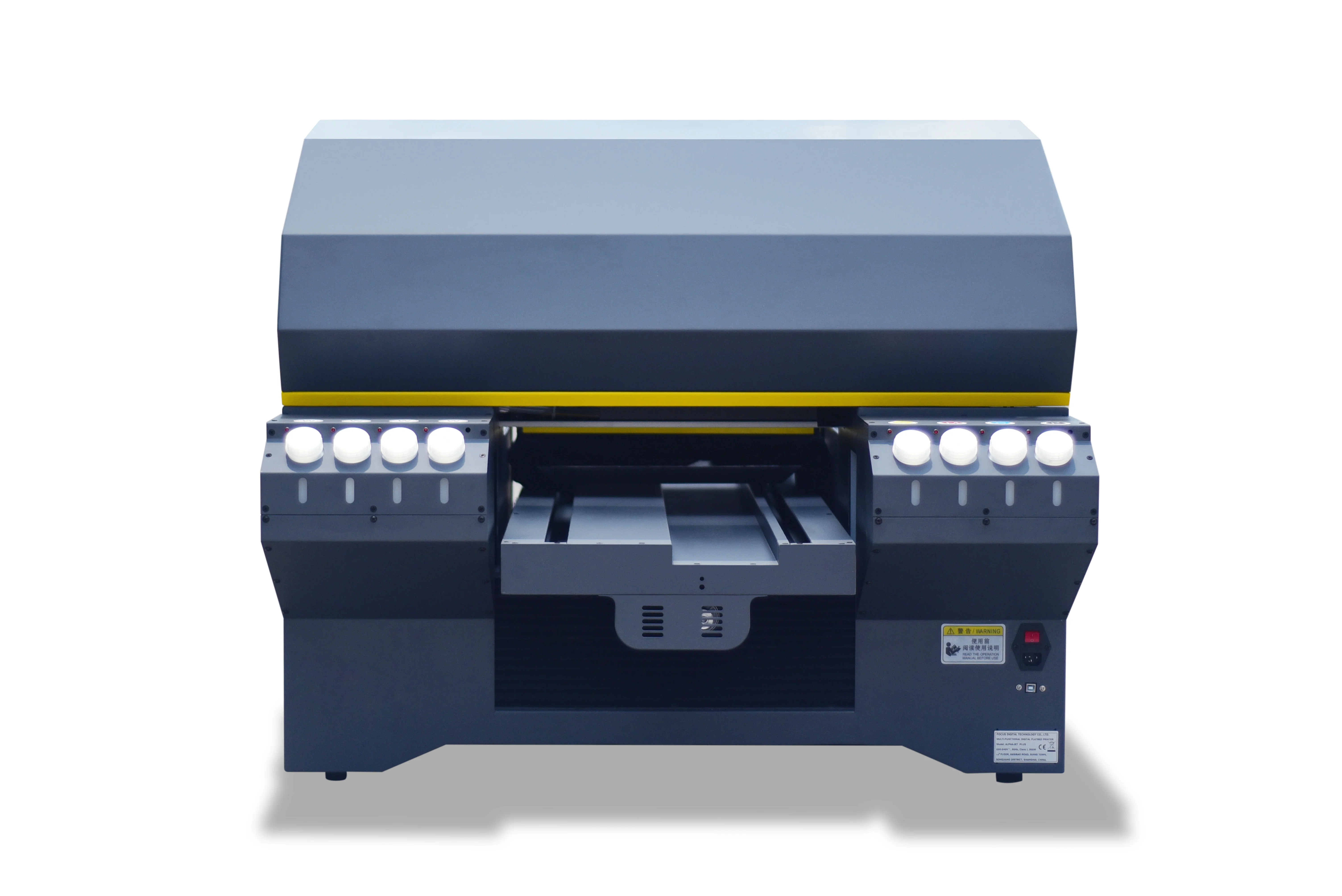

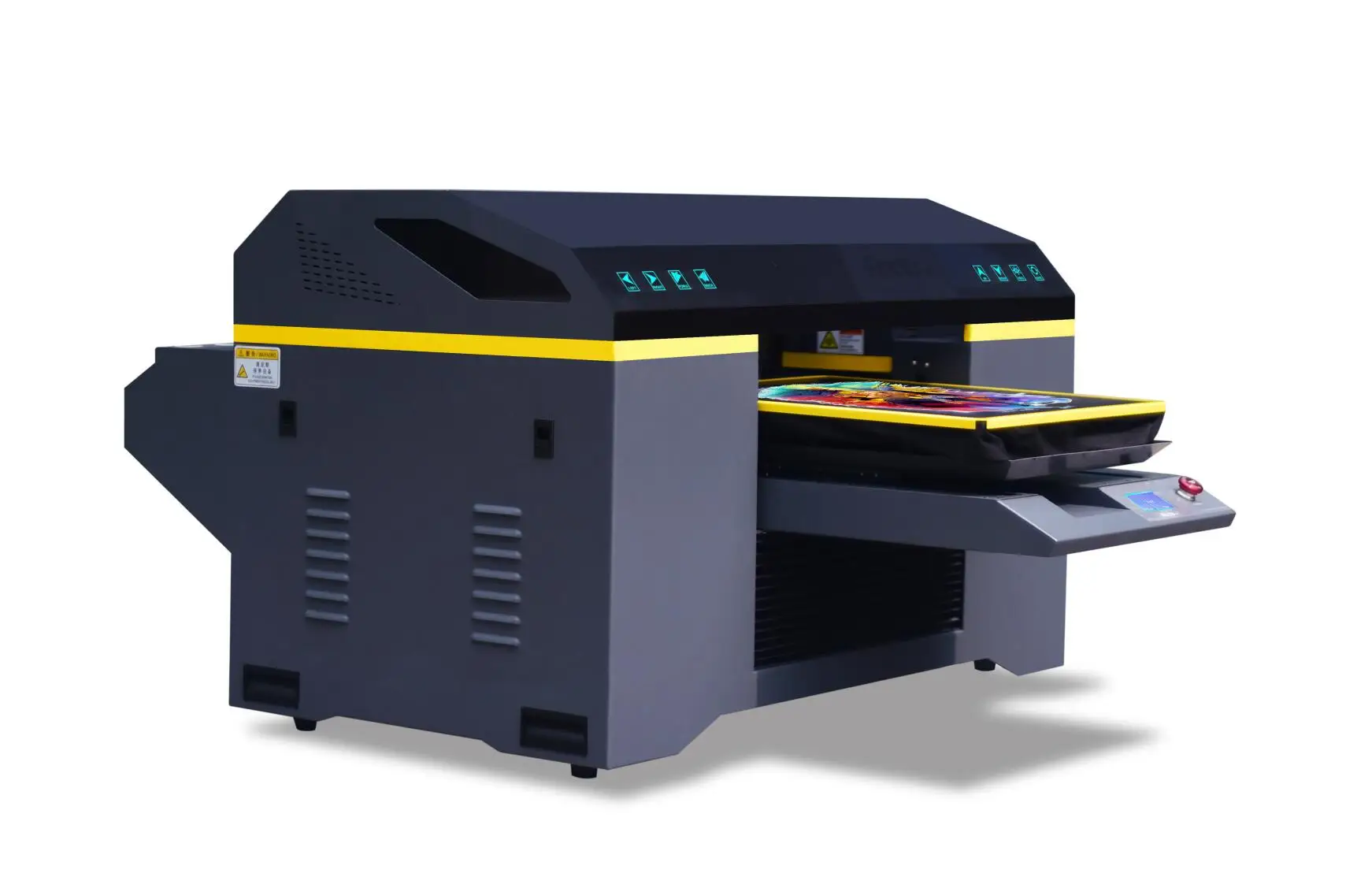

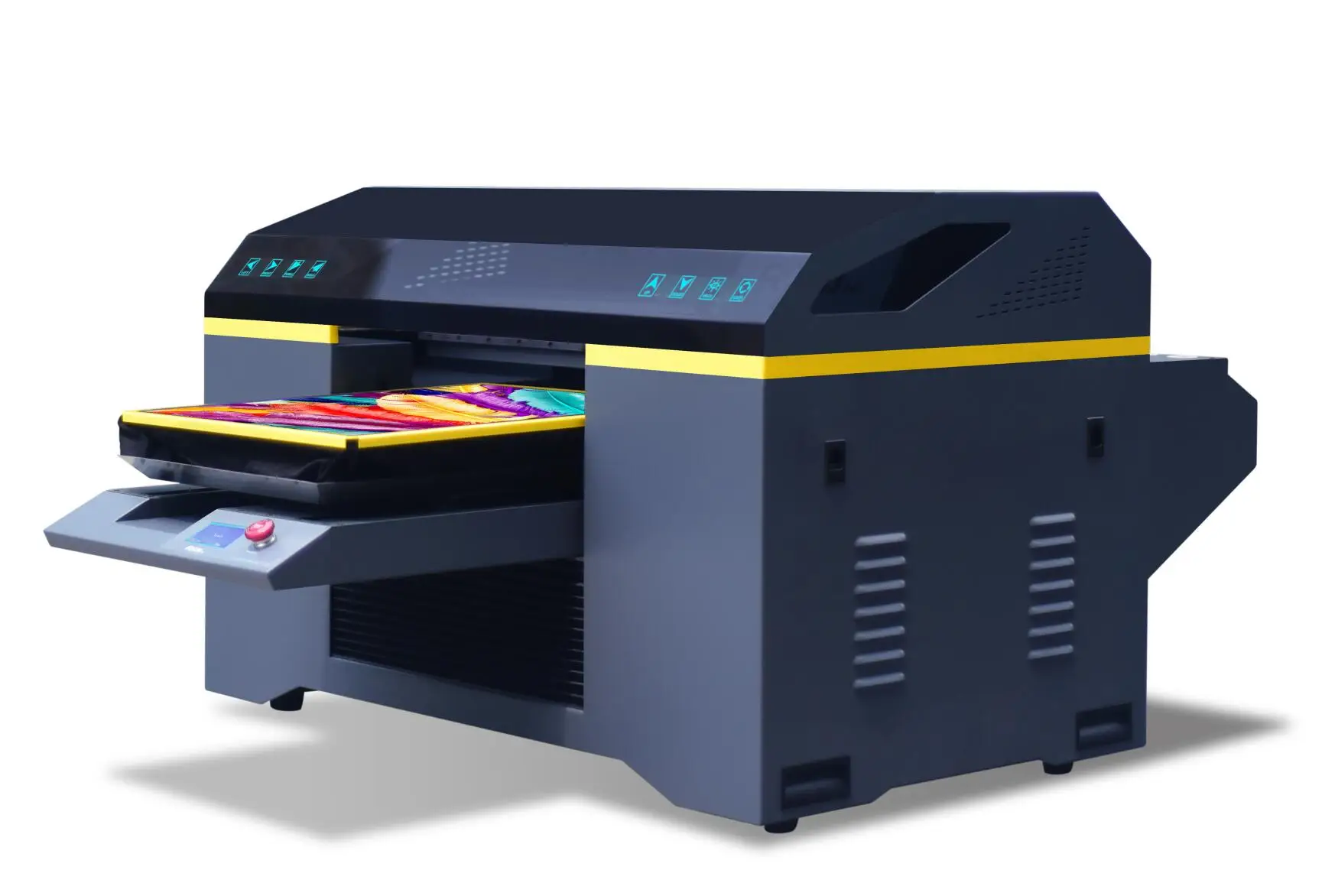

Focus  Inc. INKJET ALPHA-JET X A2 SIZE UV & DTG PRINTER
Print Technology:  Micro Piezo Inkjet	Print Head:  DX11/4720
Head Channel:  18 channels/ 8channels	Head number:  3 heads: White+Color+Varnish / 2 heads:While+Color
UV system:  100-Degree adjustable	Cooling system: Water cooling
Temperature adjusts:  Auto on/off. 25-35℃	UV wavelength:  395-405nm
Head protection:  Intelligent anti-scratch	Print speed:  175s/A2 size(1440*720dpi)
Print model:  Uni-direction/Bi-dirction	Print resolution:  720*720dpi-720*3080dpi
Print type: One pass/Single/Copies	White layer:  Bottom/Top/Middle
Rip software:  FocusincRIPV9.07/Wasatch/Riprint	Image type:  Tiff, Jpeg, Png
Repeat precision:  0.04mm	Head cleaning:  Auto flushing+Keep wet
Max. print size:  40*60cm	Print media:  Hard/Flexible/Bottle/ Tshirt
Media thickness adjust:  Software auto-detection	Max. print thickness:  20cm
Ink type:  UV ink	Ink system:  Refill ink tank system
Ink process system: Auto shaking + circulation	Ink level:  Auto detection+Auto alarm
Color model:   8-color(CMYK+LC+LM+White+Varnish)	Tank volume:  500ml refillable
Color Rendition:  ICC profile+Curve	Position type:  Laser marking
Print table: Vacuum adsorption	Table treatment:  Teflon coating
Print model: 3D. Wave. Rand. Eclosion	Motion config:  Servo motor
Control interface:  Control panel+Software	Drive config:  3Pcs Linear rails+Dual Ballscrew
System requires: WINXP/WIN7/WIN10 32/64bit	Working environment:  18-25℃, 50% Humidity
Working power: 120W	Electric supply:   110V/220V
Interface: USB2.0/3.0/TCPIP	Gross weight/Net weight:  150KG/230KG
Packing size: 113m*132cm*93.5cm	Machine size:  98cm*121.5cm*67.8cm







Advantages
1)CMYK+LC+LM+W+Varnish 8 color ink type for UV option

2)CMYK+WWWW 8colors for DTG option
3)Compatible with XP600 / TX800 / 4720 print head
4)Max. 60cm*40cm A2 printing size
5)With 3 high-power Taiwan Delta vacuum suction fans
6)With Hiwin brand linear rail and ball screw, high muse, high speed, high resolution
7)Adopting American GMC luxury car standard insulation anti-interference wiring
8)Automatically ink wipe, maintenance system, prevent scratching and avoid printing head clog in idle time
9)Ink level sensor with light and alarm
10)Magnetic shaking setting ink the ink tank which can be twirling in the bottle to avoid precipitation of white ink
11)High-sensing touch screen control button
12)Automatic detecting exactly height sensor, avoiding print head scratch
13)Removable ink tank set, which lets ink refilling more convenient!
14)The stainless steel body of the printer , no worry about the oxidation as ink drip on it
15)Every cable was clearly marked which is convenient for customer learning and operating
16)The stainless steel body of the printer , no worry about the oxidation as ink drip on it
17)Complete acrylic cover, you couldn't find any screw or connection line on the surface
etc. latest research and development results!



Absolute great samples printed

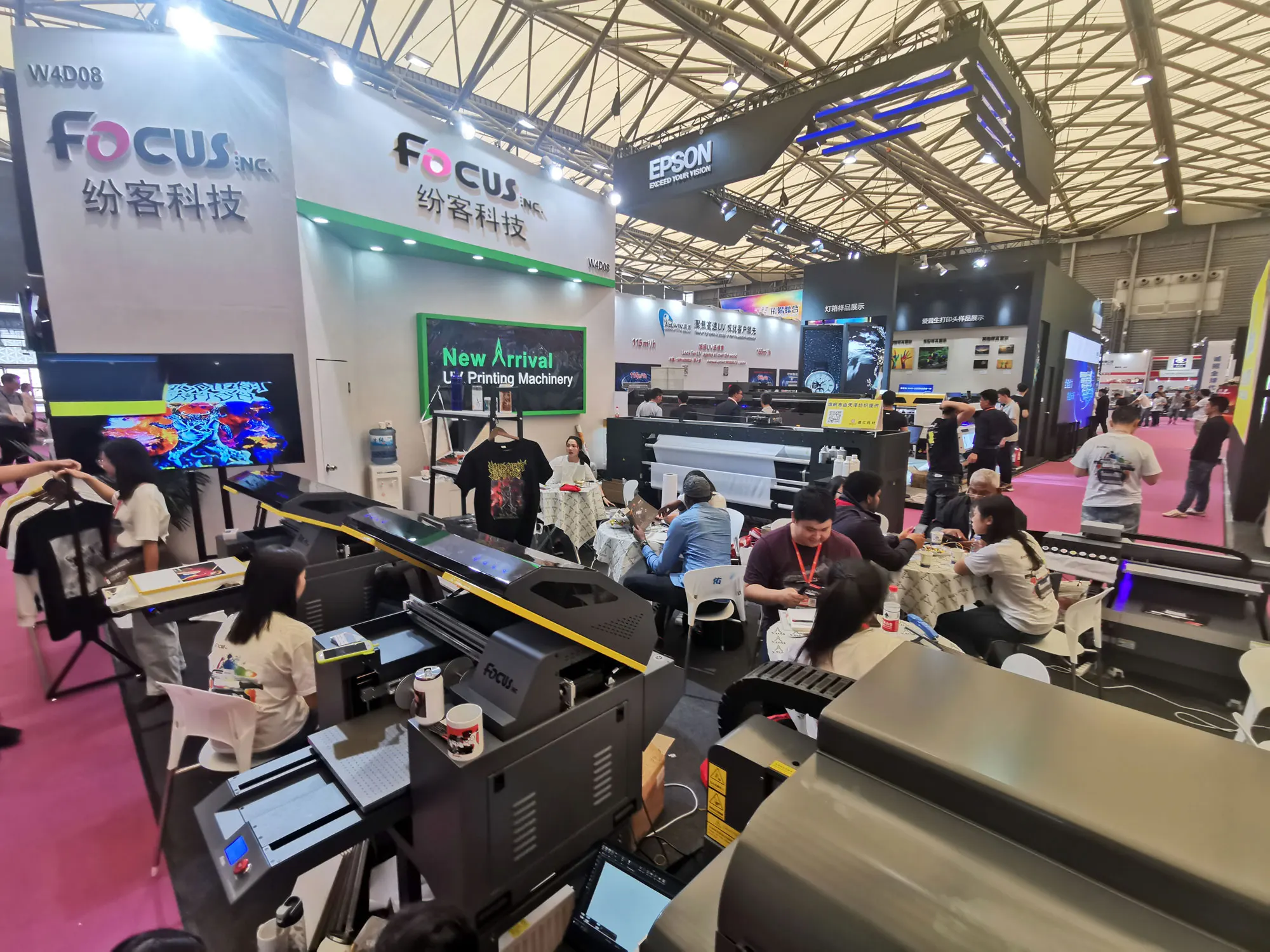

Factory and exhibition view

Focus Inc. Digital Technology Co., Ltd.

was set up in Shanghai, China, who is a manufacturer to R&D the best and potential DTG printer, digital UV flatbed printer, signs &adverting products. With 17 years of experience, we have the ability to supply all products at a reasonable price and real-time support lean upon our own production line, professional engineers, strict parts purchase channel and altitudinal responsible action.





Our mission is to make the best solution for the international printing industry!
Welcome to visit our company and contact us.

We are waiting for you! :)
