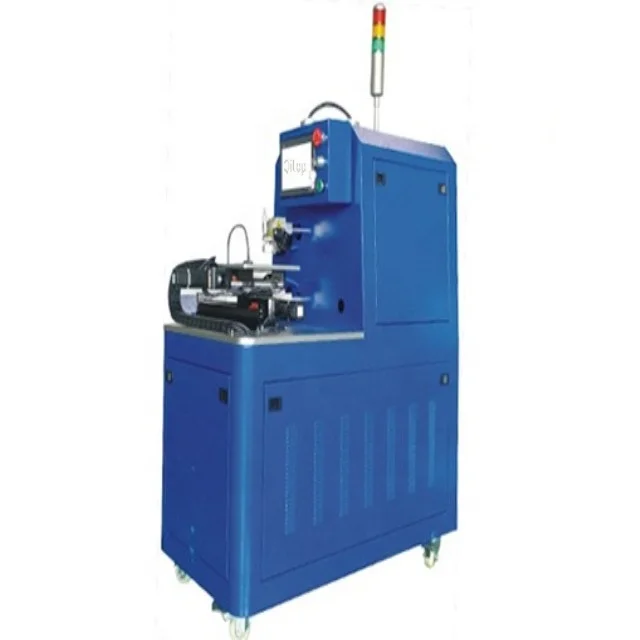

Ultra thin wire stripping/cutting machine

Product Overview

Description

Technical Advantage

1.By using single tube with double optical paths, desktop designs, compact and reasonable structure, it is the first smallest multi-station model in domestic.

2.Adopted USA imported RG metal laser, with excellent performance and long service life, the cavity always can be used.

3.Dual program in one mode, it can be changed with one key switch for supporting two different programming.

4.Patented laser energy control module, digital controlling, stable laser light with accuracy 1%.

5.Adopted imported PLC controller and touch-screen, with complete function, simple and convenient for operating , can set up and retain several processing files.

6.Adjustable X,Y-Axis strokes, stripping position and size also can be adjusted freely, and multi cables can be processed in one time.

7.Imported precision linear motion module, high precision, low noise and fast speed.

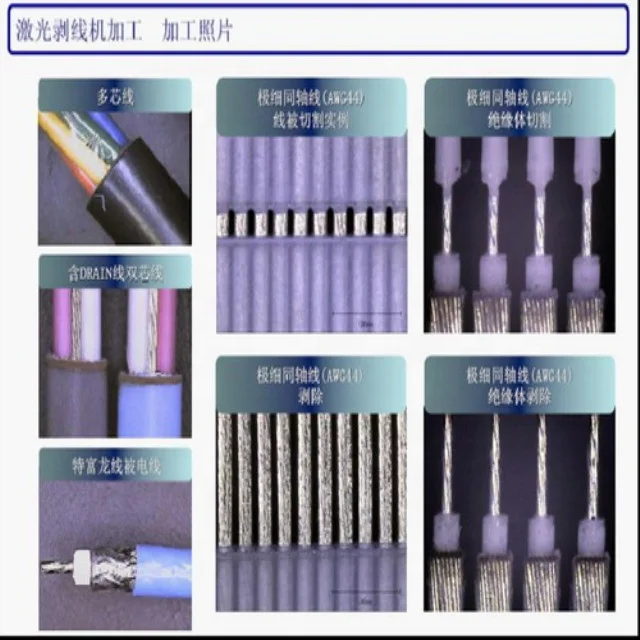

8.Professional for stripping fine and tiny coaxial cable, electrical insulating layer and foil mylar below 52AWG#.

9.The insulating shield will not be harmed or deformed after stripped.

10.Can precisely control the stripping location, size and depth, the reliability and consistency of the wire end processing can reach to 100%.

Application field

Materials: non-metallic materials, including polyvinyl chloride, glass fiber, polyester, polyester film, nylon, polyethylene, fluoride, silicon resin, other different hardness high temperature resistant insulating materials.

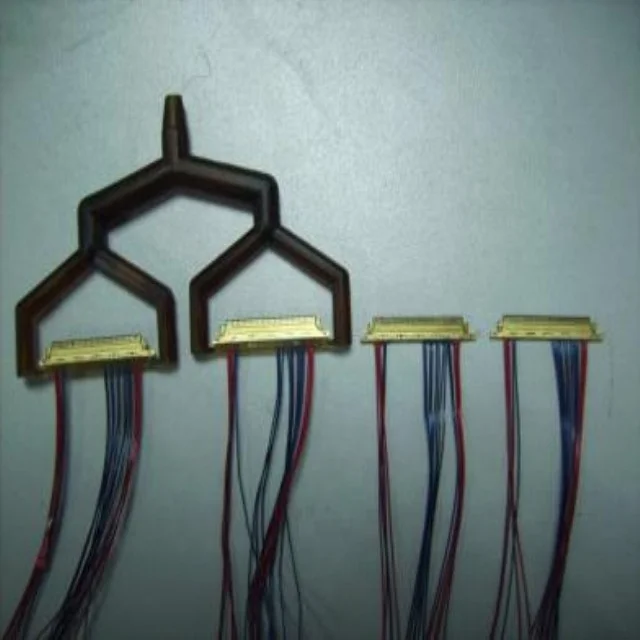

Fields: Filament, mini-filament coaxial cables, electronic cable industry and HDMI, USB, DVI, DP, SATA, SFP and other aluminum foil and corn wire stripping ,etc.
