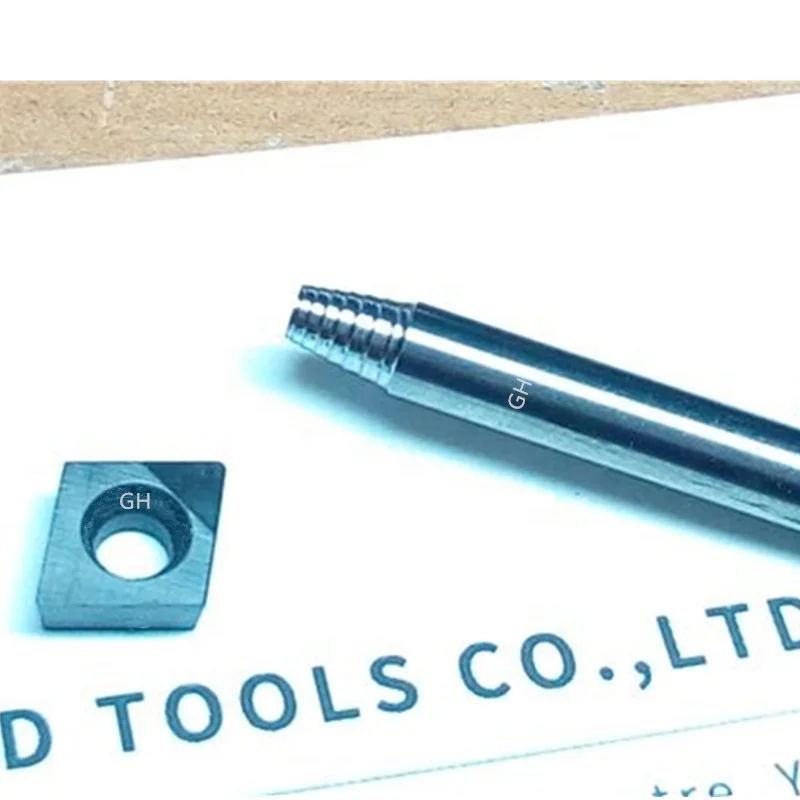

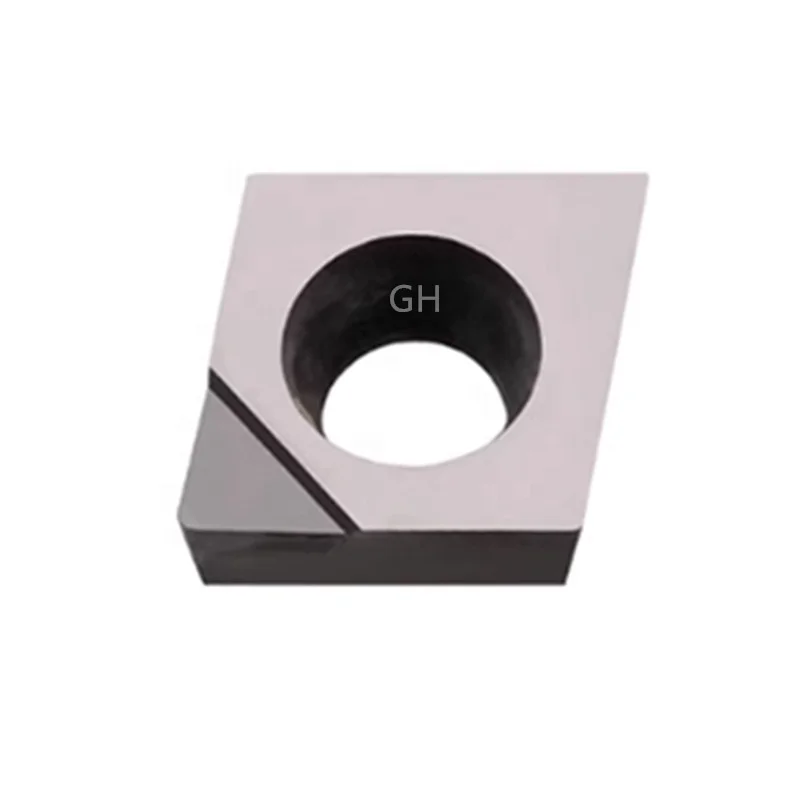

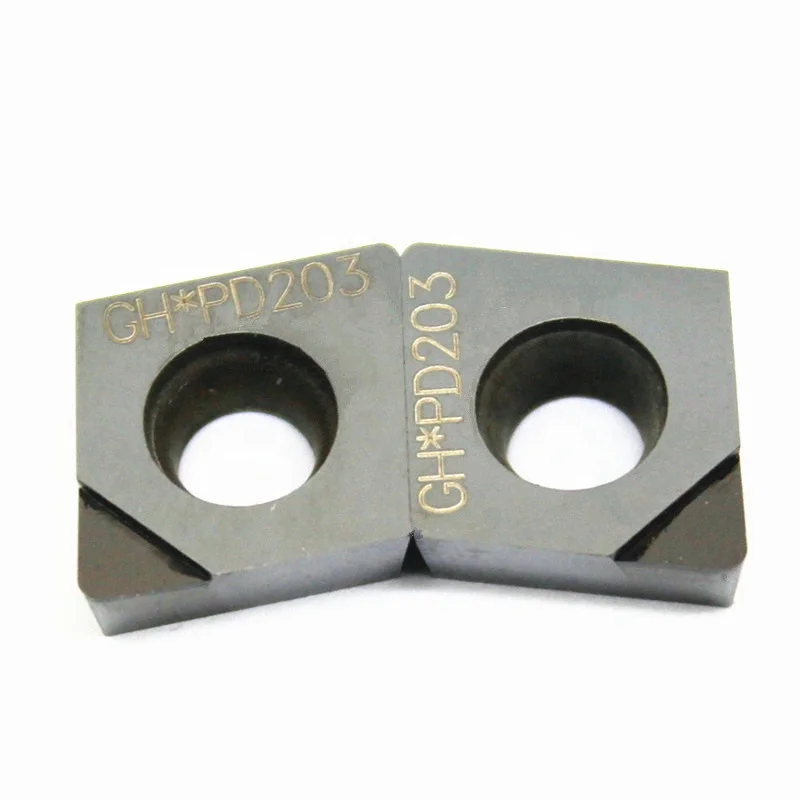

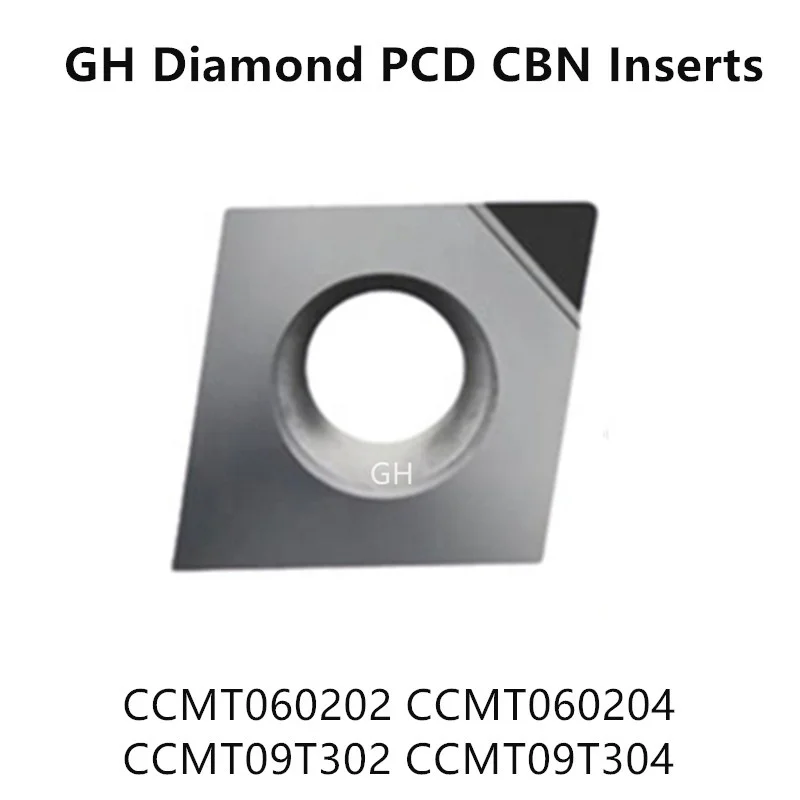

Factory price Diamond PCD CBN tip Turning tools Insert in CCMT CNMG CNGA Style

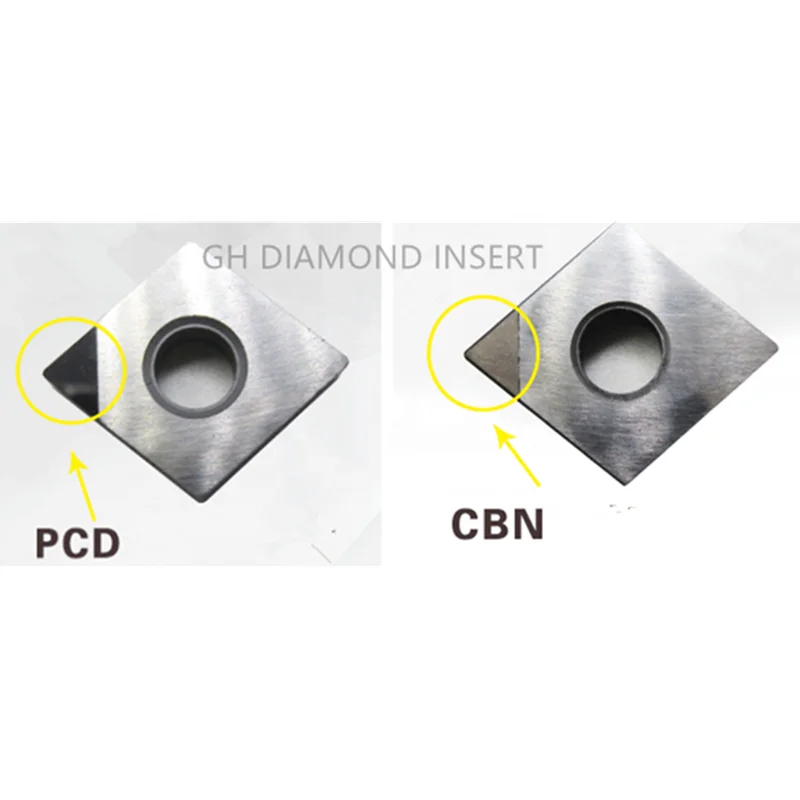

l  PCD

Features:

--All our PCD PCBN blanks are imported from world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI.

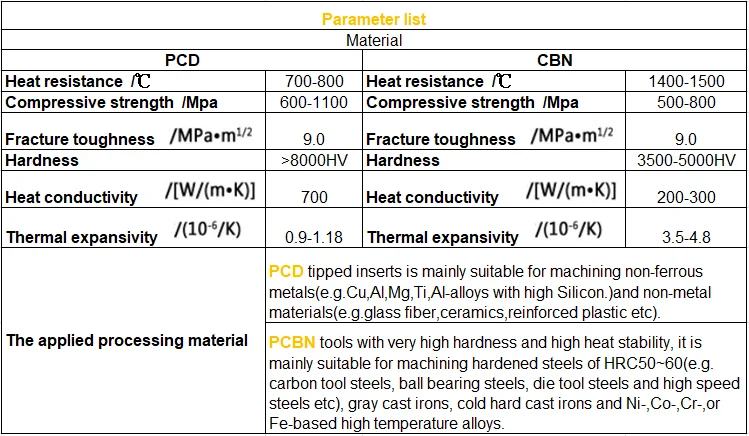

--The PCD CBN cutting tools have the advantages of high abrasive resistance, processing precision, good thermal conductivity and long service life.

---With sharp cutting edge , sharp, high precision,

---The body uses high quality tungsten carbide or steel.

-- Machines imported from UK, Germany, Japan

Application:

PCD may be cost effectively employed to machine the following broad range of materials:

• Non-ferrous metals and alloys including, aluminum, copper, bronze, brass, green tungsten carbide, precious metals and MMC's.


• Non-metallic materials including, ceramics, reinforced plastics, hard rubber, chipboard, MDF's and other fibreboards, etc.

How to order?

In order to supply the product you require we would need to have the following information:

1. The insert & tools designation - ISO code or drawing.
2. The type of abrasive (Diamond or CBN).
3. The material to be machined. As there any different series of PCD/PCBN is used for processing different targets.
4. Length of required PCD/PCBN cutting edge.
5. Any special features eg: Top rake or radius different to the code etc.

We hope to receive your drawing of indexable type insert and tools.

Our Services:

-- Reply the inquiries within 24 hours

-- Drawings after payment/according to the order

--Shipping Time: 6-15 working days

--FOB/EXW/CFR

-- Quality Control: Ensure 100% qualified

--MOQ 2pc,to test or according the order

--OEM /ODM/Customized design is available

--Catalog and samples could be supplied if requirement.
