12v 24v 10a rohs IP68 waterproof mppt solar charge controller
- Category: >>>
- Supplier: Shenzhen Jinsdon Lighting Technology Co. Ltd.
Share on (60855604039):
Product Overview
Description
Product Description

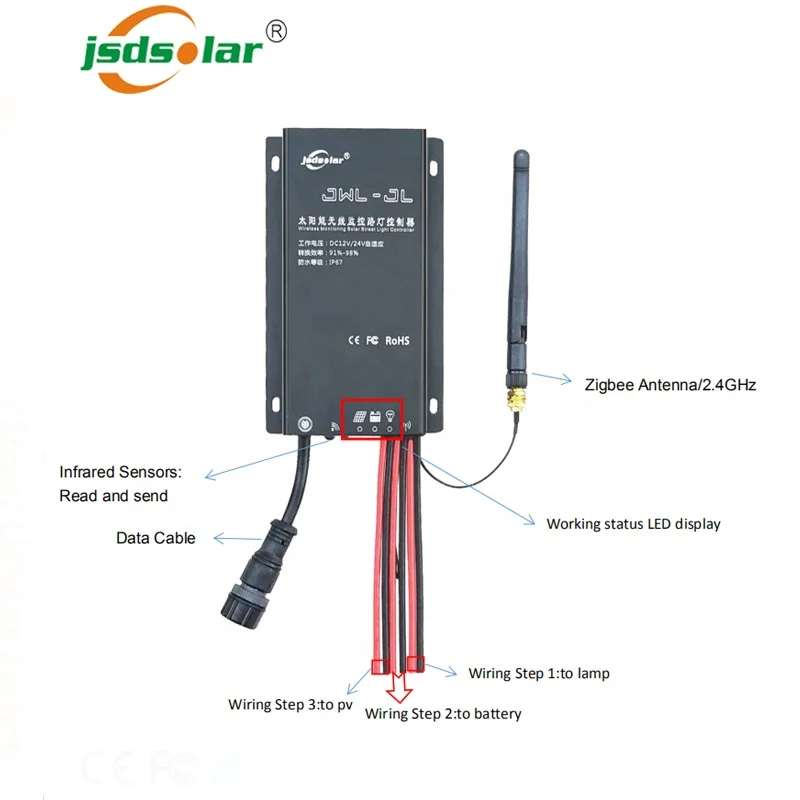

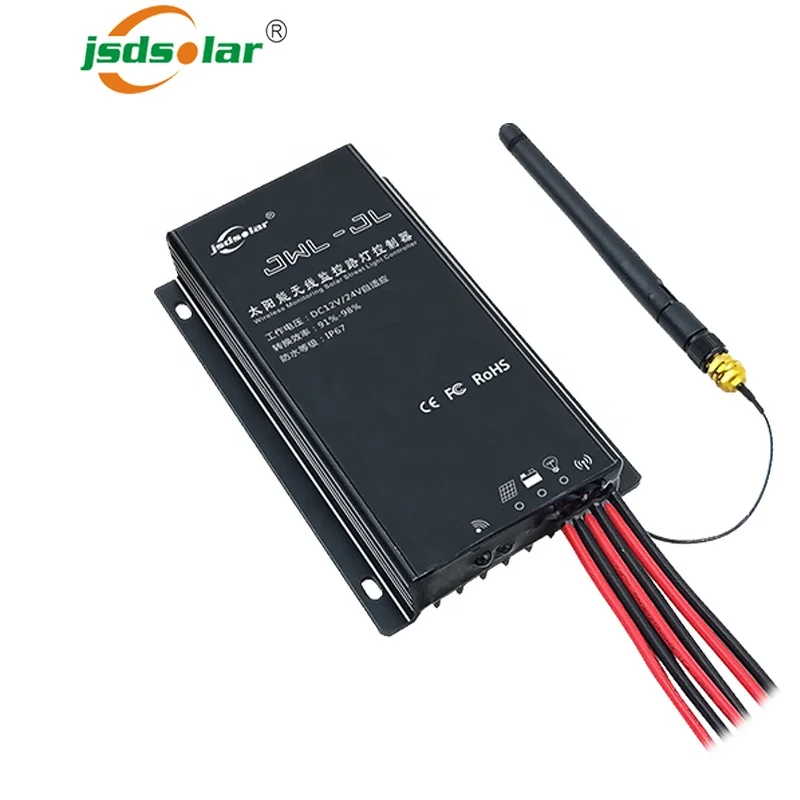

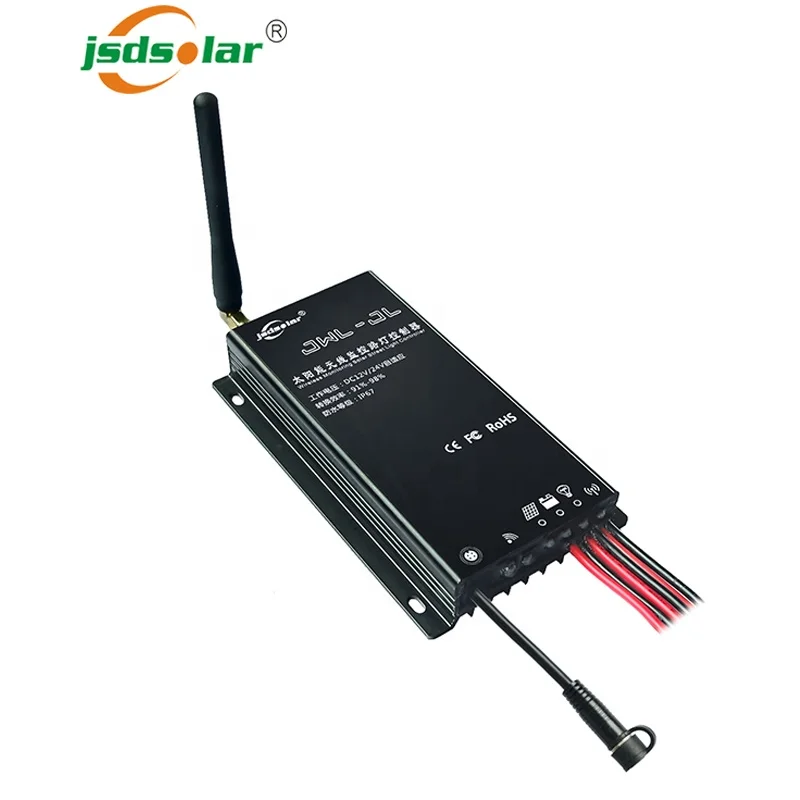

JWL-JL Wireless Solar Street Light Charge Controller
JWL-JL series intelligent controller is the one solar light controller combined with solar charge controller and ZigBee module all in one,and also through GPRS concentrator to remote monitored by PC or Cellphone APP. This controller is integrated with led driver and infrared sensor, with time and dimming function.Users not only can program battery types, charging voltage, time and dimming value via a remote control JSD-RC to all JWL-JL series controllers, but also can program the above parameters from PC software and APP.It is also with self-dimming function to automatically control solar LED lights turning on/off 365 days.
| Model | JWL-JL-10A | JWL-JL-15A |
| Rated charge current | 10A | 15A |
| Rated load current | 30MA-2.7A (adjustable) | |
| Rated load voltage | Battery voltage-60V (Automatically set-up) | |
| Max. Output power | 30W/12V 60W/24V | 40W/12V 80W/24V |
| LED constant current efficiency | ≥ 92.8% (typically 94.5%) 24V, system is available for 95.3% | |
| System voltage | 24V/12V AUTO | |
| Solar PV input voltage | <50V | |
| Solar PV power | 180W/12V; 360W/24V | 270W/12V; 540W/24V |
| Load loss | Normal mode ≤ 7 mA, power-saving mode ≤ 3.5 mA | |
| Working temperature | -35 ℃ to +55 ℃ | |
| Boosting voltage | 14.6V; × 2/24V (duration: 10min) (Adjustable) | |
| Equalize voltage | 14.4V; × 2/24V(duration: 10min) | |
| Float voltage | 13.6V; × 2/24V (Adjustable) | |
| Temperature compensation | -4.5mv / ℃ / 2V | |
| Control | PWM Charge Mode | |
| Waterproof IP | IP67 | |

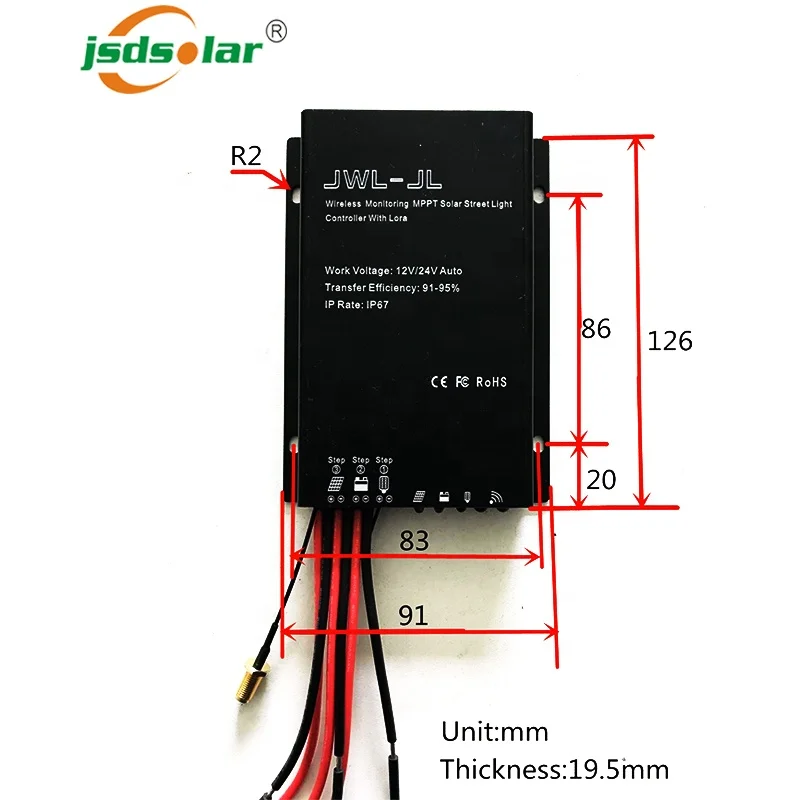

| Dimension/N.W | 133*74*26mm/0.36kg | |
| JSD-RC remote control | Only one can control all JWL-JL series solar controllers | |
| Inside battery type | AAA battery | |
| Voltage | 3V | |
| Sending distance | <10 m | |
| Reading distance | < 7 m | |
| Dimension and Weight | 140*56*17mm/ 90g | |
| Model | JWL-SWC |
| Input Voltage | 9-30V(9-48V Customized) |
| Standby Current | 65mA/12V,33mA/24V |
| Emitting Data Current | 120mA/12V,62mA/24V |
| GSM Mode | 2G(GPRS/CDMA),3G(WCDMA/HUUPA/HSPA+/CDMA |
| 2000 1x EVDO),4G(FDD-LTE/TDD-LTE) | |
| Wireless Network | GSM/GPRS/EDGE:850/900/1800/1900MHz |
| CDMA:800/1900MHz | |
| WCDMA/HSUPA/HSPA+:850/900/1900/2100MHz | |
| CDMA200 1x/ EVDO Rev.A:800/1900MHz | |
| TD-SCDMA:1880-1920/2010-2025MHz(A/F) | |
| FDD-LTE:Band 1/3/5 | |
| TDD-LTE:Band 38/39/40/41 | |
| SIM Card Slot | Standard Drawer Layout Interface(like cellphone SIM card slot) |
| Communication Protocol | TCP/UDP Protocol |
| Emitting Power | GSM900-2W,DCS1800-1W |
| Receiving sensitivity | -100dBm |
| Antenna interface | Standard SMA female antenna interface,characteristic Resistance 50Ω |
| Line Transmit Distance | 1.5KM |
| Work Temperature | -40℃ to +85℃ |
| Dimension | 185×155×30mm (Not Including Antenna) |
| Weight | 1.2Kg (Not Including Antenna) |
Communication Mode
JWL-SWC GPRS Concentrator For Remote Communication
JWL-SWC series concentrator is utilized of HUAWEI 4G communication module, compatible with 3G, 2G(GPRS signal), can be application in the world’s harshest conditions;whether the area is in good 4G signal,or the remote area is in only GPRS signal.Besides ,it adopts zigbee/Lora technology to local network communication,make it have lower self-consumption but being with good communication.In addition,the zigbee is globalized standard,so it can be applied for all countries without limit.
Applications
Projects & Solutions
Transport & Package
FAQ
Q1: Are you factory or trading company?
A: We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.
Q2: Does the lamp light on automatically?
A: Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q3: Can I can a sample order for solar street light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4: What about the lead time?
A: 3 workdays for sample, 5-10 workdays for batch order.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Why Choose Us
1.Our solar street light USES car battery, the life of street lamp ismore than 10 years
2.When it is rainy, the lamp can be used for more than 10 days.
3.Using microwave to sense distance greater than 12 meters isbetter than infrared effect
4.The product can be controlled by mobile phone app, which ismore convenient to use
