Motorized Rotary Switch
US $2.00-$60.00
Высококачественный многопозиционный миксер, шлифовальный станок 2 ~ 10 позиций, круглые поворотные концевые выключатели
- Category: Rotary Switches >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60855827253):
Product Overview
Description
Product Description

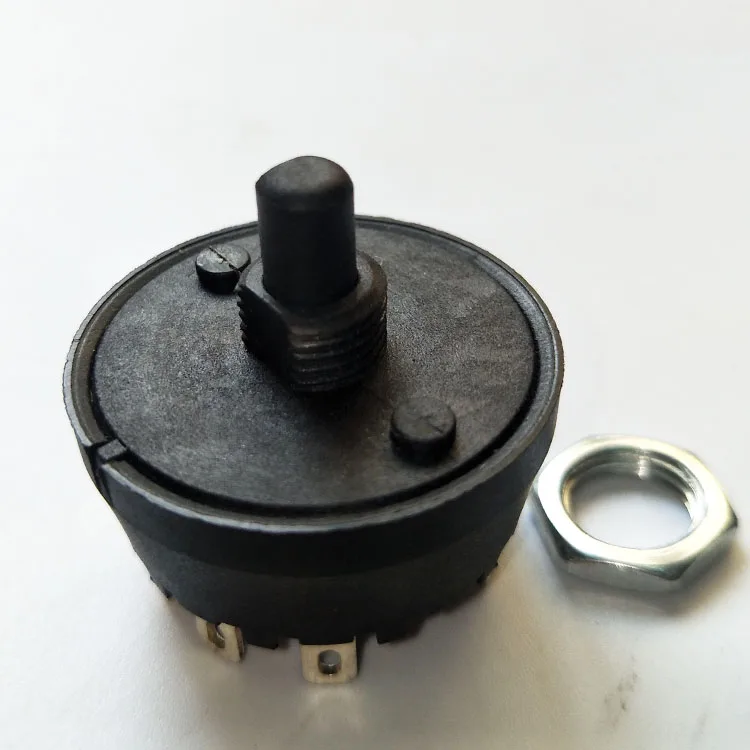

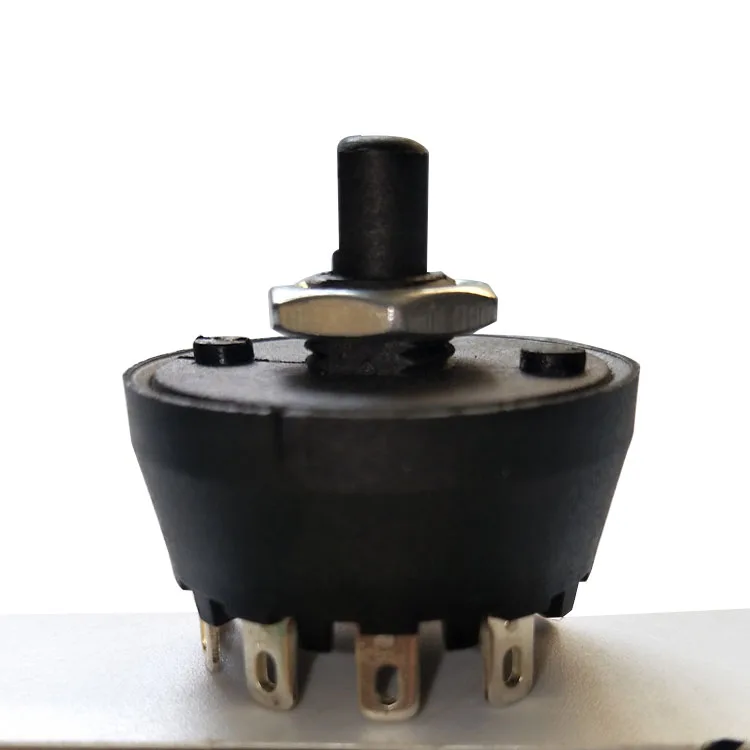

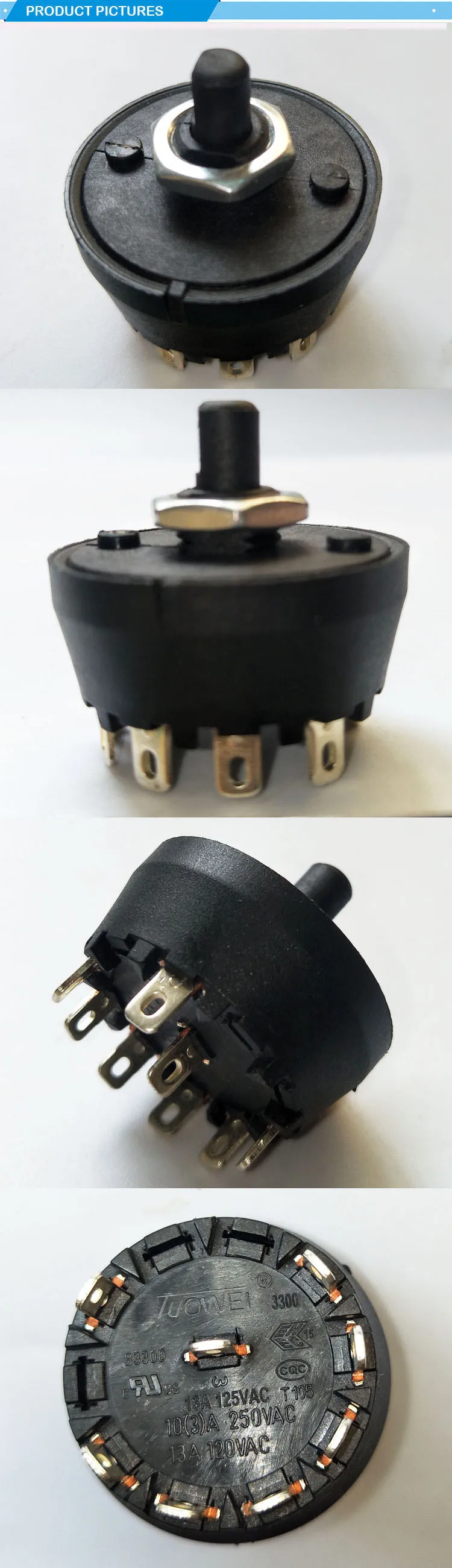

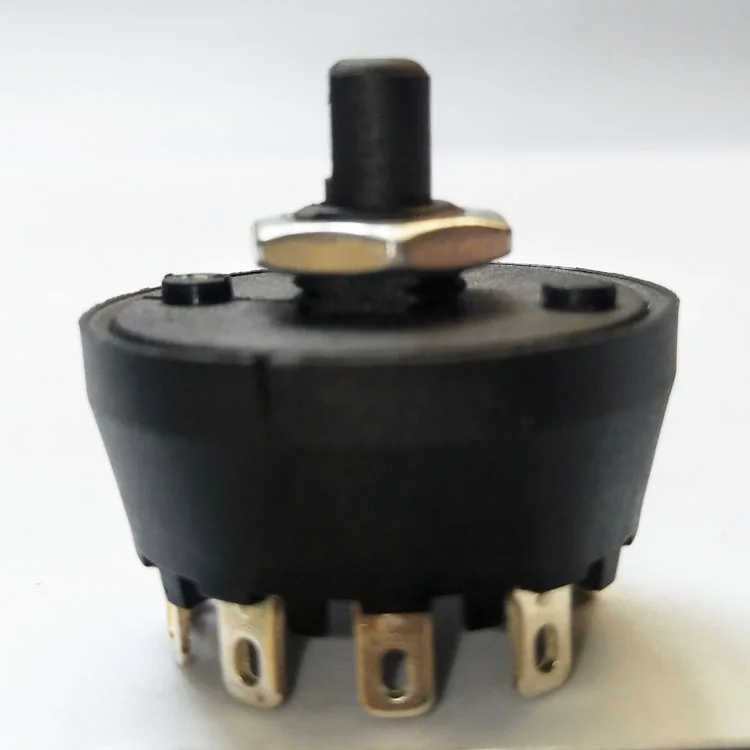

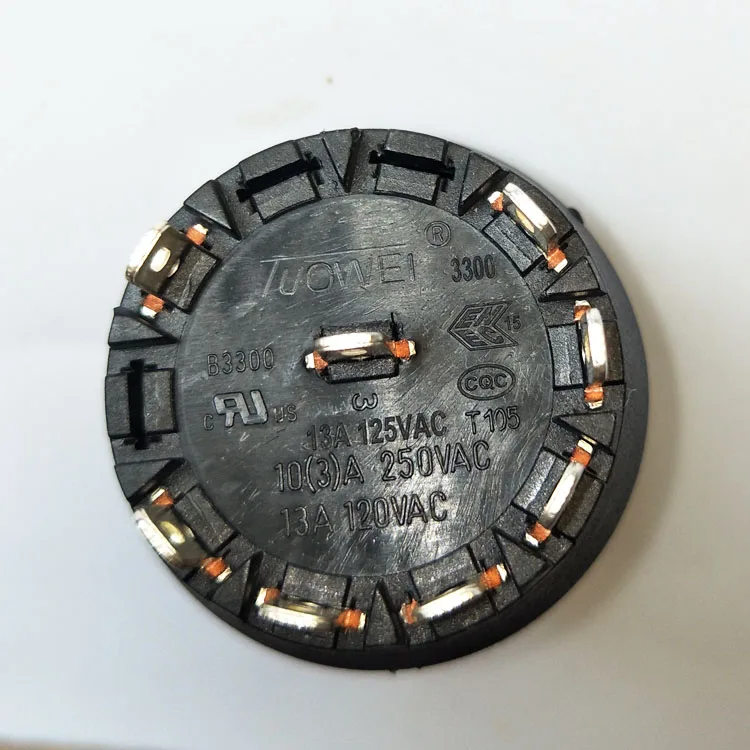

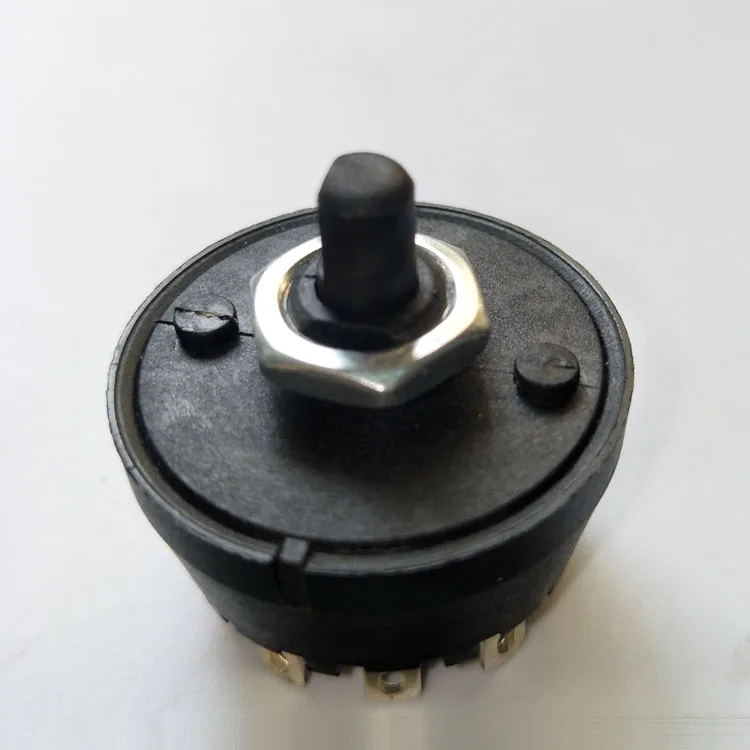

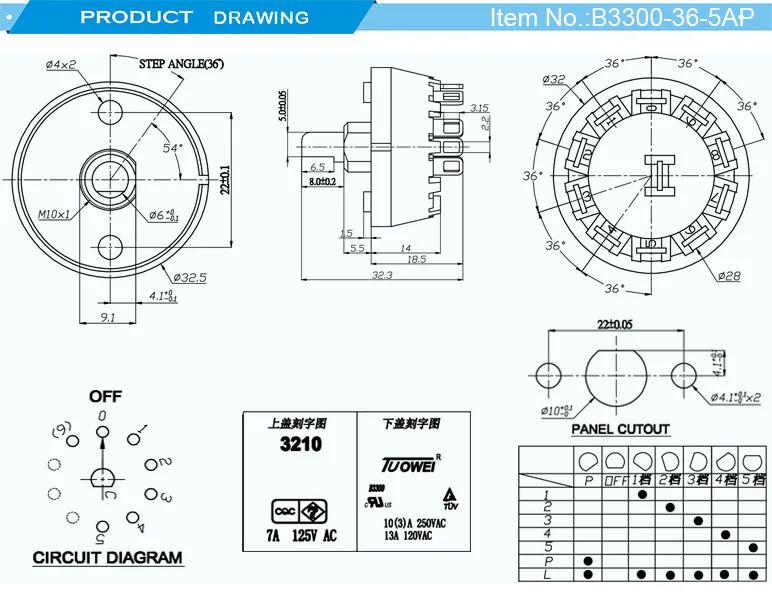

High-end quality multi-position grinder 2~10 Position round rotary limit switches Item No.: B3300-36-5AP
Technical Parameter | |
Electrical Rating | 13A ~120V.A.C. 7A ~125V.AC. 10(3)A ~250V.AC. |
Function | PULSE, OFF, L-1, L-2, L-3, L-4, L-5 |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K CYCLES |
| Operating force | 1600G+_350GF |
| Withstand Voltage | 1500 V.A.C |
Material: | |
| Cover: PC | |
| Insulating piece: PF Grade: SABIC | |
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: PC Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
Electric juicer, Mixer, Blender and other home appliances
| |
