sun follower automatic solar tracker controller

Flexible solutions adapted to our clients’ needs

Customized services and the widest portfolio of products across the entire value chain. Solar Tracker Controller’s highly quality team and state of the art R&D department o-er responsive support to our clients’ needs. Quality Solar Tracker Controller has a worldwide reputation of delivering high quality and reliable solutions. Solar Tracker solutions are designed to provide the best levelized cost of electricity. In-house production and a worldwide supply chain network Solar Tracker Controller’s production facility and supply chain network ouer the highest quality with reduced lead times ensuring the best client support.

Product Paramenters

Solar Tracker Controller Product Advantages

1. High precision: The controller uses high-precision astronomical algorithm to calculate the sun's angle, combined with a high-performance microcontroller (DSP core), to make the system calculate the position accurately and reliably and to adapt to a wide range of operating environments without the interference of rainy days. 2. Intelligent feedback: The controller adopts the inclination sensor of the international first-line brand. Real-time closed-loop feedback tracks the tracking angle of the bracket, fully automatic tracking, without manual intervention. 3. High power generation: The self-developed reverse tracking algorithm further improves the power generation efficiency of solar panels, modeling according to the obstruction of different regions and terrain, and setting algorithm optimization strategies. Ensure that the solar panels always work in a state of no shadows, increase the power generation of the solar panels, and extend the service life of the solar panels. 4. Double-point drive: One controller can drive two motors to rotate simultaneously. When the tracking bracket is driven by dual motors, the lowest cost investment can be achieved. 5. Power supply compatibility: The controller is compatible with all power input methods, providing 1500VDC input on the DC side of the battery panel, 220VAC, 800VAC on the AC side, etc., providing a more flexible solution for power station design. 6. High reliability: The controllers designed with multi-channel communication and input and output isolated power supply, and its excellent anti-interference ability ensures reliable operation in the strong interference environment of 1500V battery panel string and 800V inverter. 7. Intelligent wind resistance: The controller automatically flatten to the initial position at night. At the same time, The controller has a wind load protection interface and supports an external wind speed sensor. The controller AI intelligently controls the windward attitude of the bracket according to the magnitude of the wind, which protects the bracket while maximizing the improvement of solar cells The power generation of the board.

8. Power-off memory: The controller uses high-reliability memory chips, data storage for more than 30 years, can ensure that the system is not lost data after power-off, and automatically enters the running state after power-on.

9. Strong weather resistance: The controller uses industrial-grade chips and aerospace-grade clock sources to ensure safe and stable operation of the equipment within the range of -40 to +70 degrees without cumulative errors. 10. Intelligent communication:  RS485-MODBUS standard communication interface, the computer software can read the device at any time the following information: (1)Sun angle, inclination angle, operating status. (2)Actuator, inclination, limit, communications fault alarm. (3)Remote start, stop, reset, manual, wind. 11. Wireless communication (normal controller does not include this function, this function can be customized according to customer needs): The most advanced LORA wireless spread spectrum technology is adopted to achieve a maximum communication coverage radius of 8 kilometers, and each photovoltaic sub-array can be realized The internal wireless communication saves communication cables, reduces construction costs, and reduces LCOE costs. 12. Inverter interconnection (normal controller does not include this function, this function can be customized according to customer needs): The controller through in-depth data interaction with the inverter, real-time reading of the inverter’s MPPT power generation, combining the inverter and the sun Angle, the tracker integrates AI intelligent learning algorithm, internal reconstruction data modeling optimization, real-time adjustment of the posture of the tracking bracket to maximize the efficiency of the backside power generation of the double-sided module. Compatible with current mainstream inverter manufacturers such as Huawei and Sungrow. 13. Bluetooth debugging: (Normal controller does not include this function, this function can be customized according to customer needs)： The controller debugging and operation and maintenance personnel can read and set the internal data of the controller at any time through Bluetooth near the controller without opening the controller. It is very suitable for the tracking bracket system with high distance from the ground to the complementary of agricultural light and fishing light, which significantly reduces the cost of commissioning and later operation and maintenance. 14. Multi-point drive (normal controller does not include this function, this function can be customized according to customer needs): The controller adopts the most advanced CAN bus communication scheme in the electric power, automobile, and medical industries. The communication is high-speed and reliable, and it can work for a long time. Synchronously control the start and stop of 32 controllers in an environment of -40~+125 degrees. The multi-point drive effectively improves the wind resistance of the tracking bracket and significantly reduces the steel consumption of the tracking bracket. Thereby reducing the cost of LCOE, greatly improving the penetration rate of the tracking system in the photovoltaic support.

Solar Tracker Controller Technical Parameters
Tracking method	Single axis solar tracker	Dual axis solar tracker
Horizontal axis tracking range（°）	MAX: -80°～+80°	MAX: -160°～+160°
Pitch axis tracking range（°）	Fixed: 0°～ 60°	MAX: 0°～ 80°

Tracking accuracy	≤ 1°	Remote function	Remote wind and snow protection, manual, reset, etc.
Tracking range（°）	-80°～+80°	Limit protection	Software and hardware limit protection
Data storage protection	Yes	Input Voltage Range	85~264VAC/180~264VAC
Debugging software	Yes	Rated Input Voltage	110/220VAC
Back tracking	Yes	Max. Rated Input Current	MAX:3.6A（110V）/1.8A（220V）
Manual function	Yes	Input Frequency Range	47~63HZ
Over limit fault warning	Yes	Rated Output Voltage	Default: 24VDC; Optional: 12/24/48VDC or 110/220VAC
Motor or actuator fault warning	Yes	Max. Rated Output Current	MAX:14A
Inclination position feedback	Yes	Overload protection	Rated power105~135%,Automatic recovery after abnormal removal.
Power isolation	Yes	Processor	32-bits DSP core digital processor
Power surge protection	Yes	GPS global Positioning	Optional
Display	LED Indicators	Wind sensor	Optional
RS485-MODBUS	Yes	Emergency Stop Switch	Yes (Brand：ABB)
Wireless	LoRa/Zigbee	Device Weight	8 kg (17.7 lb.)
Protection Degree	IP65	Package Weight	13 kg (28.7 lb.)
Self-consumption（No load）	≤6W	Max. Operating Altitude	4,500 m (14,763 ft.)
Certificate	ISO9001,CE	Connector	Waterproof aviation plug

Controller Dimensions (W x H x D)	400 x 300 x 200 mm (15.8 x 11.9 x 7.9 inch)
Package Dimensions (W x H x D)	580 x 440 x 260 mm (22.9 x 17.4 x 10.3 inch)

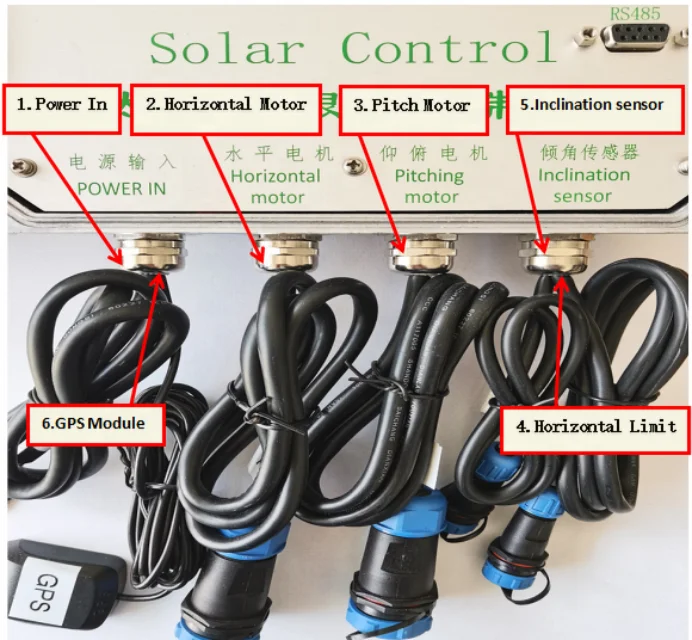

Details Images

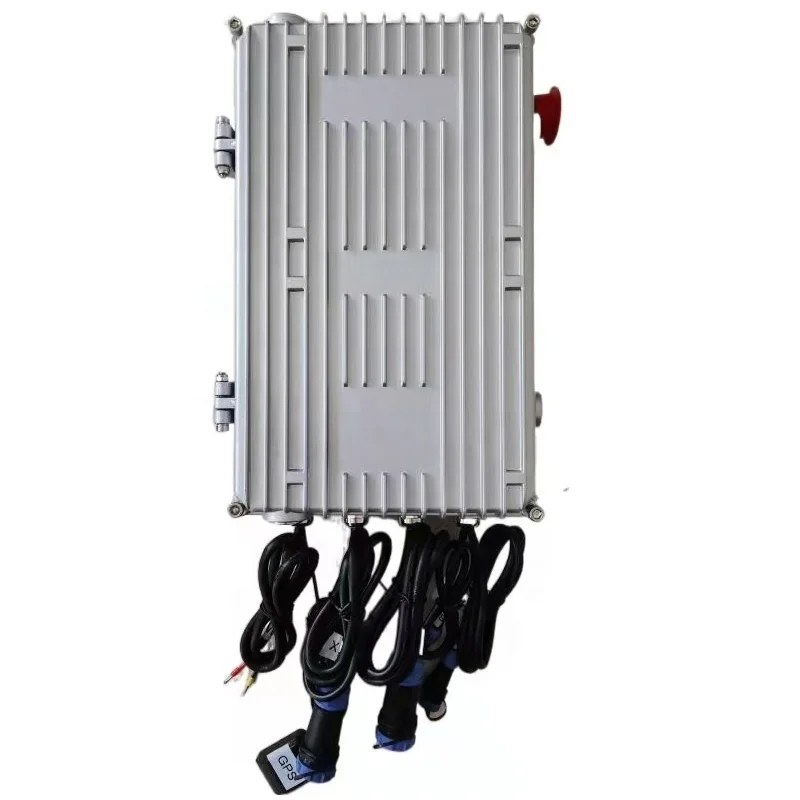

Solar Tracker Controller-1

Power Supply:110/220VAC Tracking Precision: ≤ 1°

Stainless Steel IP:65

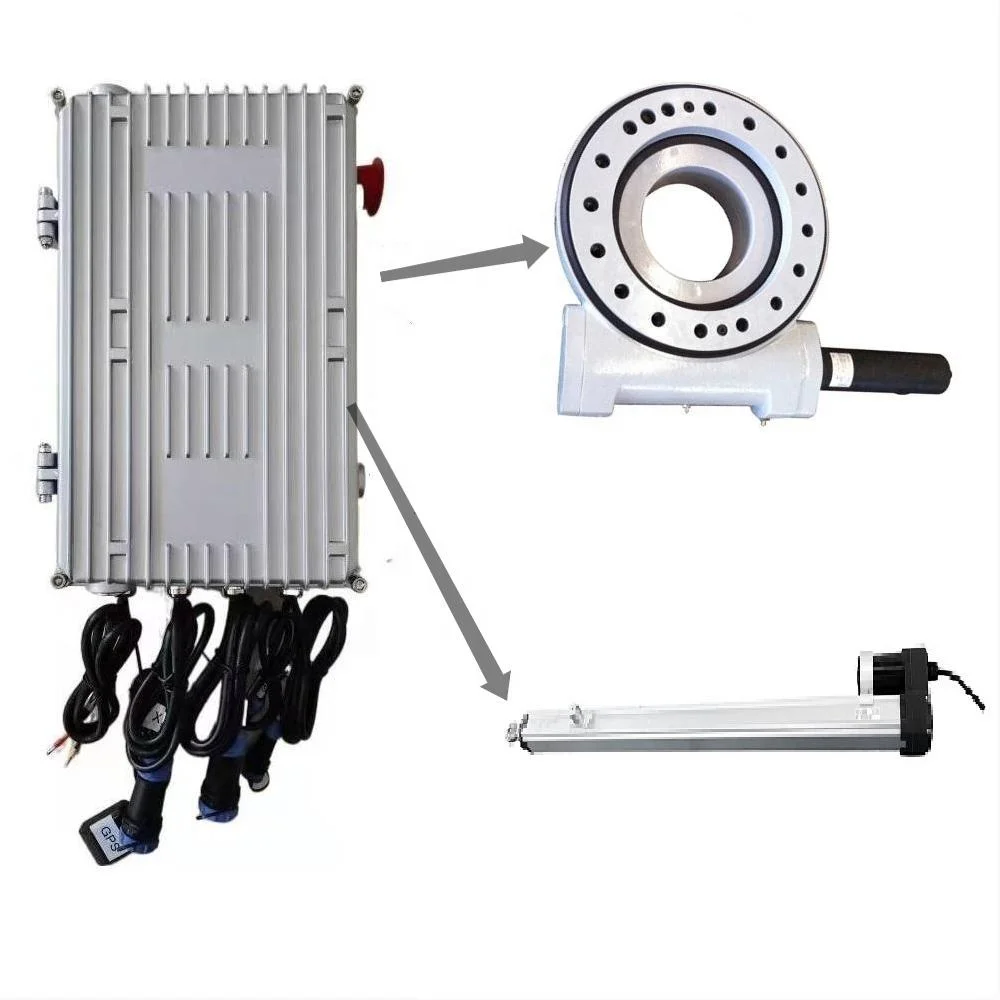

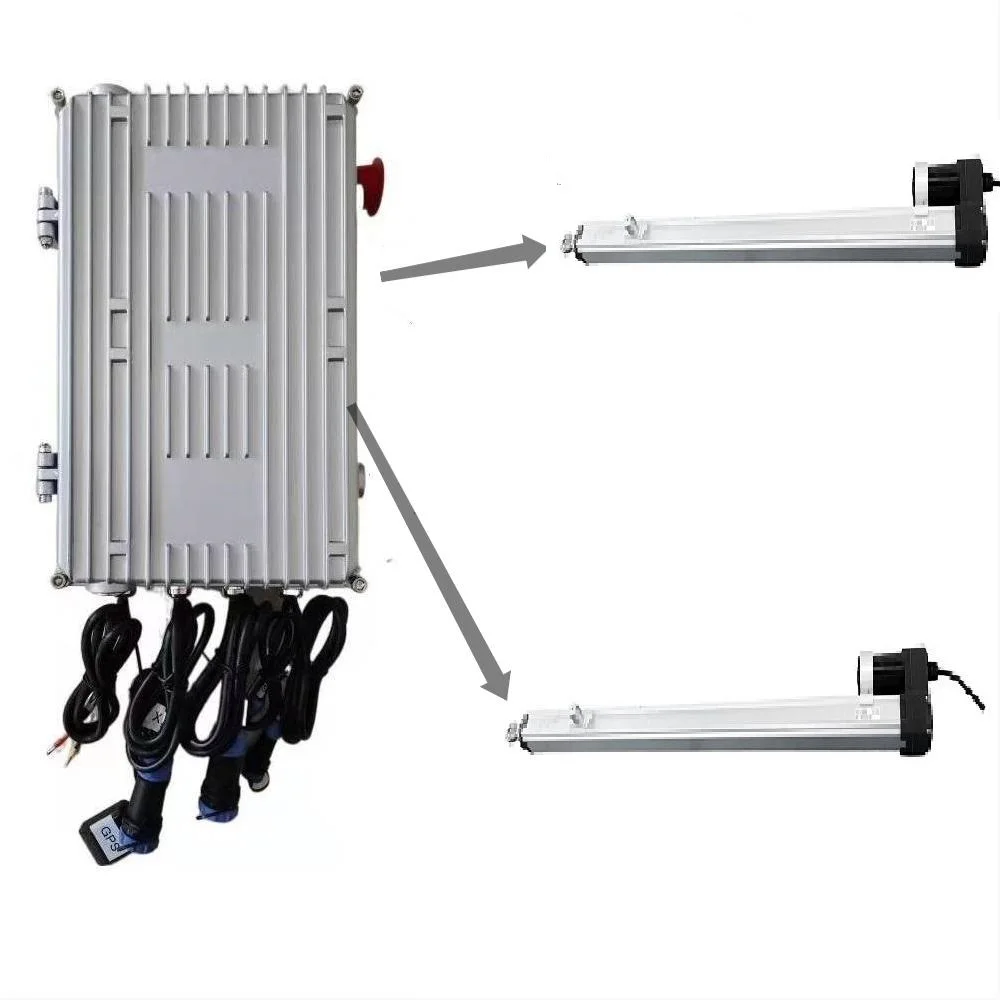

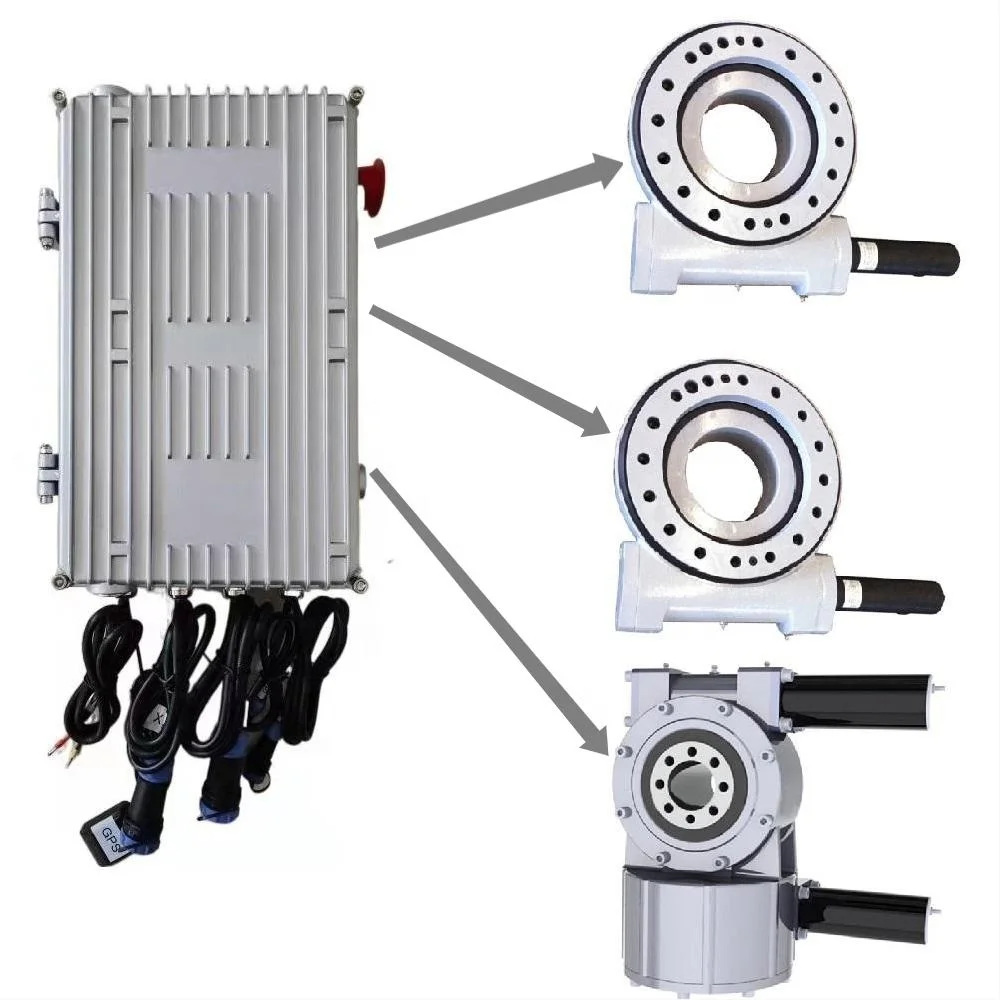

Solar Tracker Controller-2

Power Supply:110/220VAC Tracking Precision: ≤ 1° Stainless Steel IP:65

Inclination Sensor

Feedback position in the north-south direction

Slewing Driver

Accurately locate the latitude and longitude of the installed location

Limit Sensor

Feedback position in the east-west direction

Wind Speed Sensor

It can measure the instantaneous wind direction wind speed data.

Certifications

Best Solar Tracker Controller

Our company carry out the IT plan,adopt the ERP enterprise resource planning,the OA office automation and 6S management.Our company continuously pursues excellence and creates outstanding performance through the perfect continuous training system.

Our Company

Taian Xinpeng Energy Technology Co.,LTD is a comprehensive research--based company focusing on the designing,manufacturing and sales of the PV materials and products. The philosophy of Xinpeng is designing the optimal energy solution for clients through a one-for-one service. We aim at "customer first, employee happiness", advocate renewable energy for the world, and aim to develop green energy for mankind. We promise to make most specific PV energy solution for you!

Our Office

Our Factory

Our Factory covers an area of about 266400 square meter.A total investment of about 100 million US dollars.

Our Workshop

With high intelligence and automated production workshop, the company annual production capacity of 800MWp solar tracker.

Our Warehouse

Company using the ERP enterprise resource planning and OA office automation.To ensure that the entire production process is quality control, finished storage and waiting for delivery.

Our Production Site

The company implementation of the 6S site management.Improve efficiency, ensure quality, make work environment neat and orderly,prevention-oriented and ensure safety

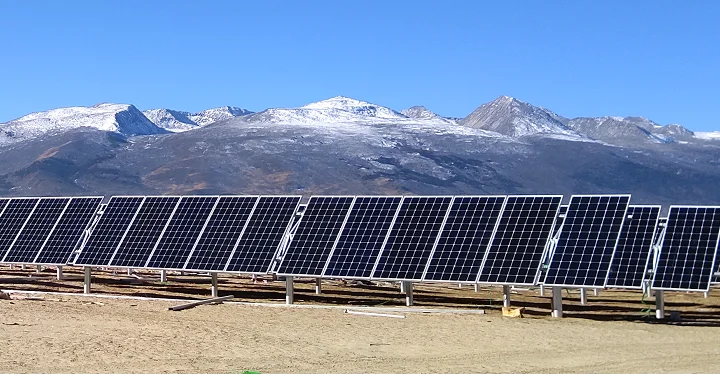

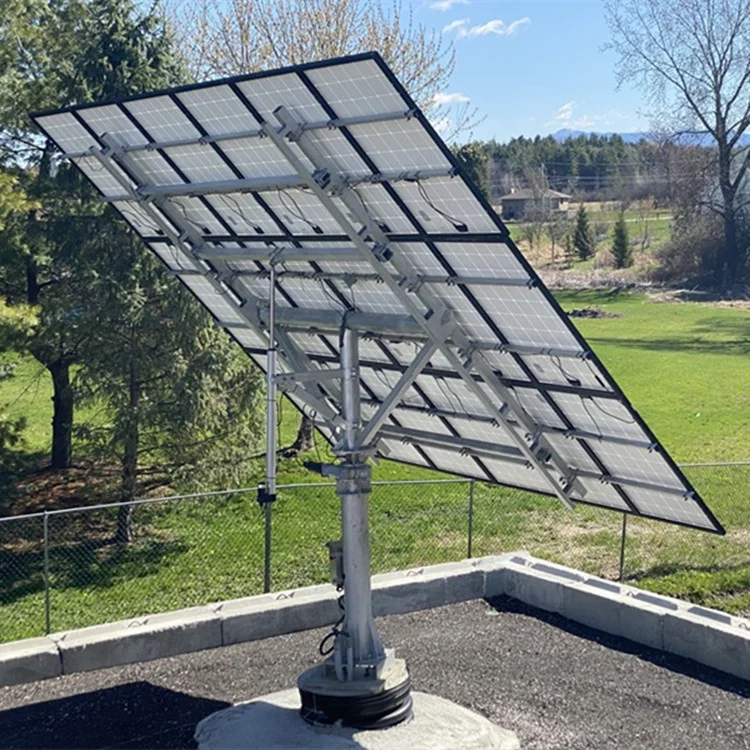

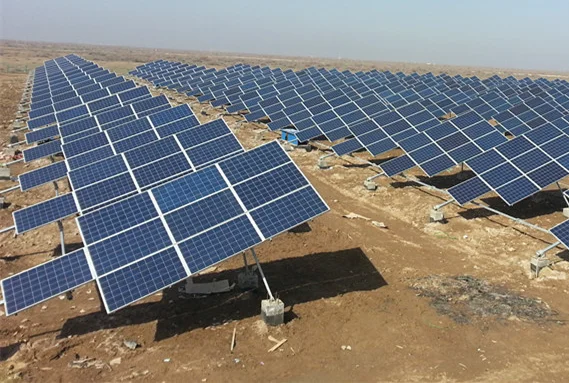

Customer Photo

FAQ

Q: How long is your delivery time?

A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.

Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our payments vary according to different countries and regions.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
