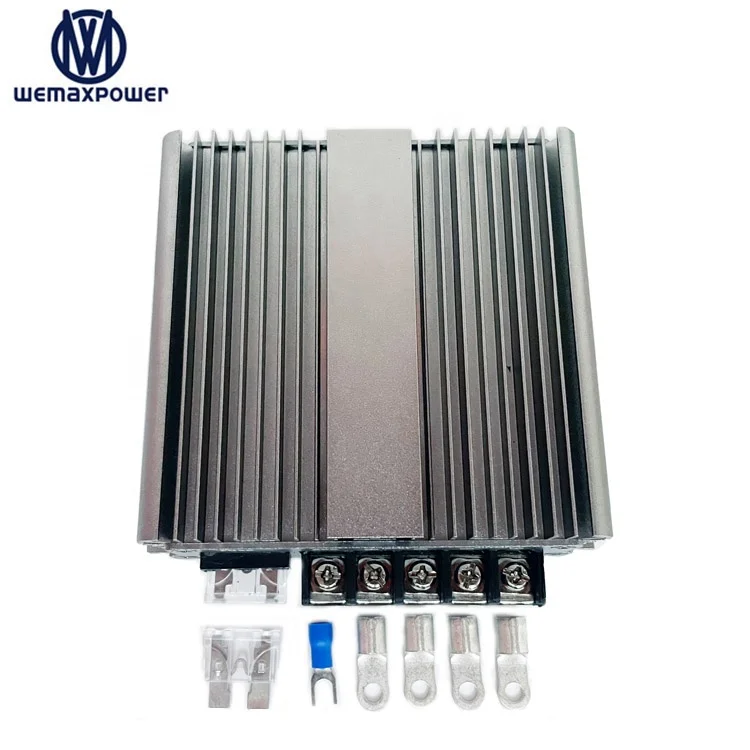

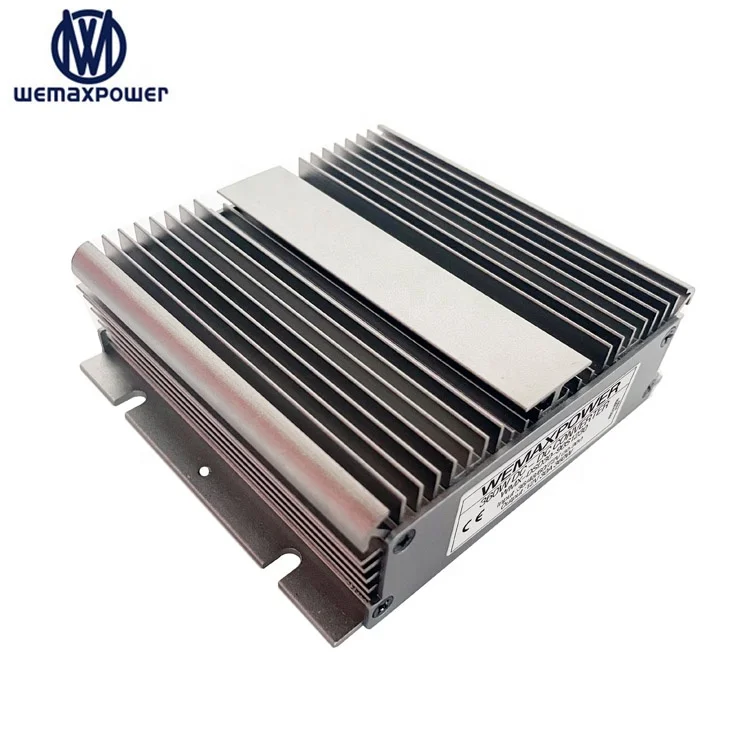

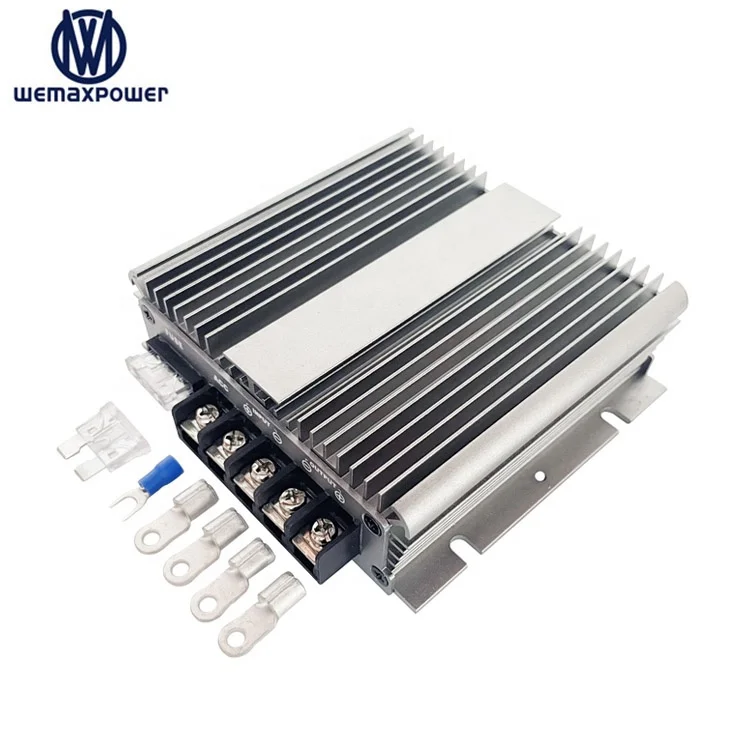

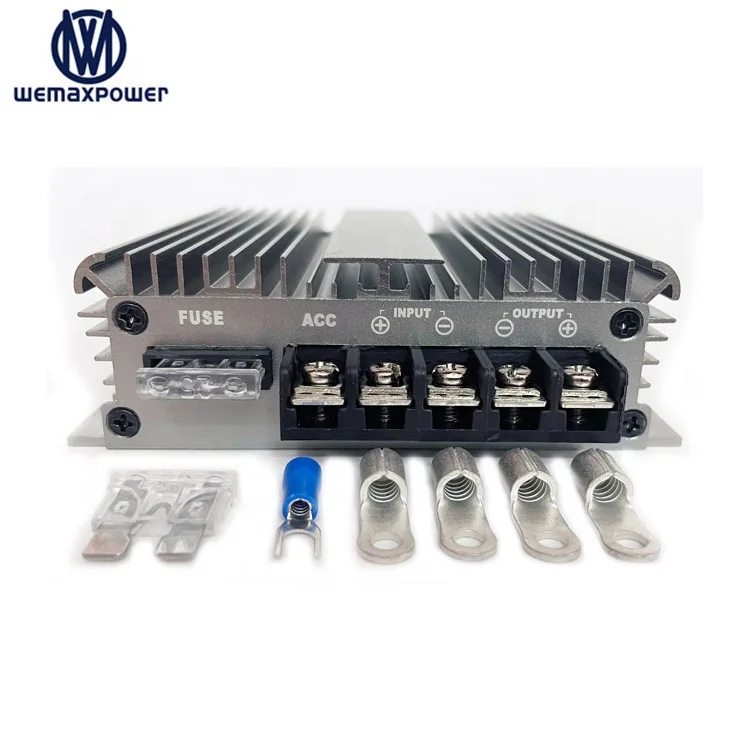

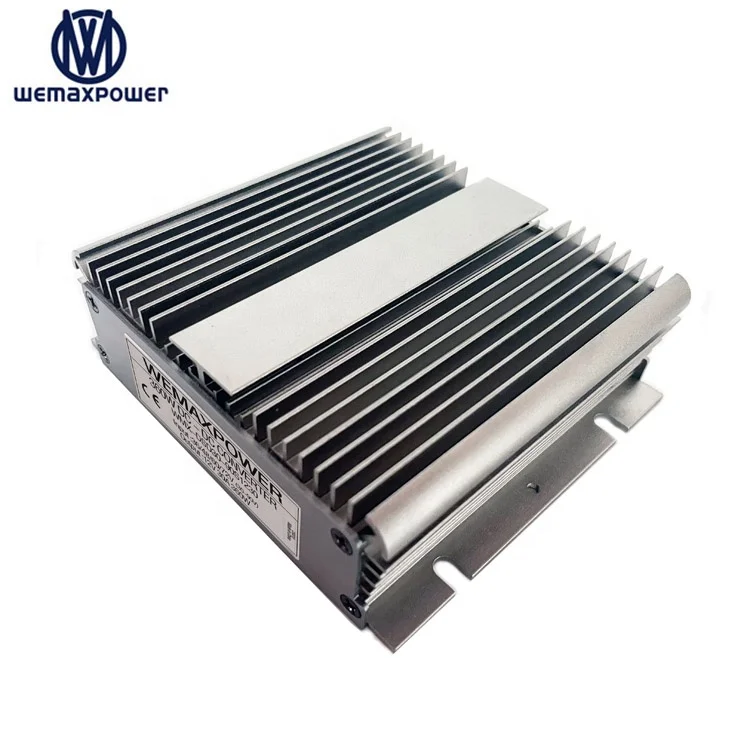

High efficiency 36vdc 48vdc 60vdc 72v step down 12v 20amp voltage transformer 20a 36v 48v 60v 72vdc to 12vdc dc to dc converter

Share on (60856619218):


Price:$32.89 - $35.21

Quantity:


Product Overview

Description


High efficiency 36vdc 48vdc 60vdc 72v step down 12v 20amp voltage transformer 20a 36v 48v 60v 72vdc to 12vdc dc to dc converter
48v to 12v 40a dc dc converter



Similar Products

























72vdc to 12vdc dc to dc converter



Fetures


» High quality components.


» Full power, stable voltage & current output.
» Wide input voltage range 30-90vdc.
» Waterproof  & anti-shock protection, ultra compact size, light weight.
» Industry grade product , efficiency up to 96%.
» Die-cast aluminum shell, epoxy potting.
» Non-Isolated Module.





Specification






















































































 Series NO.



 WMX-D30-90D12



 Model NO.



 WMX-DSD30-90S1220



 Product Name



 72v to 12v dc converter



 Input rated voltage



 36V/48V/60V/72Vdc



 Input voltage range



 30-90Vdc



 Conversion Efficiency



 96%



 Output voltage



 12Vdc



 Output current



 20A



 Output rated power



 240W



 Voltage regulation



 < 1%



 Load regulation



 < 2%



 Ripple (full load test)



 < 150mV



 No-load current



  < 20mA



 Working Temperature



 -40°c ~ +80°c



 Waterproof



 YES



 Protections



 Over-load, Over-current, Over-temperature, Over-voltage



 Machine size



 100*113*35mm



 N. Weight



 630g



 Cooling way



 Free air convection



 Packing



 White standard box

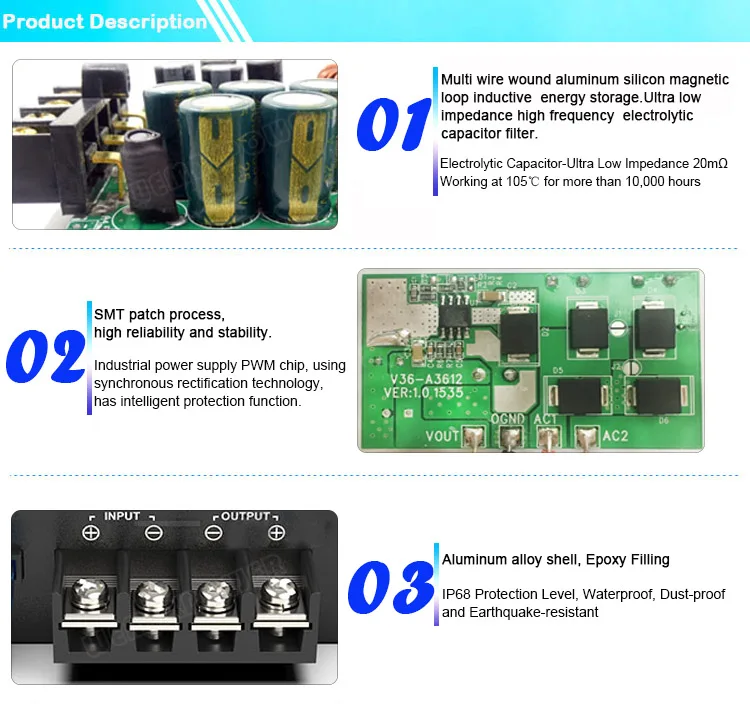

Product Description



Factory showdc dc applicationSales qualificationLogistics transportation





Buyer Feedback


review





FAQ


Q: Why choose us?
A: Guangzhou Wemaxpower technology Co., Ltd is the dc dc converters manufacturer for more than 10 years.The performance of the converters are very stable,and the product technology is updated every year.
Q: Is there any requirement of the load?
A: Yes, the dc dc converters are with fixed voltage output, so it can not be used for charging the batteries directly. If you have any requirement for charging the batteries, you may choose the dc dc chargers.
Q: Why are other products cheaper than yours?
A: Because other suppliers use cheap components, the products are with not enough power output.Our products are used imported components, they can support long-term full load work.
Q: What about your after sales-service?
A: 1.Guarantee time: 1 year
     2.Return policy: we can exchange goods if there is any quality problem within warranty period.
Q: Our Payment & Logistics
A: 1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypal.etc.
     2.Shipping terms: By DHL, UPS, FedEX, TNT, EMS,Sea.etc
Q: What can you get from us?
A: 1.Excellent products (unique design, strict quality control )
     2.Great service(OEM,ODM, after-sales services, fast delivery)
     3.Professional business consultation.
Q: What is the MOQ of the 72vdc to 12vdc dc to dc converter?
A: Low MOQ, 1~5 units for sample testing is available.
