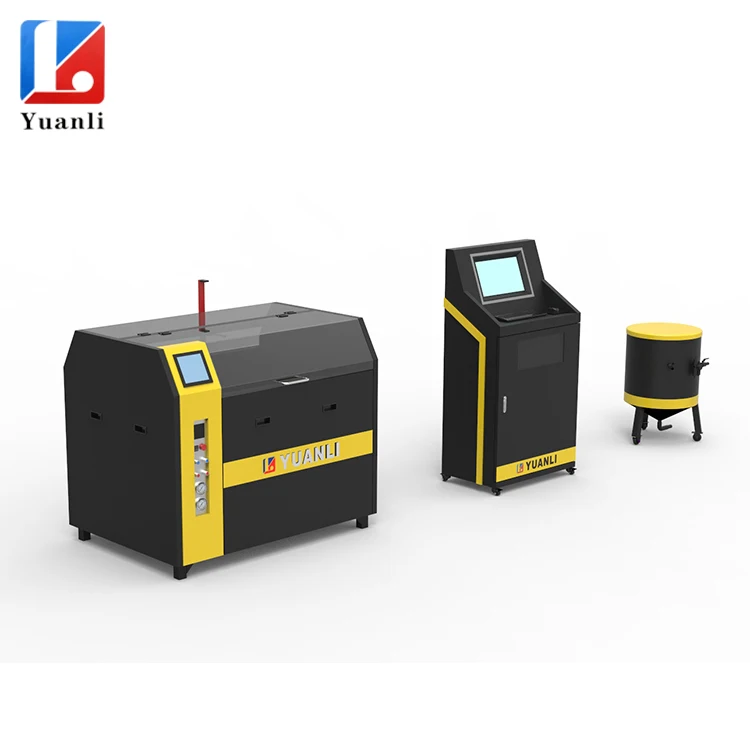

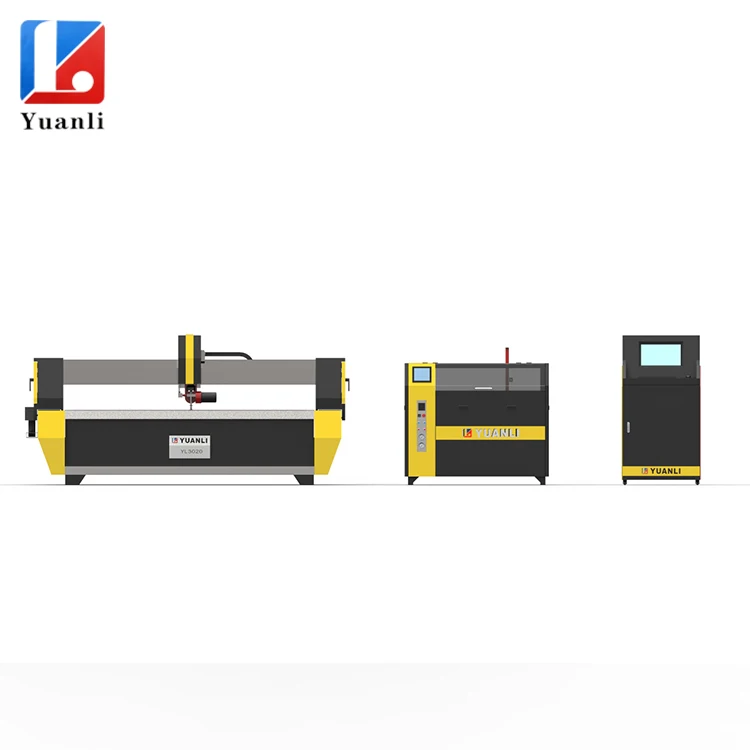

Automatic abrasive water jets cutting machine used for stone, marble, and glass cutting
Features Of Product:
1. It has the cutting ability of full direction ,can carry out any plane curve cutting.
2.The structure of platfrom is specially reinforced,it will not be shaking when the cutting head is running,and the cutting speed is fast and the precision of machining is strong.
3.The screw mandrel and the lead rail are provided by taiwan's manufacturers,the X axis and the Y axis with the oil-immersed,it has the effect of lubricating,with the structure of water-proof and dustproof,can make sure the machining precision of cutting platfrom,and improve the lifetime of the screw mandrel and lead rail.
4.The cutting head is equipped with the pneumatic water switch that can improve the productive efficiency.
5.The stainless steel protection cover is dust-proof,waterproof,rustproof,erosion proof,making the platform bright all year.
After-Sale Services
1.Installation and training: we can send technician to your place for the complete installation and training. The buyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.
Item
Water jet cutting machine
Model
YL3020
Structure
Gantry
Cutting table size
4300*3000mm
Stroke
X-axis
3000mm
Y-axis
2000mm
Z-axis
210mm

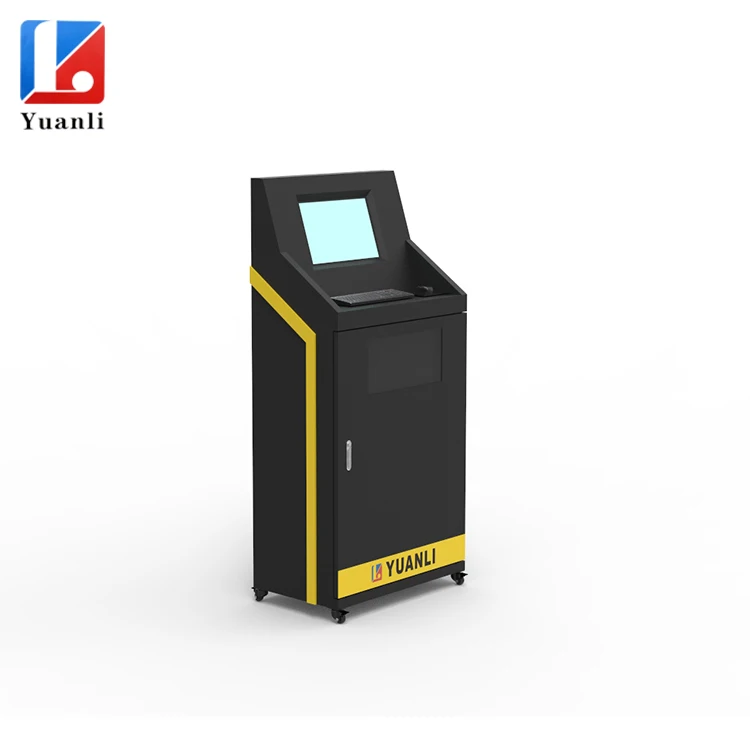

CNC Controller
Step System / AC Servo System
Accuracy
±0.1mm
Cutting
Repeatability
±0.05mm
Traverse speed
6500/15000 mm/min
Power supply
220V/380V/415V AC,50Hz

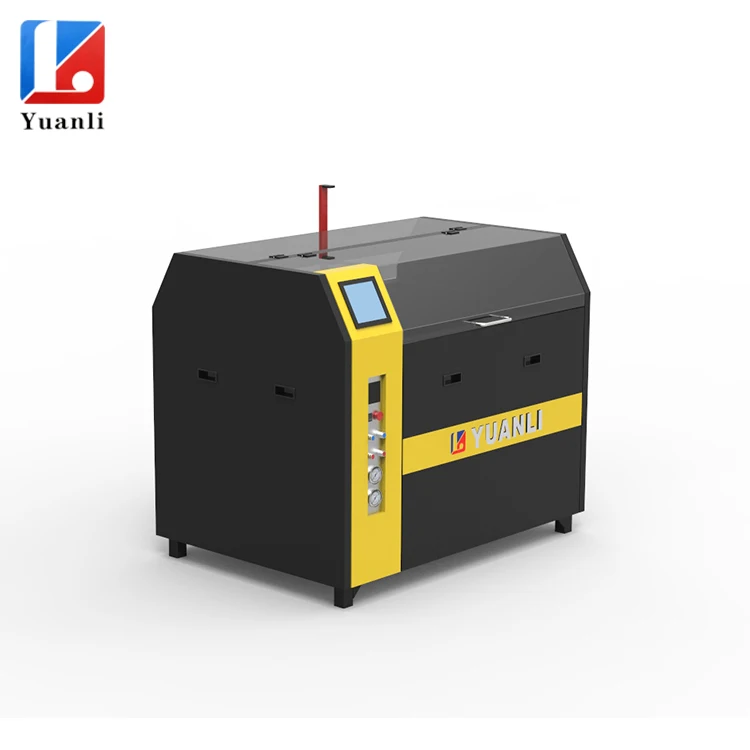

Turbocharger parameters
Item
Waterjet cutting machine
Model
Maximum pressure
450Mpa
Normal operating pressure
350-380Mpa
Main motor power
37KW /30KW
Gantry
Variable
Cooling
Wind/Oil/Water
High-pressure cylinder
Imported
Inlet valve
Imported
Ceramic rod
Imported
Accumulator
Single taper
Power supply
415/380/220V AC 3P
COMPANY PROFILE
Foshan Yuanli Precision Machinery Co.,LTD.was founded on 20th,May,2003 ISO certificated producing line,Our factory is located in Xiabai third Industrial Zone in Foshan with an advanced production base which covers an area of more than 4,000 square meters and around 150 employees.We are Professional waterjet cutting machine manufacturer,we can offer waterjet cutting machine system,3 Axis waterjet machine,5 axis waterjet cutting machine,double head 3 axis waterjet cutting machine.
CERTIFICATE
Market
FAQ
Q: Are you a factory? A: Yes, YUANLI is a comprehensive industrial Manufacturer Group. We are specialized in Waterjet cutting machine.
Q:What kind of package will use?
A:Whole film packaging machine.Anti-collision package edge.
Q: How to get the exact quotation? A:We offer you suitable solutions and configurations according to your cutting workpieces.The best and exactly quotation.
Q:Could you give me a discount? A:Yes, we can have a negotiation.
Q:Do you have other support? A:Sure,we offer vulnerable accessories.
Q:How about your aftersale service? A:We offer training and lifetime after-sales system.
