Mixer Equipment Making Lime Putty /Producing Machine Mixing Cement Wall Lime Putty Plaster
- Category: >>>
- Supplier: Henan Landao Machinery And Equipment Co. Ltd.
Share on (60857404809):
Product Overview
Description
Zhengzhou Factory Mixer Equipment Making Lime Putty /Producing Machine Mixing Cement Wall Lime Putty Plaster
Product Description
| Introduction |
Simple dry mortar production line is suitable small business and begin starting working tile adhesive manufacturing factory.Easy Installtion,Easy Operation,Low Maintenance,Low investment,High Efficiency |

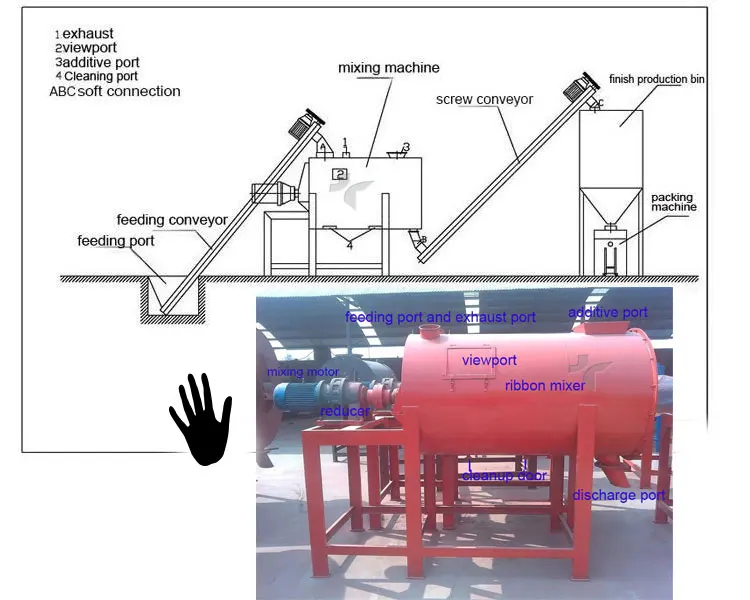

Flow Chart of simple dry mortar plant
| Small investment,suitable for individuals and small business |
| Small area,3.5m*2.5m*2.8m,height <3 meters, ordinary houses to build factory |
| 1-6ton per batch output supply,mixing for 5-8minutes per batch |
| Maintenace rate is low,wearing parts(bearing,V-belt,ect.) |
| 1 | Feeding Screw Conveyor | Screw Blade,high speed conveyor 300r/min. |
| 2 | Ribbon Mixer | Three Layer Ribbon Mixer with internal and external,high evenly and no dead angle |
| 3 | Finished Screw Conveyor | Conveyor Finished Materials to finished silo 300r/min |
| 4 | Finished Production Silo | Store final products for a while to ensure high efficiency running |
| 5 | Automatic Weighting Volve Port Packing Machine | Weight from 10kg to 50kg bag 4-6 second for one bag 3KW Automatically |
| 6 | Air Compressor | Suitable Packing Machine using well |
| 7 | Electric Control Box | Automatic control whole line |

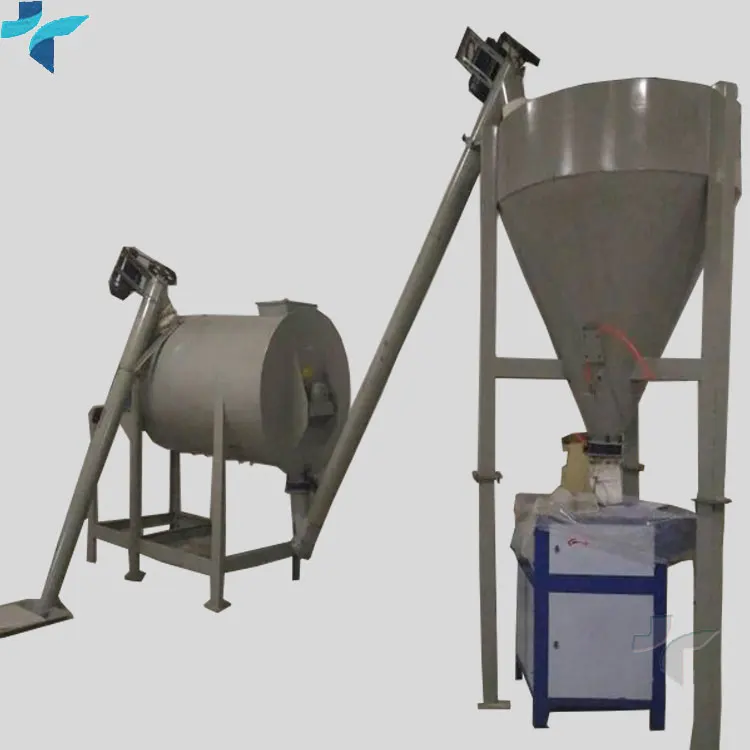

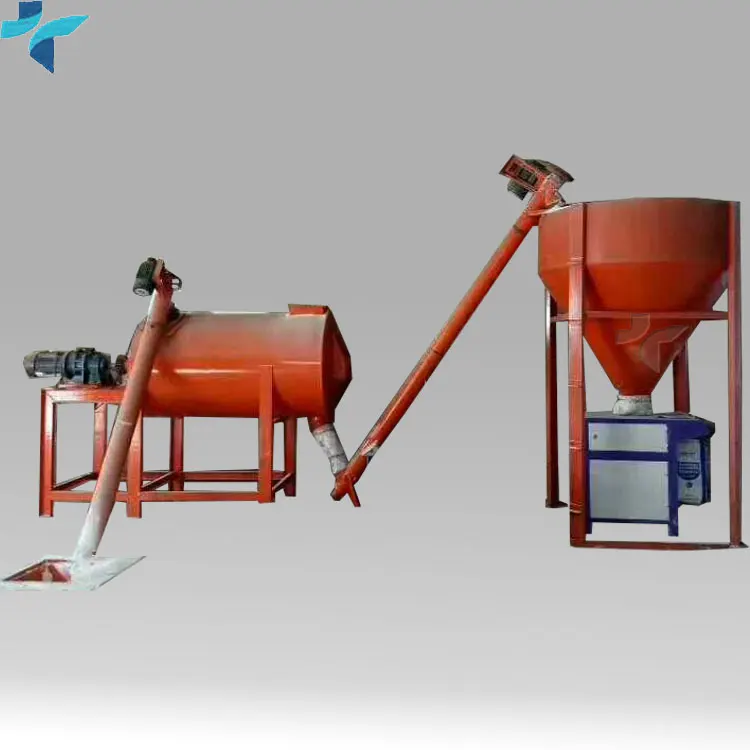

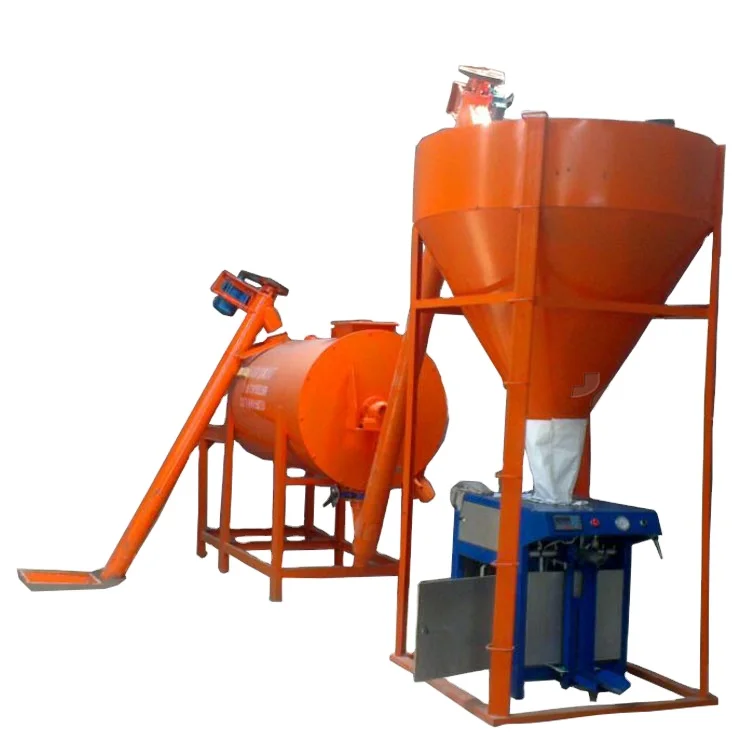

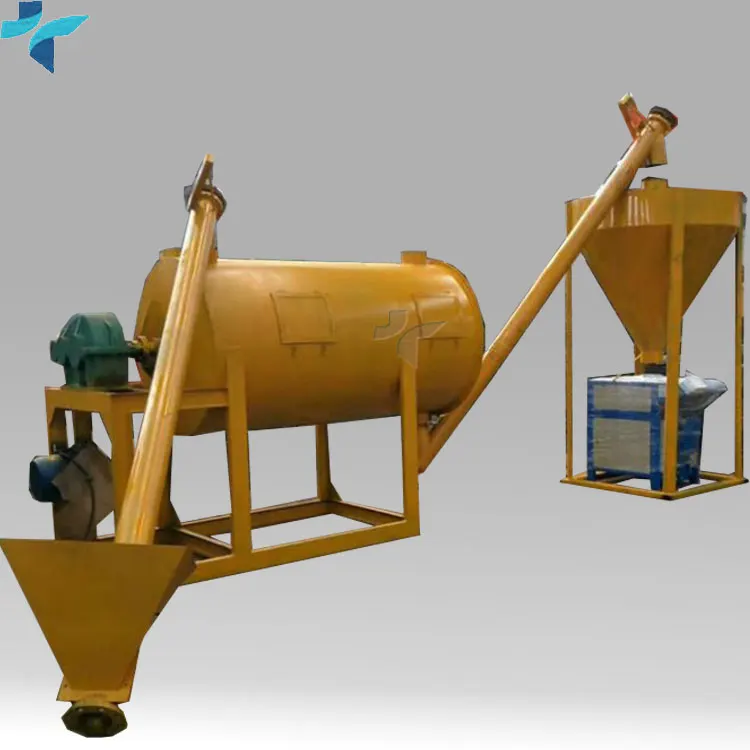

Detailed Images
This is export to Uganda example for 5ton/batch tile adhesive production line.that get high praise from our client.
Technology parameter
| Item | 1ton/batch | 2tons/batch | 3tons/batch | 4ton/batch | 5tons/batch |
| Mixing power | 5.5KW | 7.5KW | 15KW | 11KW | 22KW |
| Feeding conveyor power | 3KW | 3KW | 4KW | 4KW | 4KW |
| Second conveyor power | ### | 4KW | 4KW | 4KW | 5.5KW |
Mixing time (minute/batch) | 5-8minutes | 5-8minutes | 5-8minutes | 5-8minutes | 5-8minutes |
| Note |
| For the first time to use this machine, mixer machine must be add grease oil to reducer. |
| For this ribbon mixer machine, it need while feeding raw material while mixing, when feeding over, then also about 5-8minutes will be high evenness, when discharging finished material, please not open fully for discharging door, if open fully, maybe it will be easy block the second screw conveyor. |
| Please clean the mixer machine use the air tube when work finished every time |
Factory Show
| What are our advantage of our team and factory? |
| 1.The company employs more than 120 R&D professionals, production engineers and technical support experts and will guarantee the short production time within 10-20days and good quality. |
| 2.We are located in Henan Province China,the largest construction town,there is a large advantage on experience and cost.it is easy for you to visit our company and the factory.we will also provide you 24h online chat service. |
| 3.Online chat,quick reply,good quality. |
| 4.We have sell lots of construction equipment,that can demand different purchase demand,it is convenient. |
| 5.We have gained a global sales network reaching in Uganda,Colombia, Bolivia,Brazil,Algeria, Ecuador, Russia, Pakistan, Vietnam, Dubai, Ghana, India and so on. The quality,the price,the delivery time will be the best. |
Customer Visit
Packaging & Shipping
| Delivery time: 10-20 days after receipt payment |
| Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery |
| Package |
| Wire cables are used for fastening the machine on the trailer or inside the container |
| Cork wood are placed in front or behind the machine to protect it |
| Plastic film is covered on the machine as a rain-roof |
