Towei safety limit switches supplier 15A~125V/250V t125 2 pin limit zippy safety heater micro switch with right angle lever
- Category: >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60857415201):
Product Overview
Description
Product Description

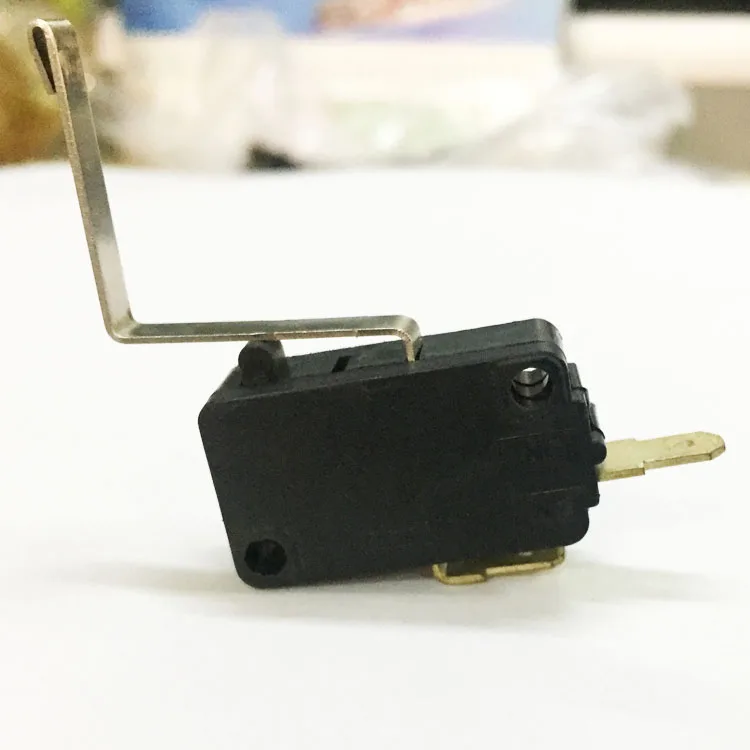

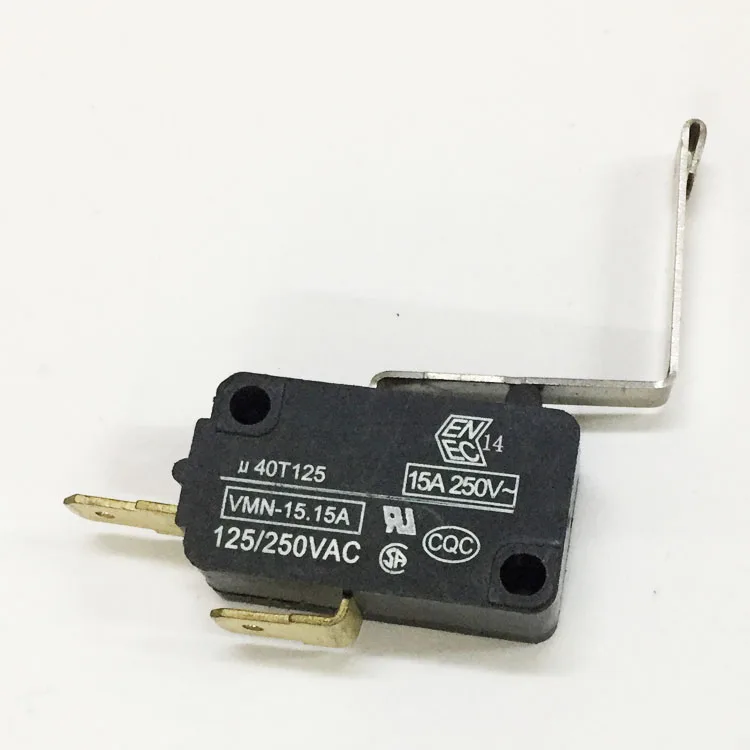

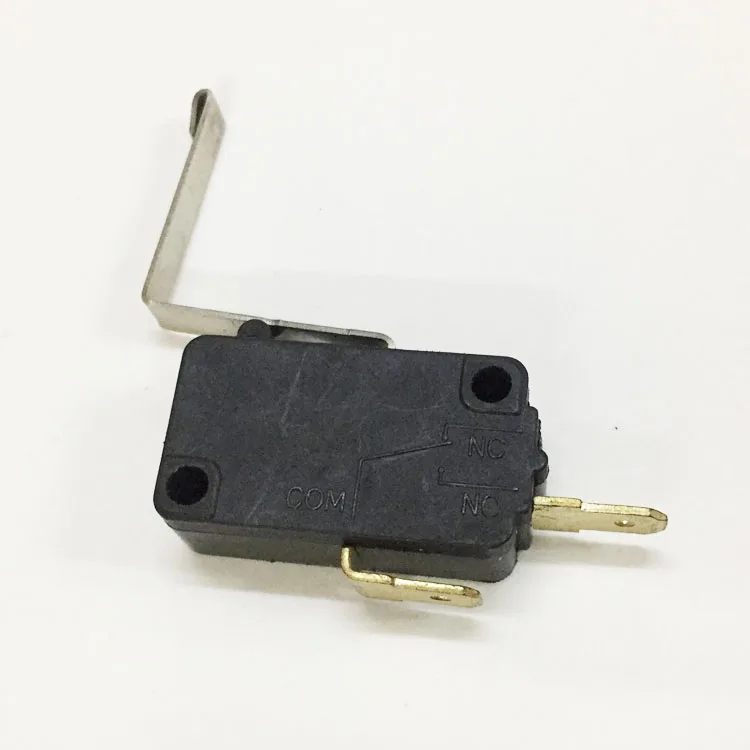

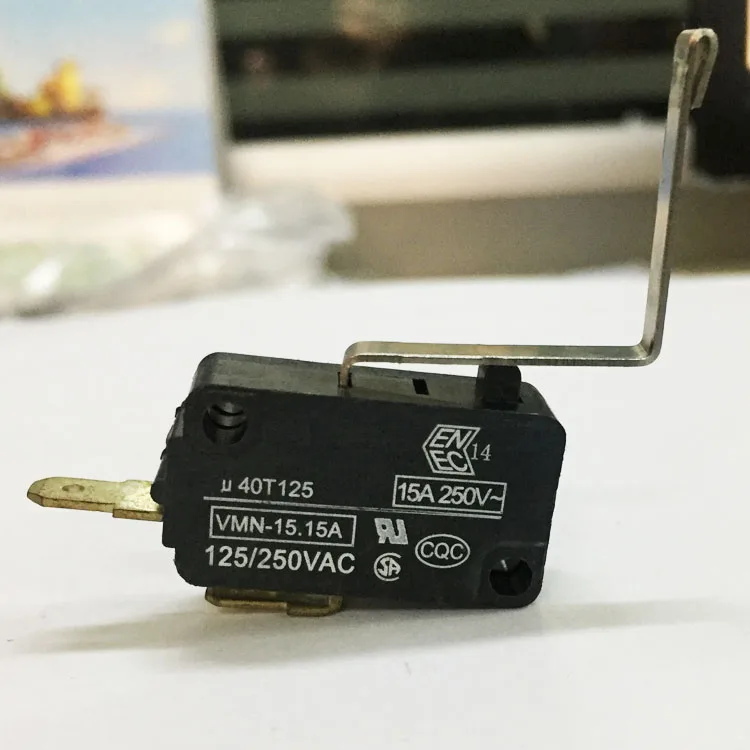

Towei switch supplier 15A~125V/250V t125 2 pin limit zippy safety heater micro switch with right angle lever
Technical Parameter | |
Electrical Rating | 15A ~125V.A.C. /250V.A.C. |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K CYCLES |
| Operation force | 200GF+-150GF |
| Withstand voltage | 1500 V.A.C |
| SPCOA | 24-18AWG UL1015 |
Material: | |
| Housing:PA66 Grade: SABIC | |
| Terminals: Brass Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Contract: Copper | |
| Base: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
Electric Heater, humidifier, Heater, kitchen ventilator and other home appliances
| |
