Портативный КПК Chainway, на базе Impinj Indy E710 UHF качающийся ридер для управления инвентаризацией ювелирных изделий IOS/Android
- Category: >>>
- Supplier: Shenzhen E-Card One Technology Co. Ltd.
Share on (60857487298):
Product Overview
Description
Product Description

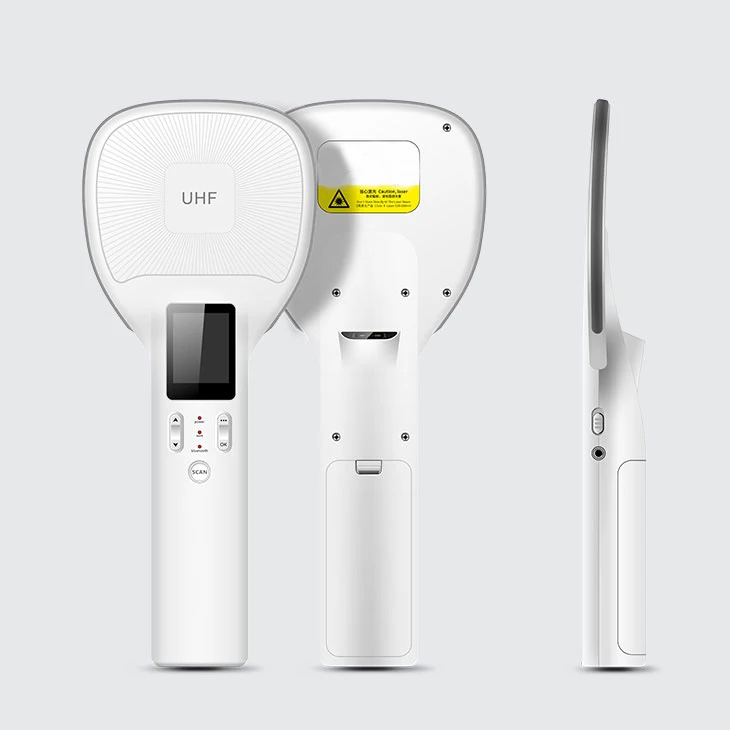

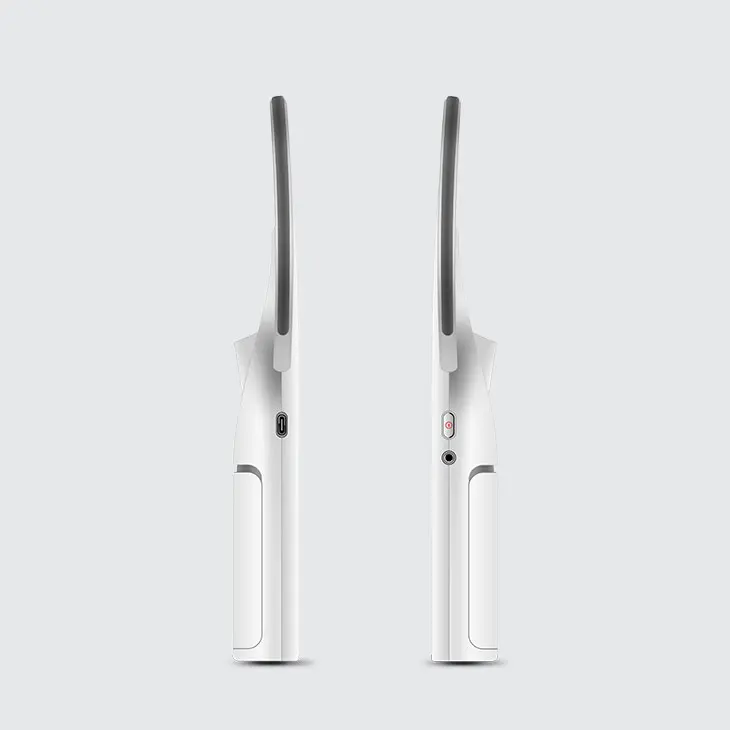

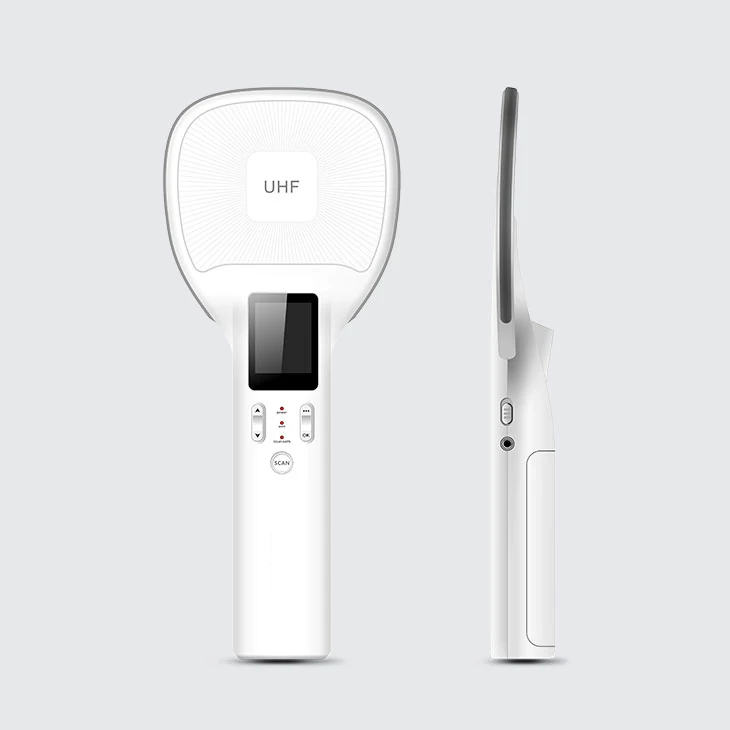

Chainway R2 RFID Swing Reader
Handheld PDA, UHF Swing Reader for jewelry inventory management IOS/Android

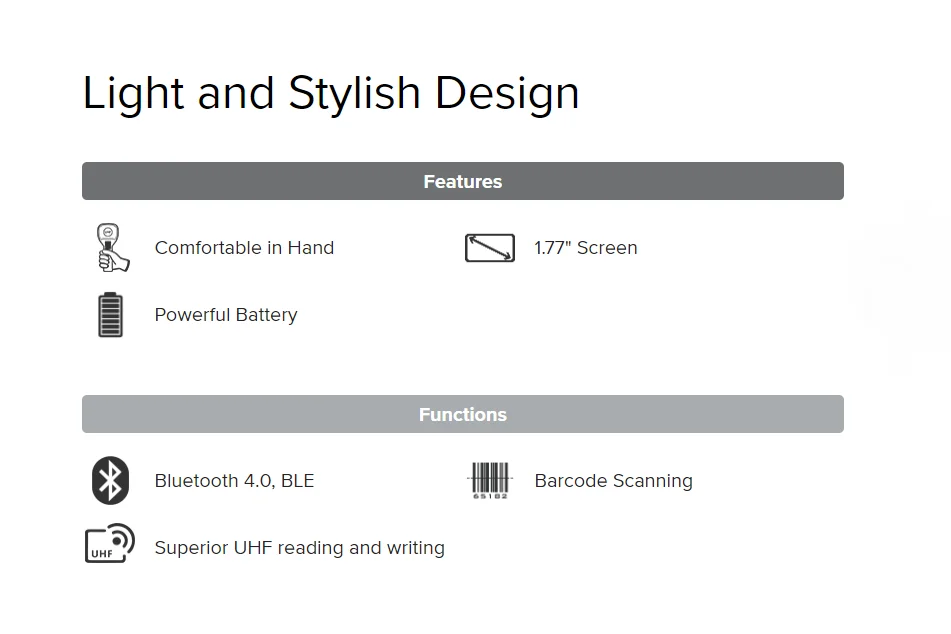

Outstanding Performance and Appearance
Ecard One RFID Swing Reader R2 is a newly-developed handheld data collection device with stylish design and incredible performance. It delivers superior UHF reading and writing, barcode scanning, transmits data to the data center via with ease. It can complete tasks in inventory management, asset management, and inspection etc.
SPECIFICATIONS
| Physical Characteristics | |
| Dimensions | 275x117.5x48.5mm |
| Weight | 324g/ 11.43oz (with battery) |
| Display | 1.77 inch, 128X160 |
| Power | 5200mAh 4.35V |
| Buzzer | Support |
| Interfaces | Micro-USB |
| Indicator LED | Power, Work |
| Product material | Plastic |
| Colour | White |
| User Environment | |
| Operating Temp. | -20℃~+50℃ |
| Storage Temp. | -40℃~+70℃ |
| Humidity | 5%RH - 95%RH non condensing |
| Performance | |
| MCU | Cortex-M3 72MHz |
| RAM+ROM | 64M+4G |
| UHF RFID | |
| Engine | CM-1 module based on Impinj Indy R2000 |
| Frequency | 920-925MHz/902-928MHz/865-868MHz |
| Antenna | Linear Polarized antenna (4dBi) |
| Power | 1W (30dBm, support +5~+30dBm adjustable) |
| R/W ranges | >28m(indoors);>12m(open outdoors) |
| Reading rate | >200tags/s |
| Note | *Ranges and rates depend on tags and environment |
| Barcode Scanning | |
| 2D Imager Scanner | SE2707 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |

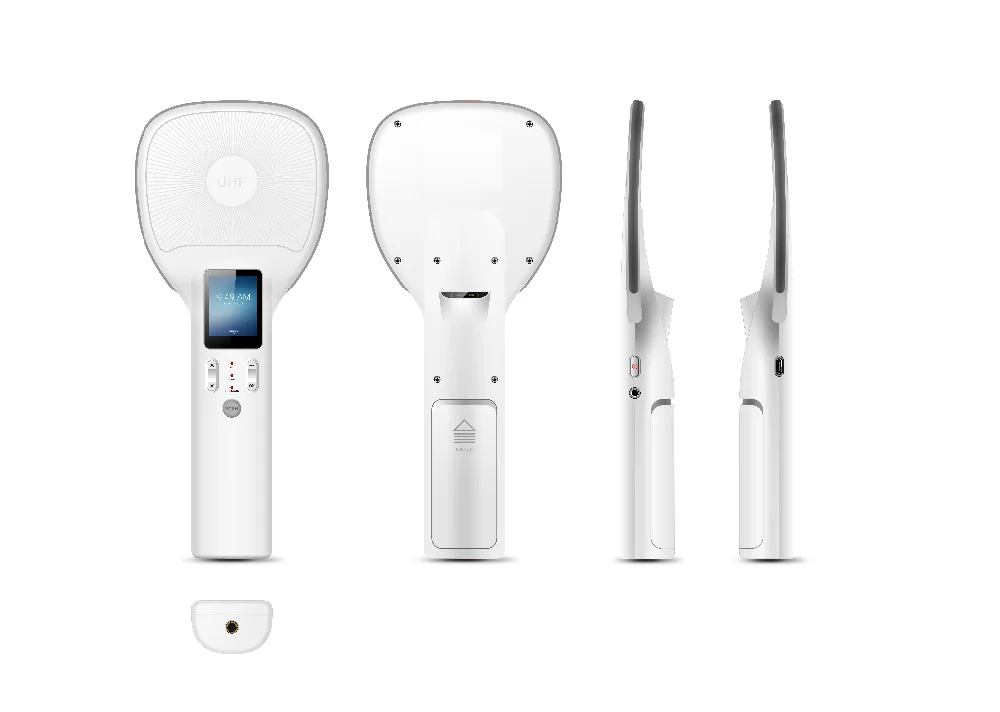

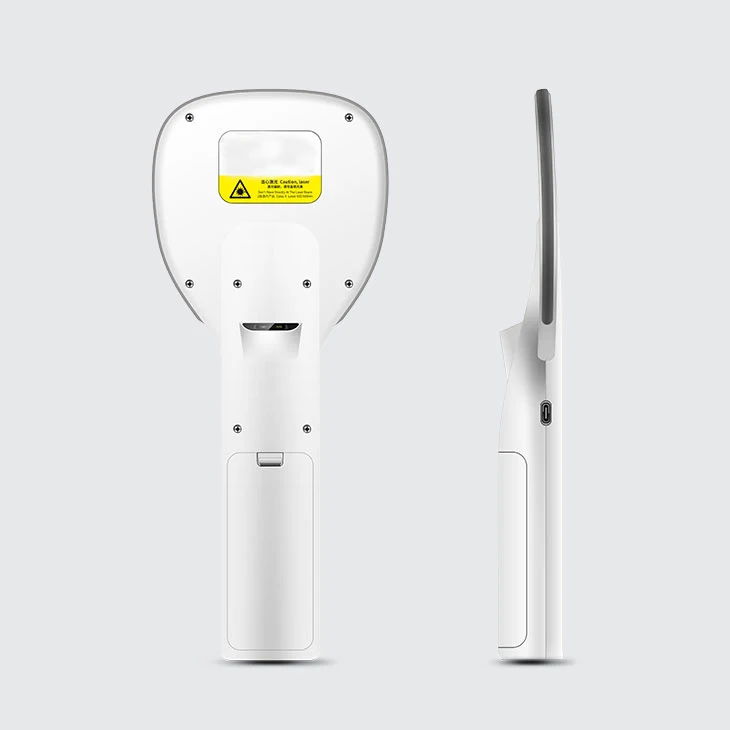

Product Image
Packaging & Shipping
Our product will send in a normal carton boxes. But we can also customize our package to fit your needs.
Company Information
FAQ
FAQ
1,Can you customize your product to our needs?
Ofcourse, all of our product can be customized. If you have any request you can directly ask us.
2.If I order in large quantity, will there be any discounts?
It depends on the quantity of the order. Because we sell at a below average market price, there is only a little room for discussion. If you order more than 1000 pieces or if you want to be a long term partner, price can be negociated.
3.Why does your product have such a broad range of prices?
We mainly customize our product to our consumers needs, therefore extra part may or may not be needed to solve your problem or fit your needs. So, the price variate alot from machine to machine.
4. Are you a factory or trading company?
We are a OEM/ODM factory.
5. Can I get a sample for testing?
Yes, we can provide you a sample for reference, the sample and shipping cost will be paid by customer.
6. Can you arrange the shipment? Since it's my first time to buy from China.
Sure, we can ask a trustworthy shipping company to arrange the shipment for you!
7.What is the warranty?
1 years warranty from the date of delivery,A lifetime technical support,and we will return full money to customer if we did not shipping right items as contract.
