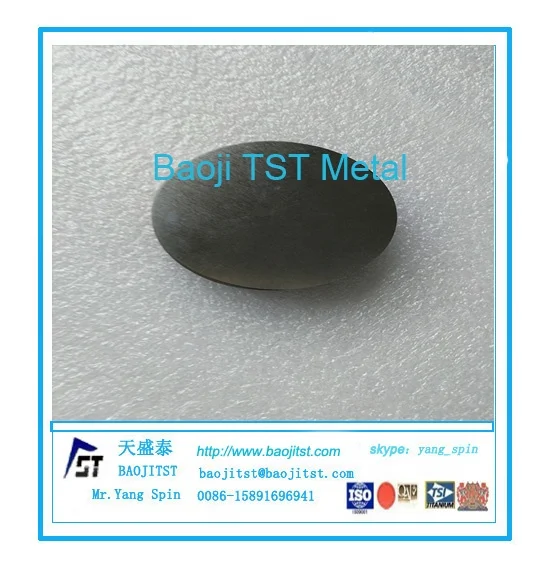

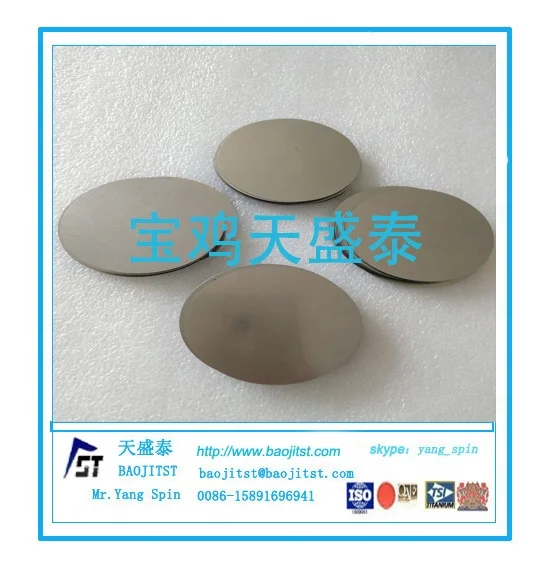

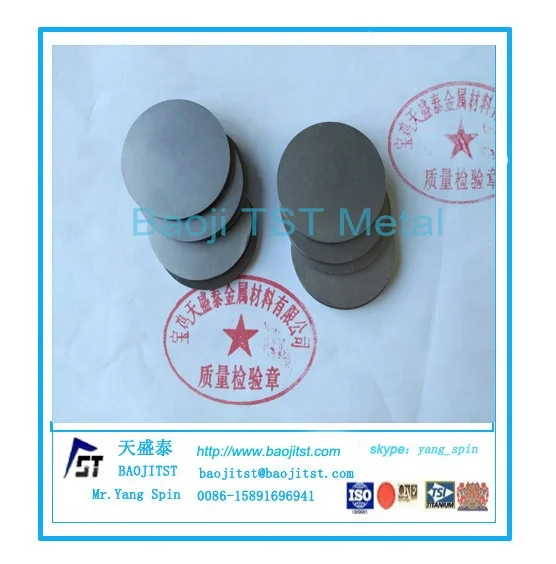

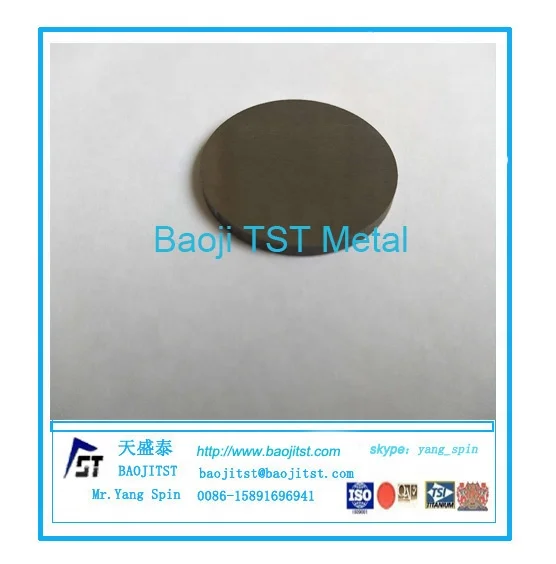

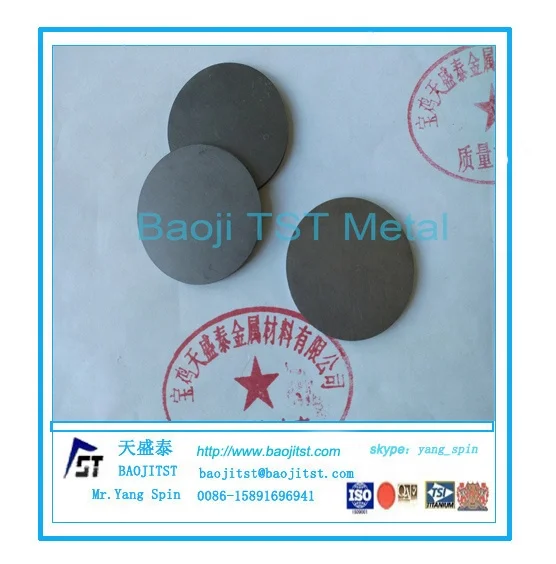

tungsten disk 99.95%

Product Overview

Description



tungsten disk 99.95%    99.95% tungsten disk    2mm thick tungsten disk  Pure tungsten disk     Cold rolled surface tungten disk





1.Standard: ASTM B760

2.Grade: W1

3.Purity: 99.95%

4.Density: 19.3g/cm3



5.Size: thickness >=0.1mm * Dia >10mm



6.Surface:chemical cleaned or polished



7.Standard:ASTM B760 / GB T3875



8.Production capacity: 1000kg/month



9.Payment: T/T or Western Union



10.Delivery time: 3-10days



11. Tolerance



Thickness	Thickness Tolerance		Width	Width Tolerance	Length	Length Tolerance
	I	II
0.10-0.20	±0.02	±0.03	30-150	±3	50-400	±3
>0.20-0.30	±0.03	±0.04	50-200	±3	50-400	±3
>0.30-0.40	±0.04	±0.05	50-200	±3	50-400	±3
>0.40-0.60	±0.05	±0.06	50-200	±4	50-400	±4
>0.60-0.80	±0.07	±0.08	50-200	±4	50-400	±4
>0.8-1.0	±0.08	±0.10	50-200	±4	50-400	±4
>1.0-2.0	±0.12	±0.20	50-200	±5	50-400	±5
>2.0-3.0	±0.20	±0.30	50-200	±5	50-400	±5
>3.0-4.0	±0.30	±0.40	50-200	±5	50-400	±5
>4.0-6.0	±0.40	±0.50	50-150	±5	50-400	±5
