Customized Polished Optical Double Concave Glass lenses HOE Biconcave lens

Share on (60857561649):


Price:RUB 39.63 - RUB 4,755.12

Quantity:


Product Overview

Description

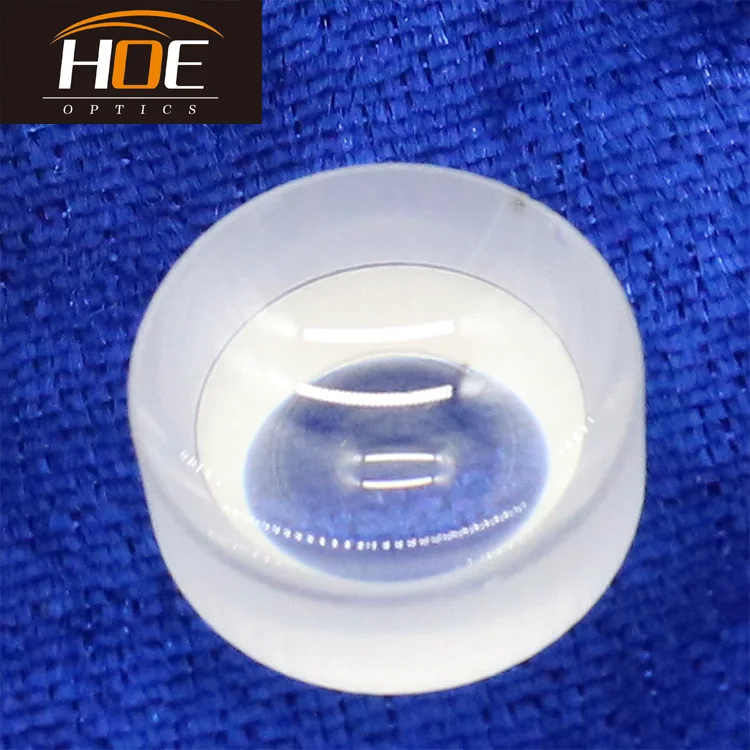

HOE Biconcave lens Customized Polished Optical Double Concave Glass lenses

Product Description



PRODUCT DETAILS                                                          | HOE |

Model Number:

HSMX1104

Structure

Plano-convex lens

Material

Optical glass,K9,ZF6,ZF7,ZK3,FK61,LAF3,QK3,etc.

Diameter

6-220mm or Upon request

Diameter tolerance

±0.005mm

Center thickness tolerance

±0.01mm

Decenter

0.5'~1'

Radius

R 4mm-∞

Surface Quality

60/40~40/20

Surface Accuracy

<1λ

Irregularity

0.1~1

Dimension tolerance

±0.03~0.1mm

Aperture

0.1~2

Coating

AR coating, BBAR coating, V-coating, HR coating or Upon request

Paint

Black GT-7 or or Upon request

MOQ

5 or 10pcs also welcome for sample order, 500pcs for OEM



According to the different applications, we can manufacture:

(a) Plano-convex lens

(b) Plano-concave lens

(c) Biconvex lens

(d) Biconcave lens

(e) Convex-concave lens

(f) Glued lens

(g) Other Optical Lenses
You can provide us your drawing, or you tell us the main parameters, then we will design the drawing and customize this lens for you.

1





Company Information



NANYANG HUASEN OPTICAL AND ELECTRONIC CO.,LTD.



Nanyang Huasen Optical and Electronic Co.,Ltd. is located in Nanyang city which is one of the famous military optics industrial base of China. Our company specializes in the processing of precision optical components of telescope & binoculars, rifle scopes, range finder, etc. Various optical prisms and lenses. And OEM, ODM, OBM service.



We have the ability to do products design, research & development, production, sales and customer service. And we have the advanced technology, mature production process and continuous innovation to meet all customers’ requirements. And our products have been successfully applied to many international and domestic projects.



At present, we have served customers nationally, and our products have been exported to Southeast Asia, North America and other western countries.
