SYNCOTEK Card Reading Plastic Card Dispenser Bill Acceptor Manufactures
US $250.00-$278.00

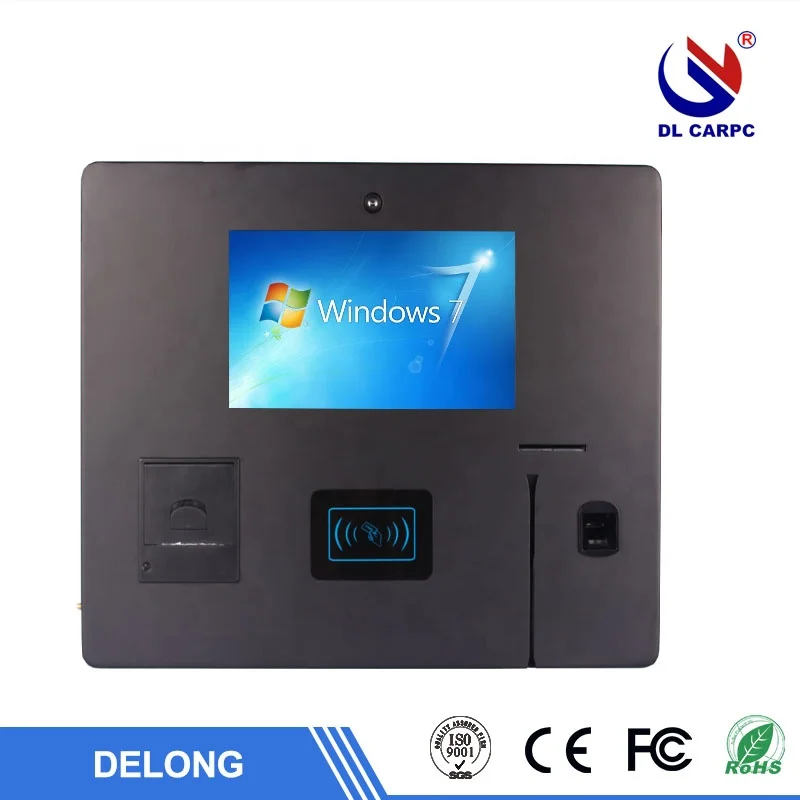

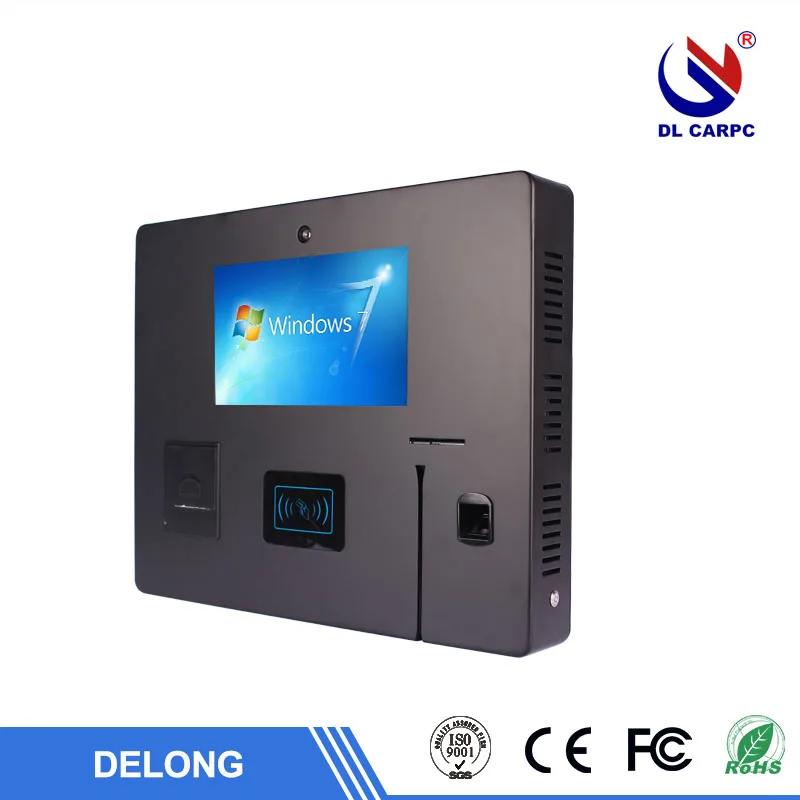

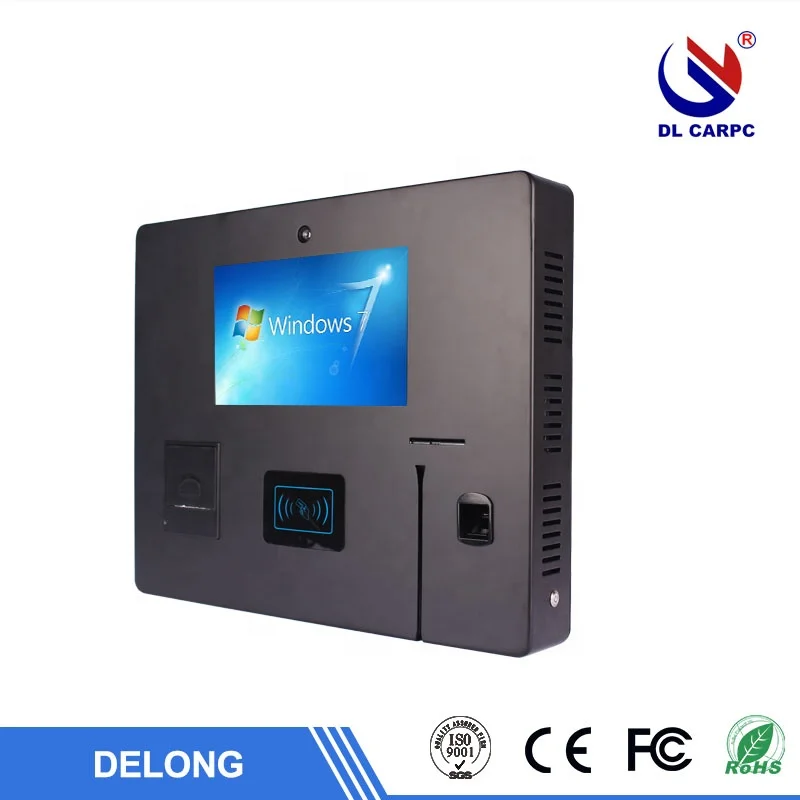

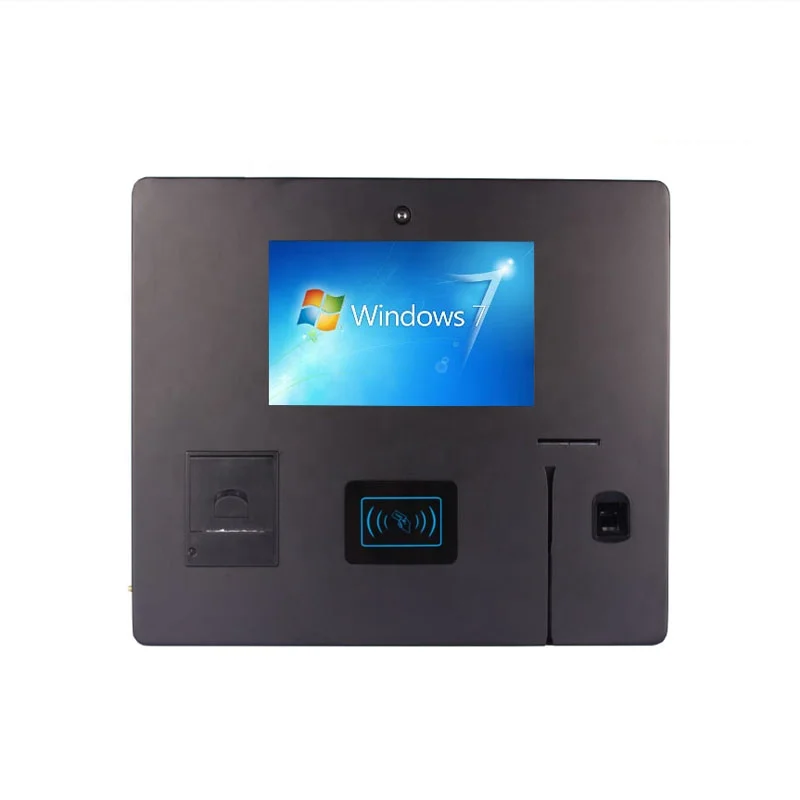

Manufacturer Customized 10.1 / 15 / 17.3 / 19inch thermal printer parking ticket machine automatic ticket machine
- Category: Payment Kiosks >>>
- Supplier: Shenzhen Delonghuale Electronical & Technoligy Co. Ltd.
Share on (60857981685):
Product Overview
Description
Key point:
1. Aluminum shell design for industrial use
2. Highly customization option for your choice.
3. Comprehensive products line to meet different needs.
4. Meet with CE, ROHS, ISO standard.
5. One year warranty with lifelong technical support
6. 12 years China OEM factory.
Product Specification
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Display Panel | |||
| Display panel size | 10.1" 16:9 digital panel | ||
| Resolution | 1024(RGB)×600 , WSVGA | ||
| Contrast | 500:1 | ||
| Brightness | 200 cd/m2 | ||
| Touch screen | Capacitive touch(Resistive/IR touch Optional) | ||
| Visual angle | 45/45/15/35 (Typ.)(CR≥10) | ||
| Computer Configuration | |||
| CPU | Intel celeron quad core J1900 2.0Ghz | ||
| Motherboard | Bay Trail-D Celeron J1900 2.0GHz Mini ITX Motherboard | ||
| Chipsets | Intel J1900 chipset | ||
| Memory | 4GB DDR3(2GB-8GB optioanl) | ||
| Harddisk | 32GB SSD(160GB-2T HDD / 16GB-256GB SSD optioanl) | ||
| Graphics | Integrated HD Graphics | ||
| Audio | Integrated sound card | ||
| LAN | Gigabit (10/100/1000 Mbits/s) LAN subsystem | ||
| WIFI | 802.11n wireless network | ||
| USB | 4*USB(2*USB2.0+2*USB3.0) | ||
| Card reader | built-in Magnetic Card reader module support RFID / Contactless Card / Chip card | ||
| Printer | built-in thermal printer (80mm/s paper rolls) | ||
| Fingerprint Reader | R307 optical fingerprints(High speed DSP processor) | ||
| Webcam | IMX179(5 million pixel high-definition camera) | ||
| WIFI Bluetooth function | 1 x WIFI connector + 1xBluetooth | ||

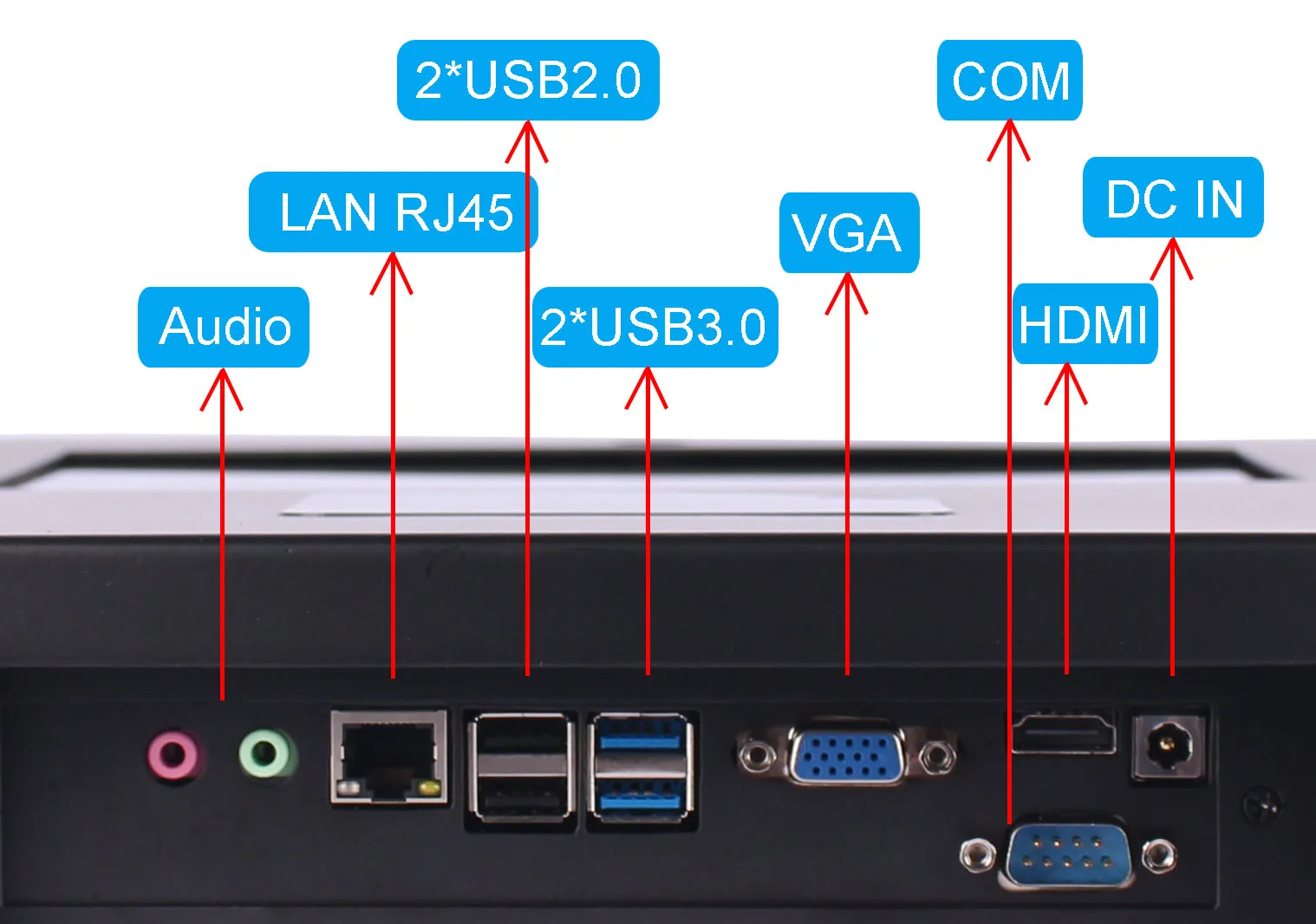

| Port Support | |||
| 1 x VGA+1 x HDMI port | DC connector | Power button | 1 x RS232(com) |
| 1 x WIFI connector | Others | ||
| Other Information | |||
| Color | Black/Silver/white | ||
| OS Support | Support Window XP/7/8//10/CE,Linux | ||
| Power | DC9-36V, AC100-240V | ||
| Case | entire aluminum bezel | ||
| Stander | standard VESA | ||
| Accessories | |||
| 1pcs motherboard cd drive | 1pcs touch cd drive | 1pcs touch pen | 1pcs 5A power adapter |
Products Details
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10.1 inch Indsutrial panle PC
LED screen with high brightness.
Resistive touch screen for complex environment
Powered by Intel, Arm Android,1037U, J1900, i3, i5, i7,
different CPU for your option.
Customization will be high appreciated.

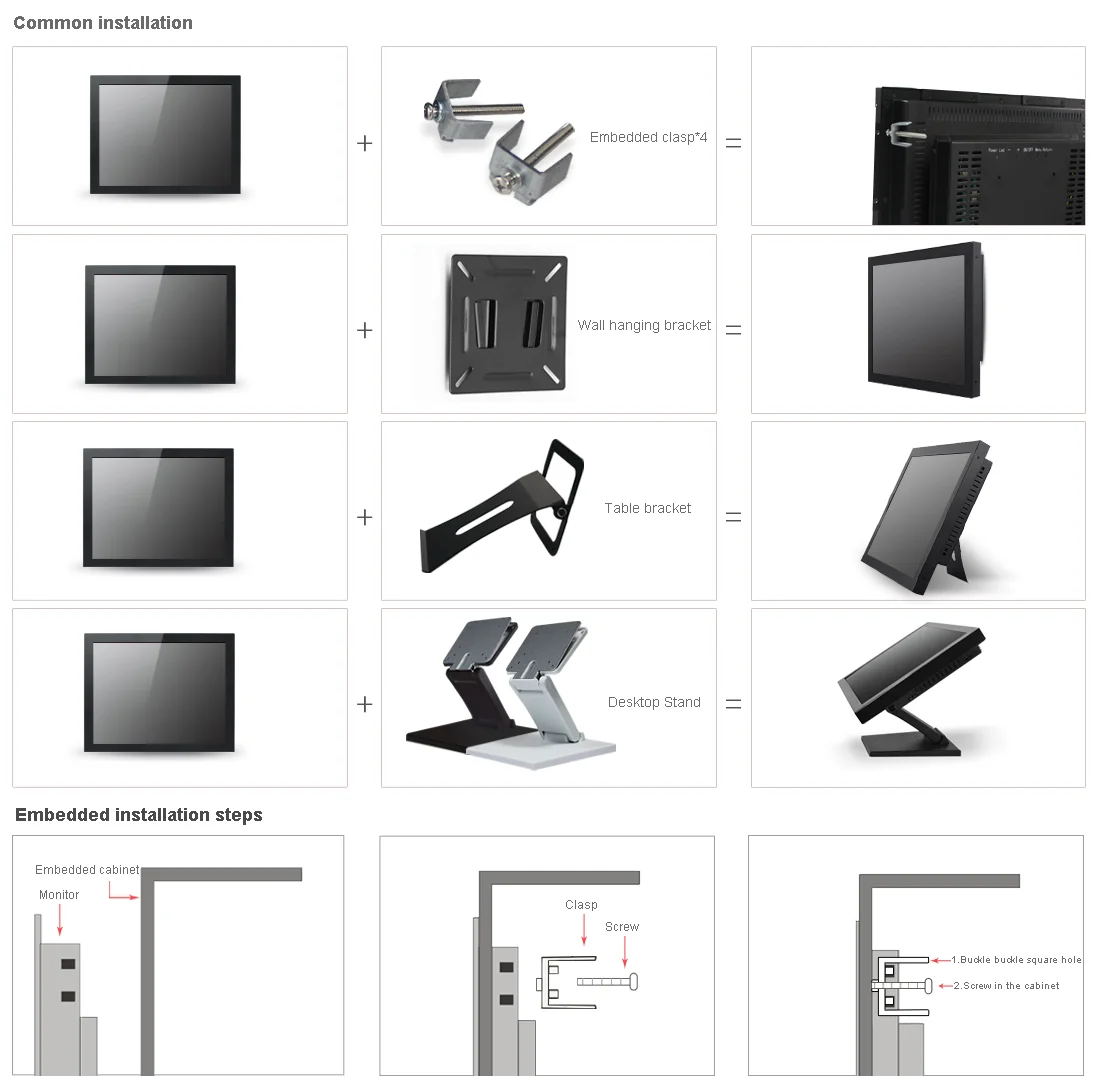

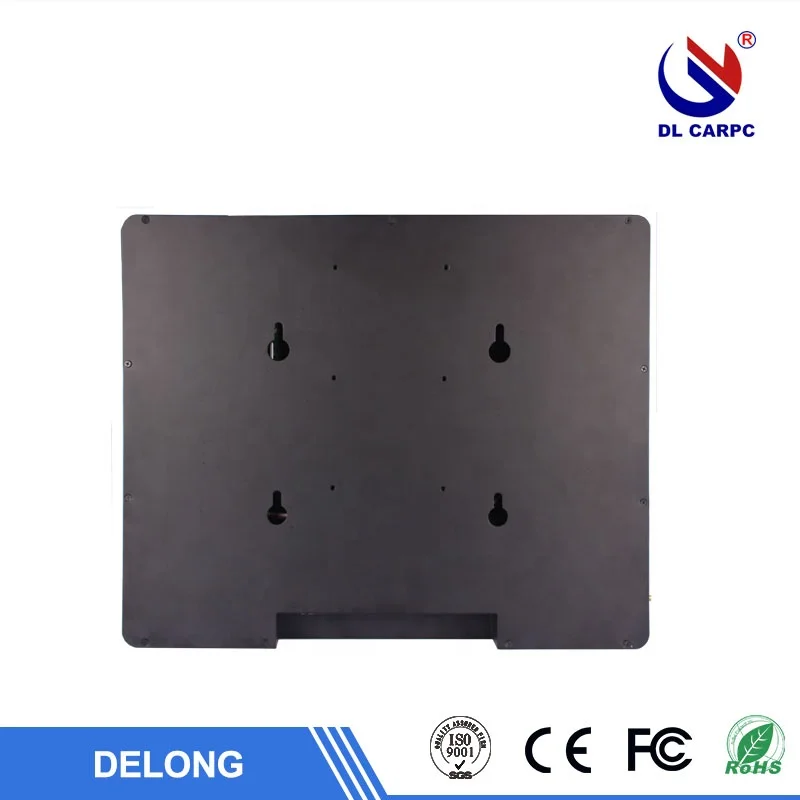

100*100,75*75 VESA stand design.

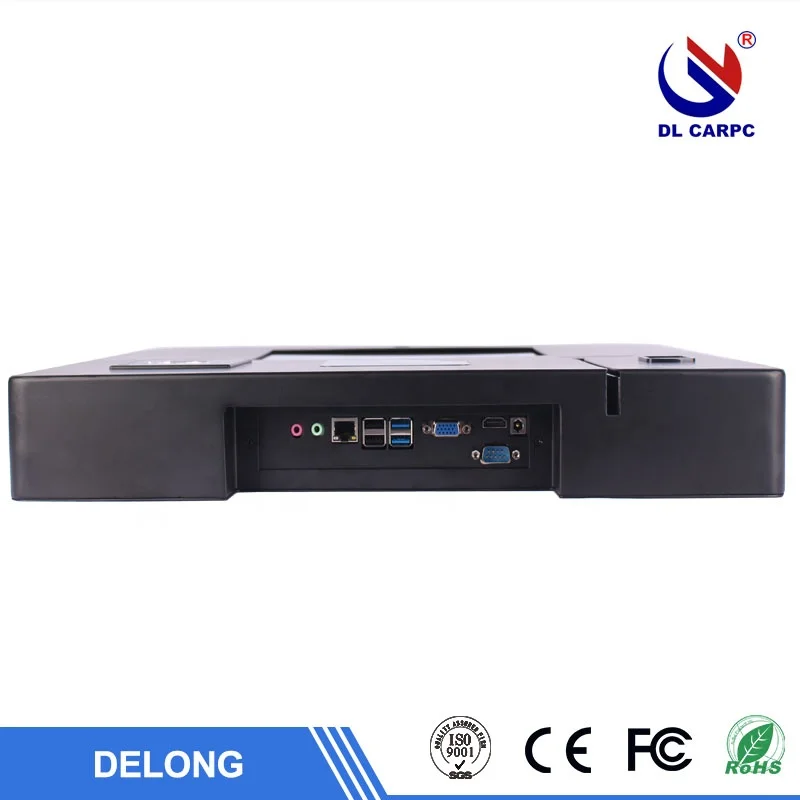

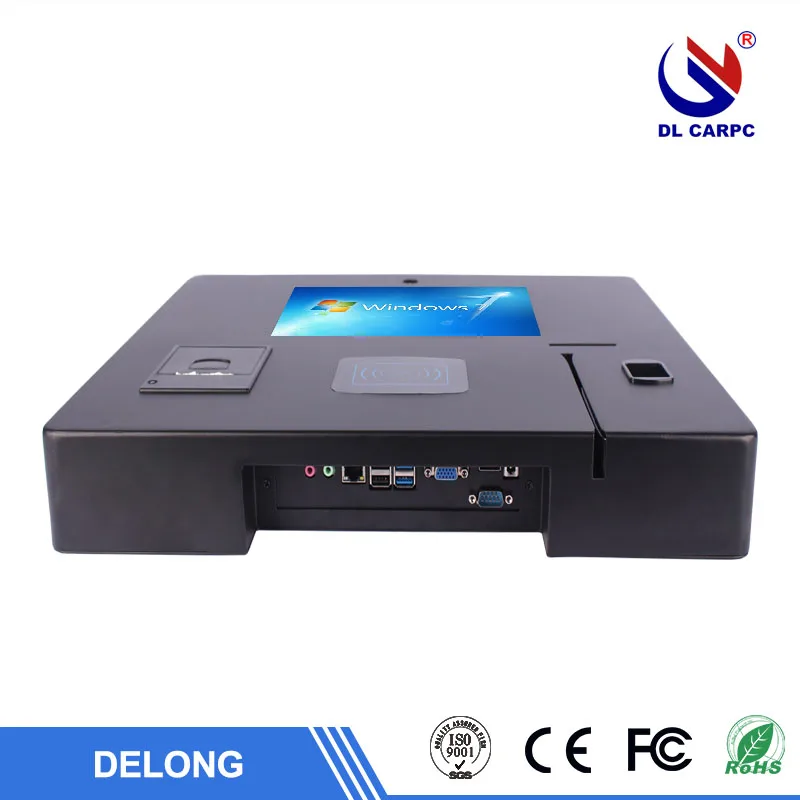

USB2.0/3.0, WIFI, VGA,HD, etc, Different I/O port option for your needs.
Metal shell design with strong quality for industrial use.
Windows, Andorid, Linux system according to your requirement.
Packing Details
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1*industrial panel PC
1*power adapter
1*manual instruction book
More accessories according to your requirement
Package:
1 pc/inner box, 5 pcs/Ctn
Or as your requirement.

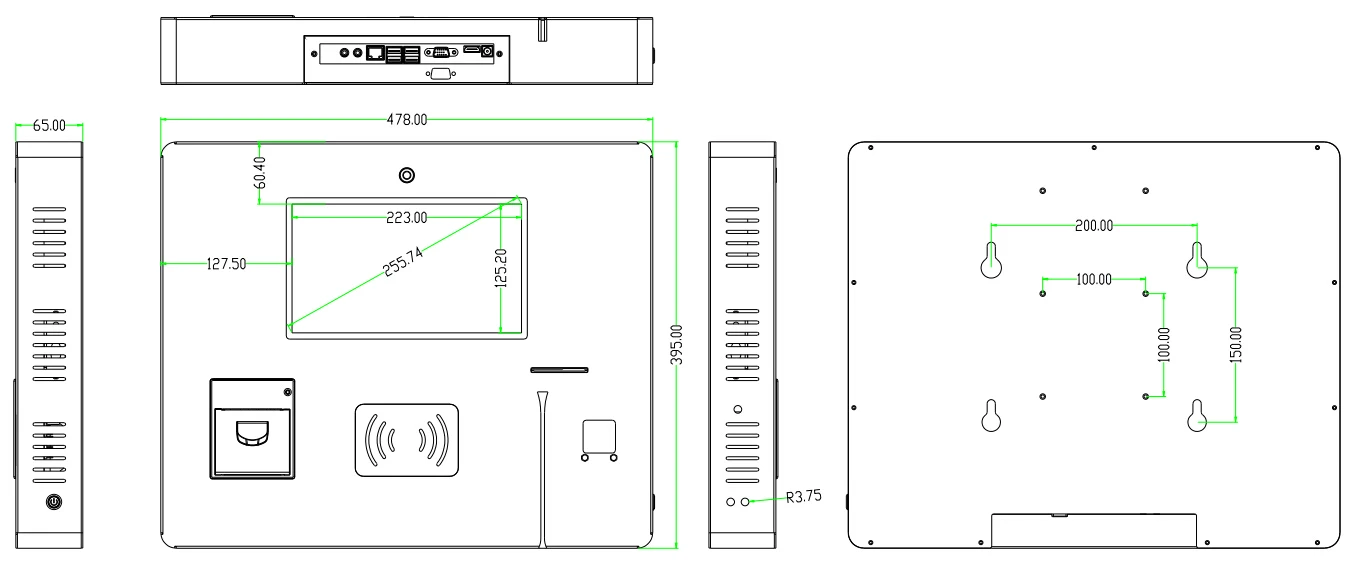

Product size
Application
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Industrial panel PC are widely used in the international world, especially for industrial automation,
industrial control, monitoring, medical equipment, intelligent terminal, etc.
As a 12 years China industrial panel PC factory, there we have different solution for your different
market and needs.
Testing
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Battery power failure test: Camera test:
https://youtu.be/Cq7b_HDdLe0 https://youtu.be/0RasjaQ0pRw
Fingerprint identification test: Printer test:
https://youtu.be/TmMdFXXlPtE https://youtu.be/W4tDXjvzn3k
Company Information
FAQ
FAQ
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Our important expectation that the monitor must to switch on automatically when the power go on state. It will our standard
specification for the future. Is your monitor can do this function?
A: Yes, sir. All our monitors can be built to switch on automatically when the power go on state. Just need to debug procedures.Very easy.
Q: Do you have "KCC" certifation for all your products? (approved Korean government), this mark need to sell in Korea.
A:About this certifation, we don’t have. But we have ROSH and CE funtion.
Q: Can you supply the warranty time for a longer? Such as 2 years.
A: About this question,usually, Our product's warranty is one year.and from you received the goods. If you need 2 years, we can supply, but you
need add some more money.
Q: Could you tell me about you lcd monitor, which interface does it have?
A: About these question, our monitor has VGA/DVI/ S-Vi deo interface and AV is also available, but this function need add 8$.
Q: Can the shutdown/startup delay that is in the pc control the monitor? We want to shutdown/startup both monitor and pc at the same time?
A: The shutdown/startup delay is, power management module controls the pc. We can delay shutdown/startup both monitor and pc at same time,
but monitor’s power must be supplied from pc.
Q: We have not experience importing products from China. Do you know how is the custom procedure?
A: About the custom procedure, pls don't worry.UPS or DHL are a door to door services. And they will deal all thing for you. And you just need
pay tax when you receive the goods.
