High quality fiber ball filter media for water treatment
Product Description
Product Description:
Fiber ball Filter is a spherical filter material made of tying fibers. Compared with traditional steel filter media, fiber ball filter has good elasticity effect, no floating surface, large gap, long work cycle, and small head loss. During the filtration process, the gap in the filter layer gradually decreases along the direction of the flow, which is in line with the porosity distribution of the ideal filter material from the large to the small, resulting in a fast filtration rate, a large capacity of interception, a good filtering effect, and repeated use of renewable energy. , do not have to be replaced, saving time and effort.
Fiberballs Filter are mainly divided into ordinary fiber balls and modified fiber balls.
The modified fiber ball is suitable for the fine filtration of the oily wastewater in the oil field, and is also suitable for the fine filtration of other industrial waste water. The mechanism of the modified fiber ball to remove oil and organic matter is: direct interception, inertial interception and electrochemical adsorption. The quality of water before filtration is ≤15mg/L, and the suspended matter is ≤10mg/L; the filtered water contains oil ≤5mg/L, and the suspended matter is ≤2mg/L.
The surface of the modified fiber ball has been modified to increase the adsorption capacity of oil and organic matter. With the new type of modified fiber ball ligating method, the porosity of the filter layer gradually decreases along the flow direction, forming an ideal filter material. Small pore distribution, better filtration; high filtration speed, up to 25-30m/h. Filters only need to make up about 10% per year, no need to replace. The biggest difference between modified fiber ball and ordinary fiber ball is that it is a kind of high-molecular polymer that is different from textile dyeing, that is, the modified fiber tow is finely made, and it is hydrophilic and oleophobic, and it treats oily sewage. It has the advantages of good effect, high precision, easy flushing, long service life, etc. It is widely used in the sewage treatment of oil fields, petrochemical processing, printing and dyeing industries.
Fiber Ball Filter Specification:
Appearance
White shpere
Specific area
3000m2/m3
Fiber length
15-20mm
Mud-stopping quantity
6kg/m3
Fiber diameter
20-40mm
Voidage
96%
Density
1.38g/cm3
Filtering velocity
20-85m2/h
Filter bulb diameter
25-40mm
Filling density
60-80kg/m3

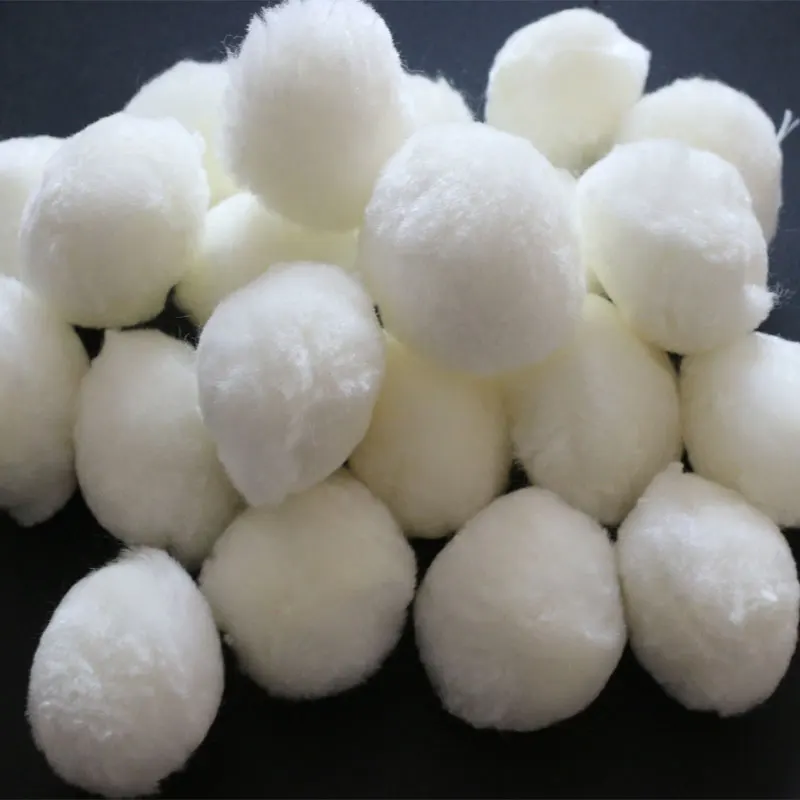

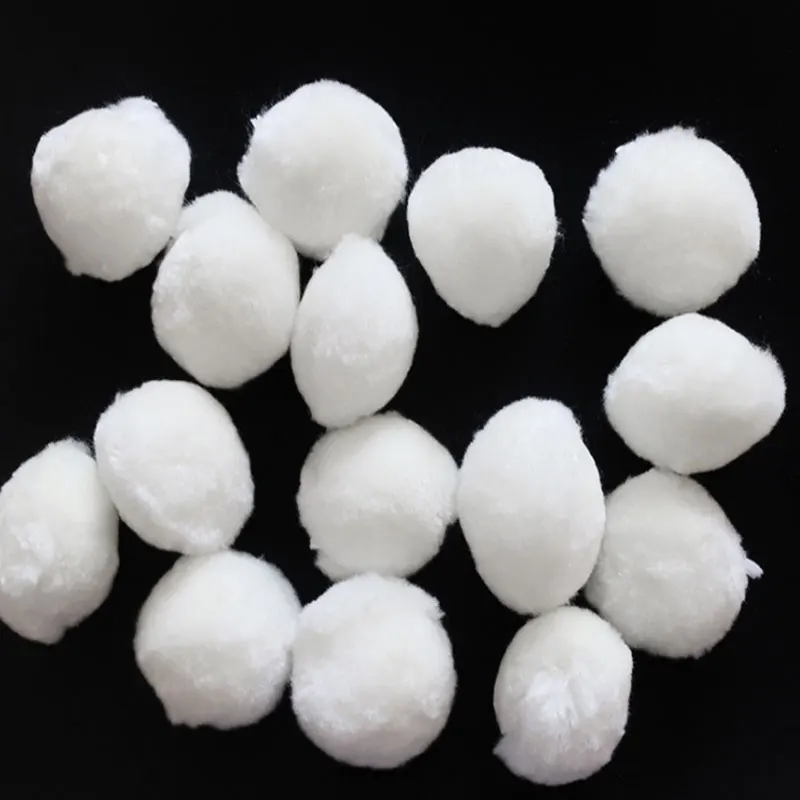

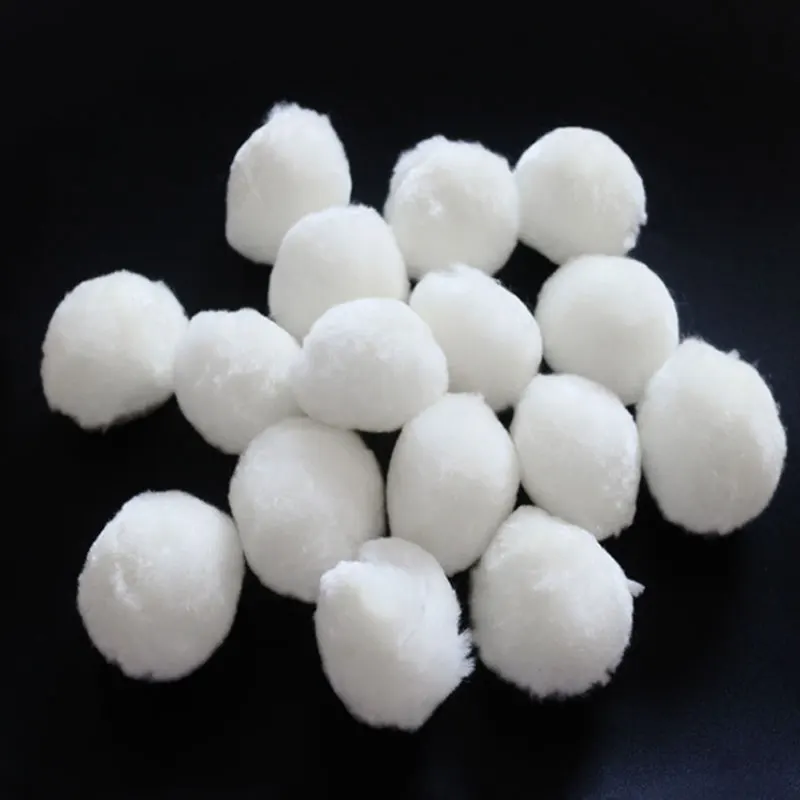

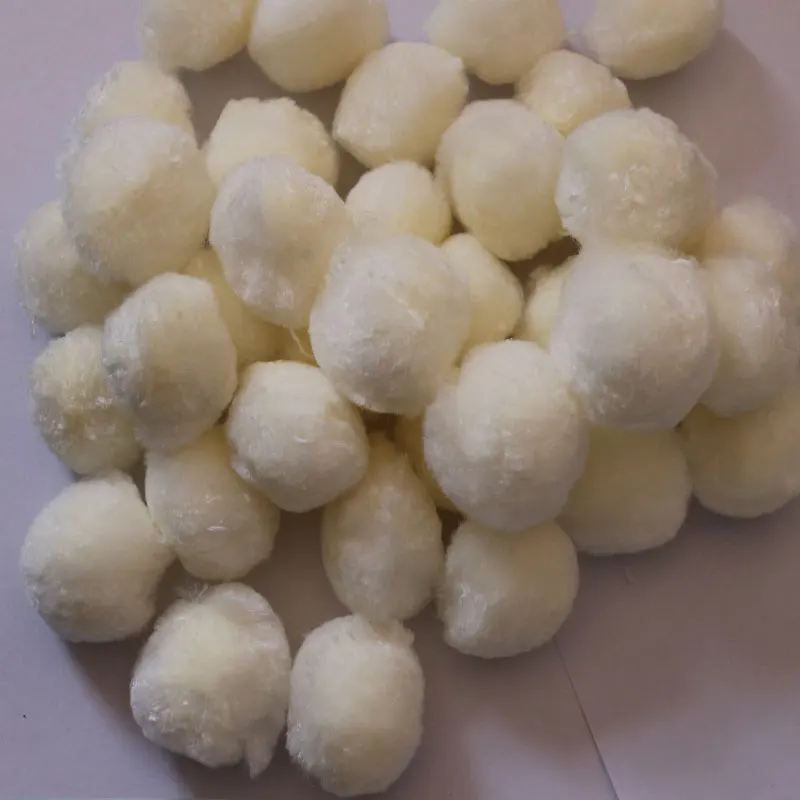

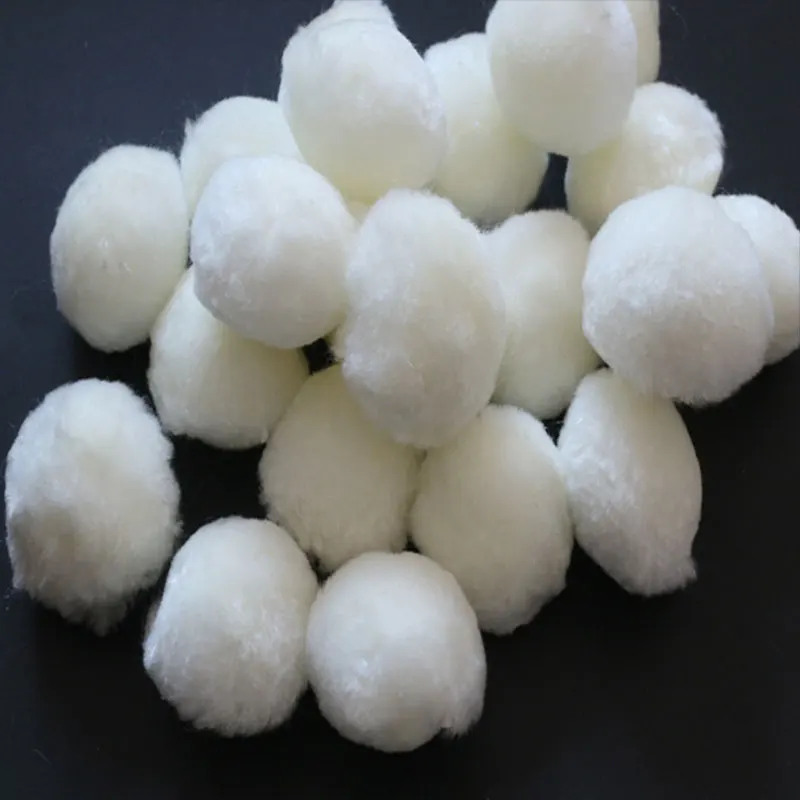

Fiber Ball Filter Pictures:
Packaging & Shipping
Packing: 25kg/bag, 500kg/bag, 1000kg/bag ;Floors, airstrips, playgrounds, and wear-resistant floors for factories;
Delivery: 5-7days .
