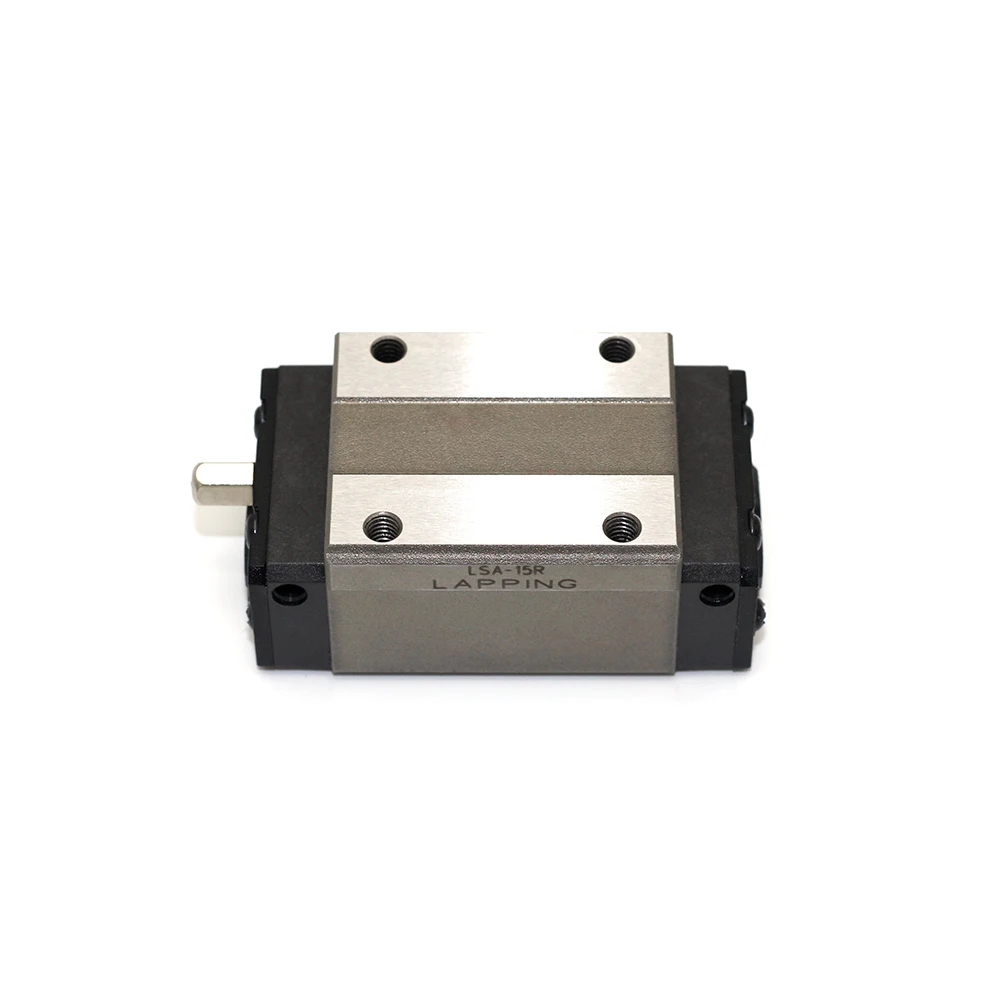

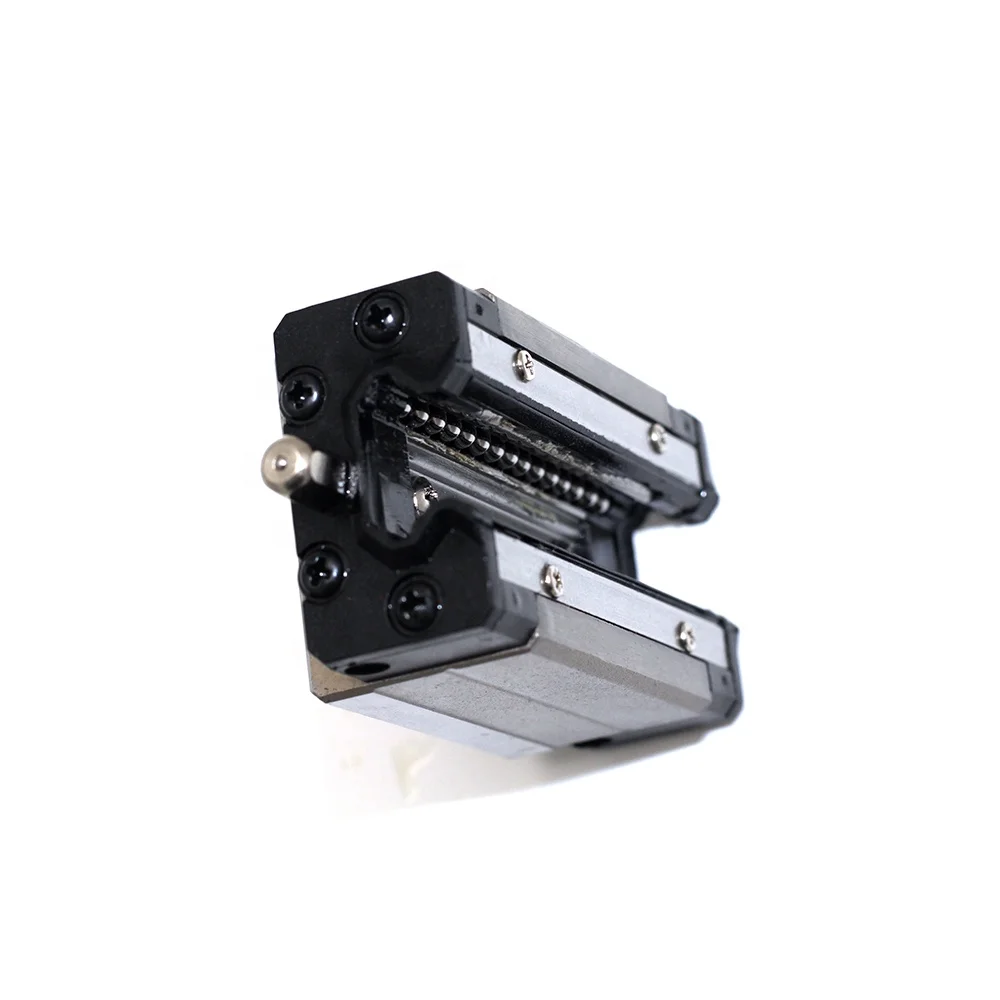

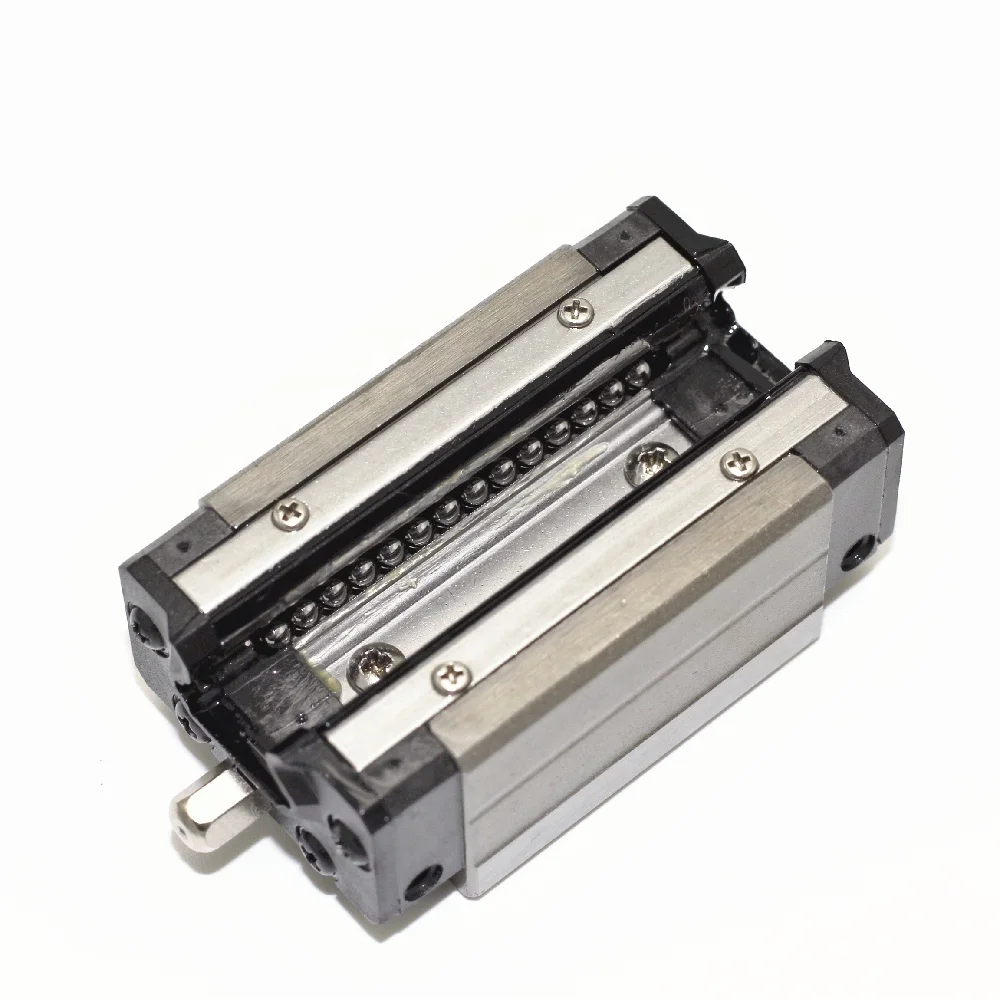

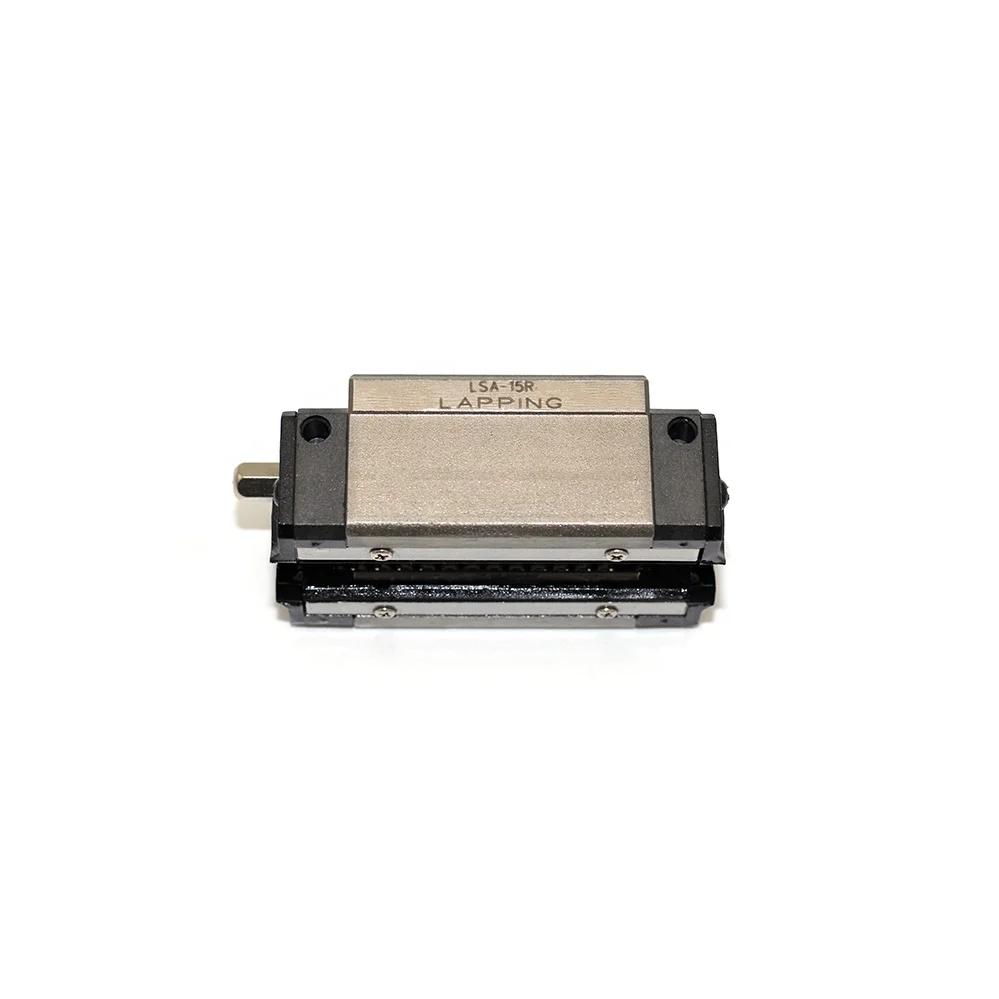

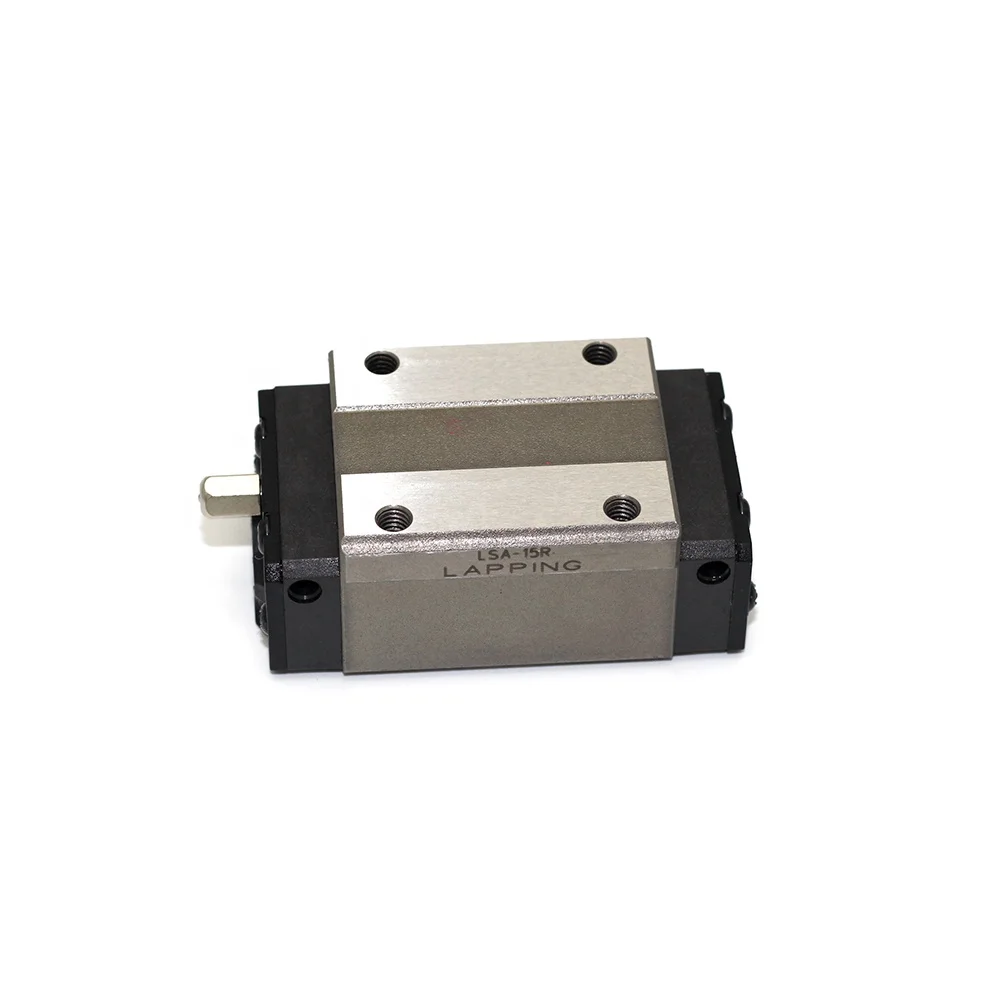

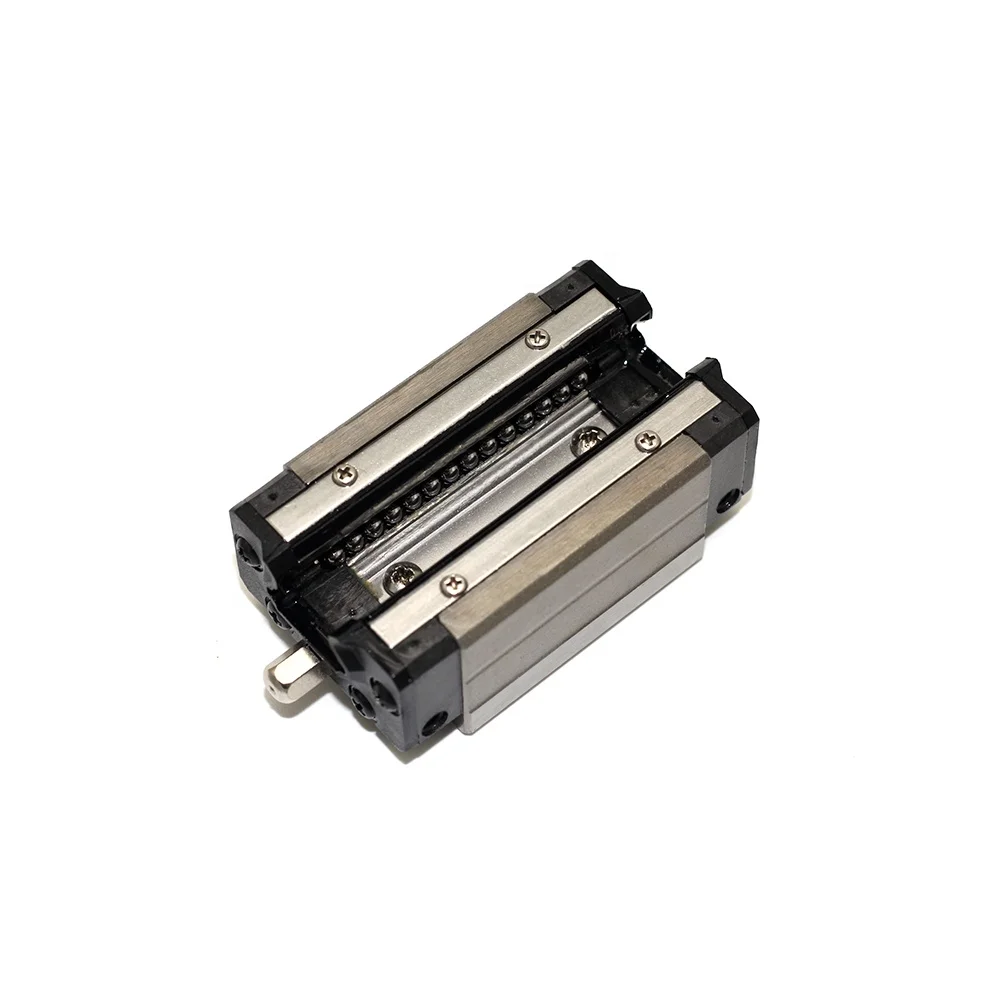

Quality Guarantee 15mm CNC Linear Slide Rail For Stepper Motor
Product Description
Name
Slider guide
Type
Automatic equipment high speed transmission device
Precision grade
N, H, P
Combination
At least 100mm linear rail + 1 piece slide block
Material
Heat treated steel
Guide Size
Width: fixed, between 15mm
Length: up to 4 meters long, longer stitching
Colour
Silver or black
Shape
Rectangle
Certification
ISO9001
Effect
1. Parallelism and high precision
2. The slider and the guide rail are interchangeable, saving cost
3. High rigidity in all directions
4. Reduce friction
Application area
Applied to sliding friction guides
Sample
No
Delivery period
7 days
Packing
1.PE bag, shockproof bubble bag, export standard carton, wooden box
2. According to customer's special requirements
Model
Dimensions
Slider size
Height
H
Width
W
Length
L
W2
H2
B
C
S*l
L1
T
N
G
K
d1
Nozzle specification
LSA 15 R
28
34
56.3
9.5
4.7
26
26
M4*5
39.3
7.2
8.3
7
3.2
3.3
G-M4
Product Details
Difference between models
1. Type A has a longer threaded hole than Type B; Type B can be assembled not only from the top of the slider, but also from the bottom of the slider;
2. Type B is compared with C type, the hole of type C is a through hole, and the hole of type B is a threaded hole;
3. The R type has a smaller width than the A/B/C type;
4. Compared with A/B/C/R type, the LA/LB/LC/LR type has the same section size, the length of the slider is increased, and the number of load steel balls is increased to improve the overall load capacity.
Specifications
Different sizes and specifications
Product Features
Advantage
1. Adapt to various work too assembled
2. Designed with L-shaped or extended type
3. Self-aligning ability
4. The slider and the guide rail are interchangeable
5. High rigidity in all directions
6. The product is easy to install, easy to operate and fast to transport.
7. High-precision machining: from material optimization to fully automated equipment
8. Quality Assurance: The most efficient laser quality inspection instrument and self-developed slider simulation operation instrument for accuracy inspection
9. Technological innovation: The product has applied for six invention patents and used 27 patents.
Product Applications
Use caution
1. Prevent rust: Keep your hands dry and coated with high quality mineral oil during use. Pay special attention to rust prevention during the rainy season and summer.
2. The installation tool should be suitable: avoid using items such as cloth or short fibers.
