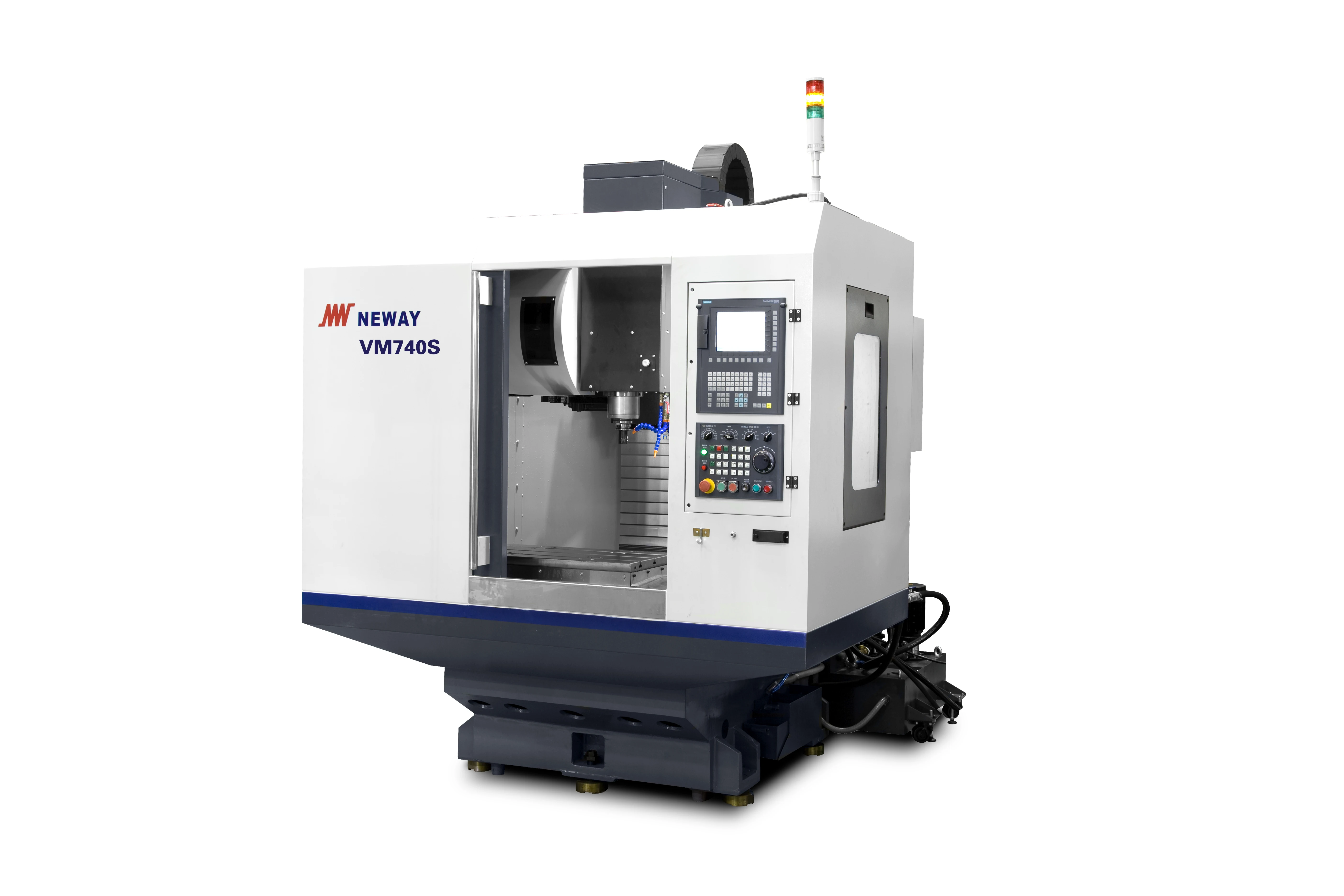

Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center
Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center
Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center
Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center
Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center
Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center
Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center

Neway CNC Vertical Milling Machining Center VM 740H/S VMC Machining Center

Share on (60859599216):


Price:RUB 78.58

Quantity:


Product Overview

Description

Product Description

Product Application

Based on high eficency and accuracy, Neway CNC Vertical Maching Center  is suitable for manufacturing i.e. engine conneting rod, rear-axle housing, orbiting scroll, forging steel valve, PC's cover, emitter housing etc., mainly in auto parts, engine, valve industries.

SPECIFICATIONS FOR VM740H/S

Worktable
Worktable Size
mm
750x420
Max. Worktable Loading
kg
350

Axis Travel
Axis travel X/Y/Z
mm
650/420/500
Spindle terminal to worktable
mm
120-620
Spindle center to column guideway
mm
470
Rapid travel
Axis rapid travel X/Y/Z
m/min
40/40/30


Spindle
Spindle motor power
kW
5.5/7.5[7.5/11]
Max. spindle speed
rpm
10000(belt)
[12000(direct conection)]
Spindle taper
7:24 taper NO.40
Spindle temperture control
Oil cooler


Tool magazine
NO. of tools
PC
20
Tool shank
MAS403 BT40
Max. tool dia./length/weight
mm/mm/kg
D80/300/8
Tool change time
s
1.7

Machining capacity
Drilling (normalized mild steel)
mm
Dia.30
Tapping (normalized mild steel)
mm
M16
Milling (normalized mild steel)
cm3/min
150

Others
Auto chip conveyer
[rear/sideway]
Auto lubricaion system
Bijur
Electrical cabinet air conditioner
Optional

Accuracy
Positioning accuracy(X/Y/Z)
mm
0.008
Repeatability accuracy(X/Y/Z)
mm
0.005
System
CNC controller
Neway FANUC [SIMENS, MITSUBISHI]


Others
General power
KVA
20
Air flow/pressure
(L/min)/bar
280/6-8
Weight
kg
4000
Machine dimension(LxWxH)
mm
2020x2550x2700

Main Features

1) Large span Y column make it more stable during high-speed cutting.

2) High speed direct drive spindle up to 12000rpm/min finish more accurately.

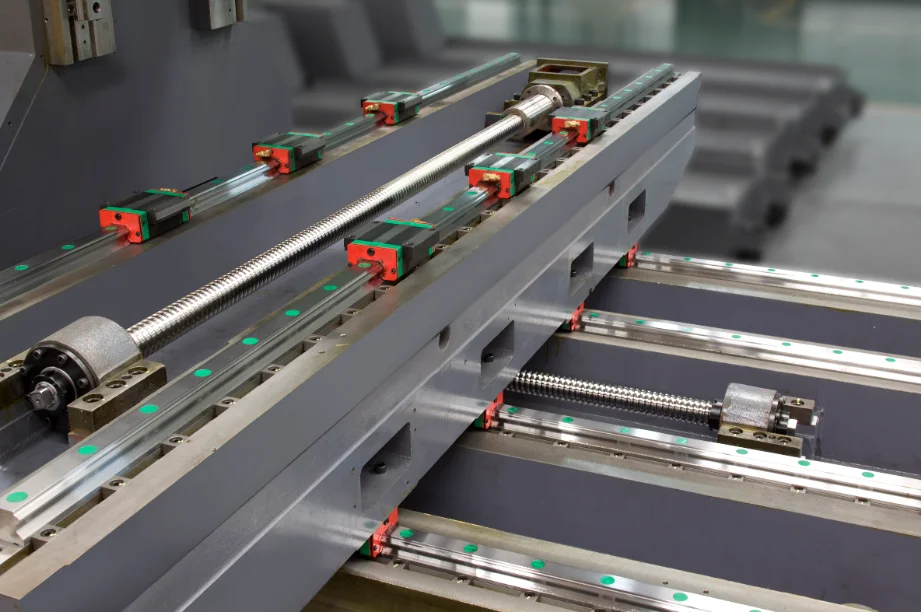

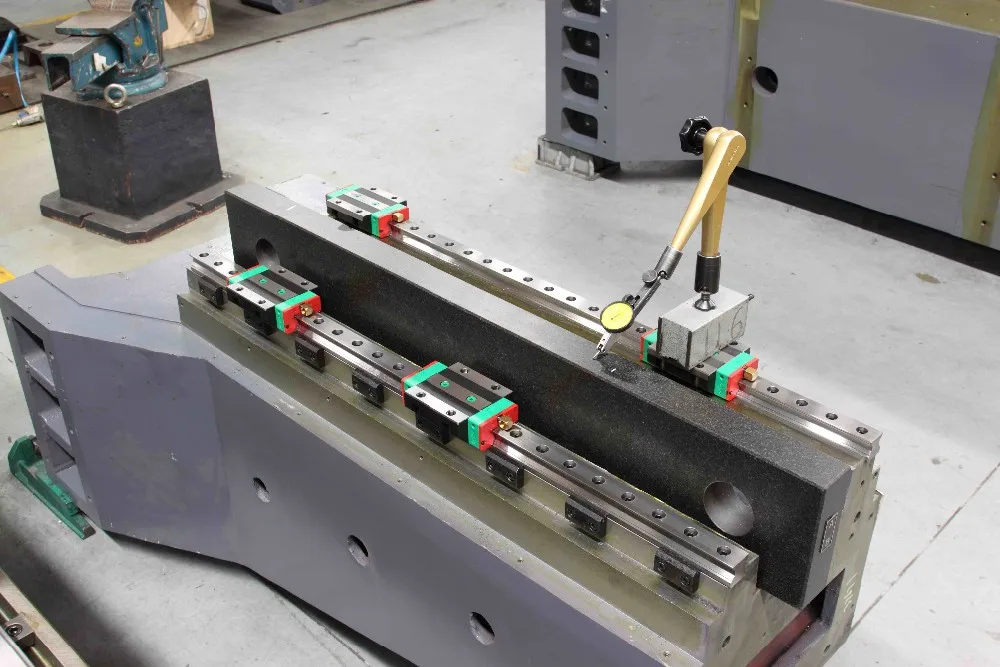

3) Double-nut ball screw and linear guideway make it moving more accurately.

4) Full test to make sure all products meet high standards.

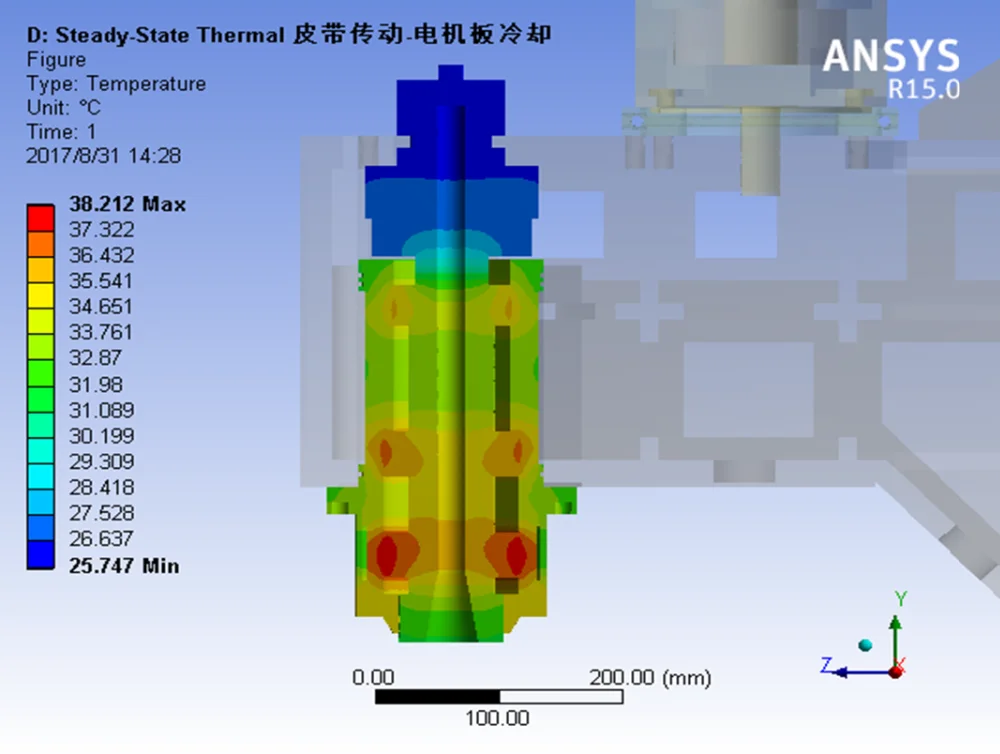

5) Using Finite Element Anaysis, Dynamic Analysis, Thermal Analysis, Vibration research etc.

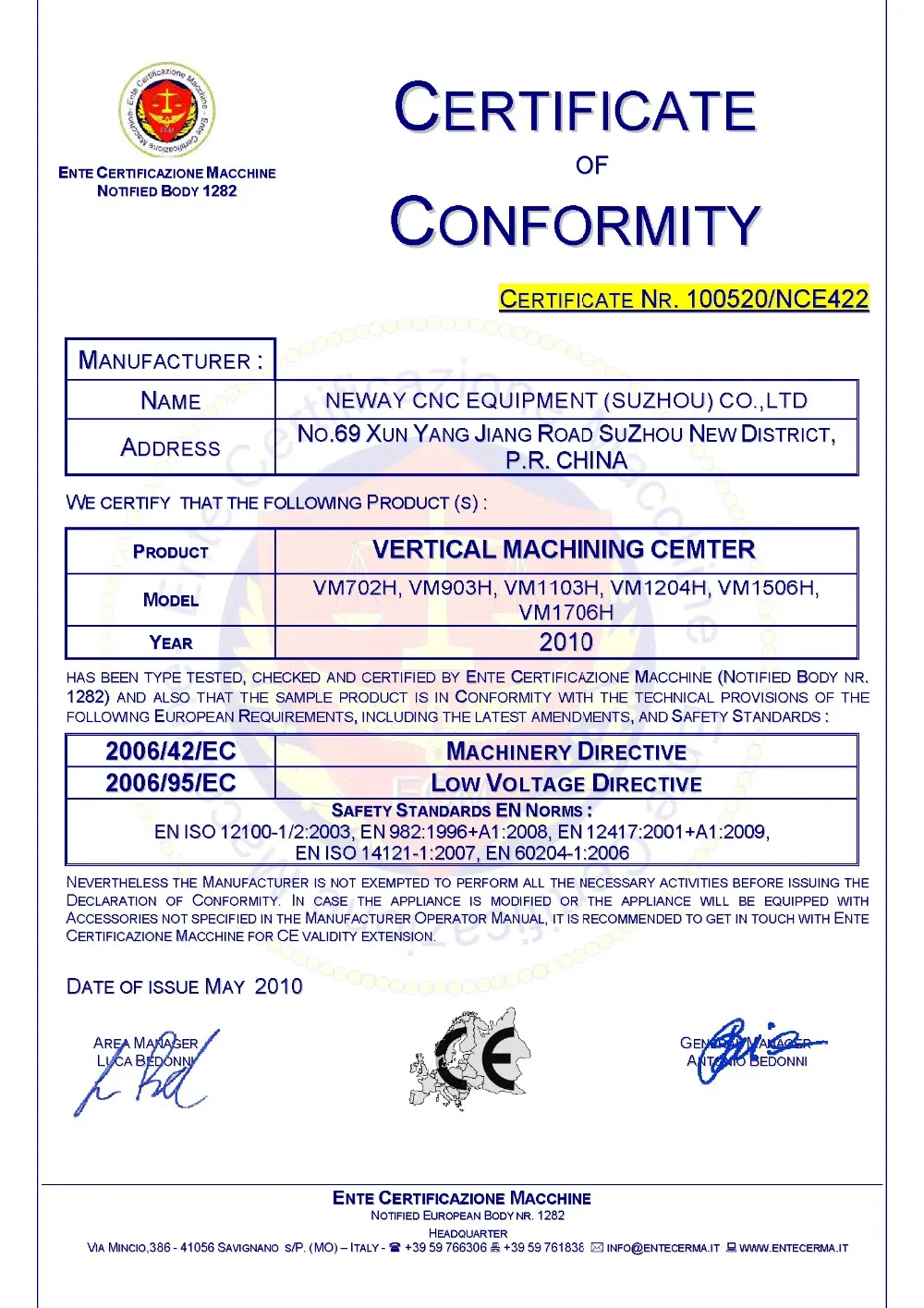

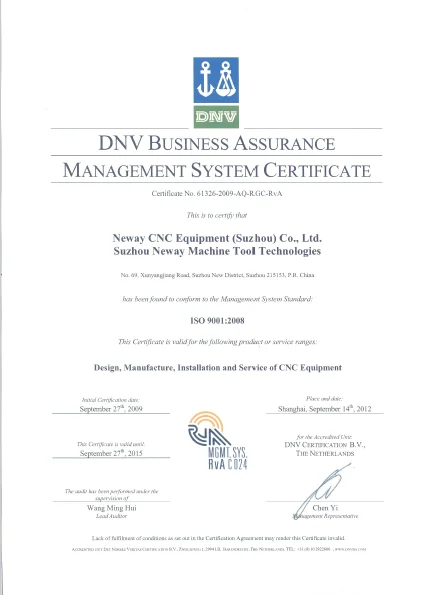

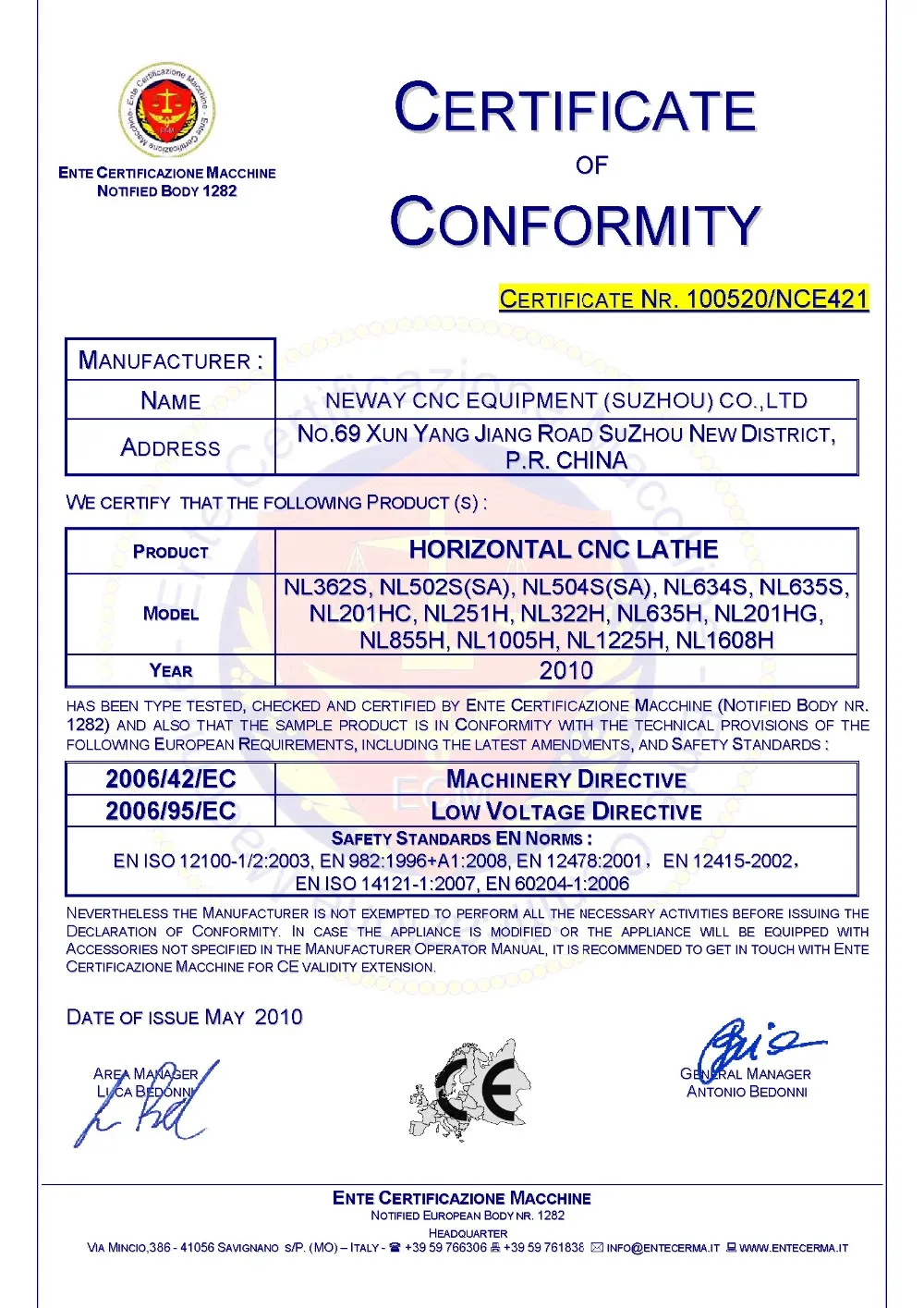

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
