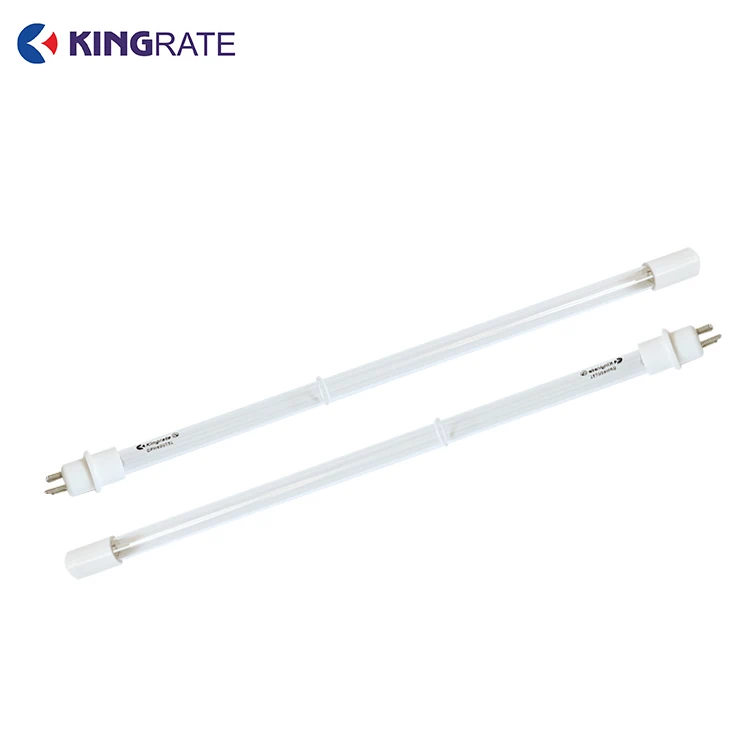

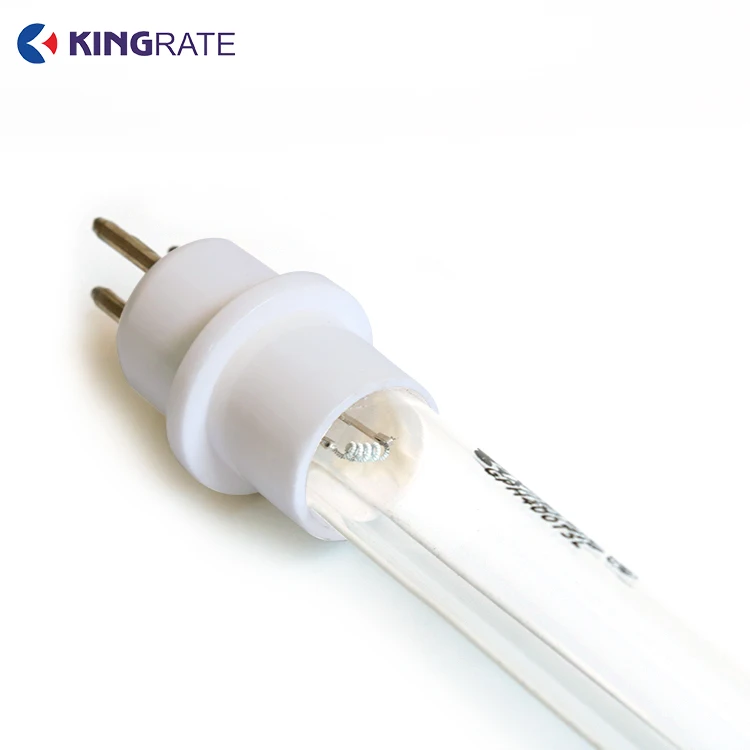

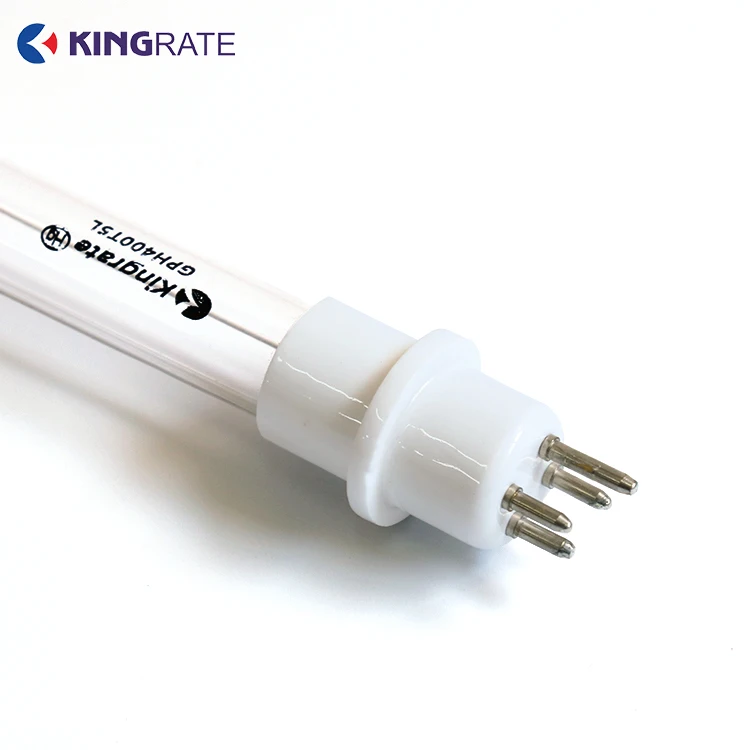

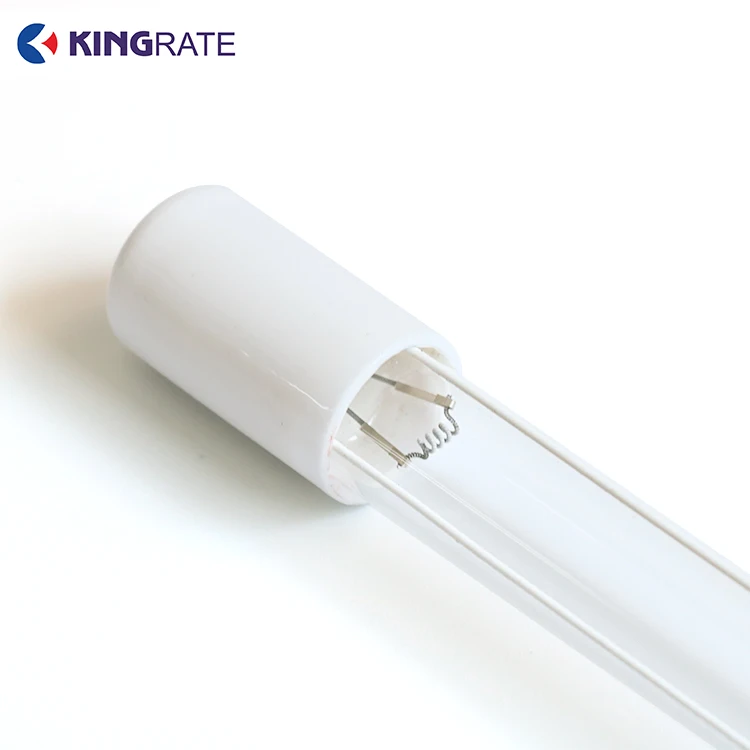

185nm 254nm Ultraviolet Bulb UVC Germicidal Lamp For Air Purification System

Product Overview

Description

Speciality

  1,The high purity quartz glass tube is adopted and treated with special technology,

   which further reduces the impurity content and makes the efficiency of lamp tube more stable.

   2,Advance technology enables our lamp with high initial uv radiation and low uv light decay.

   3,Ozone type and non-ozone type are available.

   4,High output UV lamp is a better choice for reducing system size and maintaining uv output.

   5,Corresponding quartz sleeve and ballast are available.

Main Application

• Aquarium disinfection


• Water treatment


• Air cleaning and disinfection


• Air conditioning pipe disinfection


• Purifier

Type	Tube Diameter	length	Power	Current	Voltage at 50/60Hz	Voltage at High Freq	UV Output at 1M		Standard Life	Long Life
	MM	MM	W	MA	V	V	um/cm²	W	H	H
T5≈ Tube Diameter 15mm
GPH118T5L	15	118	6	425	25	21	13	1.4	10000	13000
GPH150T5L	15	150	8	425	27	22	20	1.7	10000	13000
GPH212T5L	15	212	10	425	30	25	26	2.7	10000	13000
GPH287T5L	15	287	14	425	41	34	40	4	10000	13000
GPH303T5L	15	303	15	425	43	35	43	4.3	10000	13000
GPH357T5L	15	357	17	425	51	42	57	5.7	10000	13000
GPH436T5L	15	436	21	425	62	51	72	7.3	10000	13000
GPH550T5L	15	550	25	425	69	60	85	8.5	10000	13000
GPH793T5L	15	793	37	425	112	92	120	13	10000	13000
GPH843T5L	15	843	40	425	120	98	135	15	10000	13000
GPH1148T5L	15	1148	55	425	165	135	170	20	10000	13000
GPH1554T5L	15	1554	78	425	220	179	220	30	10000	13000
Remark:The product parameters and data are provided by Kingrate and for reference only.

For more product information, please click. Contact us

For more product, please click. Contact us



Q1:Can I have a sample first for the UV lamps?

A:Yes, we welcome sample order to test and check quality.

Q2:What's your lead time?

A:Samples would be need 5-7 days; mass production would be need 1-4 weeks according to the order quantities.

Q3: What is your shipping method and how long does it take to arrive?

A:We usually ship via DHL, UPS, FedEx or TNT and it usually takes 3-5 days to arrive. Both Air shipment and sea shipment are also optional.

Q4:Do you offer guarantee for the products?

A:Yes, we offer 1 years warranty to our most of our UV lamp, and half of one year warranty to the submersible UV lamp.

Q5:Can I use my own design package and logo on the products ?

A:Yes, We can accept OEM as per customers’requirements.
