SSUCT210 Stainless Steel Take Up Pillow Block Bearing With 304 Housing and 420 Bearing Insert Set Screw Locking
- Category: >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (60859680054):
Product Overview
Description
SSUCT210 Stainless Steel Take-Up Units
304 Stainless Steel Housing, 420 Stainless Steel Bearing Insert, Set Screw Locking

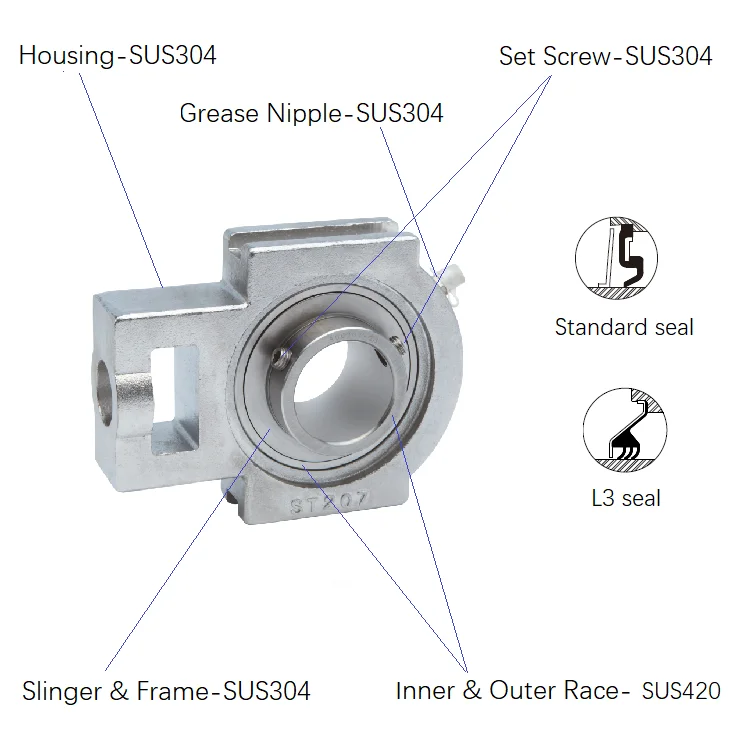

Product Features
- Housing: SUS304
- Bearing race and ball: SUS420
- Bearing retainer: SUS304
- Standard Seal: rubber seals protected by stainless steel slinger
- Slinger, Grease Nipple, Set Screw: SUS304
- Grease: Chevron SRI-2
- Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )

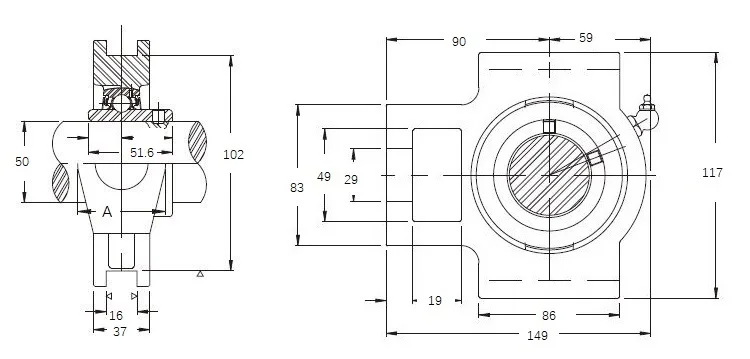

Specifications
d - bore | 50 mm |
| N1 | 19 mm |
| L | 149 mm |
| H | 117 mm |
| H1 | 102 mm |
| B | 51.6 mm |
| L1 | 90 mm |
| L3 | 86 mm |
| Bearing No | SUC210 |
| Housing No | ST210 |
| Weight | 2.47 kg |

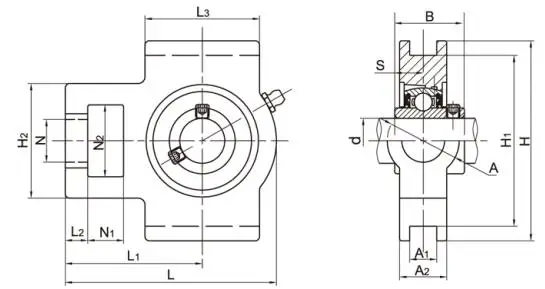

SSUCT200 Series Stainless Steel Take-Up Units
| Unit No. | Shaft | Dimensions (mm) | Weight | ||||||||||||||
| d | N1 | L2 | H2 | N2 | N | L3 | A1 | H1 | H | L | A | A2 | L1 | B | s | kg | |
| SSUCT201 | 12 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31.0 | 12.7 | 0.77 |
| SSUCT202 | 15 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31.0 | 12.7 | 0.76 |
| SSUCT203 | 17 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31.0 | 12.7 | 0.75 |
| SSUCT204 | 20 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12.7 | 0.73 |
| SSUCT205 | 25 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 97 | 32 | 24 | 62 | 34.1 | 14.3 | 0.80 |
| SSUCT206 | 30 | 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 | 102 | 113 | 37 | 28 | 70 | 38.1 | 15.9 | 1.22 |
| SSUCT207 | 35 | 16 | 13 | 64 | 37 | 22 | 64 | 12 | 89 | 102 | 129 | 37 | 30 | 78 | 42.9 | 17.5 | 1.57 |
| SSUCT208 | 40 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 114 | 144 | 49 | 33 | 88 | 49.2 | 19 | 2.31 |
| SSUCT209 | 45 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 117 | 144 | 49 | 35 | 87 | 49.2 | 19 | 2.34 |
| SSUCT210 | 50 | 19 | 16 | 83 | 49 | 29 | 86 | 16 | 102 | 117 | 149 | 49 | 37 | 90 | 51.6 | 19 | 2.47 |
| SSUCT211 | 55 | 25 | 19 | 102 | 64 | 35 | 95 | 22 | 130 | 146 | 171 | 64 | 38 | 106 | 55.6 | 22.2 | 3.74 |
| SSUCT212 | 60 | 32 | 19 | 102 | 64 | 35 | 102 | 22 | 130 | 146 | 194 | 64 | 42 | 119 | 65.1 | 25.4 | 4.58 |
