Ball Screw Linear Motion Actuator aluminum linear guide rail For Engraving with 23 nema stepper motor
- Category: >>>
- Supplier: Beijing SDSW Technology Co. Ltd.
Share on (60860654496):
Product Overview
Description

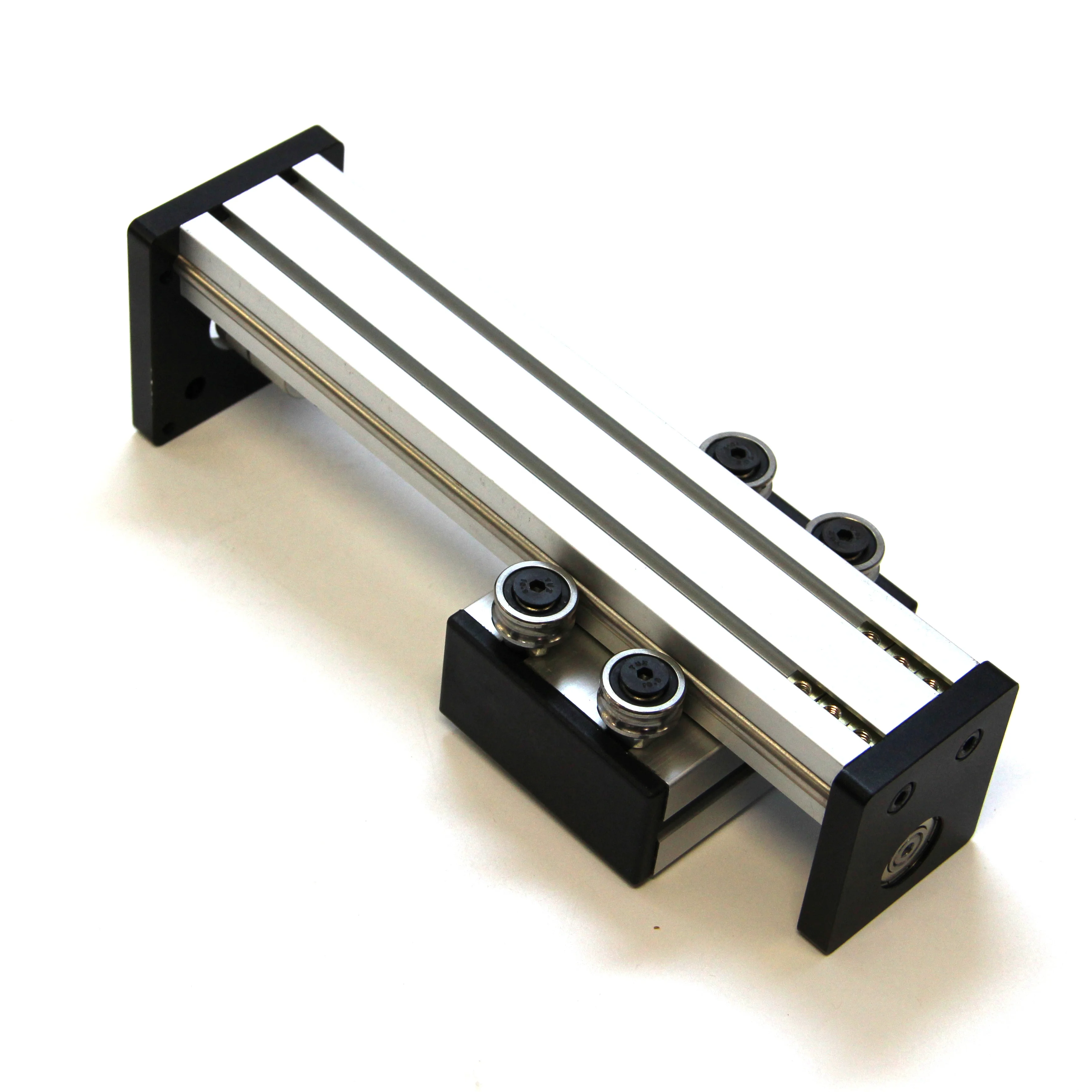

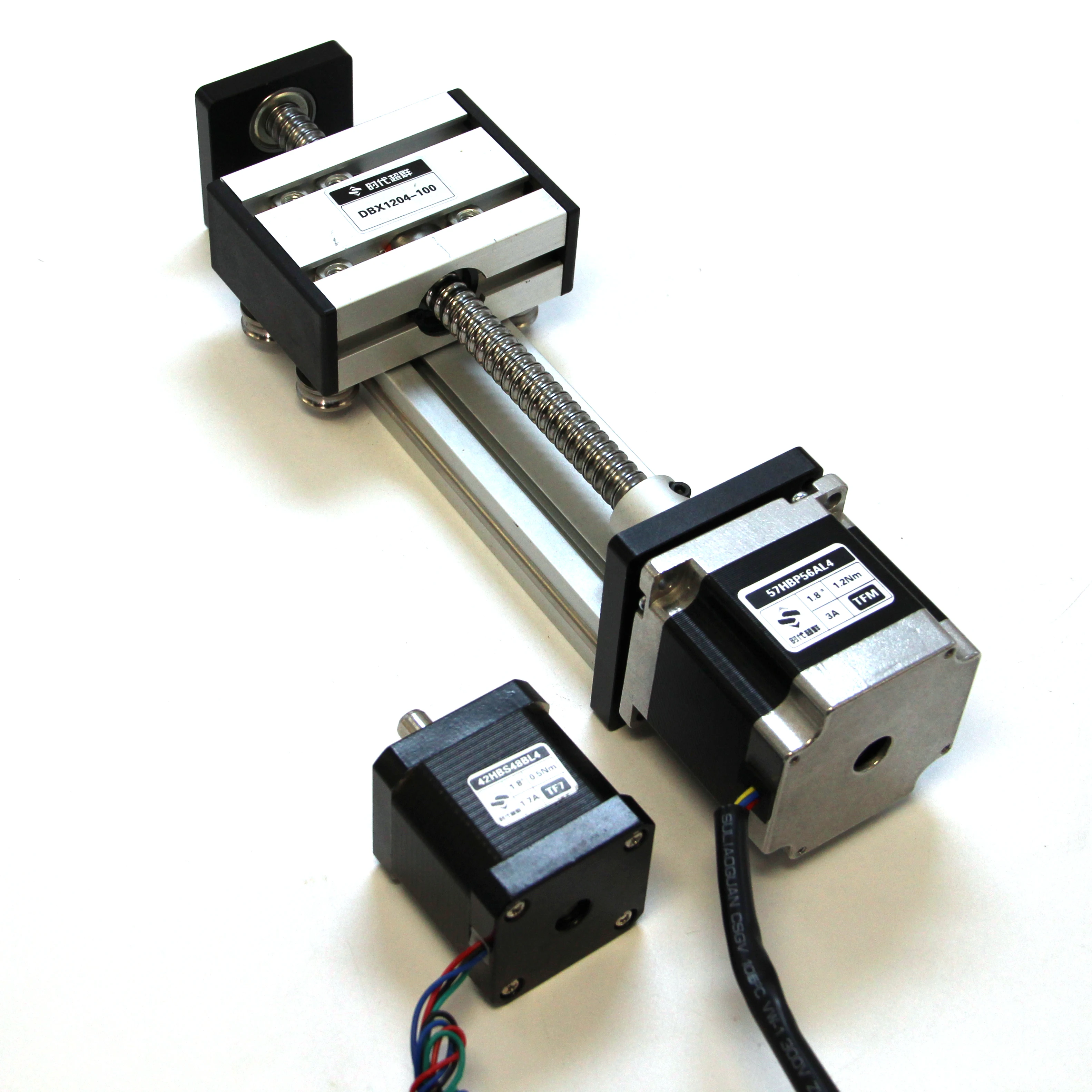

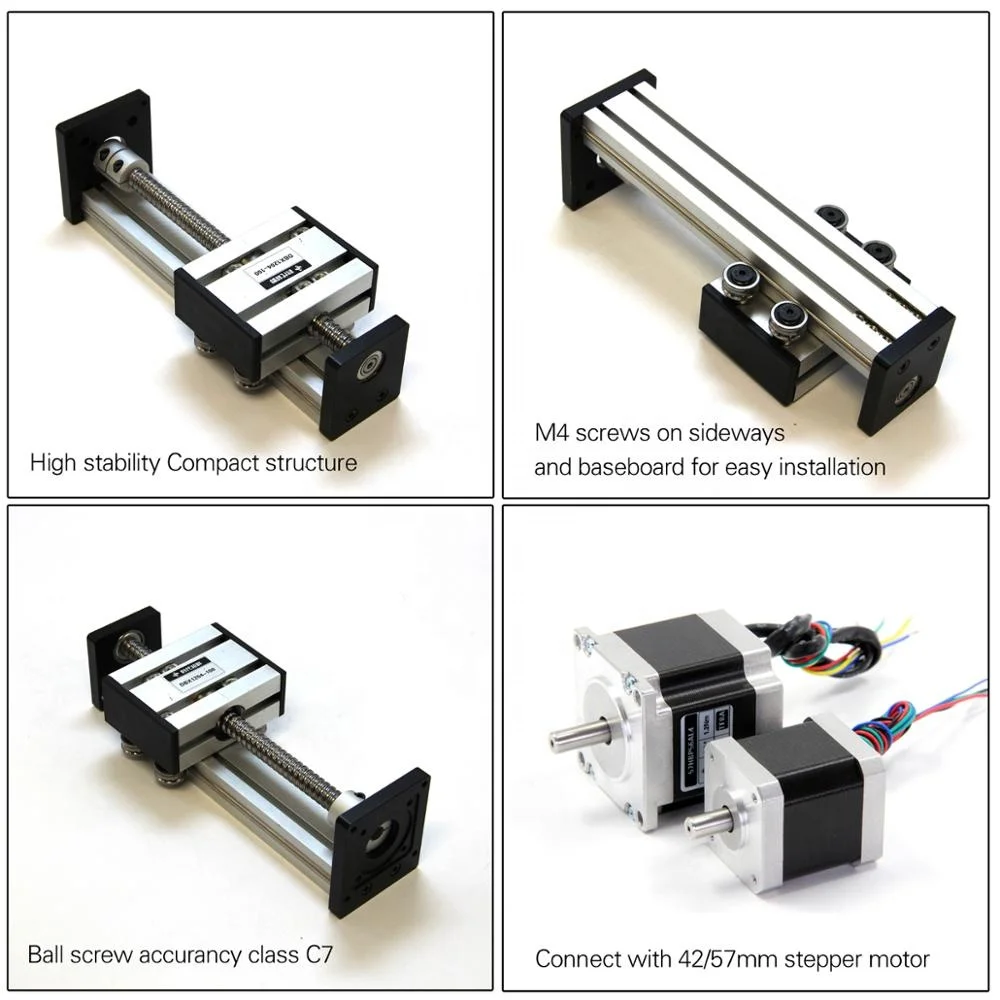

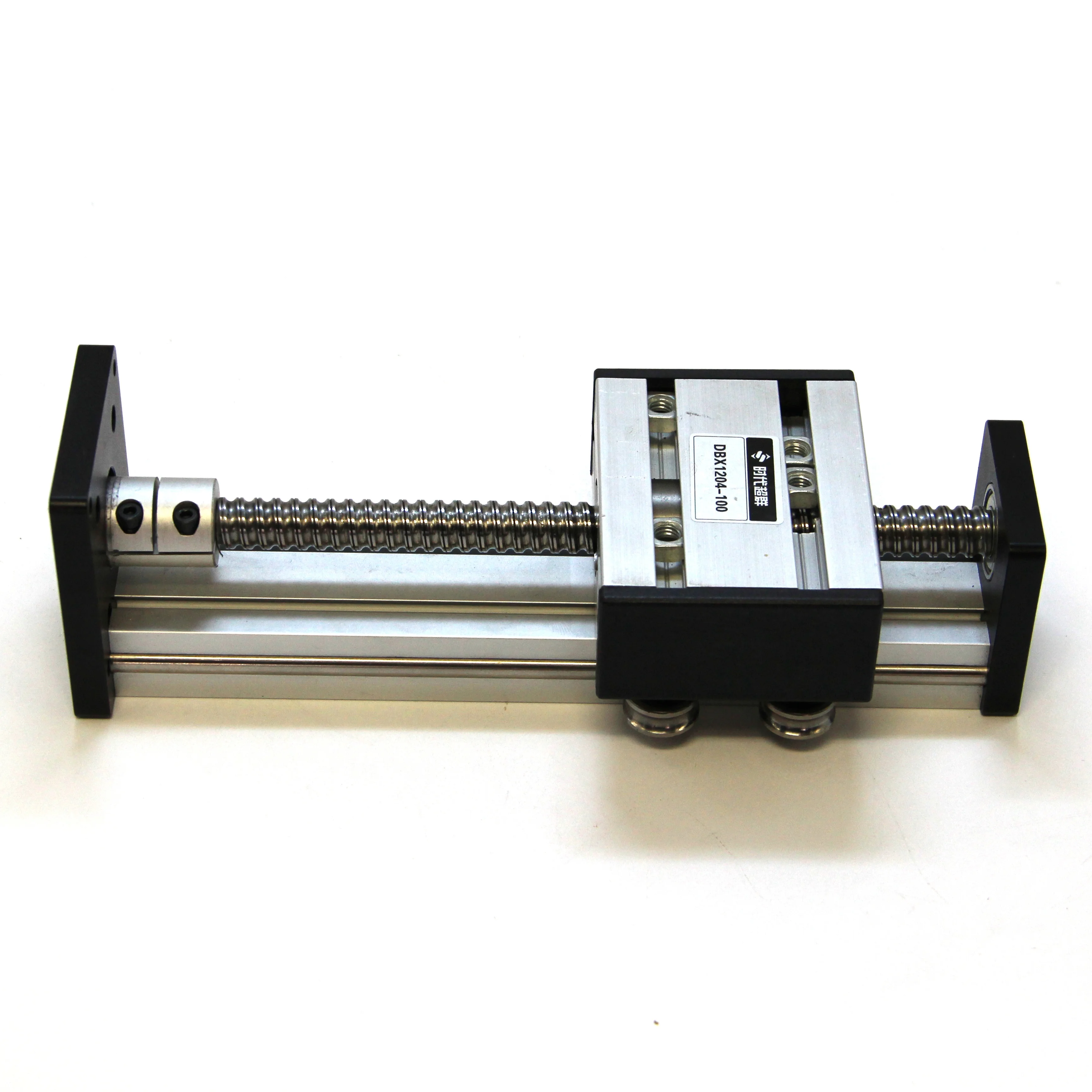

Ball Screw Linear Motion Actuator aluminum linear guide rail For Engraving with 23 nema stepper motor
Specifications

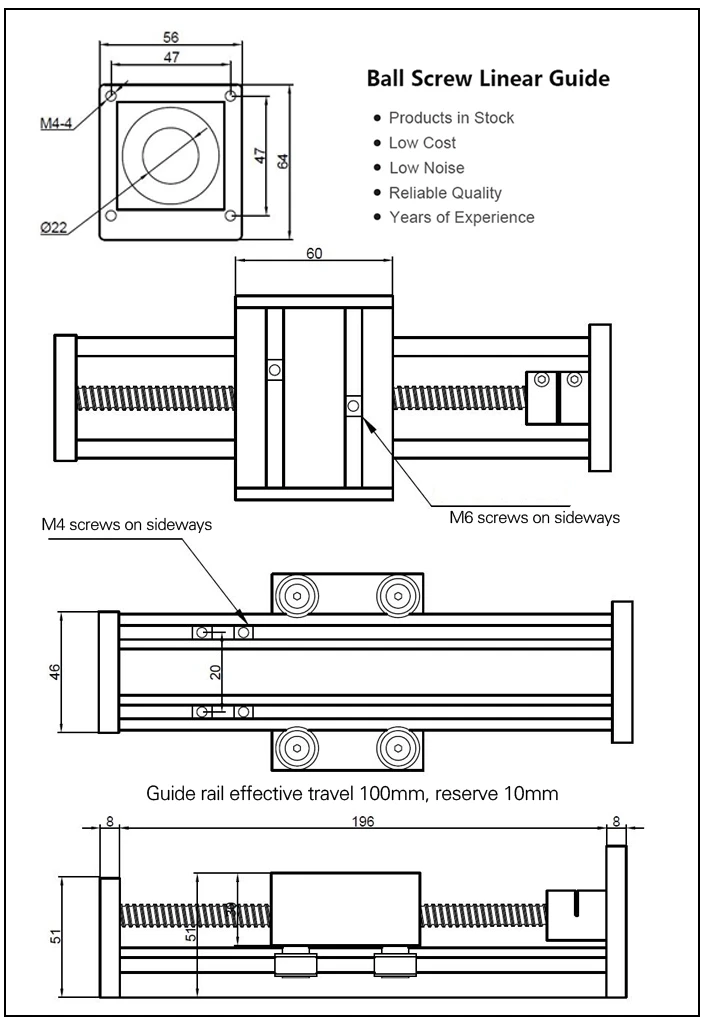

DBX1204J-100 linear guide is semi-sealer structure, body width 42mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.
Application Area:
Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc. Such as: PCB board detection, optical disc stacking device, parts pick and place.
Model | DBX Ball screw | Screw speed | 0-150mm/s |
| Profile width | 42mm | The vertical load (kg) | 8KG |
| Specifications of ball screw | 1204,1605,1610 | Horizontal load (kg) | 20KG |
| PositionaI accuracy | 0.03mm | Effective travel range | 0-1000mm |
