12864 FSTN LCD Display Customized COG LCD Panel Graphic display Small Size 128x64 dot matrix LCD screen
- Category: >>>
- Supplier: Shenzhen Genyu Optical Co. Ltd.
Share on (60860899296):
Product Overview
Description
Product Description

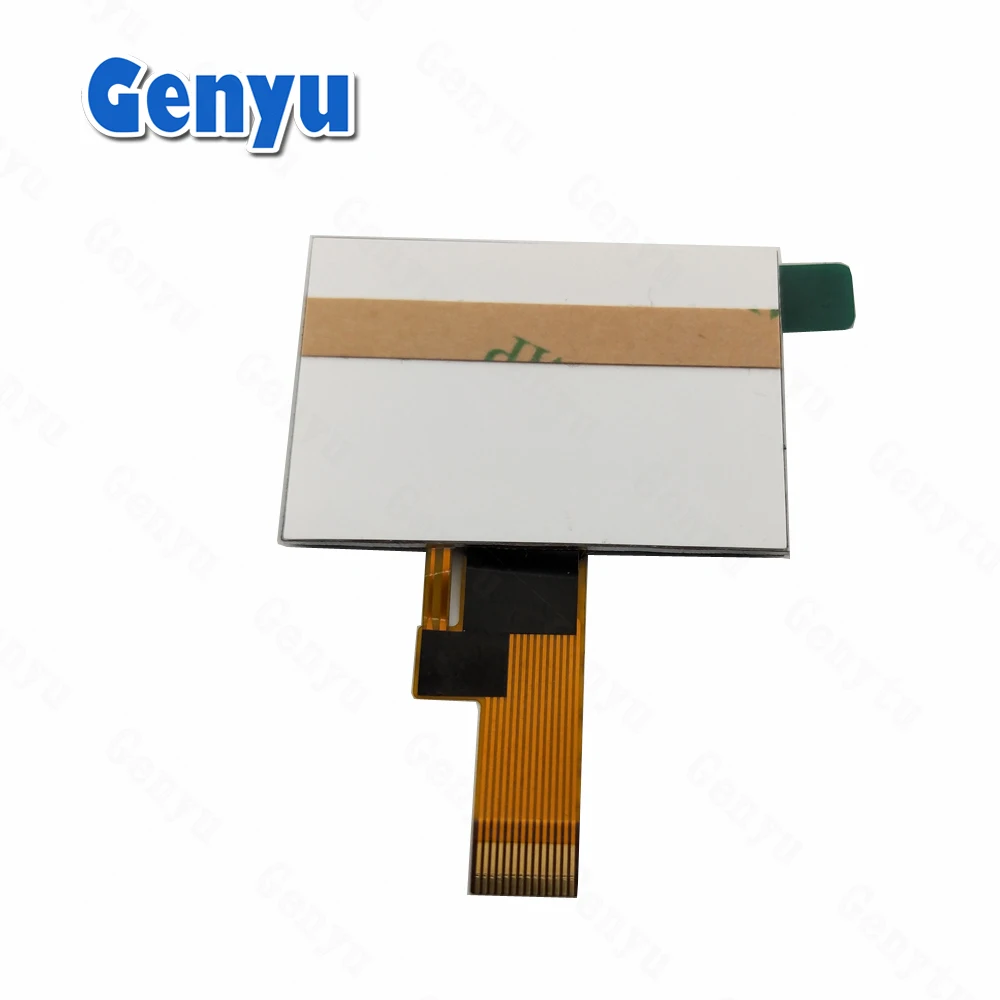

12864 FSTN LCD Display Customized COG LCD Panel Graphic display Small Size 128x64 dot matrix LCD screen Product number : GY12864-780 Negative White word
Product number : GY12864-780 Negative White word
| 1. Feature: | |
| 1. Display Mode: | FSTN |
| 2. Polarizer | Transmissive/ Negative |
| 3. Viewing angle: | 6 O’Clock |
| 4. Operating temp: | -20°C~70°C |
| 5. Storage temp: | -30°C~80°C |
| 6. Operating voltage | VDD=3.3V, Vop=9.0V |
| 7. Driving condition : | 1/65Duty,1/9Bias |
| 8. Connector | COG+FPC |
| 9. Drive IC | UC1701 |
| 10. ROHS compliant | |

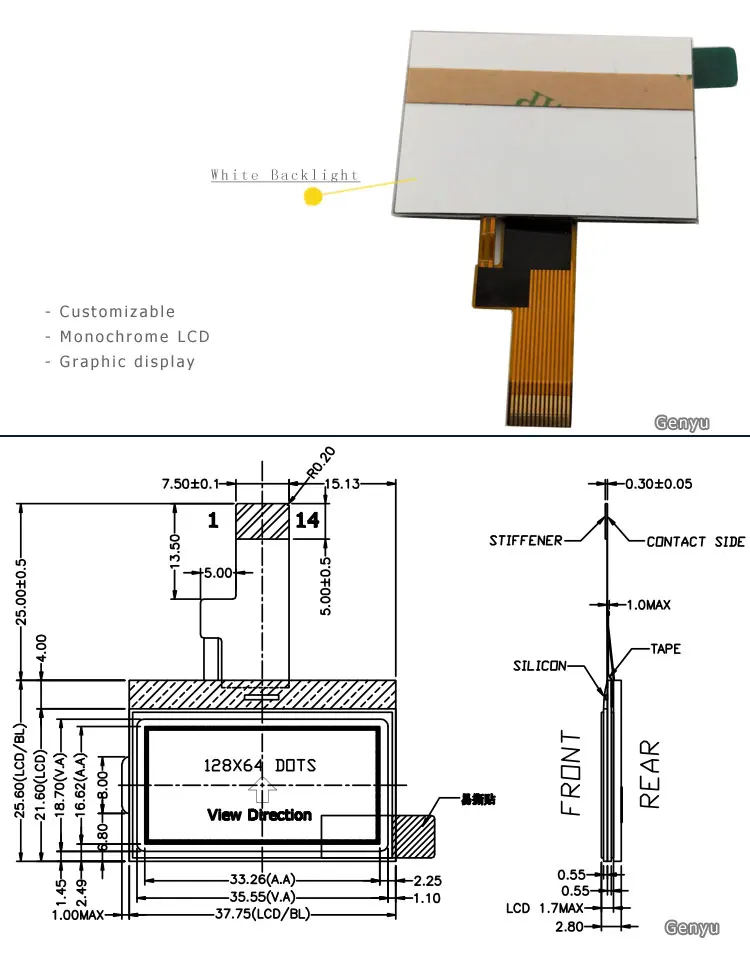

| 2. Mechanical Parameters | |
| Item | Description |
| Outline size | 37.75(L)x25.6(W) x2.8(T) (Not connector) |
| Viewing Area | 35.55×18.70 mm |
| Dots size | 0.24×0.24 mm |
| Dots pitch | 0.26×0.26 mm |
Detailed Images
Factory Provide Gray Background Black Font 240x80 cog Graphic lcd For Switch

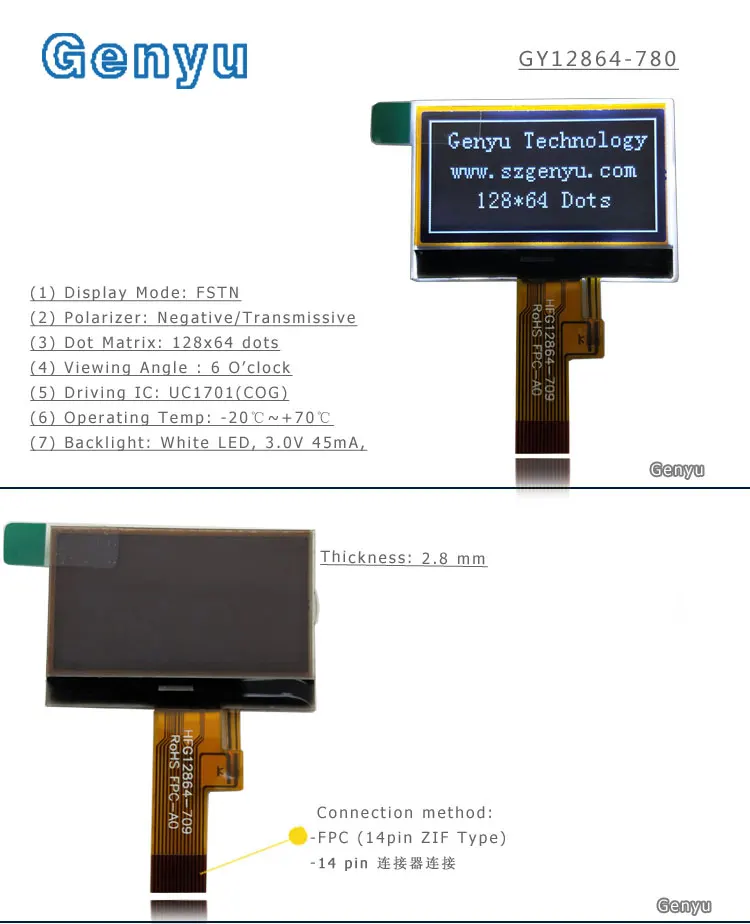

Product number : GY12864-780 Negative White word

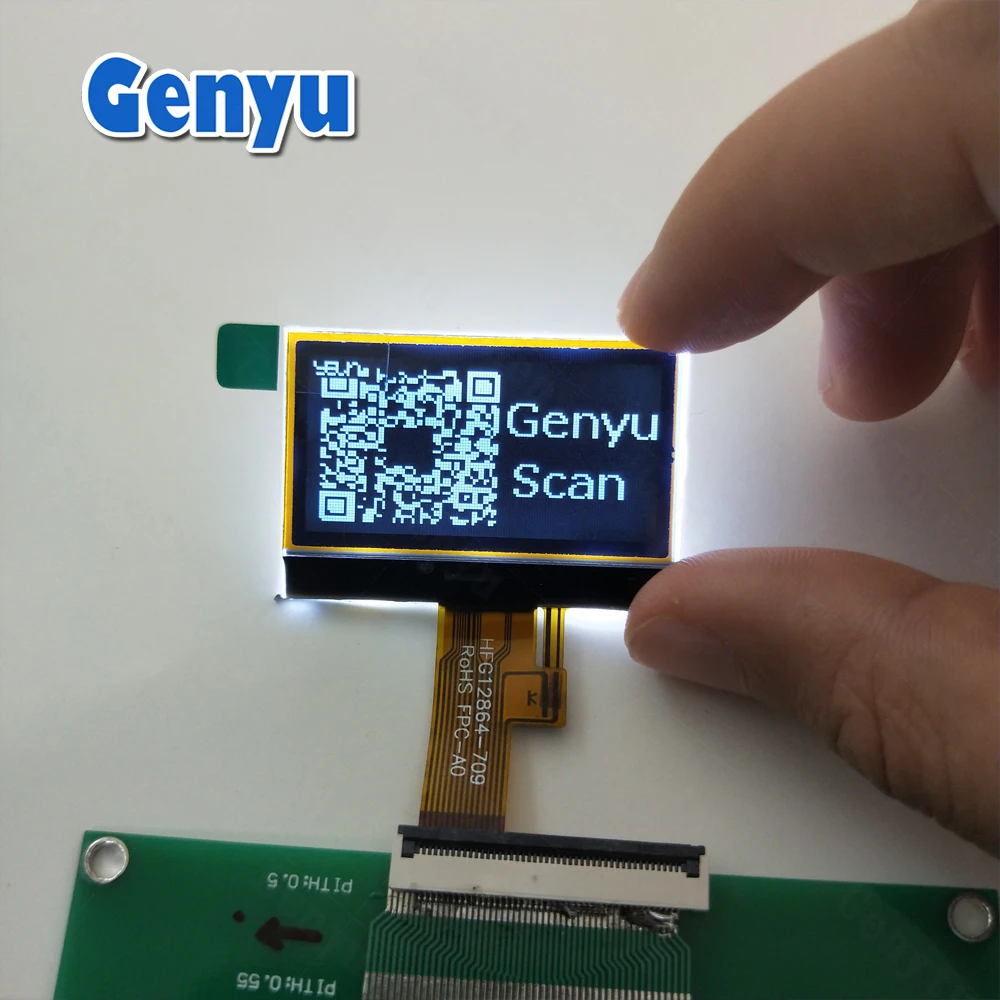

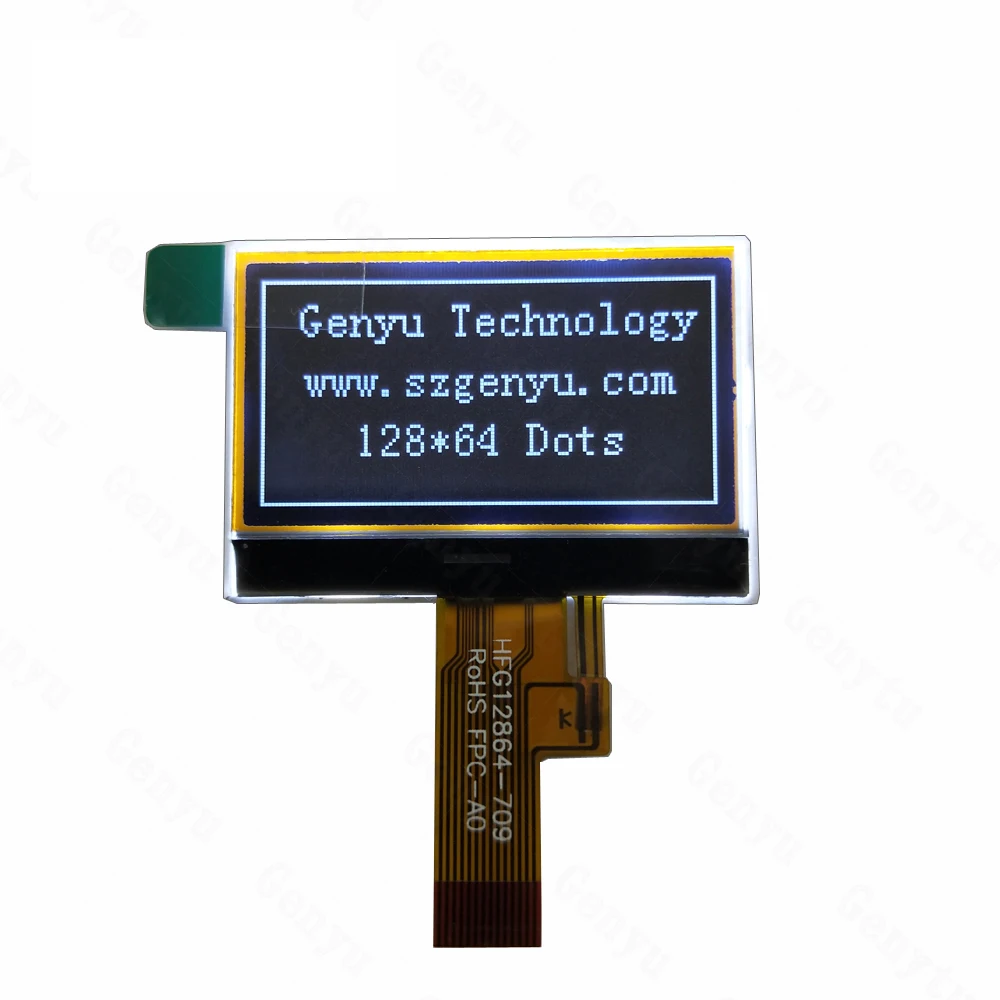

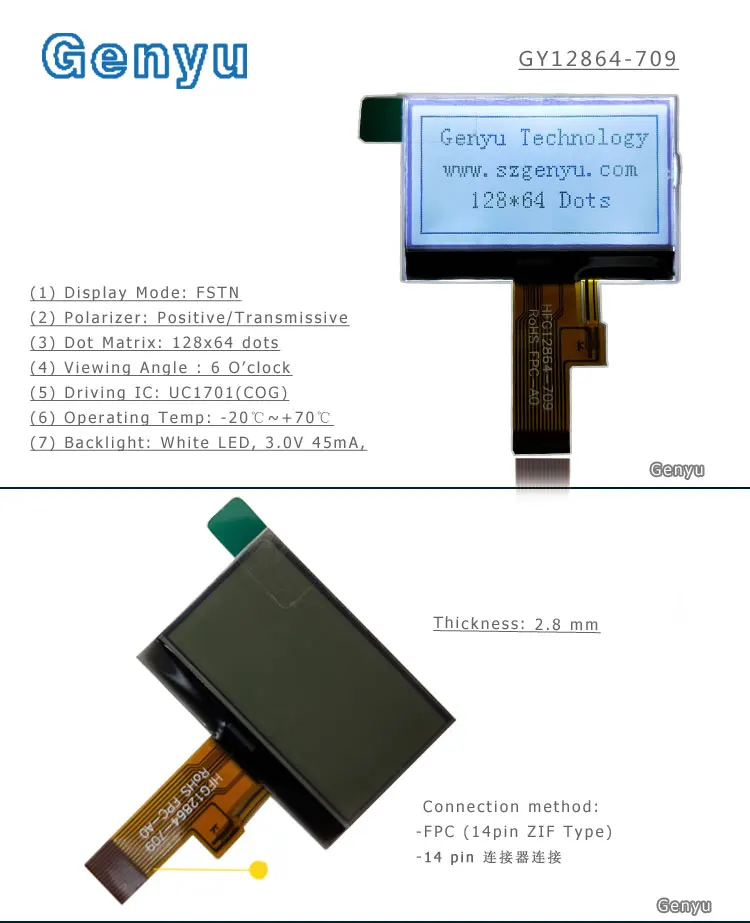

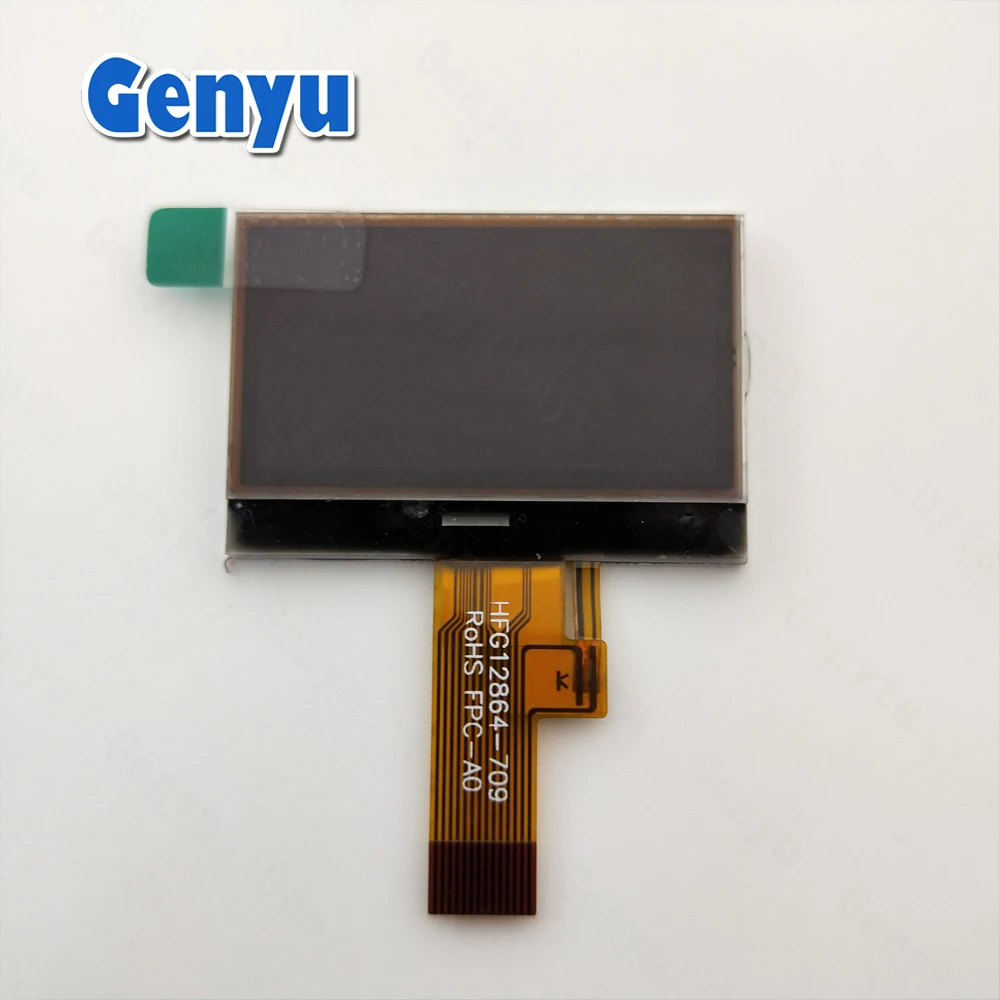

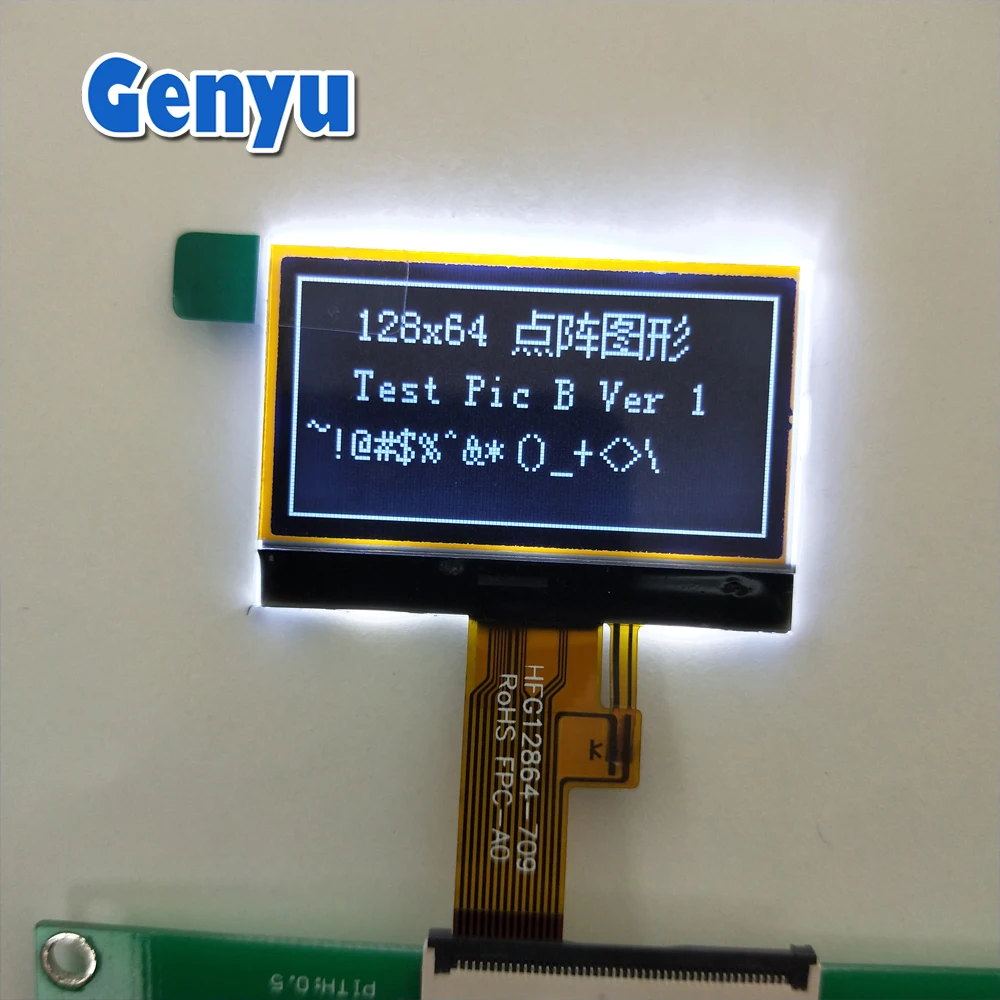

Product number : GY12864-709 Positive Black word
Related products

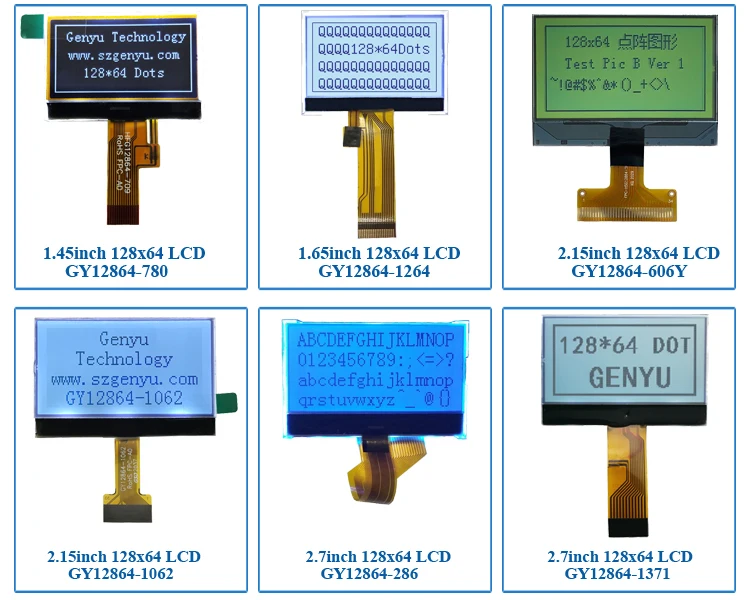

1. dot matrix LCD Graphic LCD 128x64 mono LCD

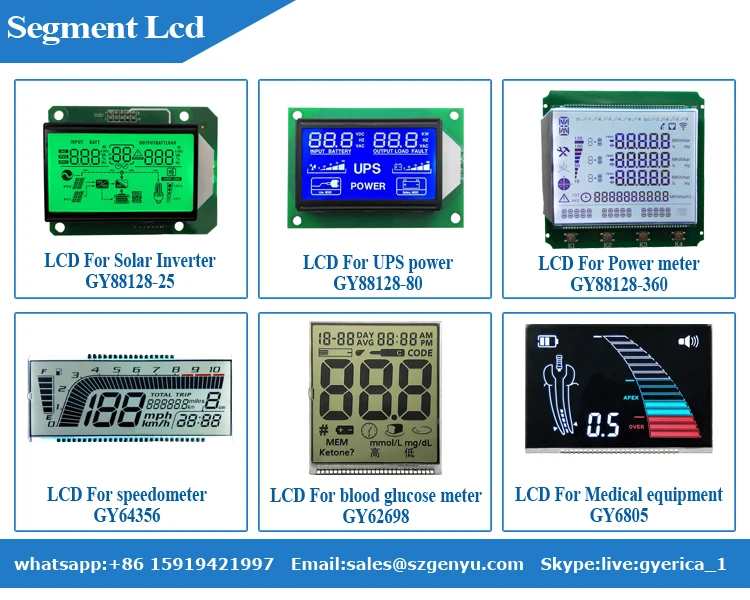

2. Custom LCD 7 Segment lcd display

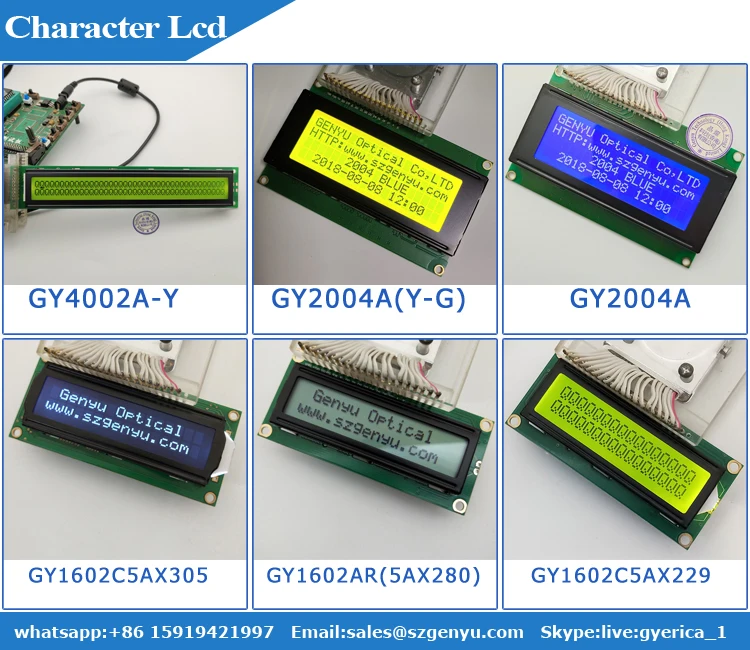

3. 16x2 lcd module 20x4 display module

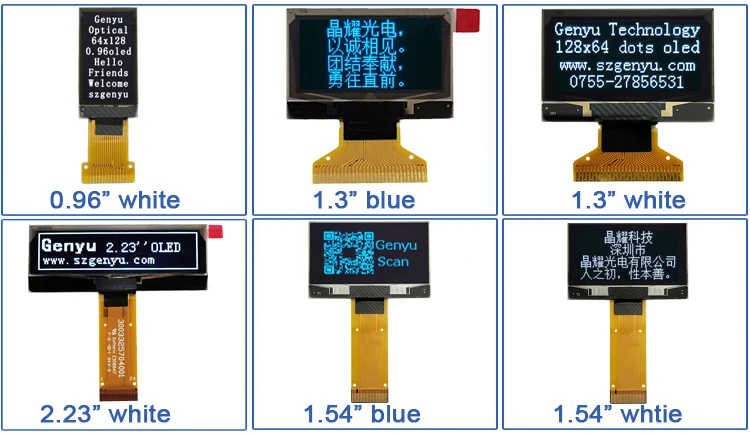

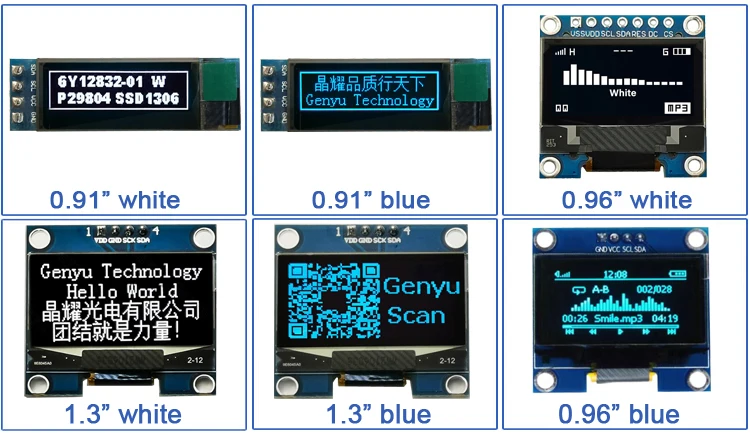

4. oled display mini size oled display 0.42inch oled 0.96 oled 1.3 oled 1.54inch oled 2.23 oled

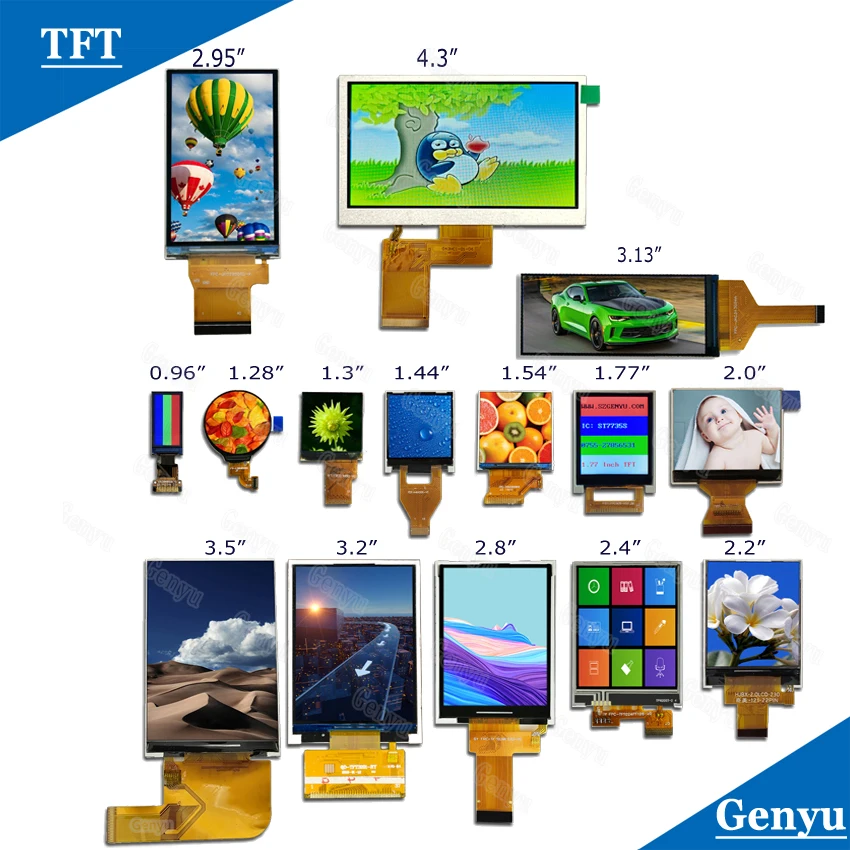

5. tft lcd display module RGB LCD DISPLAY full color screen
Packaging & Shipping
Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....
Delivery
Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.
Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.
China Factory lcd Display FSTN Custom Mono Graphic lcd 128x64
Our Services
Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co.,Ltd
1. All products are being sent in accord with the real goods. When the clients purchasing, we will provide detailed instructions and procedures. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is 12 months.
FAQ
Q1: How does your factory do regarding quality control?
A1: Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has gained ISO9001, RoHS, CE certification.
Q2: Can I get Customize product?
A2: For sure that OEM service is availiable.
Q3: Where is your factory located? How can I visit there?
A3: We have two factories, one is in Shenzhen, the other in DongGuang Province. Welcome to visit our factory. We could pick you up in Shenzhen Bao'an Airport, or High-way Shenzhen North station.
Q4: Can I get some samples to test? Or how to customize my own specifications?
A4: For standard items, Free Sample is available. As for bespoke items, kindly pls fullfil the below form to contact us!
