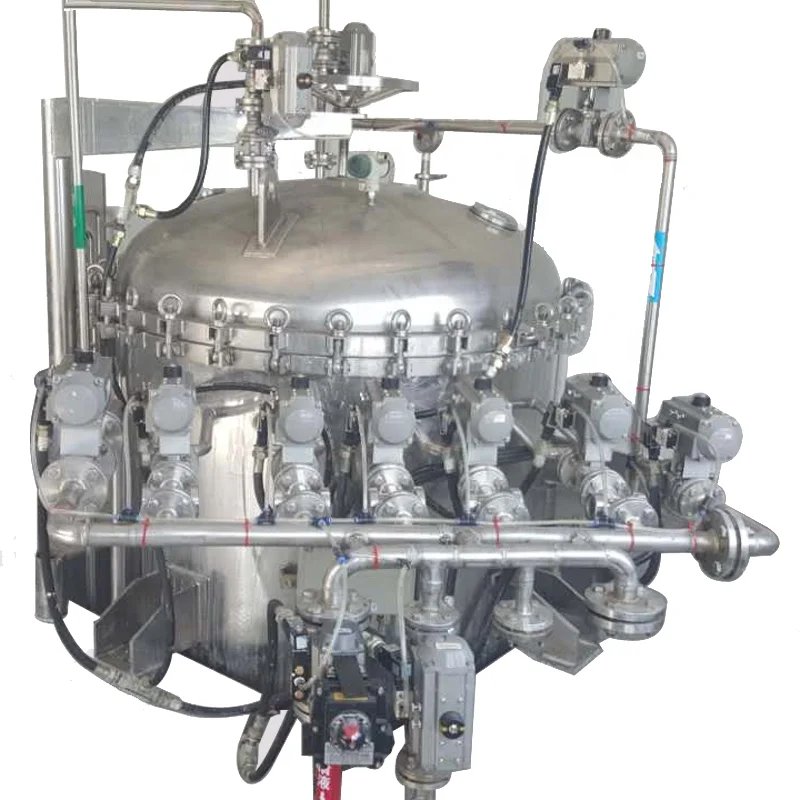

Factory price SUS 304 316 stainless steel Bleached clay filter bentonite filter activated carbon candle filter
- Category: >>>
- Supplier: Shanghai JCI Technology Co. Ltd.
Share on (60861056041):
Product Overview
Description
Product Introduction
CFC Series Factory Price SS 304 316 Ceramic Stainless Steel Candle Filter Housing for Fruit Juice
Brief introduction

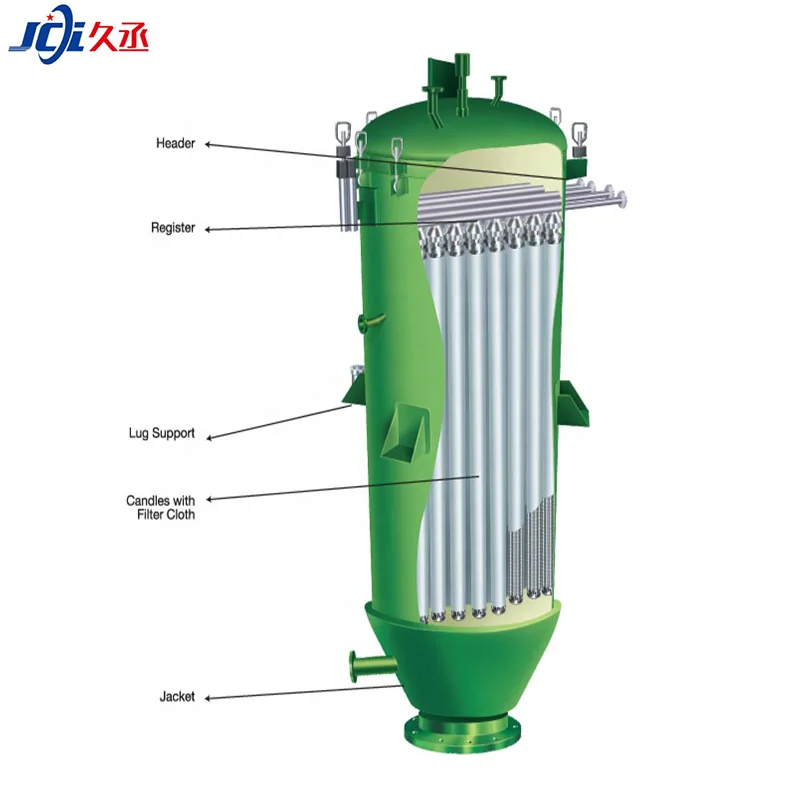

CFC Filter is mounted in a closed container. It is designed with multiple porous filter elements sheathed with filter cloth (or other filtering medium). Its main parts are the material tank, air storage tank, feeding pump, candle filter, pipes, valves, PLC electric control system.

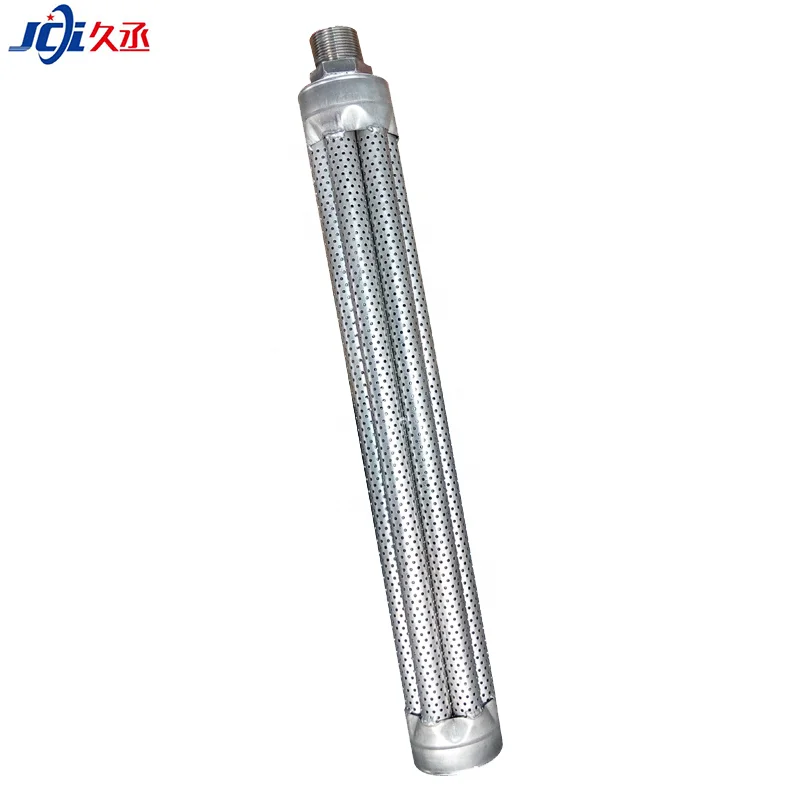

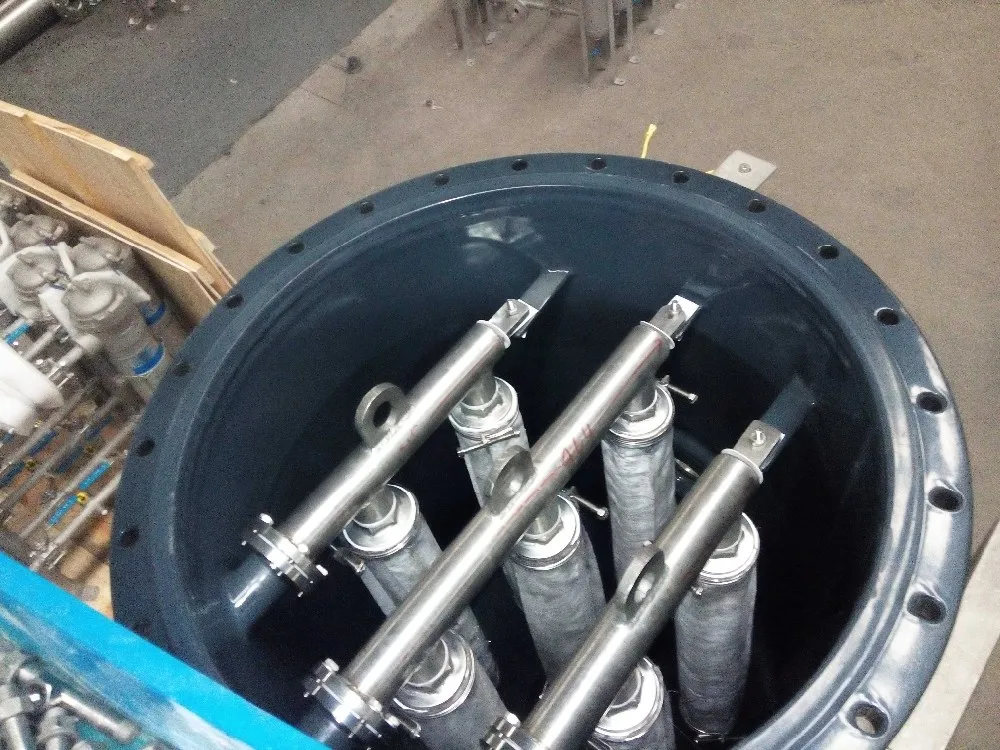

CFC Filter is also called filter cake layer filter, it is composed of the vertical vessel and vertically installed filter units. The filter units consist of filter cartridge and filter cloth or other filter medias. The real filter medium are the filter cloth and filter cake layers that covering the filter cartridge. Filter cloth is fixed on the surface of filter cartridge to make it fully sealed by using special clamps. The entire filter process is totally sealed without any spillage or environment pollution. It can realize automatic filtration, feeding washing &air drying, and air back blowing to discharge residuals at one time. The filter process is in high speed and zero pollution, it brings largest economic benefit.

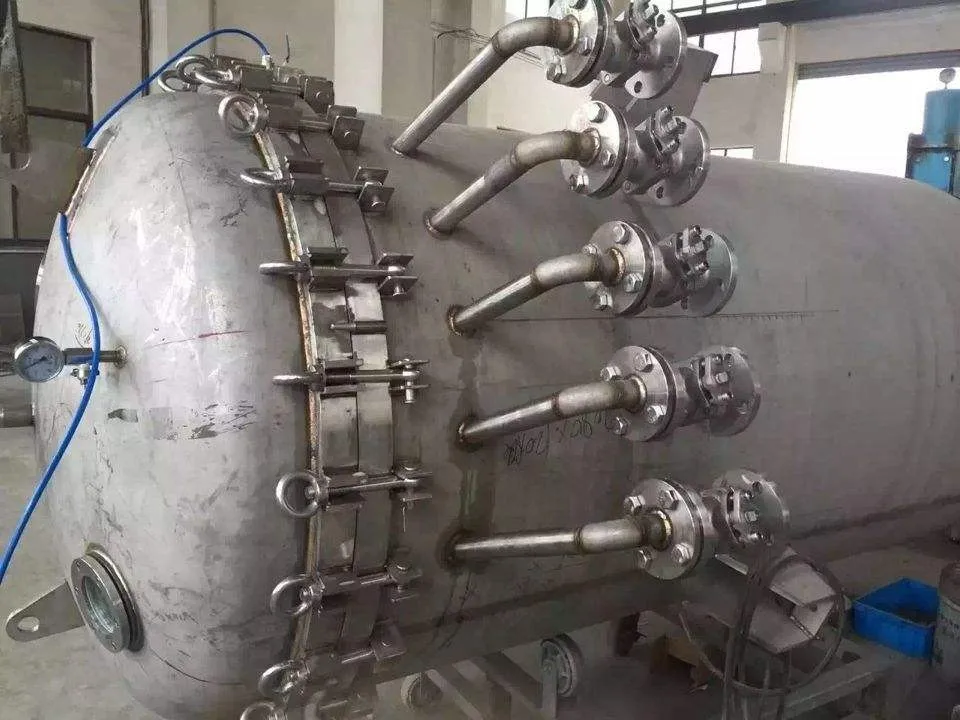

Product Details Show
How Does It Work?

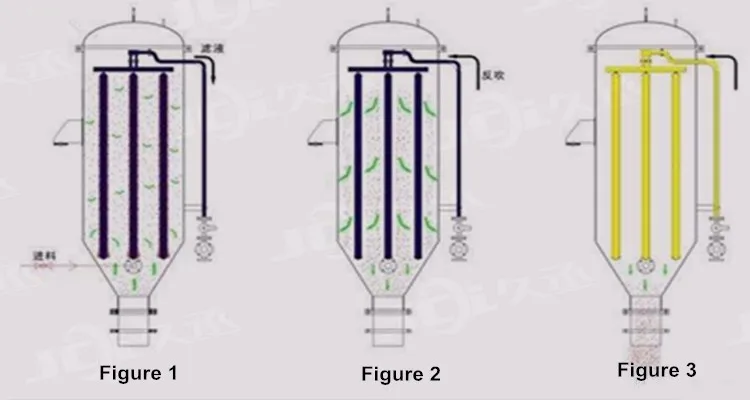

Filtering status(see figure 1)
While filtering, filter material will be sent into the filtering housing by feed pump first; when it passes through filter cloth, solid particles will be stopped on the filter cloth. And as the solid particles growing,they will become filter cakes.
Blow-back status(see figure 2)
After CFC Filter operates normally for a period of time, namely when the thickness of the filter cake on the porous filter element reaches a certain value, the PLC will give an order signal to control material feeding (stoppage), fully expel the residual liquid in the filter, and then PLC signal control blow-back outlet (compressed air, nitrogen or steam) for back flushing to make the filter cake fall off.
Discharging status(see figure 3)
After back flushing lasts for a period of time, open slag-drip opening for slagging, and then close it to get back to the initial state before filtration to get ready for the next round of filtration.
Technical Parameters & Specifications
Model No. | CFC2-CFC80 | ||||
Applicable viscosity | 1-2,000cp | ||||
Filter precision | 0.5-800μm | ||||
Design pressure | 0.3-1.0MPa | ||||
Design temperature | 1-200°C | ||||
Filtering area | 2m2-100m2 | ||||
Cleaning start mode | Time, differential pressure | ||||
Housing material | 304/316L/CS | ||||
Technical features and advantages
1. Fully closed filtration.No leakage.No any environmental pollution;
2. The material is stainless steel, no dead angle of hygiene residue;
3. Excellent in automation, and small floor space;
4.The filter cake can be washed and dried to obtain maximum economic benefit;
5. Frequency conversion control of diatomic addition.;
6. It is the gas blow-back slagging.The slag can be discharged quickly and cleanly.It is suitable for a variety of sticky materials;
7. The entire process can be fully automated.
Part of Applicable Industries
Applicable fluid types: Resin, polybutylene resin, alkyd resin, epoxy resin, beer, edible oil, syrup, gelatin, recycled wax, cutting oil, fuel, lubricant, and machine cooling oil, etc.
Filtration effect: Direct filtration, precoating filtration, slurry concentration, filter cake recycling and washing.
Filtration type: Direct filtration or precoating filtration, and back flushing unloading.
Part of Our Valued Customers

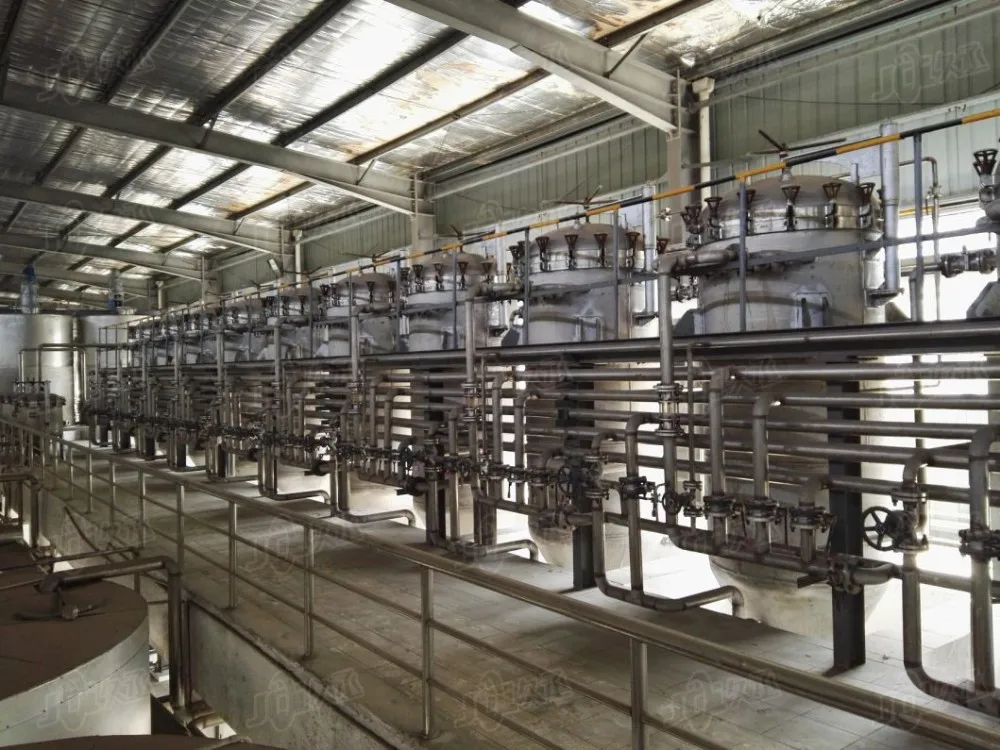

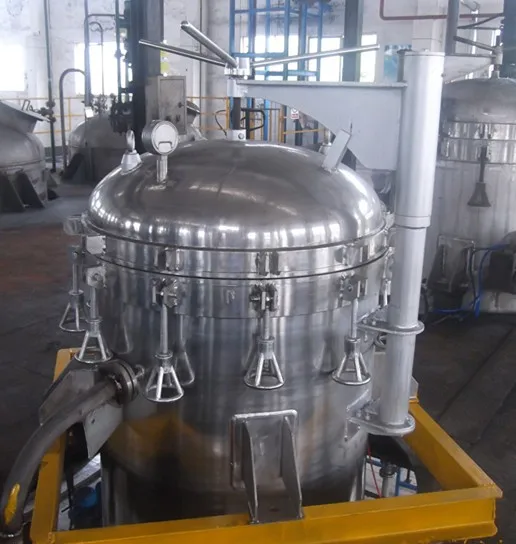

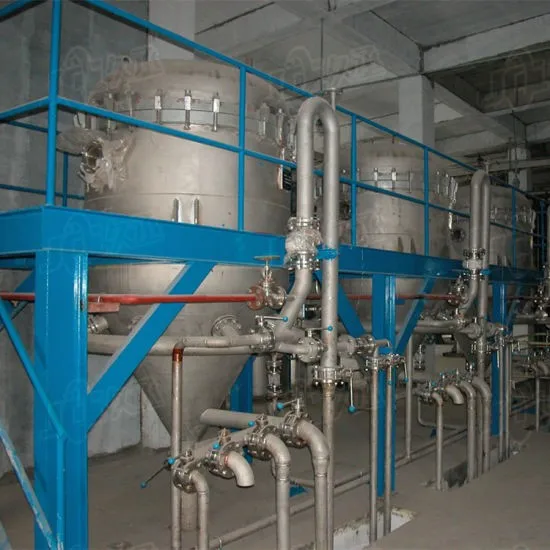

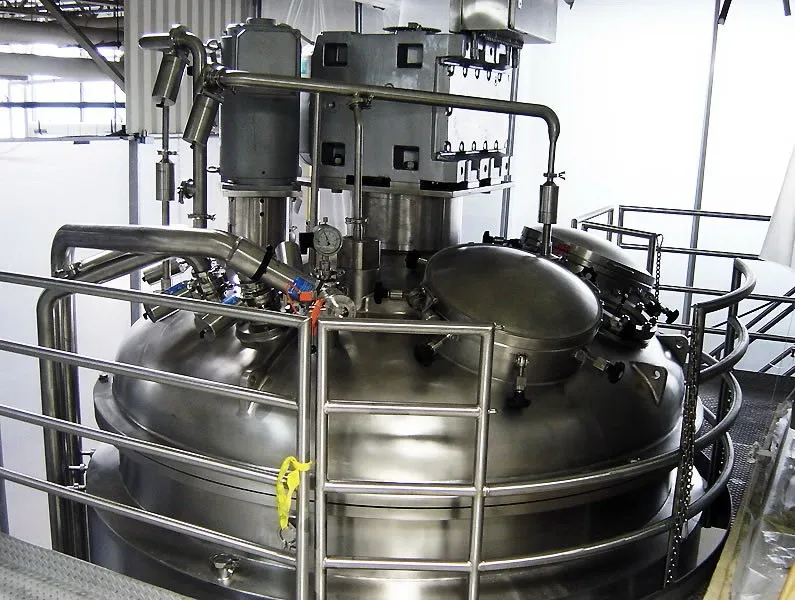

Customer On-site Photos
Certifications

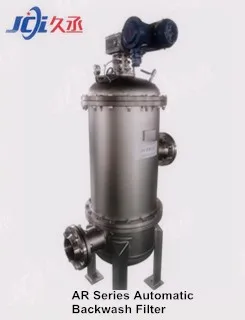

Related Products
