laboratory consumable filter bottle top filter

Product Overview

Description

Product series: Filtration Products

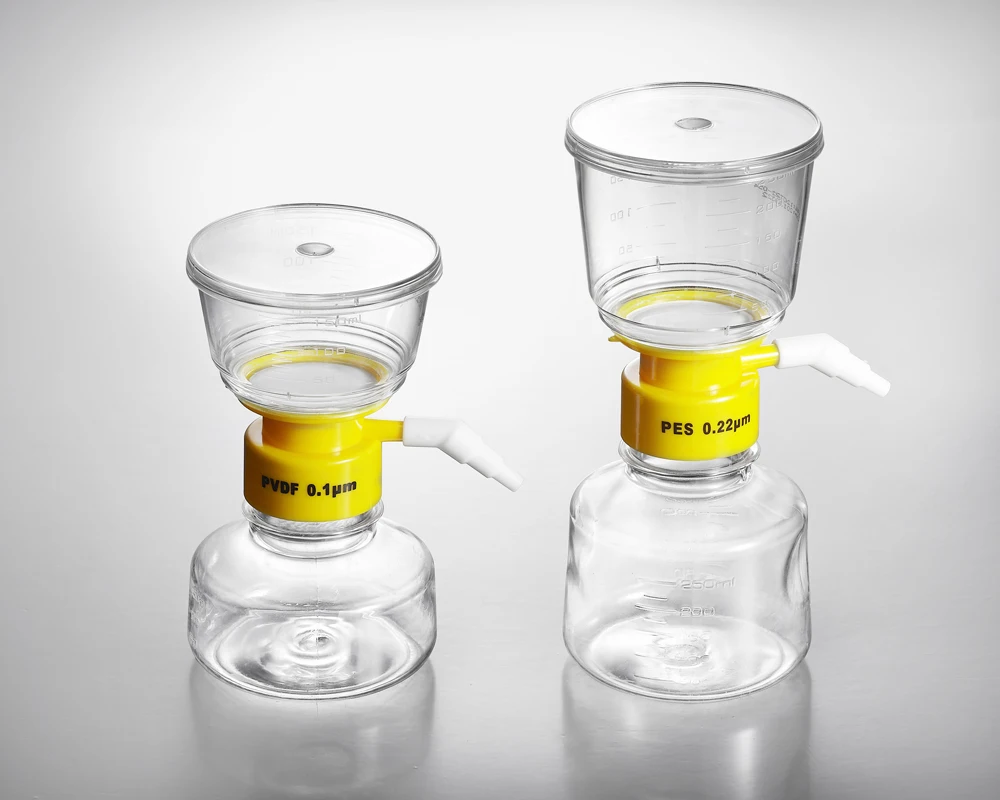

Product name: Bottle top filter

Product information

• Available with 5membrane sorts of PVDF, PES, MCE ,CA and Nylon
• 3 membrane pore sizes of 0.10μm,0.22μm and 0.45μm
• Filter Diameter of 73mm and Membrane Diameter of 75mm with the volume size of 500 ml
• 4 volume sizes of 150, 250, 500 and 1000 ml
• Light weight and heavy wall construction
• Designed wide and easy access bottle mouth for efficiently and stably pour out
• Non-pyrogenic

Cat. No.	Membrane Material	Pore Size(μm)	Capacity(ml)	Membrane Diameter(mm)	Qty. per bag/case
FPV113150	PVDF	0.1	150	Φ50	1/24
FPV113250		0.1	250	Φ50	1/24
FPV113500		0.1	500	Φ75	1/24
FPV113000		0.1	1000	Φ91	1/24
FPV213150		0.22	150	Φ50	1/24
FPV213250		0.22	250	Φ50	1/24
FPV213500		0.22	500	Φ75	1/24
FPV213000		0.22	1000	Φ91	1/24
PFV413150		0.45	150	Φ50	1/24
PFV413250		0.45	250	Φ50	1/24
PFV413500		0.45	500	Φ75	1/24
FPV413000		0.45	1000	Φ91	1/24
FMC211150	MCE	0.22	150	Φ50	1/24
FMC211250		0.22	250	Φ50	1/24
FMC211500		0.22	500	Φ75	1/24
FMC211000		0.22	1000	Φ91	1/24
FMC411150		0.45	150	Φ50	1/24
FMC411250		0.45	250	Φ50	1/24
FMC411500		0.45	500	Φ75	1/24
FMC411000		0.45	1000	Φ91	1/24
FPE214150	PES	0.22	150	Φ50	1/24
FPE214250		0.22	250	Φ50	1/24
PFE214500		0.22	500	Φ75	1/24
FPE214000		0.22	1000	Φ91	1/24
FPE414150		0.45	150	Φ50	1/24
FPE414250		0.45	250	Φ50	1/24
FPE414500		0.45	500	Φ75	1/24
FPE414000		0.45	1000	Φ91	1/24
FNY212150	Nylon	0.22	150	Φ50	1/24
FNY212250		0.22	250	Φ50	1/24
FNY212500		0.22	500	Φ75	1/24
FNY212000		0.22	1000	Φ91	1/24
FNY412150		0.45	150	Φ50	1/24
FNY412250		0.45	250	Φ50	1/24
FNY412500		0.45	500	Φ75	1/24
FNY412000		0.45	1000	Φ91	1/24
