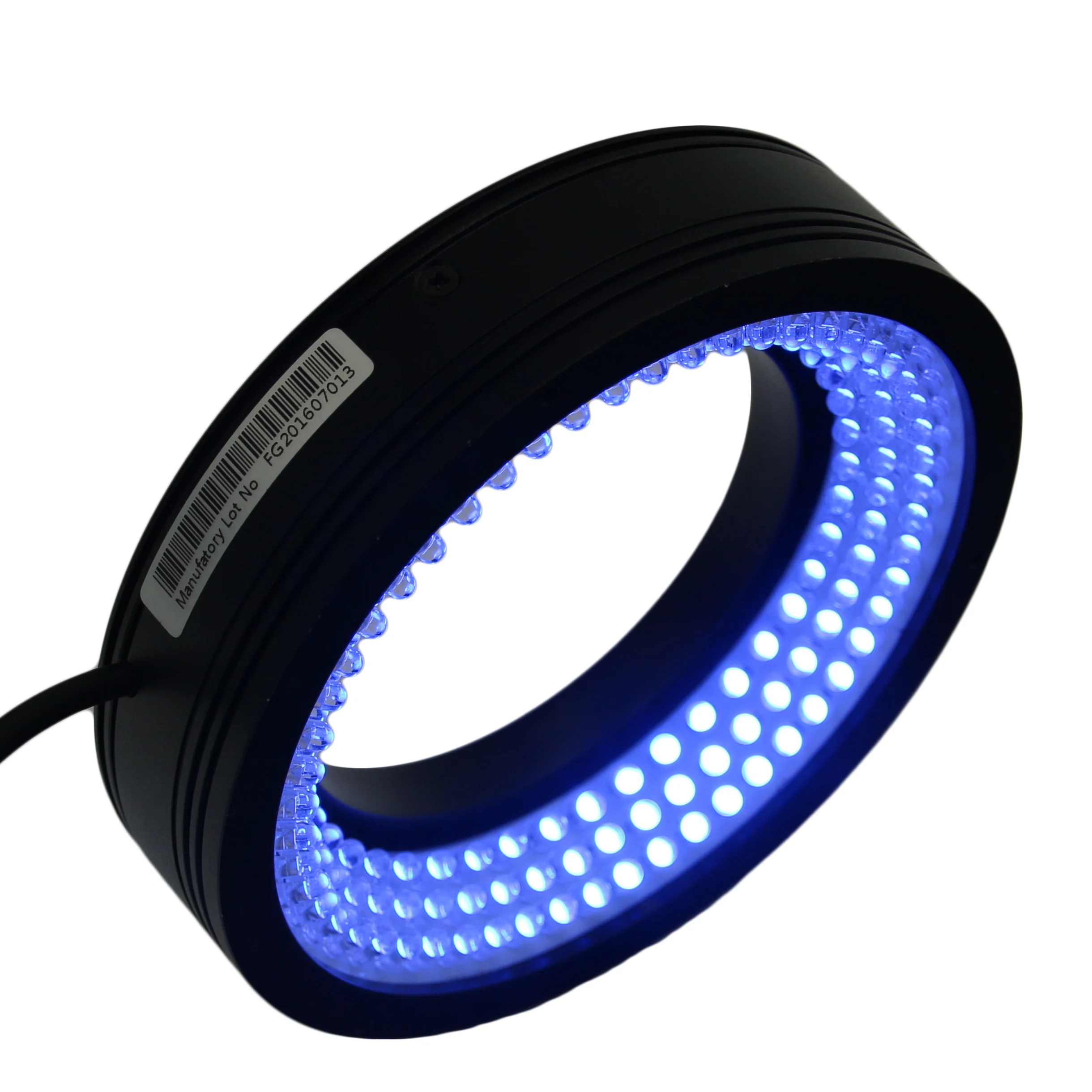

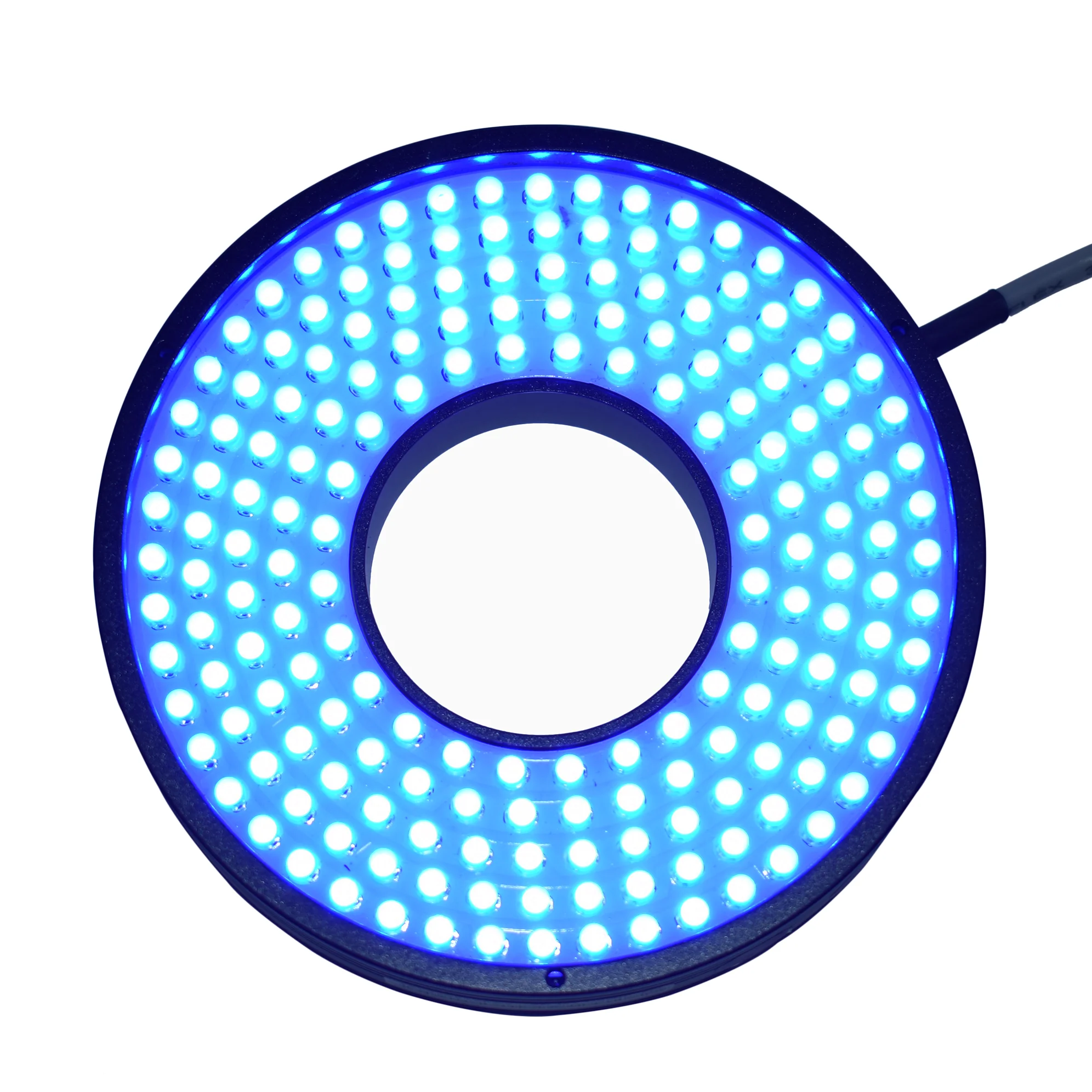

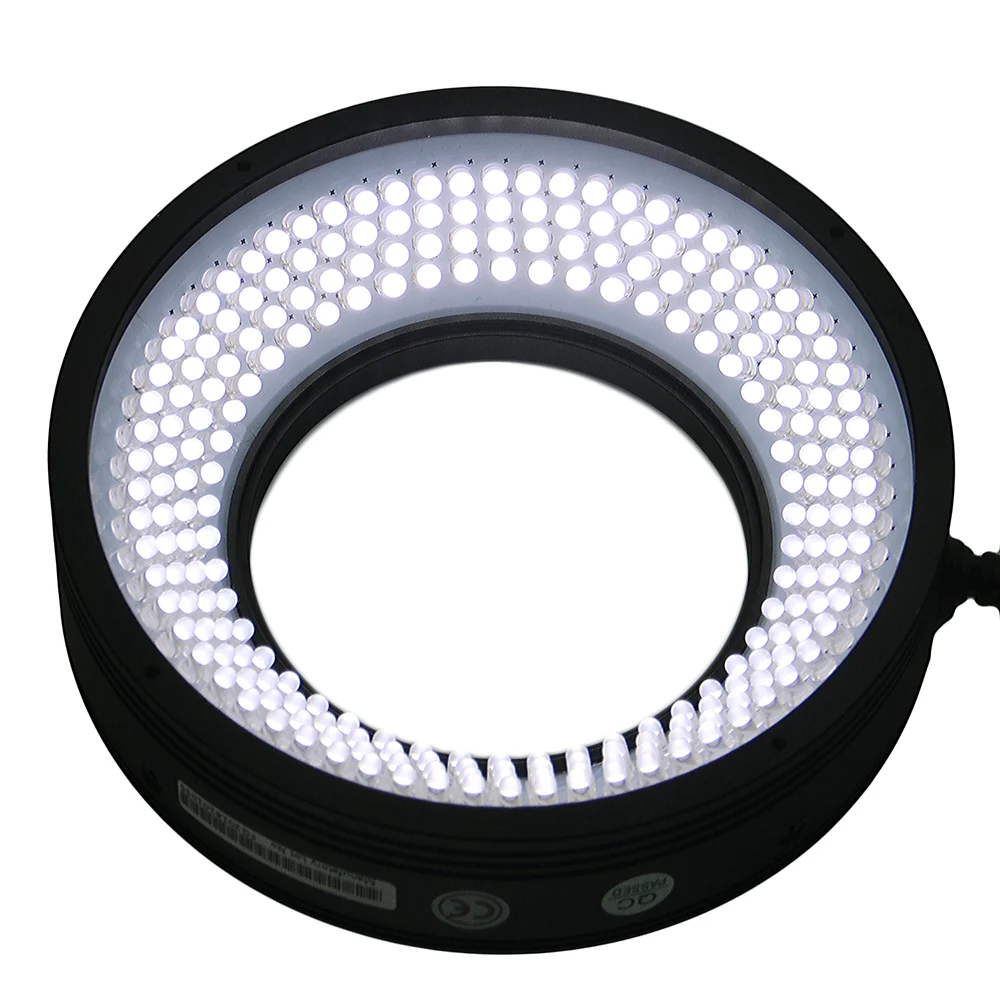

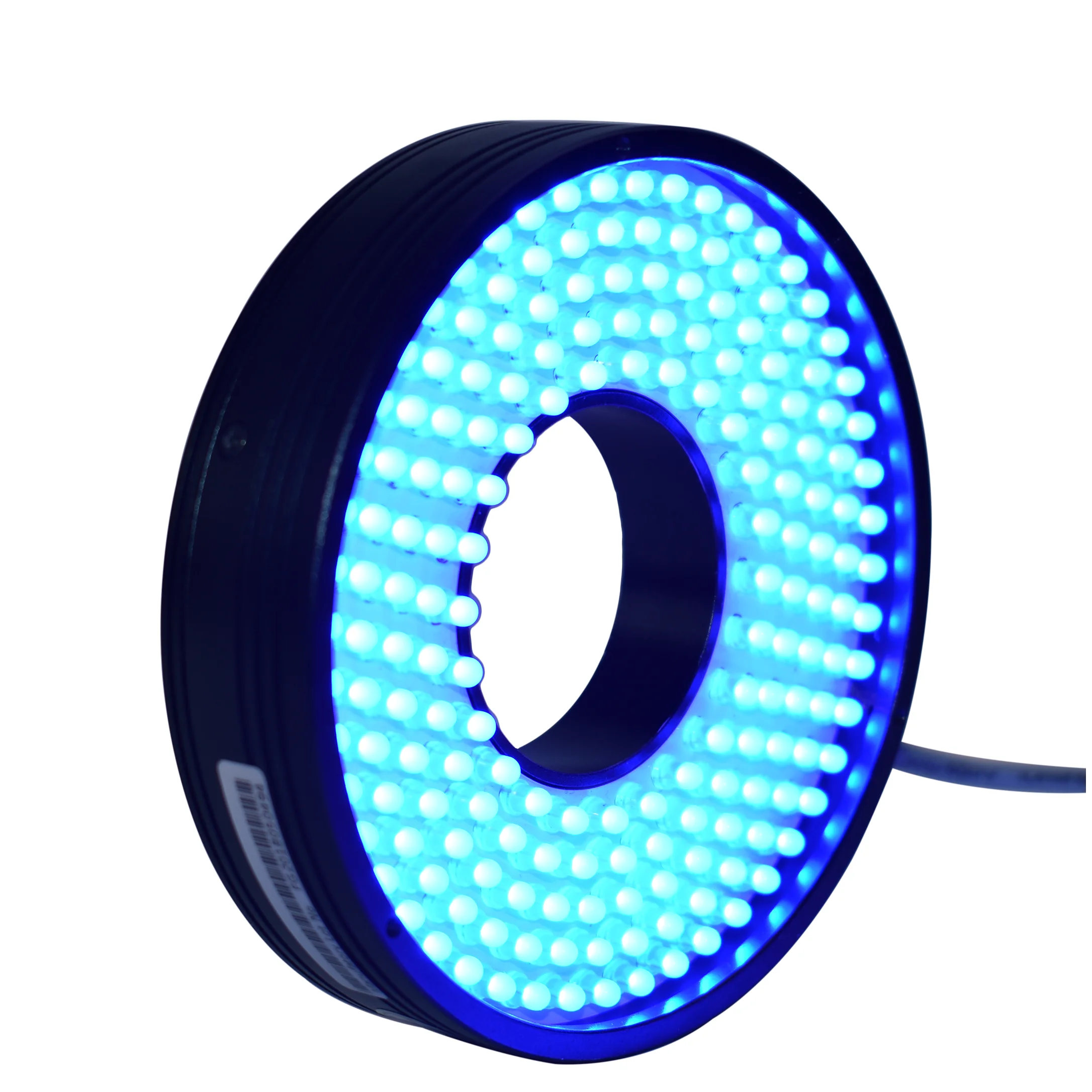

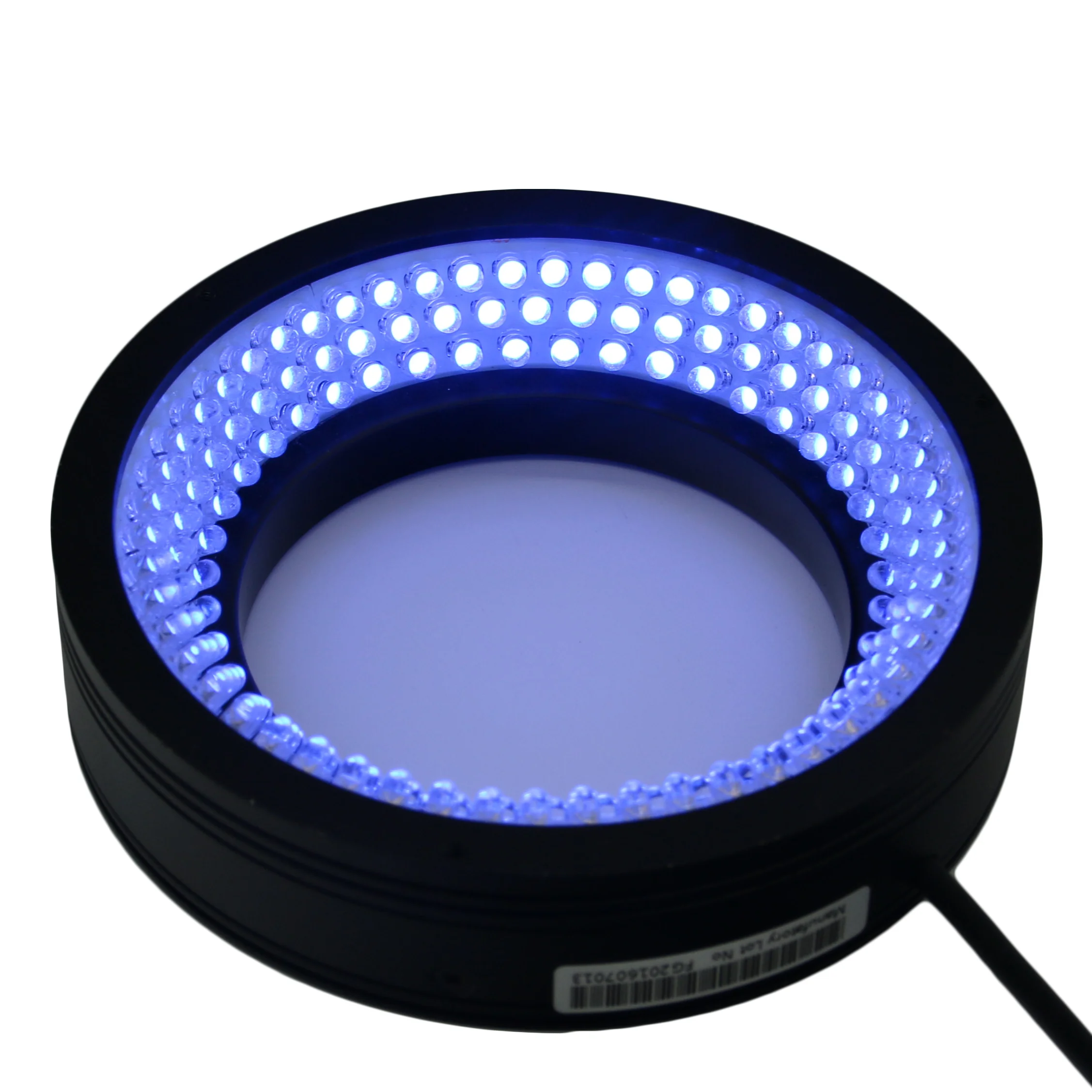

Fugen Good Quality Led Low Angle Ring Light Industrial Inspect Machine Vision Light


Ring Lights


Ring lights for machine vision illumination provide direct light from low angled emitting part.

A ring light provides diffused illumination over a small area. With the lens axis through the center opening of the ring light assembly, the ring light illuminates the area directly in front of the camera.

Features

-High density LED array, high brightness

-Various beam angle can be customized

-Diffuse board is optional, increase the uniformity of lights

-Use wave-soldering technology, improved product quality,easy installation

Fugen Good Quality Led Low Angle Ring Light Industrial Inspect Machine Vision Light

Application Areas

- Inspection PCB(printed circuit board)
- Inspection of lables

- Inspection package defects
- Inspection of general appearance

- Inspection of IC element characters and appearance


Applications:

Inspect the outline of china products

Model:FG-DR70-W

Inspecthe true position of connector terminals

Model:FG-DR50-B

Inspect the cross recess for screw

Model:FG-DR50-B

Technical Index
\t
Color (Wavelength)
\t
Red:620-630nm
\t
Green:525-530nm
\t
Blue:465-470nm
\t
White color temperature: 6600-7000K
\t
UV:365/385nm
\t
IR:850/940nm
\t
Operating environment
\t
Temperature: 0 to 50 ℃, Humidity: 20% to 85% RH
\t
Life time
\t
100,000hrs theoretical service time(Depends on the operating environment, not a guarantee.)
\t
Compatible Control Unit
\t
 Analog Controller, Digital Controller, Constant Current Controller
\t
Optional Accessory
\t
1. Lights source and lens adaptor. Machine vision illuminators.
\t
2. Diffusion plate, Polarizing plate.(Opational transmittance:60%,70%,80%,90%)
\t
3. Extension cable: 1m/2m/5m/10m/15m(2 kinds of materials of the shell of wire:PVC of hardness;silicone of softness.)
\t
Warranty
\t
One year warranty, Free samples and technical support(buyers pay for the freight)
\t
Lights customization
\t
Provide design and development service according to individual needs of customers. Reach the best image effects.
*Fugen Good Quality Led Low Angle Ring Light Industrial Inspect Machine Vision Light

Lights customization: We provide design and development service according to individual needs of customers. Reach the best image effects.



Selection Guide:

\t
FG
\t
DR
\t
##
\t
A##
\t
R/G/B/W
\t
Fugen
\t
Ring Light
\t
Outside Diameter
\t
Emitting Angle
\t
Color
Installation Process
Certificates
COmpany Introduction

Shanghai Fugen Automation Technology Co., Limited



Shanghai Fugen Automation Technology Co., Limited was founded in 2009,and we are a professional machine vision light manufacturer.

We have more than 30 standard products series, and our laboratory was equipped many kinds of industrial lens, camera, lens, filter, etc. We devoted ourselves to offer the first class, and high cost-effective vision products to our customers, to meet the growing demand of them. Our designers have more than 10 years industry experience, in order to improve the quality of our lights, we adopted famous brands LED particles, equipped forging, wave-soldering, reflow soldering equipments. We are trying our best to make our products achieve international excellent quality stardand.

Payment&Shipping
FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But you need pay for the the freight.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 50 pieces.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS etc., usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 y ears warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
