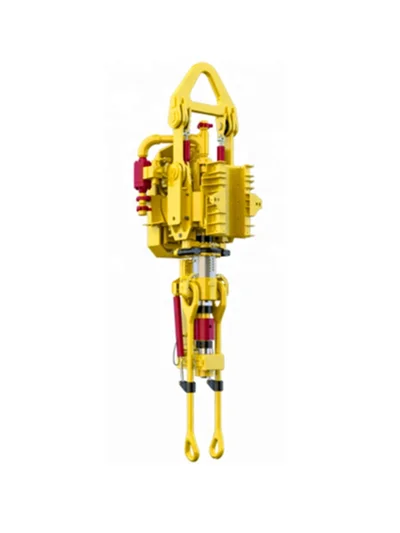

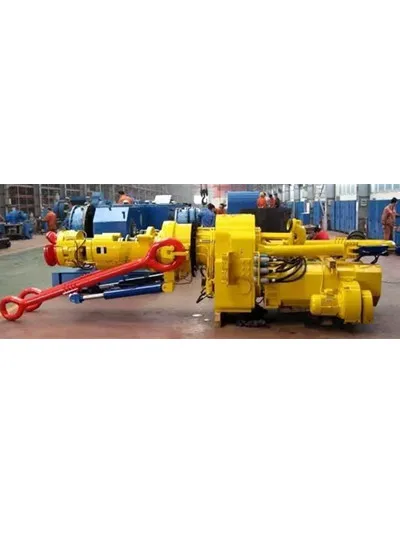

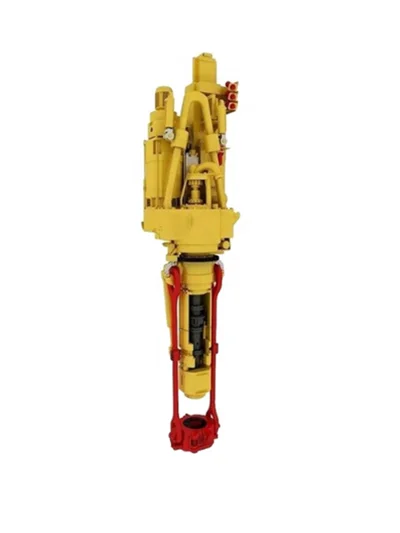

Top drive drilling equipment is a new-style drilling system, which is used to instead of the rotary table. With the use of top drive drilling equipment, the system allows drilling with triple stands and reduces make-up and break-out time. When touching resistance and touching sticking, it may connect the drilling pipe immediately, rotating and circulating, and may reduce the sticking accidents. Top drive drilling equipment has many patent technologies.
The main features are:

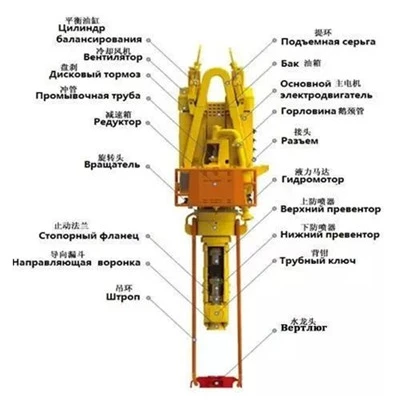

Power swivel adopts AC motors, and driven by VFD system.
Power swivel adopts heavy duty thrust bearings and special structure design.

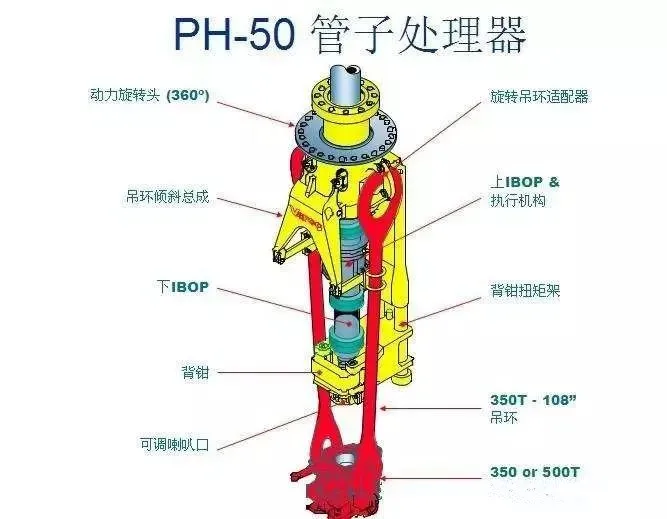

Link tilt assembly of pipe handler can be forward or backward and rotating which is useful to grasp drill pipe and make main shaft closer to rig floor when drilling.
Pipe handler equipped with backup tong, which is of wide clamp range. IBOP doesn’t rotate with the tilt.
Integrated with mechanical, electrical, hydraulic and information technology, the automatization level is highly improved.
Company Information
Dongying Xincheng Petroleum Technology Co.,Ltd. was established in 2003, which is a comprehensive enterprise focusing on providing high-end oil drilling equipment, top drive technology service and underground casing repair services for domestic and international customers. The company is committed to providing customers with the highest quality equipment and best service. Our products include top drive and accessories, drill pipe, drill collar, drill stabilizer, mud pump and its accessories, high-end ESP oil production equipment, ESP cable, product quality is highly recognized by international customers.
Shandong Yacheng petroleum technology Co.,Ltd which is wholly owned subsidiary of Xincheng Group, focused on oversea business, whose product and service spread over South America, Russia, Ukraine, the Middle East and other countries. The company has established a top drive technical service team by associating with local drilling service providers in Ukraine, India, Oman and Ecuador,etc..
