All in one portable home use solar power system 300W
- Category: >>>
- Supplier: Hefei Gaoneng Power Technology Co. Ltd.
Share on (60862295269):
Product Overview
Description

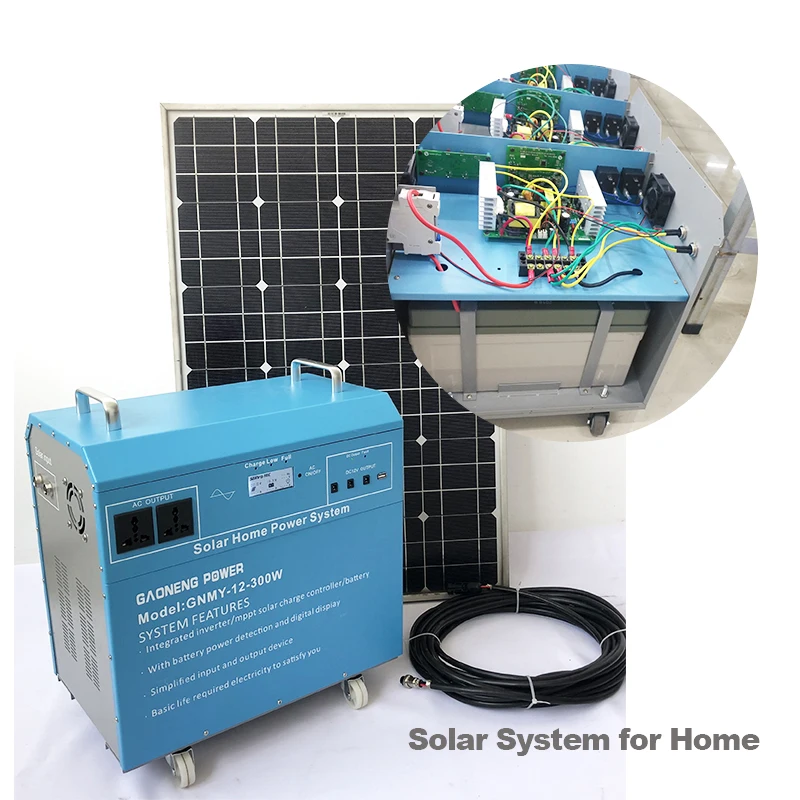

300W solar energy system with 150W panels for home
Product Description

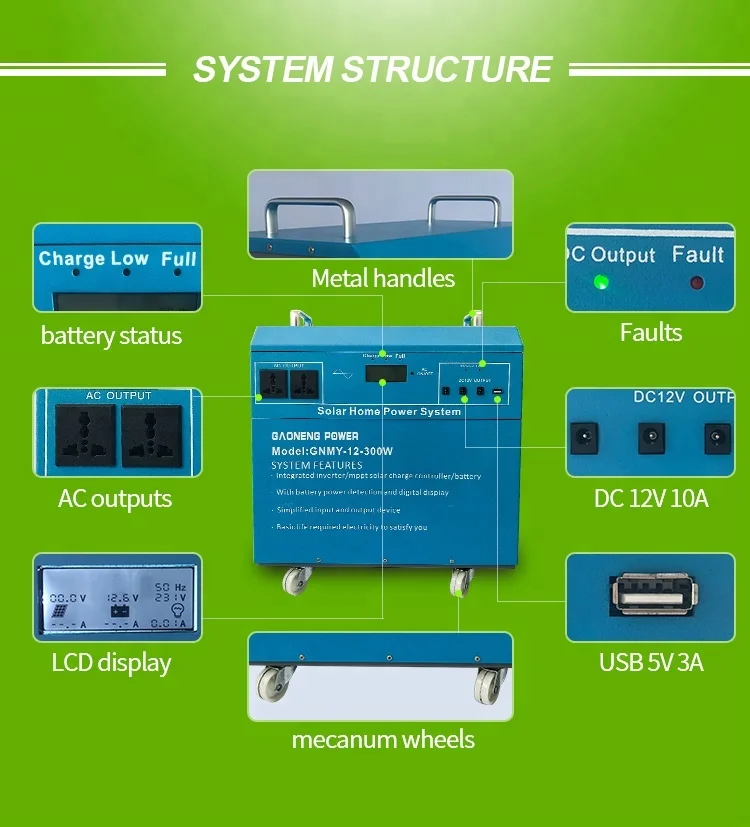

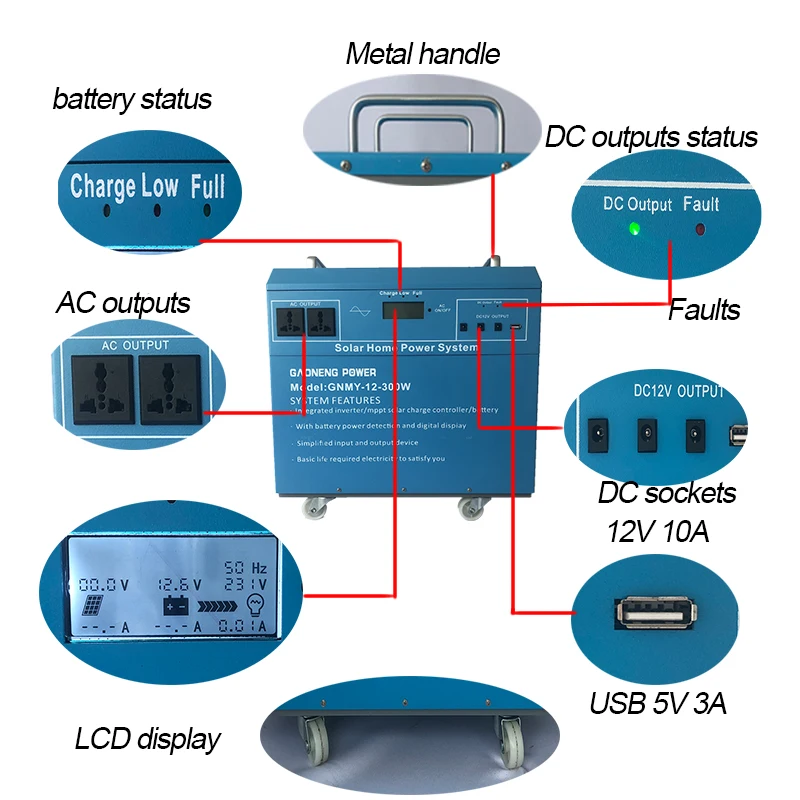

Main Features:
1. Pure Sine Wave Invereter:compatible for most home appliances; stable outputs; strong capability
2. MPPT Controller:higher charging efficiency; protect the battery, extend its life
3. LCD Display:vivid display for system parameters and status
4. AC Output:220V/50HZ AC output which can load fans, TVs, radios, small freezer.
5. DC Output:12V/10A DC output which can load DC fans, LED lights and phone charging.
6. GEL Battery:High value, stable and safe;flexible options according to the different load requirements
7. Plug and Play: easy connection and convenient use.
8. Polarity Reversed Protection: Free your concern of faults for connection; No Need to Change Fuse

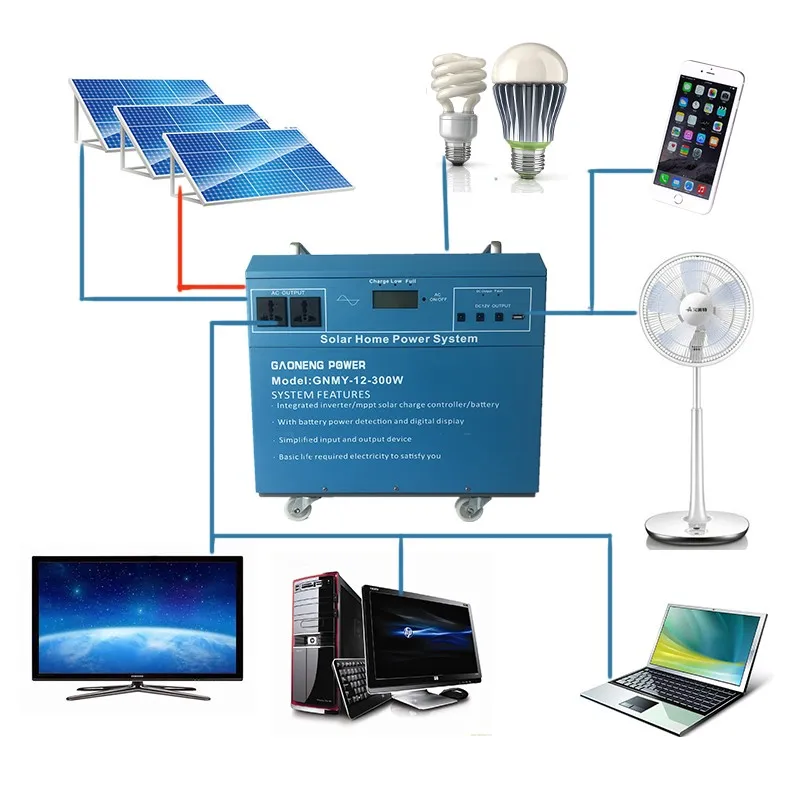

Applications:
1. Field operation:lighting, drilling, disaster relief, commercial promotions.
2. Hospital emergency rescue:surgical lighting, equipment use, etc.
3. Home Appliance:Electronic energy-saving fluorescent, incandescent, small television sets, refrigerator, etc.
4. Energe: solar system, wind system
| Components | Specifications | Qty |
| Solar panel | 100W mono crystalline | |
| Solar battery | 12v 65ah Lead Acid Gel Battery | |

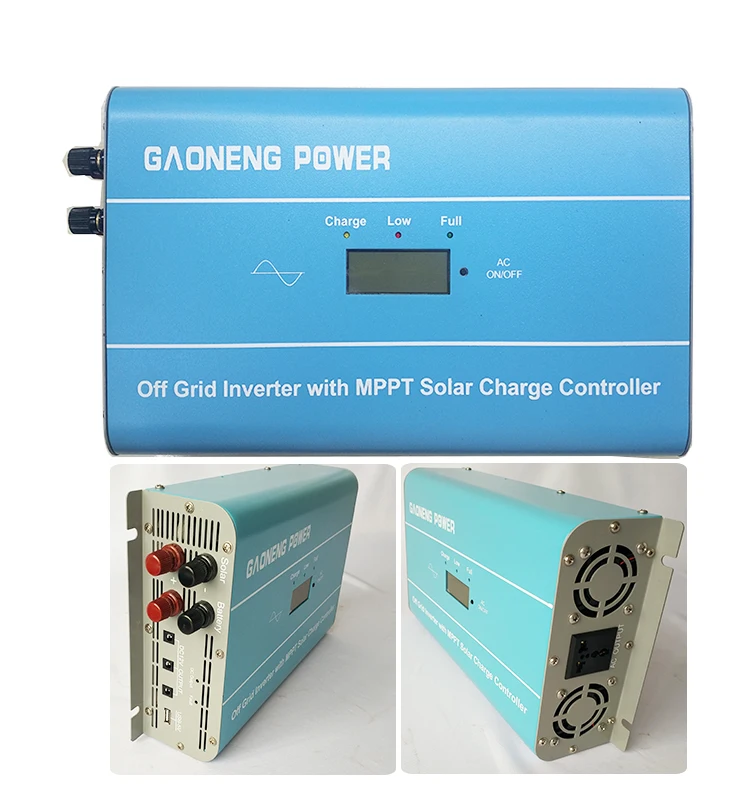

| Inverter with Controller | MPPT charger 12V 30A Pure sine wave output: 300W | |
| Functions | ||
| DC outputs | 12V 10A | 3 |
| AC outputs | 220V /50Hz( Adjustable) | 2 |
| USB | 5V/2A | 1 |
| AC charge | 110V-220V | Optional |
| Run your household application | ||
LED lights (3W-15W) 20-60hours |  | |
TV (30W) 18 hours | ||
Fan( 30W) 20hours | ||
Radio (10-15W) 20hours | ||
| Phone charger | ||
Product Display
Technical Parameters
Model | GNMB-12300-S150 | |
PV input | ||
Solar panel | Poly crystalline | A class |
Work voltage | 17.8V | |
Open voltage | 21.6V | |
power | 150W | |
Cable | 10M(MC4) | |
Size(mm) | 1480*670*35 | |
Weight | 12KG | |
MPPT Solar Charge Controller | ||
MPPT controller | Charge Current (max) | 15A |
Over-discharge protection | 10.8V | |
Over-discharge resume | 12.6V | |
Over-voltage protection | 16.0V | |
Over-voltage resume | 15.0V | |
Balance charge protection | 14.4V | |
Floating charge protection | 13.8V | |
Battery (integrated) | Gel battery | 12V 100AH |
Output | ||
DC load | 12V output | 5A |
USB-5V | 1A | |
voltage | 10.8V~15V | |
5W LED | 3PCS(Line length5M) | |
AC OUTPUT | voltage | 220V/230V/240V 50HZ |
Power | 300W | |
Over load protection | 320W | |
Short-circuit protection | 600VA | |
Output wave form | Pure sine wave | |
General parameters | ||
Weight | 40KG | |
Shell Protection grade | IP21 | |
Size(mm) | 400*248*410 | |
Working condition | ||
Environment temperature | -25℃~55℃ | |
Humidity | ≤85% | |
Test sample available without battery(click here)
Company Information
Packaging & Shipping
By sea | Delivery from shanghai or Ningbo port |
By air | Departure from shanghai or Pudong airport |
By express | Post by DHL, EMS, UPS, TNT |
Contact us if you have any other preference. | |
FAQ
1.Are you factory? Can you OEM for my brand or project?
- Yes, we are factory of solar controller and inverter. Independent engineer team always welcome your OEM request. You will just offer your system design or ideas, we will come solutions for you.
2.How many time you will need for custom made products?
- For logo custom made: 15-20days;
- For product custom made: 30-45 days;
3. How do I make payments?
- We support West union, T/T, aliaba trade assurance, fully protect your quality services.
4. How can I install my inverter for solar system?+
- You can install according to our guide book, or contact our technical support team with video or telephone guides.
5. Why you are always expensive than other suppliers?
- Firstly, for solar panel and battery, we choose our supplier strictly, so our price is not so cheap;
- Secondly, we are always do honest business with quality products and decent price;
- Thirdly, we can review more options for you with different prices for reference.
