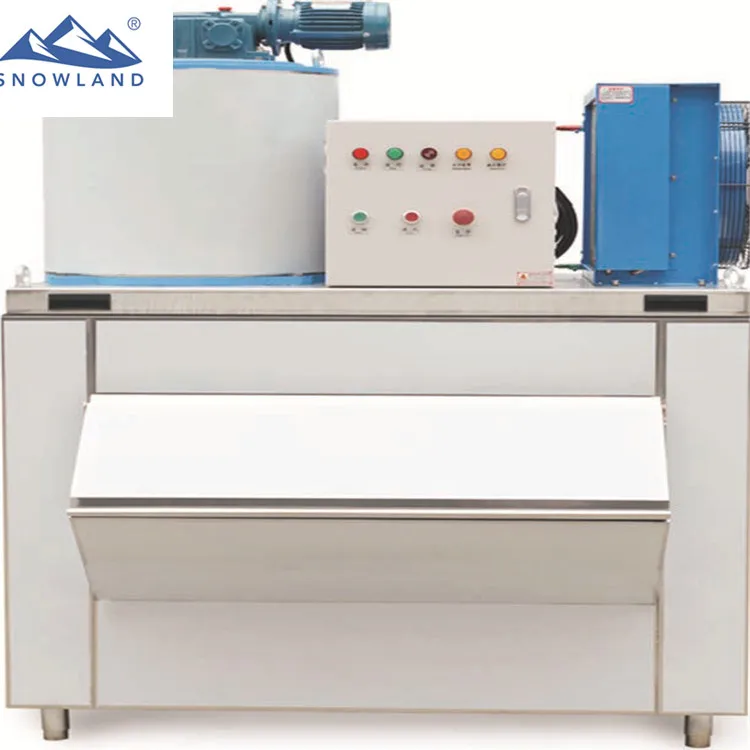

Фабрика/фабрика, льдогенератор чешуйчатого льда для рыбы с емкостью 1,5 т

Share on (60862766483):


Price:

Quantity:


Product Overview

Description


flake ice machine for fish

Product Description

Flake ice machine for fish Biref Description

High-Giant Cube Flake Ice machine is all over the places which need cube ice such as hotel, restaurant, pub, banquet hall, western-style restaurant,, seven-eleven and ice-cream parlor etc. To meet the needs of every customer. THe cube ice made by the Cube Flake Ice machine is crystal, clean and healthy. It is your first choice because of its high-effciency, safety, energy saving and eco-friendly.

Flake ice machine for fish meets the HACCP request, and the advanced workmanship and new technology makes high quality tube ice machine , you can always trust on. Rugged, heavy-duty design offers years of trouble-free operation .



Small freshwater ice flake machine parameters



 Model

 Output capacity

(Ton/day)

 Refrigerant

 Run Power

(Kw)

 Operating Weight

(Kg)

 Demention

(mm)

 Ice starage room volume

(KG)

 Ice storage room demention

(mm)

 XF-0.3T0.3 R4041.8 250900*900*700 150900*900*1000

 XF-0.4T

 0.4  R404 2.3  300 1200*900*700  300 1200*900*1000
 XF-0.5T 0.5  R404 2.4  380 1200*900*700  300 1200*900*1000
 XF-0.6T 0.6  R404 2.8  420 1200*900*700  300 1200*900*1000
 XF-0.8T 0.8  R404 3.5  500 1200*900*900  300 1200*900*1000
 XF-1.0T1.0 R4044.45501200*900*9003001200*900*1000
 XF-1.2T1.2 R4045.56001200*900*9004001200*900*1000
 XF-1.5T1.5 R4047.97001300*1100*10005001300*1100*1200
 XF-2.0T2.0 R4048.78501300*1100*11005001300*1100*1200
 XF-2.5T2.5 R4049.89501300*1100*12005001300*1100*1200
 XF-3.0T3.0 R40411.512001700*1400*130010001700*1400*1500



Flake ice machine for fish



 flake ice4

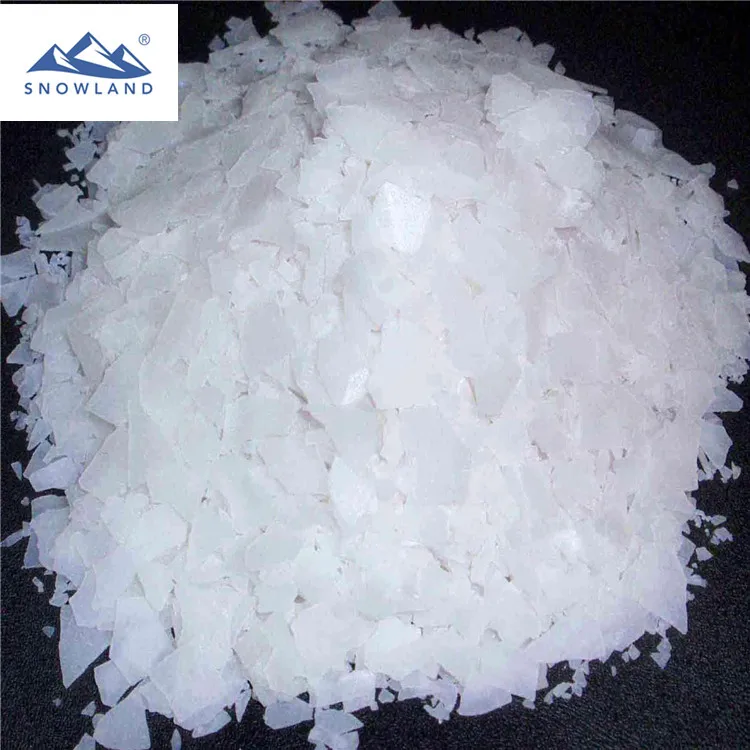

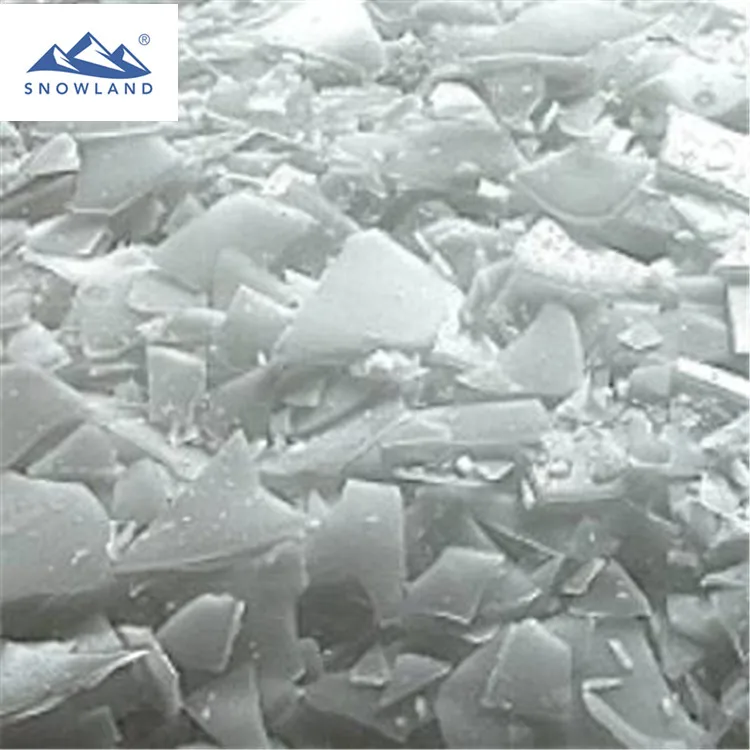

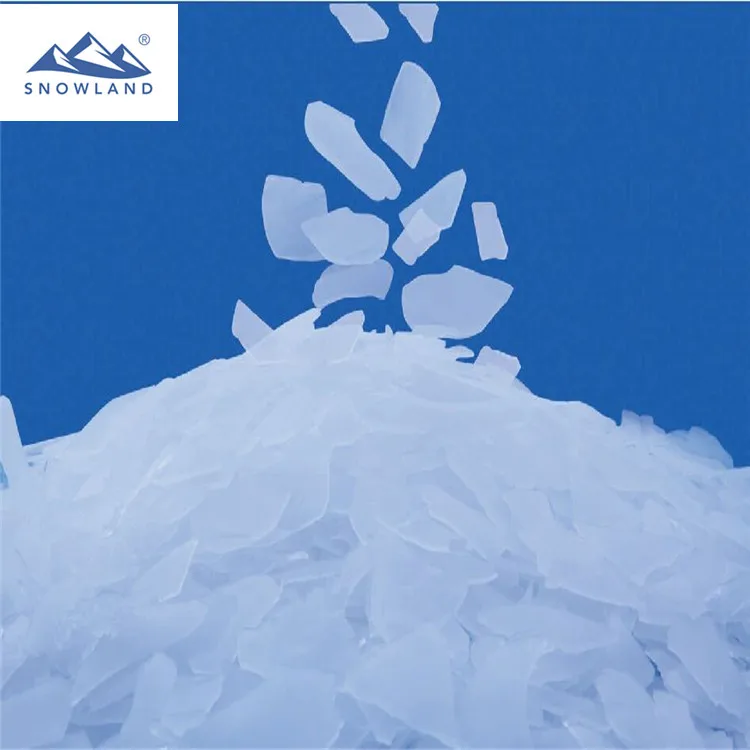

1. The temperature of ice is lower and it can reach 8 Celsius degree below zero

2. Ice is dry and transparent, good looking shape, non-caked, good mobility and sanitary.

3. It has the flake shape so that it has big contact area with refrigerating products and the effect is excellent.

4. Flake shape and no sharp edges, cannot destroy refrigerating products and it is beneficial for storage and transportation.

5. The thickness of flake ice is 1mm-2mm. No need to crush and can use at any time.

 flake ice machine25.jpg

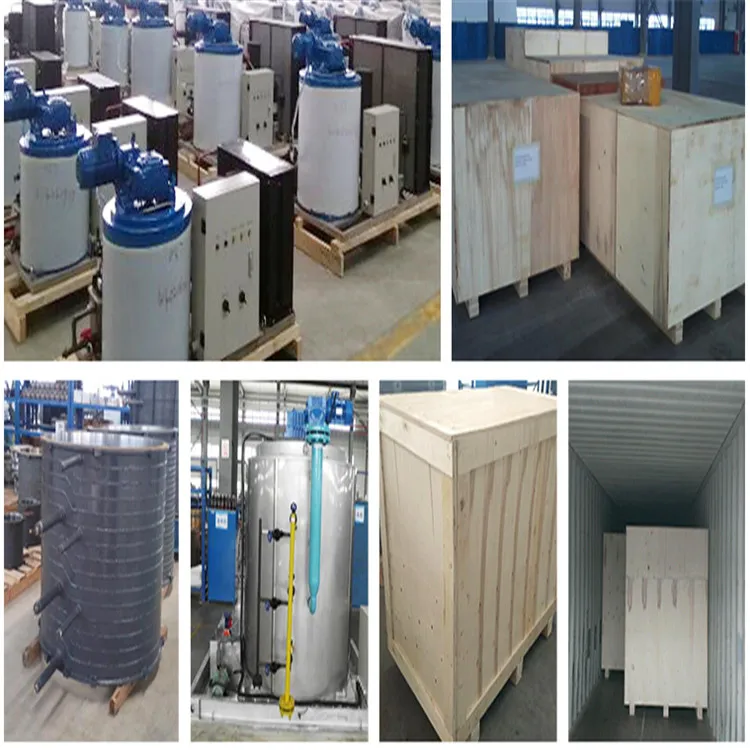

flake ice machine packing.jpg

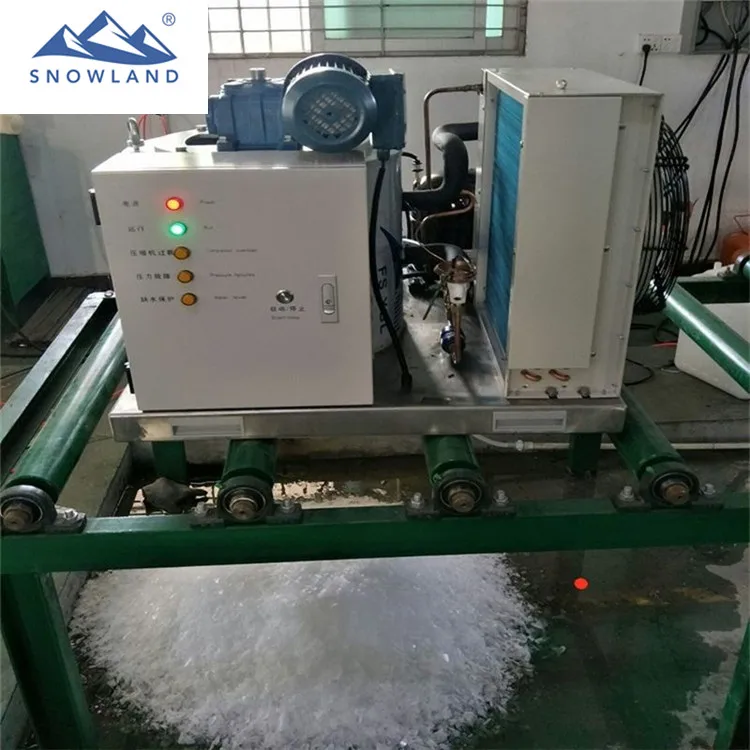

flake ice machine13.jpg

Flake Ice MachineFeatures:


1.Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant


2.Stainless steel materials , advanced processing equipment and heat treatment ensure the best heat transfer efficiency


3.The design of the large water receiving plate can prevent water leaking at the bottom of drum


4.Photoelectric switch is directly installed in bottom of evaporator


5.Direct liquid feeding and dry evaporation --simple , safe and reliable control


6.Integrated modular equipment installation is convenient for maintenance

Flake Ice MachineAdvantages:


1.Irregular ice flakes with size about 40 x 40 and thickness around 1.5-2.5 mm


2.The thin ice can be directly used for strring and mixing refrigerated materials


3.No acute edges and corners so it will not damage the surface of the cooled object ; Iceflakes are as cold as below -8 °C


4.Large contact area and good mobility can ensure their full contact with refrigerated objects to realize good preservation effect


5.Easy to crush and mold


6.The ice flake machine is small-sized , light and convenient for use anytime

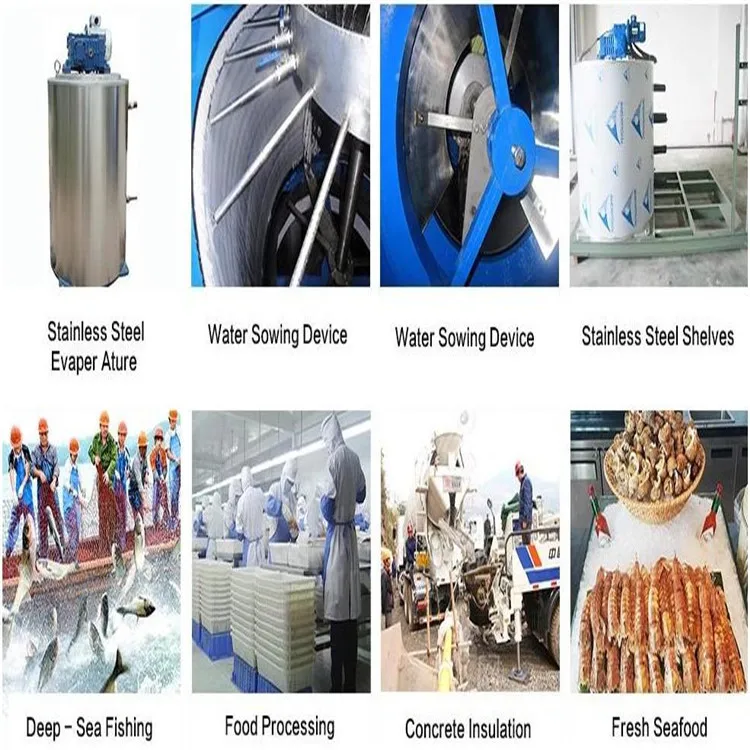

 timg (8)

flake ice4.jpg

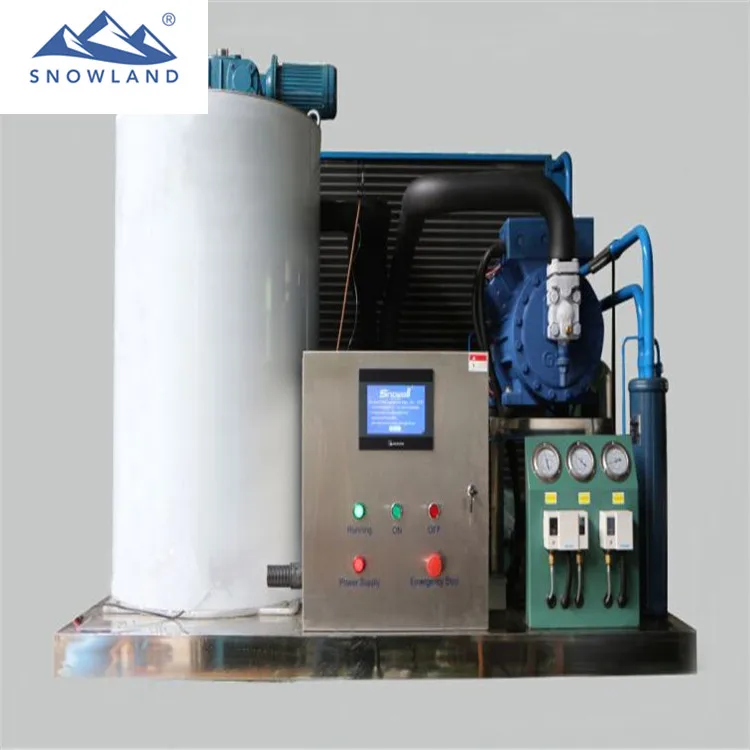

flake ice machine.jpgflake ice machine5.jpgflake ice machine19.jpgflake ice machine39.jpg

If you are interested in our products, please contact us. We would be very glad to be on service for you. As the most professional ice machine manufacture in China, we are pleased to do our best offer to open a good market for you. We are definitely to contact you within 3 days after getting your inquiry.



Our Services



1. Reply your enquire in 24 working hours.

2. Experienced staffs are able to answer all your questions in profesional and fluent English.

3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

4. Different kind of customized tube ice machines are available. All reasonable suggestions are welcome.

5. Overseas service center availale and engineers available to service machinary overseas.

6. Supply the flake ice machine of high quality.

Packaging & Shipping

1. Standard wooden case.
2. Completely ice machine contain: machine, cover,cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for installing the machine will be provided.
5. Our factory also can produce cold room for store ice.


Other :


1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
3. The delivery time normally is 30 days after receive the deposit.

Attention:

The price is for reference only, do not do the actual transaction.

Our prices are based on customer's specific requirements,so the specific amount should be addressed by further discussion.

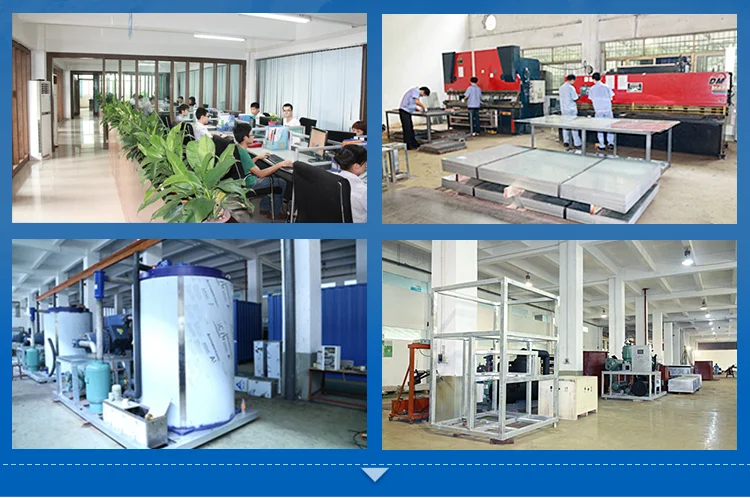

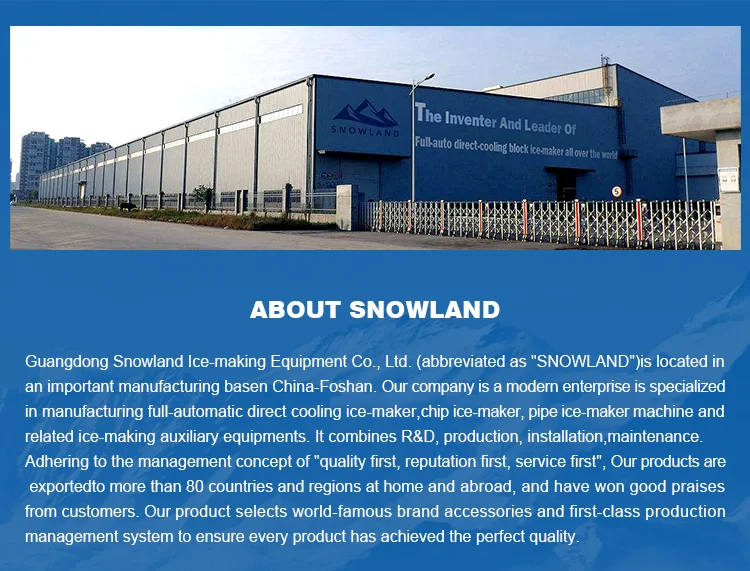

Company Profile


FAQ



FAQ:Why should choose us?

1. Cheaper price - more competitive.

2. Longer warranty period - 12 months.

3. Faster delivery speed and more on time.

4. Superior after-sales service guarantee.

5. More stringent quality assurance than foreign trade company.
