Professional best quality charcoal briquette molding machine
Product Description
Simple introduction of charcoal briquette molding machine
1. In order to ensure the good quality and mechanical strength of the final product, special care should be taken to ensure that the granule size fed to the machine is maintained below 3mm, preferable in the range of 30-40% small than 1-2 mm, with no more than 10% over 2mm.
2. This machine design for high moisture material, some material can not dehydrate or dehydration with high-cost, and must form balling. Our technical personnel developed special briquette machine for raw material with 15-20% moisture.
Products Principle
Operating principle of charcoal briquette molding machine:
The type of coal charcoal briquette molding machine have two larger rollers in a fixed position in the frame and the other two smaller rollers are moveable. Coal charcoal briquette molding machine can supply higher pressure and higher density during production of briquettes, so the briquettes are stronger and in higher density, also the surface is smoother.
Technical Parameter
Technical parameter of coal charcoal briquette molding machine:
Model
Performance
ZZXM-4
ZZXM-6
ZZXM-8
ZZXM-10
ZZXM-15
ZZXM-20
ZZXM-30
ZZXM-40
Output(t/h)
3~4
6
8
10
15
20
30
40
Rollerwidth(mm)
250
240
220
300
336
400/500
500
700
Rollerdiameter(m)
360
400
450
500
650
750
850
1000
Power(KW)
7.5-11
11-15
15-18.5
18.5-30
22-45
30-55
55-90
90-110
Rotaryspeedofmainspindle(r/min)
18
15
15
12
12
11
10
10
Products Structures
Features of coal charcoal briquette molding machine:

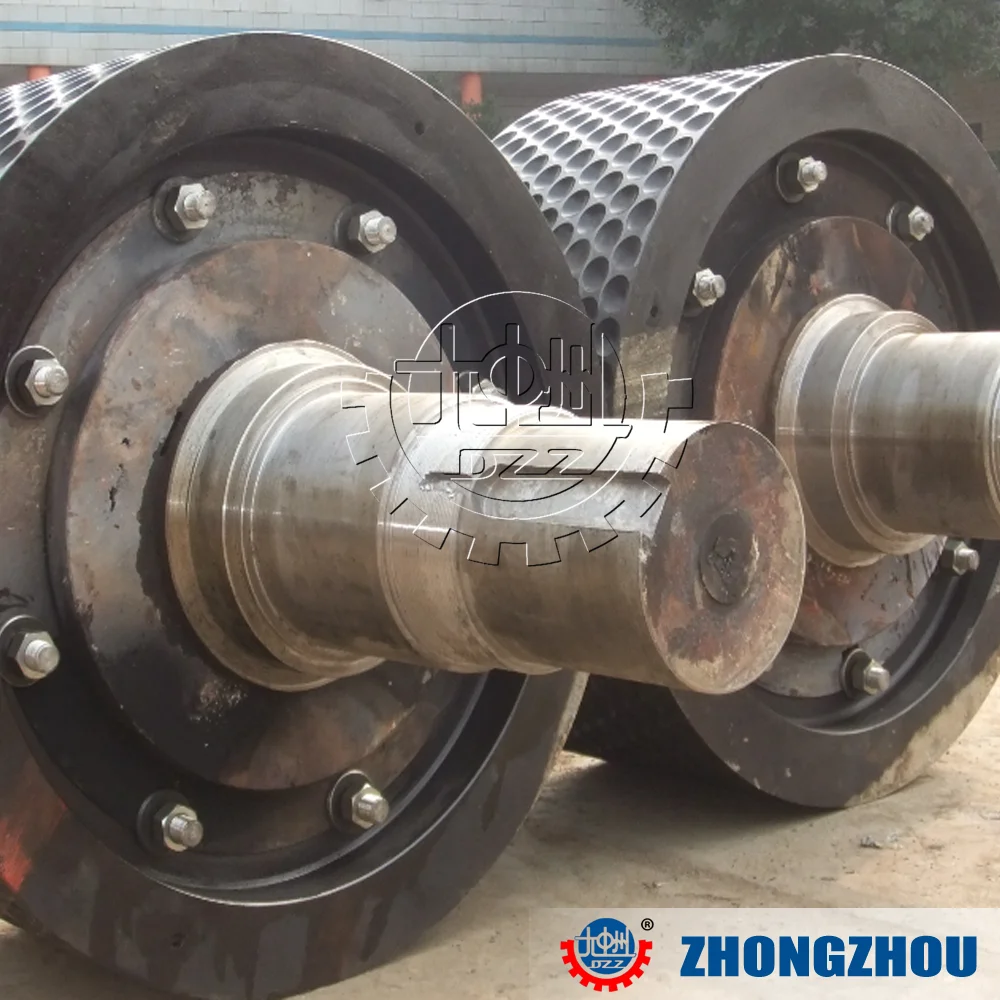

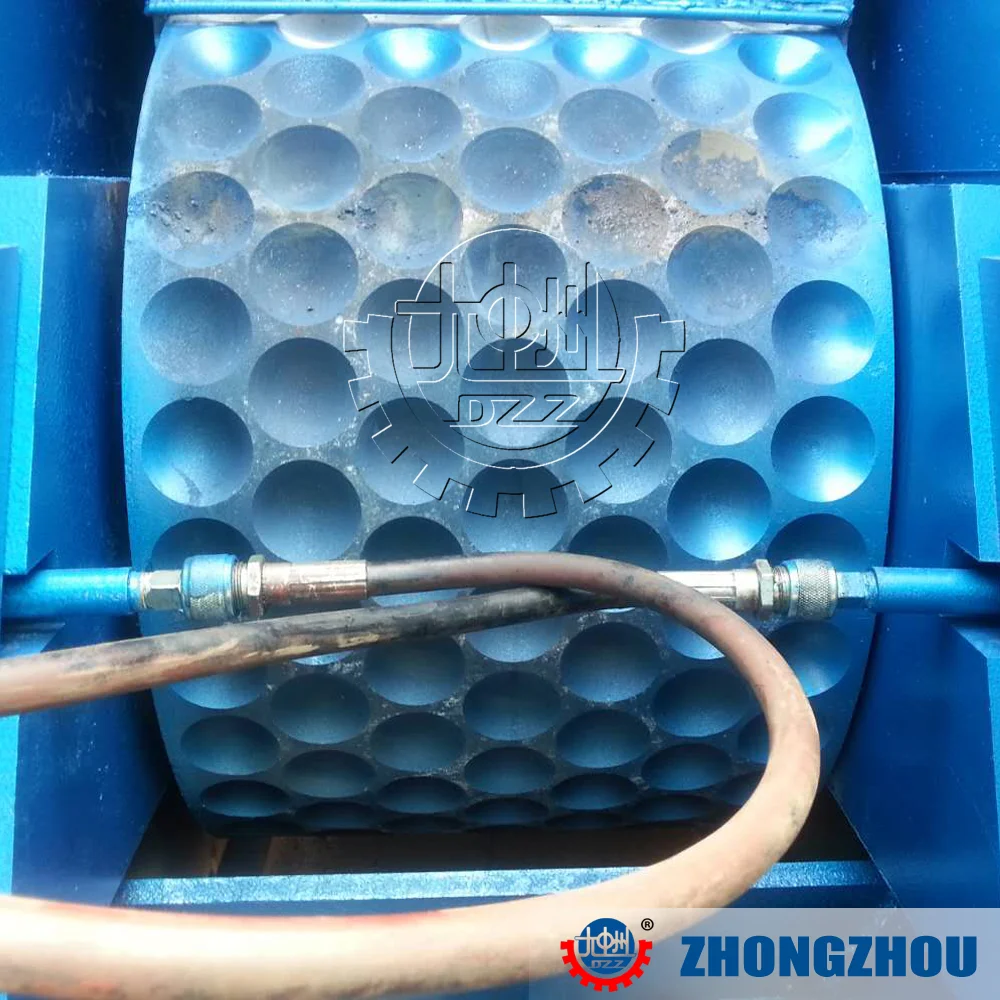

The coal charcoal briquette molding machine can press all kinds of mineral powder, metal powder, coal powder, coke powder and other materials to make them molded. Because of the mandatory squeeze rollers, so the products have the three high characteristics: high density, high strength, high hardness, Because of the mandatory squeeze rollers, so the products have high density, high strength, high hardness, and the local roll is used in 65Mn hard materials with good wear resistance. Effectively improve the life of a roll.

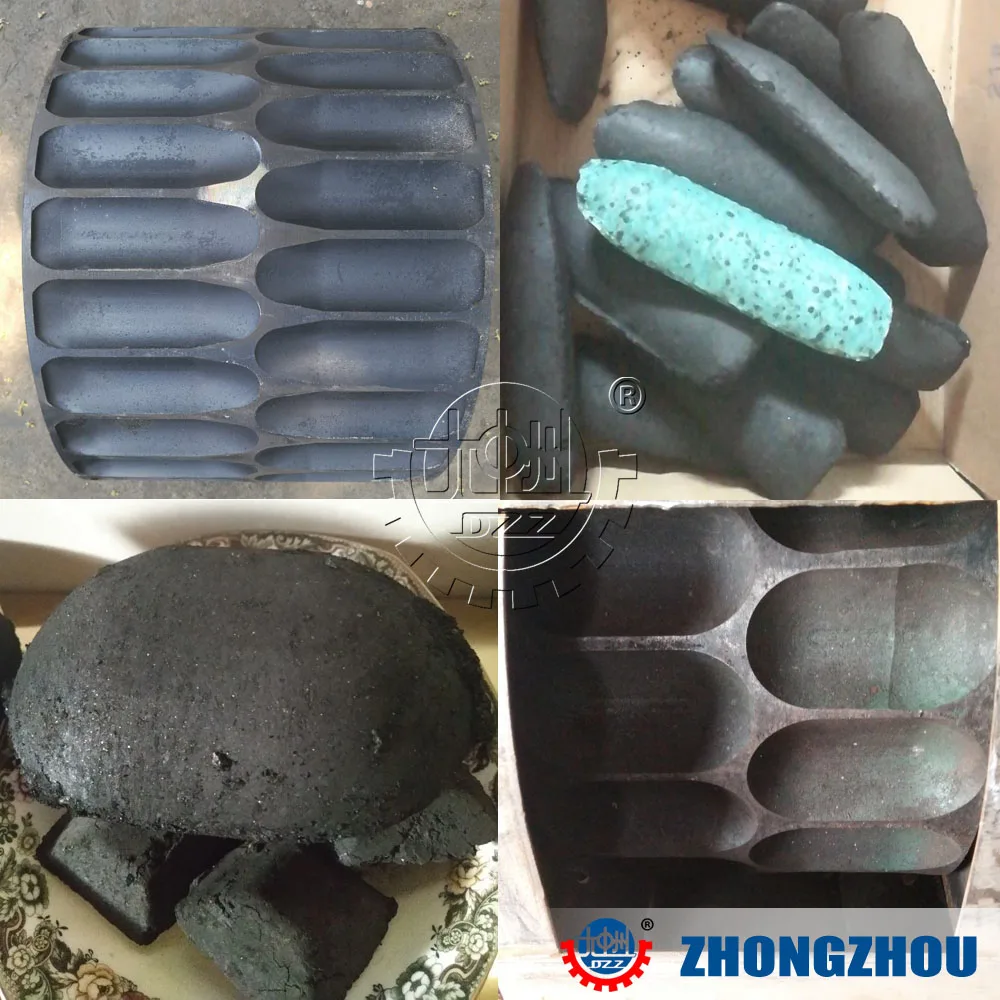

Final Shapes

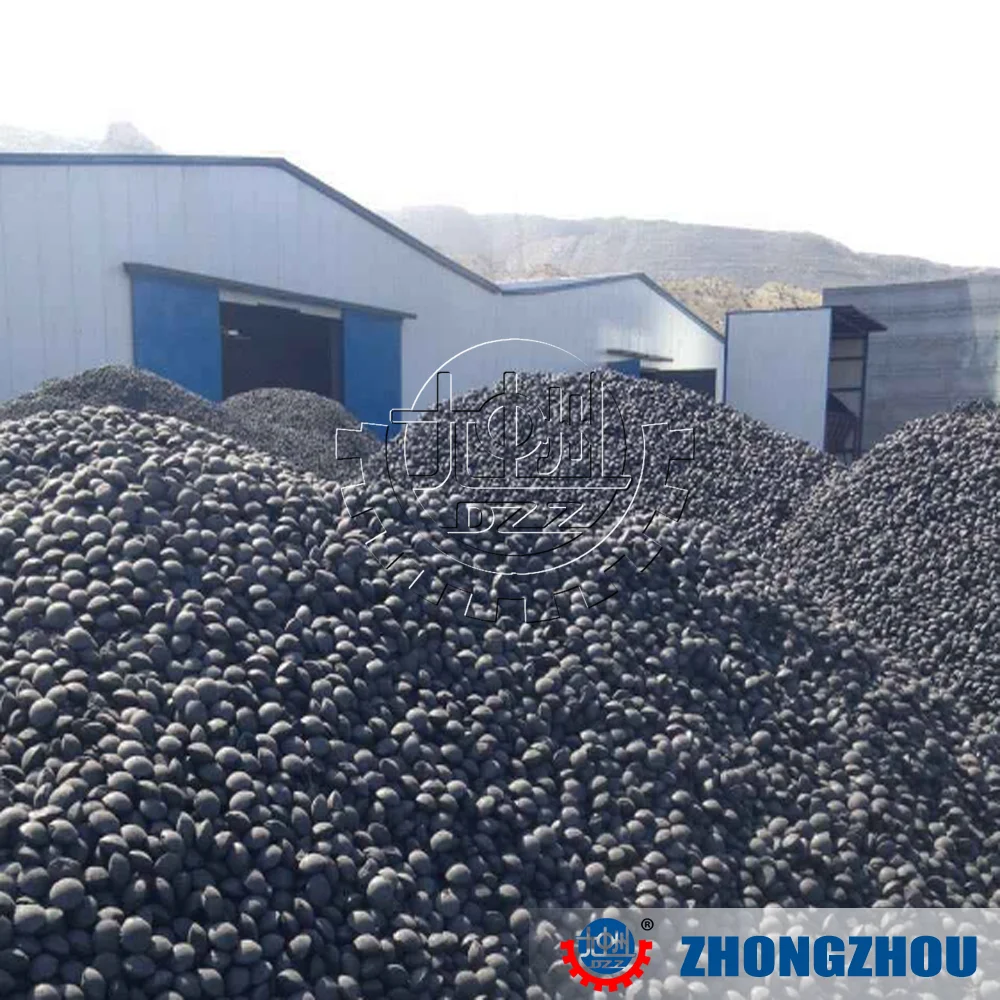

Final products of coal charcoal briquette molding machine
Coal charcoal briquette molding machine is mainly used in the pulverized coal, coal slurry,coking coal, coke powder,coke and metallurgical powder at the end of the cold press pellet and powder material ball building block.It can produce square, spherical, elliptic, goose egg, circular, column type, strip, bread, pillow type and other special shapes.
If you are interested in our coal ball press machine, welcome your inquiry and your visiting to our factory. We will offer you our much experience on materials briquettes production project.
