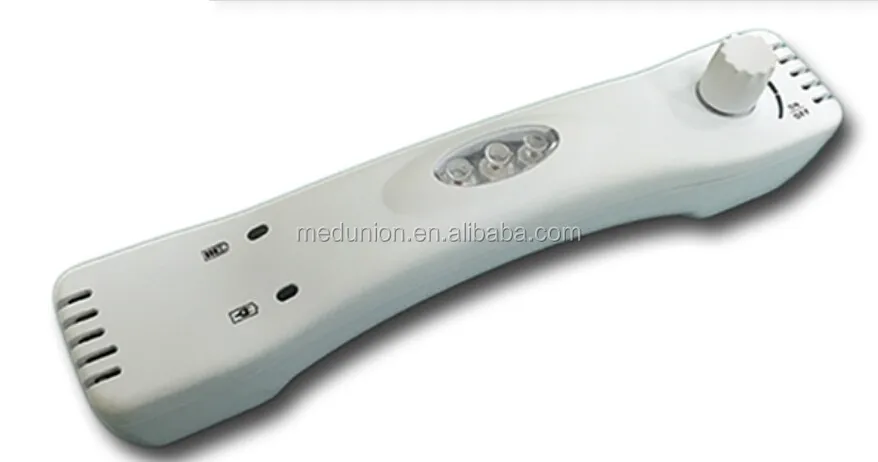

MSL 261 Portable handheld pocket infrared vein finder/ vein viewer for locating the vascular position

[Product Name]Vein transilluminator


[Structure]Vein transilluminator includes shell, LED bulb, rotary switch, socket, charger and so on.

[Intended Application]Finding subcutaneous veins.

[Operating Principle]The reflecting and absorbing difference on light between blood and tissues. When light penetrates the human tissue, use the feature that superficial vein is light-proof of the image to distinguish in its position, shape and other organizations.

[Technical Parameter]
Working Voltage: 7.0V~8.4V
Working Current: 0.98A~1.5A
Illuminance: 100000lux~600000lux

[Method of Application]
1. Turn on the rotary switch.

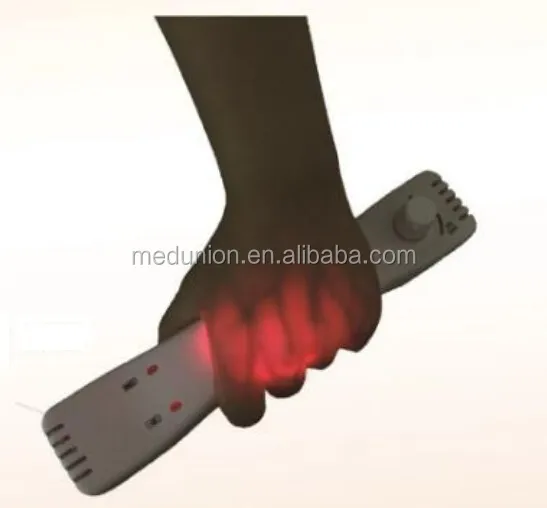

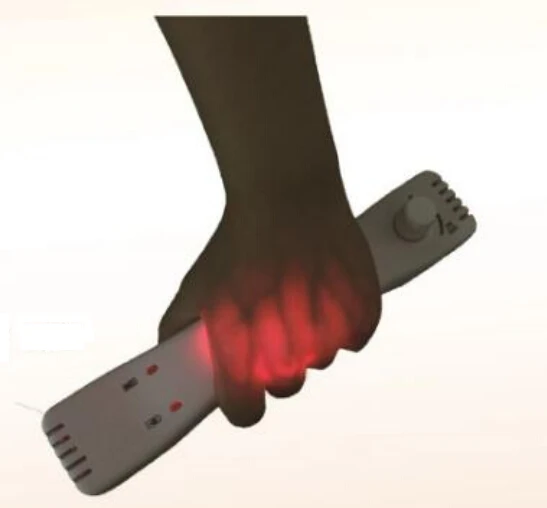

2. The vein finder sends light when aim the palm at the light bulb.
3. Rotate the rotary switch, adjust the strength of light, the veins are visible to the surrounding dark blood vessels.
4. After vein puncture, turn off the rotary switch.
