Flux cored welding wire cassette drawing machine

Product Overview

Description

Flux Cored Welding Wire Cassette Drawing Machine



1, General description

The Flux-cored Welding Wire Production Line is mainly used for shaping, flux filling, sealing and drawing the tubes according to customer’s requirements. The line starts from decoiling of steel strip with various dimensions, through cleaning system, forming system, drawing system and final drawn welding wires are collected in coils with specific weight.

1.1 Standard configuration of line:

---Steel strip decoiling device

---Ultrasonic cleaning system

---Cold shaping station with motorized rollers

---Flux powder station for filling into tube

---Tube closing station with motorized rollers

---Multiple blocks drawing machine with rolling cassettes or rotating die box

---Layer rewinder for specific weight wire coil

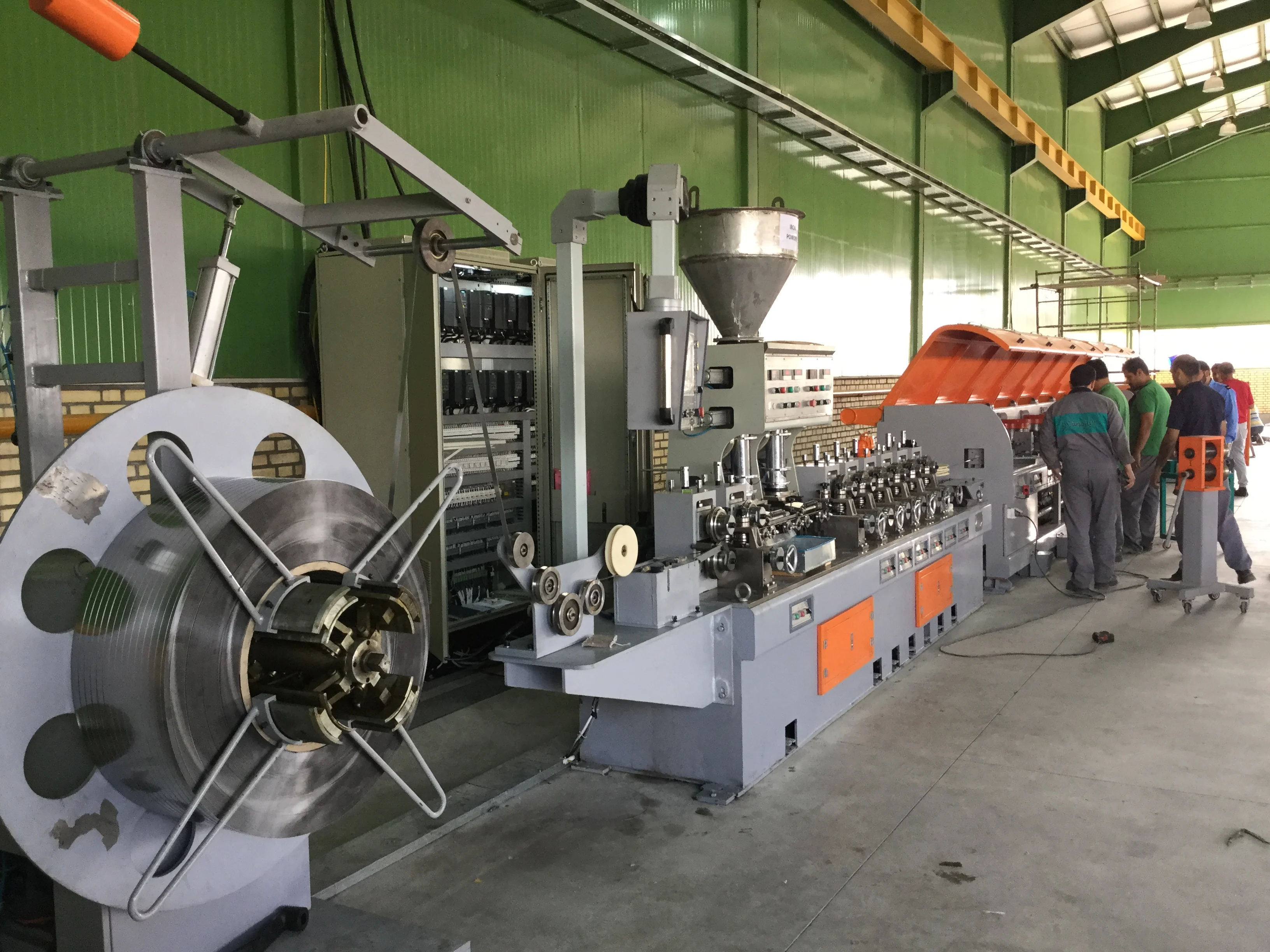

1.2 Photos & Video link of production line:

---Video link:

https://v.youku.com/v_show/id_XMzY3NTY4NjM4OA==.html?spm=a2h3j.8428770.3416059.1



2, Main specifications

Steel strip material	Low carbon
Steel strip width	8-18mm
Steel tape thickness	0.3-1.0mm
Feeding speed	70-100m/min
Flux filling accuracy	±0.5%
Final drawn wire size	1.0-1.6mm
Drawing line speed	Max. 20m/s
Motor/PLC/Electrical elements	SIEMENS/ABB

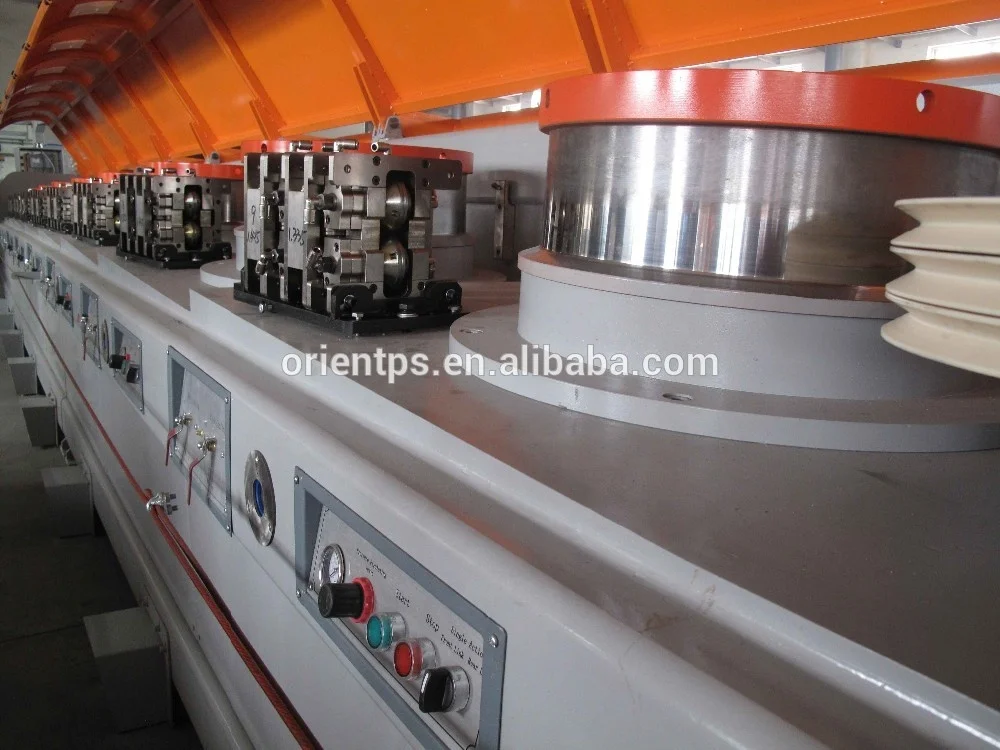

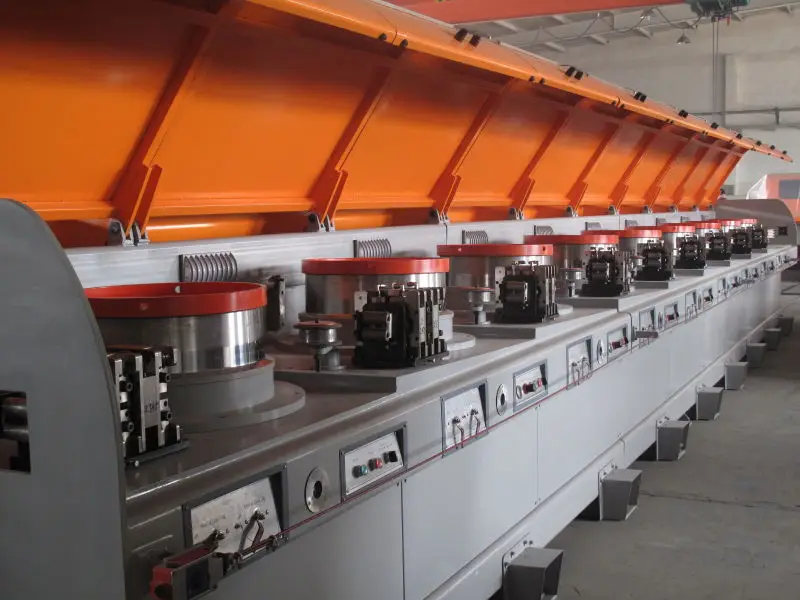

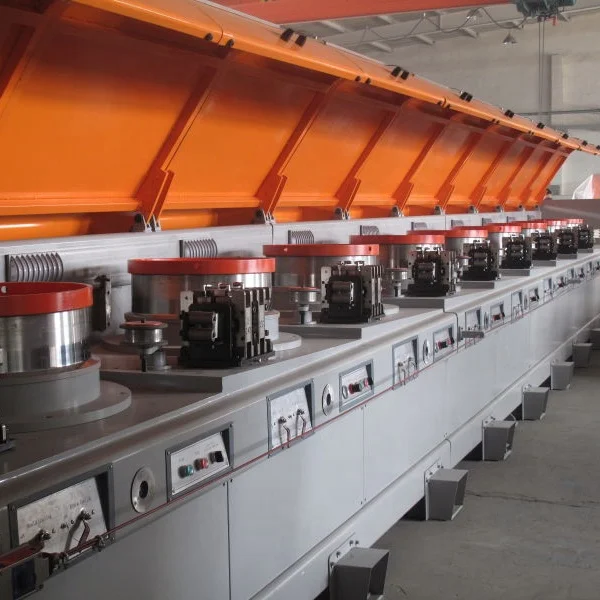

3, Main photos





Should have any interests, please do not hesitate to contact with us!
