noise reduce 220v 3ph sine wave filters for frequency converter

Specification

1. Motor frequency inverter is a kind of special inverter, generally uses SPWM modulation mode, used to drive special frequency asynchronous motor, commonly used relatively close distance (motor cable less than 100 meters).
2. When motor cable is too longer (more than 100 meters), the motor will produce high du/dt, which will damage moto insulation, cause coil breakdown aging, core loss increase, still can cause bearing heating serious, reduce motor life or damage, even can burned motor in heavily situation. So user must choose sine wave filter to slove this problem.

Contructure Feature

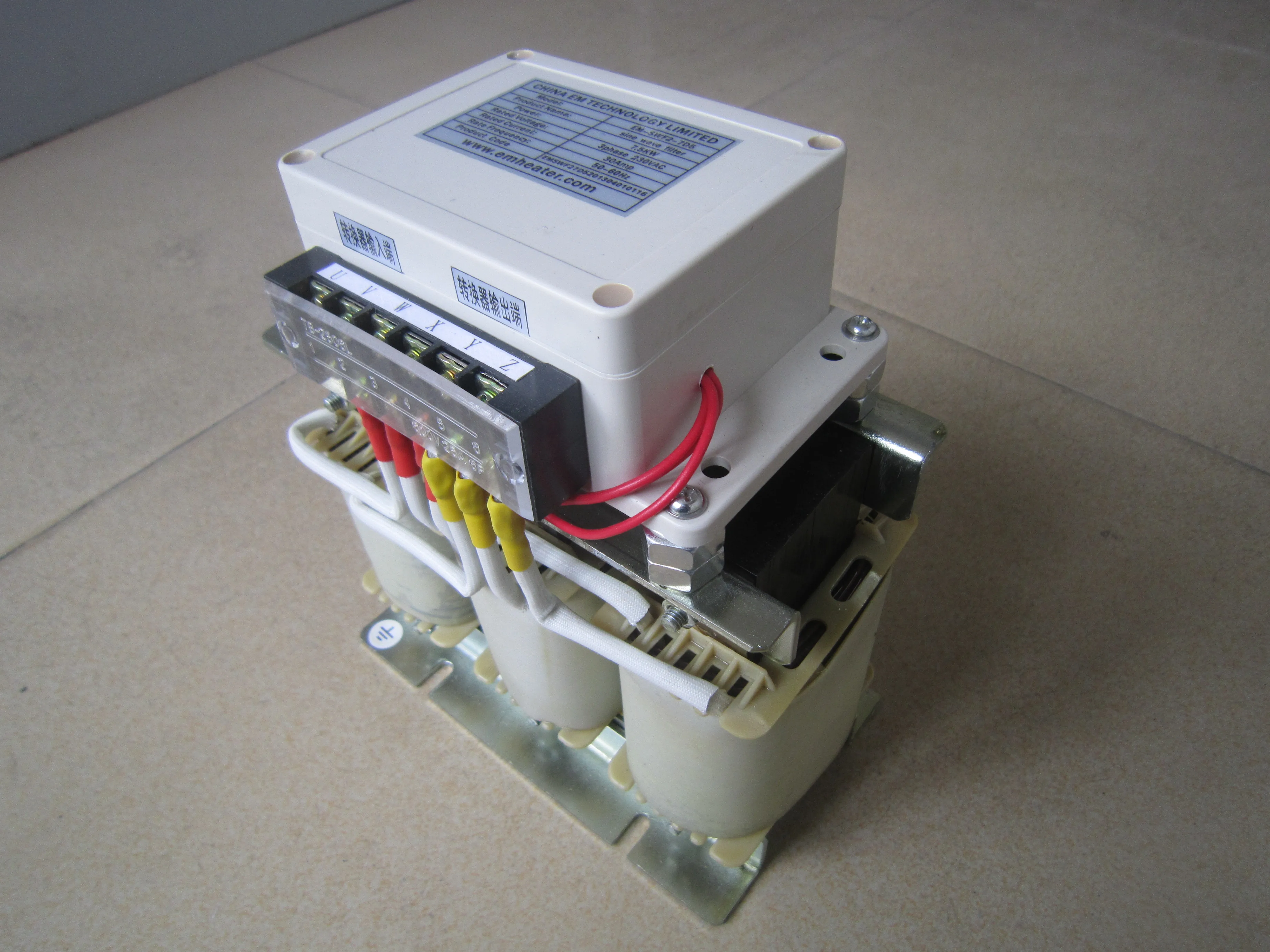

My company produces the EM-SWF series sine wave filter adopting trait reactor, having professional filter capacitor and power resistor, reasonable structure, waveform distortion is small, small loss and low noise characteristics, can match with all brands frequency inverter and match many sets of machines, such as wind power, oil field, water and electricity, metallurgy, etc.

Electrical Feature
1. To converse SPWM voltage current waveform of frequency inverter to approximate sine wave waveform(For the line load feature, the COS is greater than 0. 3 and T H D is less than 5%);
2. Protect motor insulation system, reduce bearing current, prolong service life, and reduce motor noise;
3. With general asynchronous motor can replace frequency induction motor use;
4. Effectively restrain the high frequency loss and RF radiation interference, in certain occasions without to use a shielded cable, lowering the field Cable quirements;
5. Cable between motor and frequency inverter can extend to 500 meters, the longest can reach 3000 meters above;
6. We have 220 V \\ 380 V \\ 440V\\ 690V \\ 1140V three phase variable frequency drive system;
7. Suitable motor and inverter power range: 0. 4KW - 1600 KW;
8. Suitable frequency inverter output carrier frequency range: 1.5-16 KHz;
9. Basic frequency range: 0 to 400 Hz (above 50Hz order must tell us when order);
10. Driving load forms: asynchronous motor (After special design can use for EPS \\ UPS and the surrounding power supply system);
11. Heat resistant level: F grade (for reactor part);
12. Protection level: IP 20

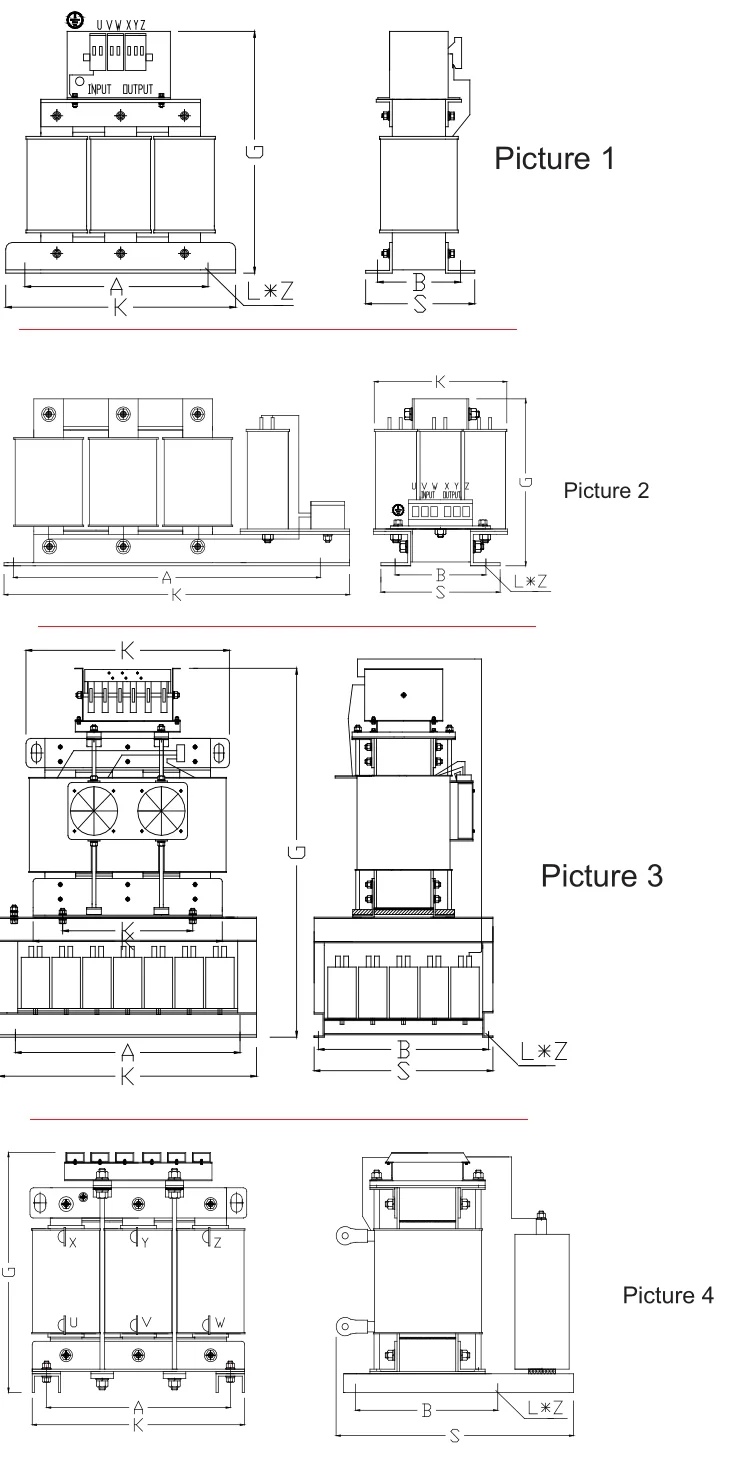

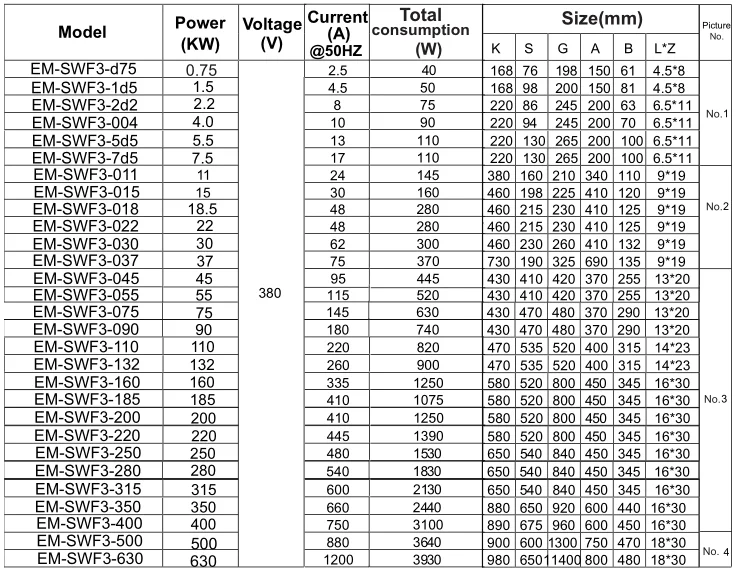

Effect Diagram

1.EM12 series Frequency Inverter vector control . (220V~690V:0.75KW~630KW).
2.EM12-SP series solar pump inverter. (220V~690V:0.75KW~630KW).
3.EM-GJ/GS series soft starter, (220V/380V~480/690V:5.5KW~ 600KW).

4.EM-GW series online soft starter 380V up to 525V on power range from 11KW to 600KW. Directly run AC motor. LCD display screen.

5.EM-GB series built-in bypass soft starter on 380V from 5.5KW to 400KW. Directly run AC motor. LCD display screen.

6.EM-GS series soft starter on 220V up to 690V from 5.5KW to 650KW. LCD display screen.

7.EM-HS series high voltage soft starter on 6KV to 10KV from 220KW to 11500KW.

8.EMA to EMD series servo motor drive system, (220~380V;0.2~22KW).

9.Resistor

10.Input / Output AC Choke

11.Input / Output EMC Filter

And relative accessories(filter:choke:resistor).

Frequency inverter Online Soft Starter By-pass Soft Starter Sine Wave filter Aluminum resistor Servo Motor Brake unit Braking Resistor

 √  Best Quality & Best Service with Competitive price.

 √  We are China Leading Frequency Inverter  & Soft Starter Manufacturer.

 √  Free Online technial guidian and support.

 √  Alibaba Assessed Gold Supplier.

 √  We provide 18 months Warranty time.

 √  Within warranty time, we could replace new goods or free spare parts.

 √  100% QC inspection before shipment.

 √  After 18 months, we also provide component with material cost.

EMHEATER has been making effort in drive and control field!
EMHEATER has been adhering competitive price for customers!

EMHEATER has been taking care of developing together with partners!

We have 6 factories and more than 820 staff. As a professional manufacturer of industrial automation products, we are always dedicated to soft starter, frequency inverter, servo motor and drive, EMI filters, harmonic wave AC choke, sine wave filter, brake units and resistor. In the year of 2008, EMHEATER Group does have established “China EM Technology Limited” to cultivate oversea market.
