Automatic grease lubrication system pump
- Category: >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (60864476828):
Product Overview
Description
Product Description
Automatic lubrication systems dispense the right amount of grease to all critical lubrication points at the right time while machinery is in motion. Traditional manual lubrication methods, while offering a lower cost, have a tendency to either under or over lubricate due to human error.
Lubrication pump is the key part of centralized lubrication system.

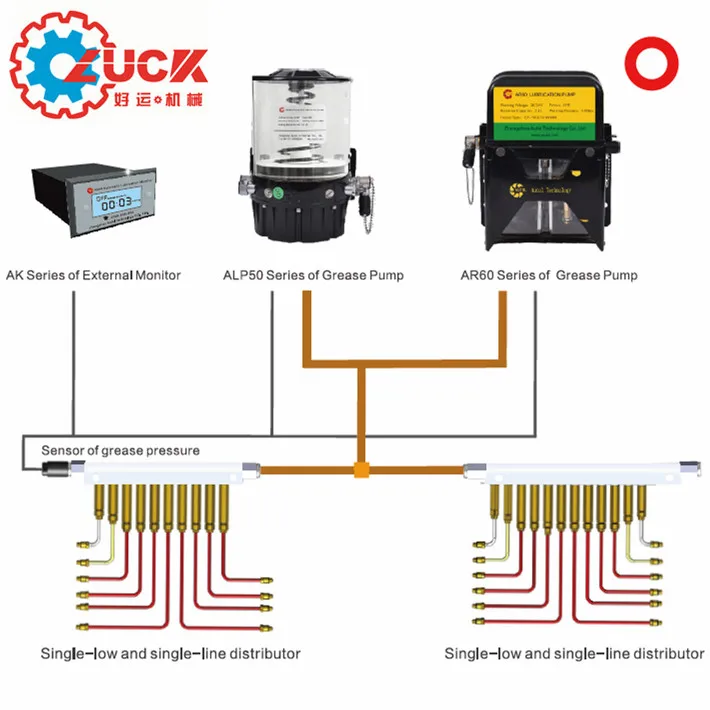

ALP50 Series grease lubricaion system pump
| Model | Monitor | Normal flow | Max. operate pressure | Capacity | Motor | Grease | Suitable Temperature |
| ALP502 | External | 55ml/min | 4.5MPa | 2L | DC24V/20W | 0#,00#,000# | -40℃~70℃ |
AR60 Series grease lubricaion system pump
| Model | Monitor | Normal flow | Max. operate pressure | Capacity | Motor | Grease | Suitable Temperature |
| AR60 | External | 55ml/min | 3.8MPa | 2L | 20W 12V/24V | 00#,000# | -20℃~70℃ |
| Model | Monitor | Normal flow | Max. operate pressure | Capacity | Motor | Grease | Suitable Temperature |
AR60H AR60HL | External | 55ml/min | 4.5MPa | 2L | DC24V/20W | 0#,00#,000# | -40℃~70℃ |

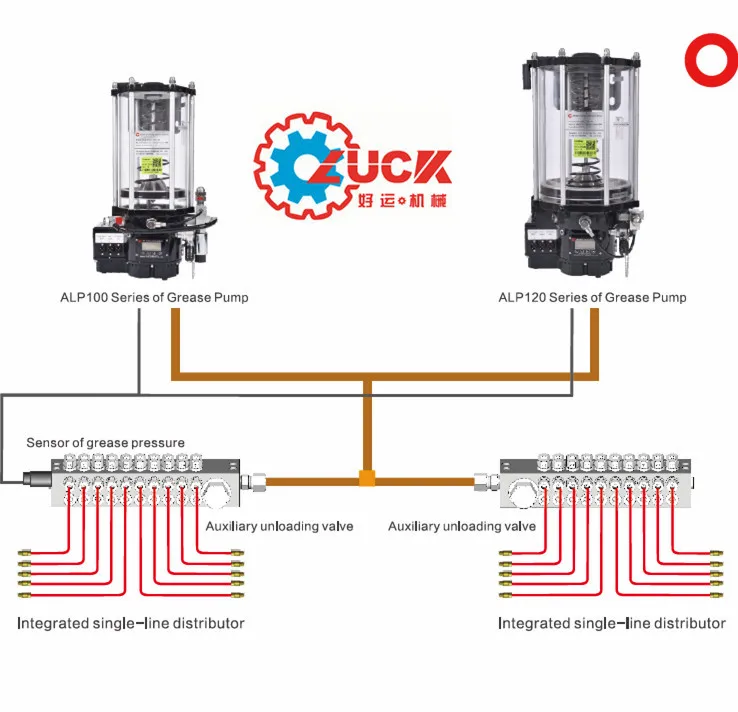

ALP80/100/120 Series grease lubricaion system pump
This series is suitable for NLGI-0#,1#,2#, 24VDC 30W, normal flow 2-5ml/min, 35MPa, external/built-in monitor
ALP30 Series grease lubrication pump
This series is suitable for NLGI-000#~2#, motor is 24V/4W, pressure 12MPa, external monitor

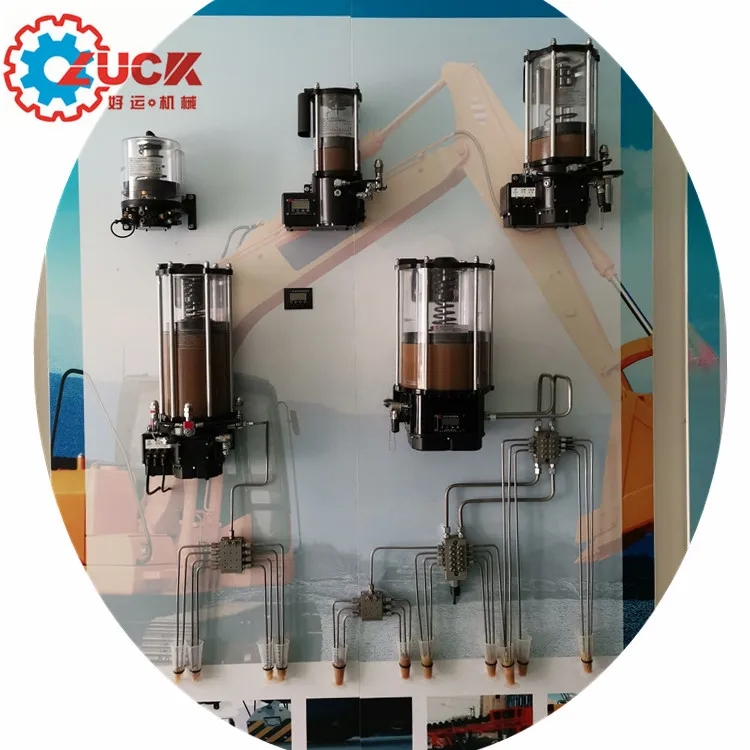

Lubrication pump pictures for reference
Company Information
Freeing you from worries.
We will offer training service free of charge, teach customer how to use, installation, maintenance, offer spare parts freely within warranty.
Welcome you to our company for training, and we are also OK to go to customer side for proceed training.
In 2015, We setted up Lubmann GmbH Research Institute for Lubrication in Germany, one of the eight major industrial countries in the world.
So far, we markets covers more than 30 countries and regions such as USA, germany, Russia, France, Japan, India, South Africa., Etc.
Our CLS(Centralized Lubrication System) is mainly used on below 3 industry:
1. Construction machienry (excavator, wheel loader, crane, truck, etc.)
2. Commercial vehicle
3. Wind turbine
Also used on wharf, port, woodworking, food machine, etc.
We have:
1. Integrated single-line CLS
2. Single row and single-line CLS
3. Dual line CLS
4. Multi-point CLS
5. Progressive CLS
We are located in Zhengzhou, Henan, China, Near Zhengzhou airport, Zhengzhou train station, Welcome your visit. Here are our partner.
